Atrio New

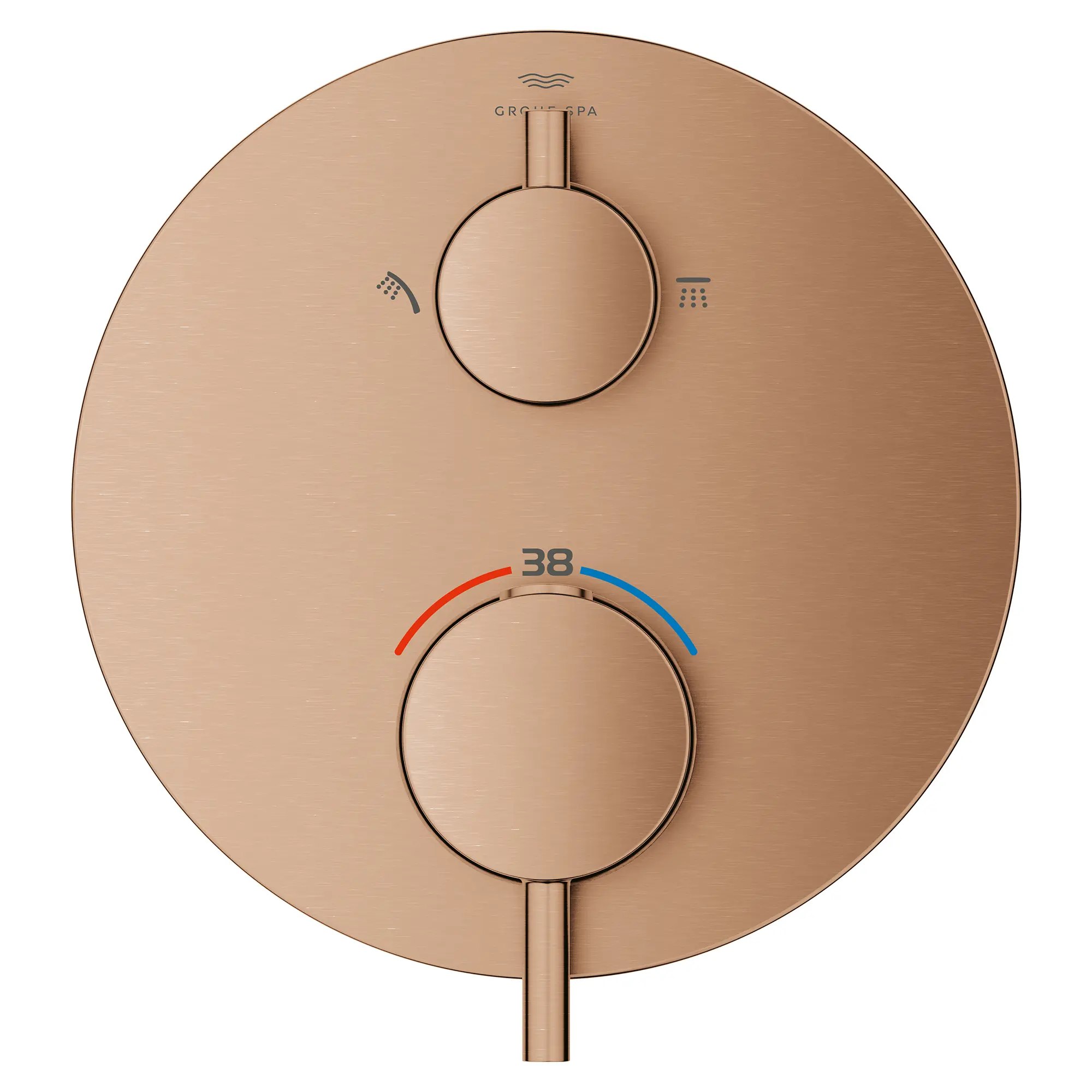

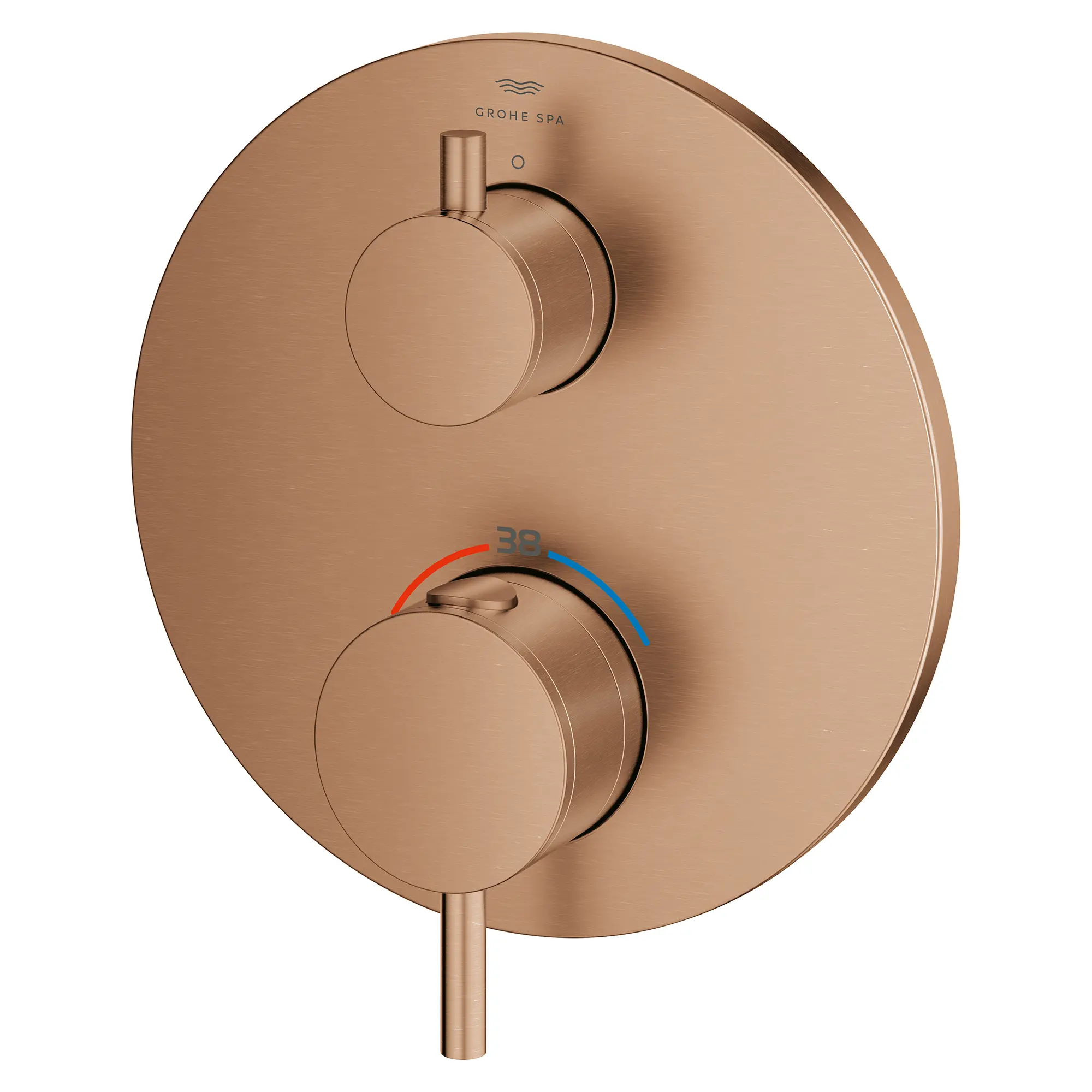

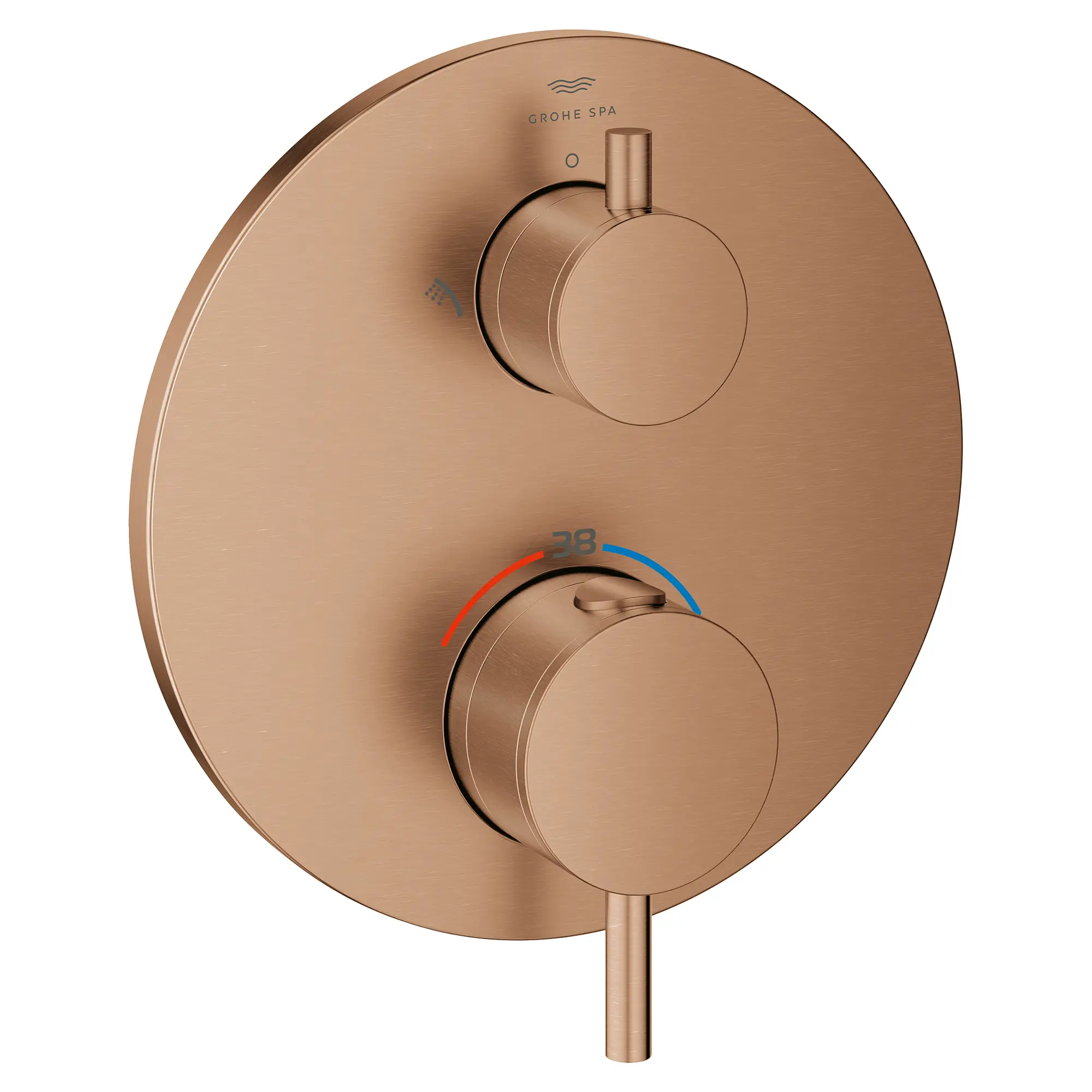

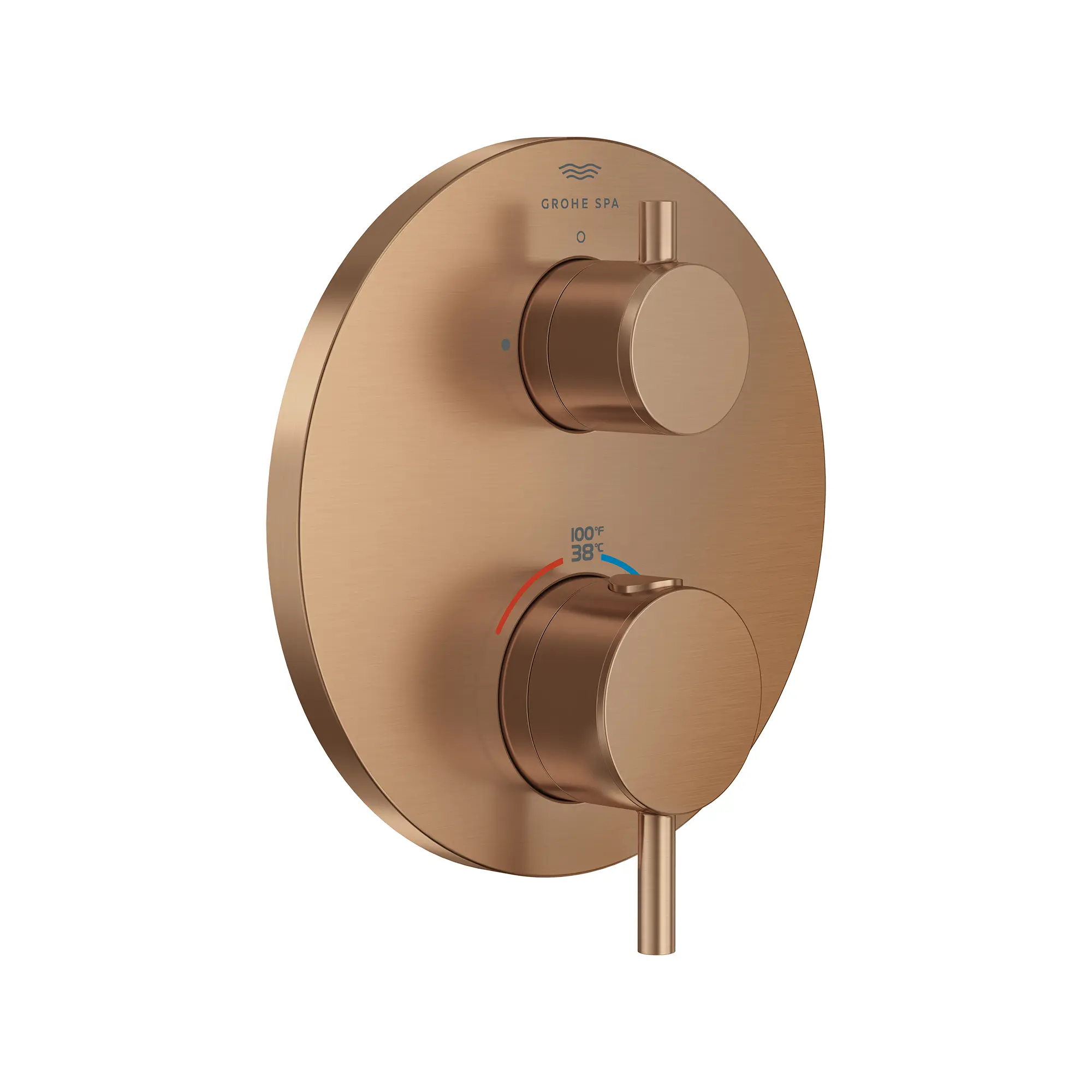

Atrio Single Function 2-Handle Thermostatic Valve Trim

Elevate your shower into a haven of well-being with the GROHE SPA GrohTherm Atrio Single Function Thermostatic Shower Valve Trim. Defined by its clean, sophisticated style, this trim set brings a hint of elegance to the luxury bathroom. Engineered for total relaxation, it offers intuitive operation through two handles: one for effortless volume control and on/off, and one for consistent, stable temperature regulation. More than a simple control, this trim is a centerpiece of spa-like indulgence, designed to ensure your shower experience is safe, serene, and perfectly tailored to your comfort.

Brushed Warm Sunset 24360DL0 DISCONTINUED
List Price: $1,460.00
ADA Compliant Enjoy More Rewards LIXIL Select
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Indulgent spa aesthetic: Transform your bathroom with this sleek design that transforms your shower space into a curated, high-end environment
  • Consistent shower temperature: The anti-scald luxury trim features GROHE TurboStat technology that balances fluctuations in the water supply to constantly maintain the desired shower temperature
  • Intuitive shower control: The dual-handle system simplifies your shower ritual; use the upper handle for precise volume management and on/off functionality, while the lower handle provides reliable, gradual temperature control
  • Advanced safety features: Designed with your family’s well-being in mind, the GROHE SafeStop safety button prevents accidental scalding by setting a temperature limit at 100°F/38°C, providing total peace of mind
  • Built to last: Engineered with high-quality metal, the handles and escutcheon are finished with the GROHE LongLife surface, a hard-wearing, multilayered coating engineered for unbeatable durability, offering superior resistance to scratches and tarnish
  • Streamlined installation: Engineered with the GROHE FastFixation system, this trim ensures a professional, flush-mount appearance with concealed screws for an uncluttered, minimalist finish
  • Installation note: Requires the Rapido SmartBox (35601) sold separately
Technical Features
  • GROHE LongLife finish
  • GROHE TurboStat compact cartridge with wax thermoelement
  • Thermostatic temperature control with GROHE SafeStop safety button at 100°F/38°C
  • GROHE SafeStop Plus temperature limiter at 115° F/46° C
  • Volume control with ceramic disc stop valve, 120°
  • 6 1/4" Metal wall trim plate with GROHE FastFixation (concealed mounting screws)
  • Metal trim angle adjustable up to 6°
  • Upper handle includes integrated volume control and On/Off
  • ADA compliant metal lever handles
  • Includes service stops,7.1gpm at 45psi,Requires GROHE Rapido SmartBox (35 601) (sold separately)
Description
Net Weight
SKU
Color
List Price USD
Atrio Single Function 2-Handle Thermostatic Valve Trim
0 lb (0.0 kg)
24360DL0
Brushed Warm Sunset (GDL)
1460
24360000
Chrome (G00)
1007
243602430
Matte Black (243)
1359
24360A00
Hard Graphite (GA0)
1460
24360AL0
Brushed Hard Graphite (GAL)
1460
24360EN0
Brushed Nickel (GEN)
1359
24360GN0
Brushed Cool Sunrise (GGN)
1460
Required Components (Not Included)
"Rapido Smartbox Universal Rough-In Box"
4 lb (1.8 kg)
35601000
No Finish
194
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE SPA
Category: Thermostats
Color / Finish: Brushed Warm Sunset
Collections: Atrio New
Fitting Material: Zinc,Metal/Plastic
Number of Handles: 2
Hardware Included: Yes
LIXIL Select: Yes
Height: 176
Length: 43
Width: 158
Residential or Commercial: Residential
Subcategory: Thermostats Trim
Temperature Control: Yes
Valve Type: Thermostatic & Volume Control
Volume Control: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Installation Instructions

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
