Atrio New

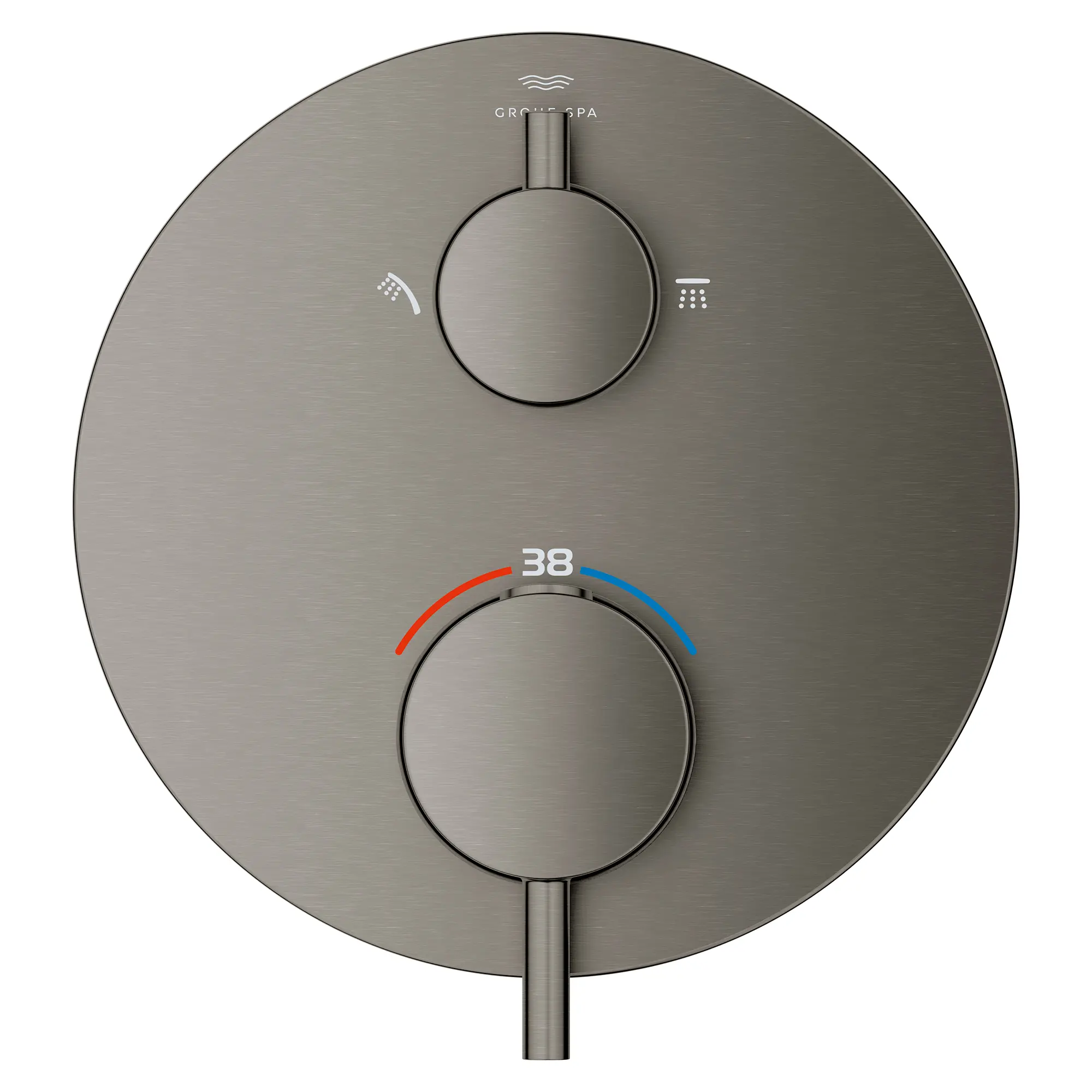

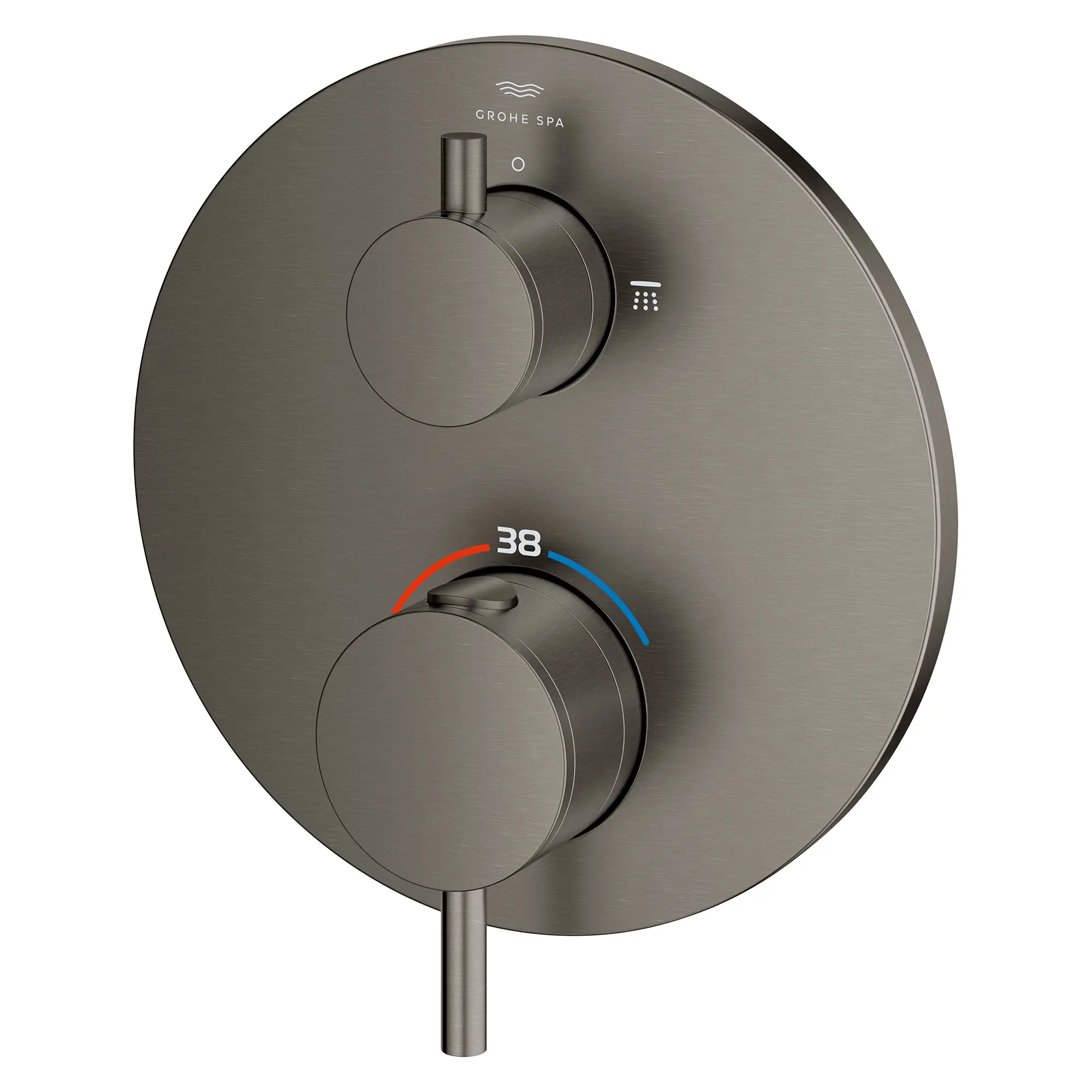

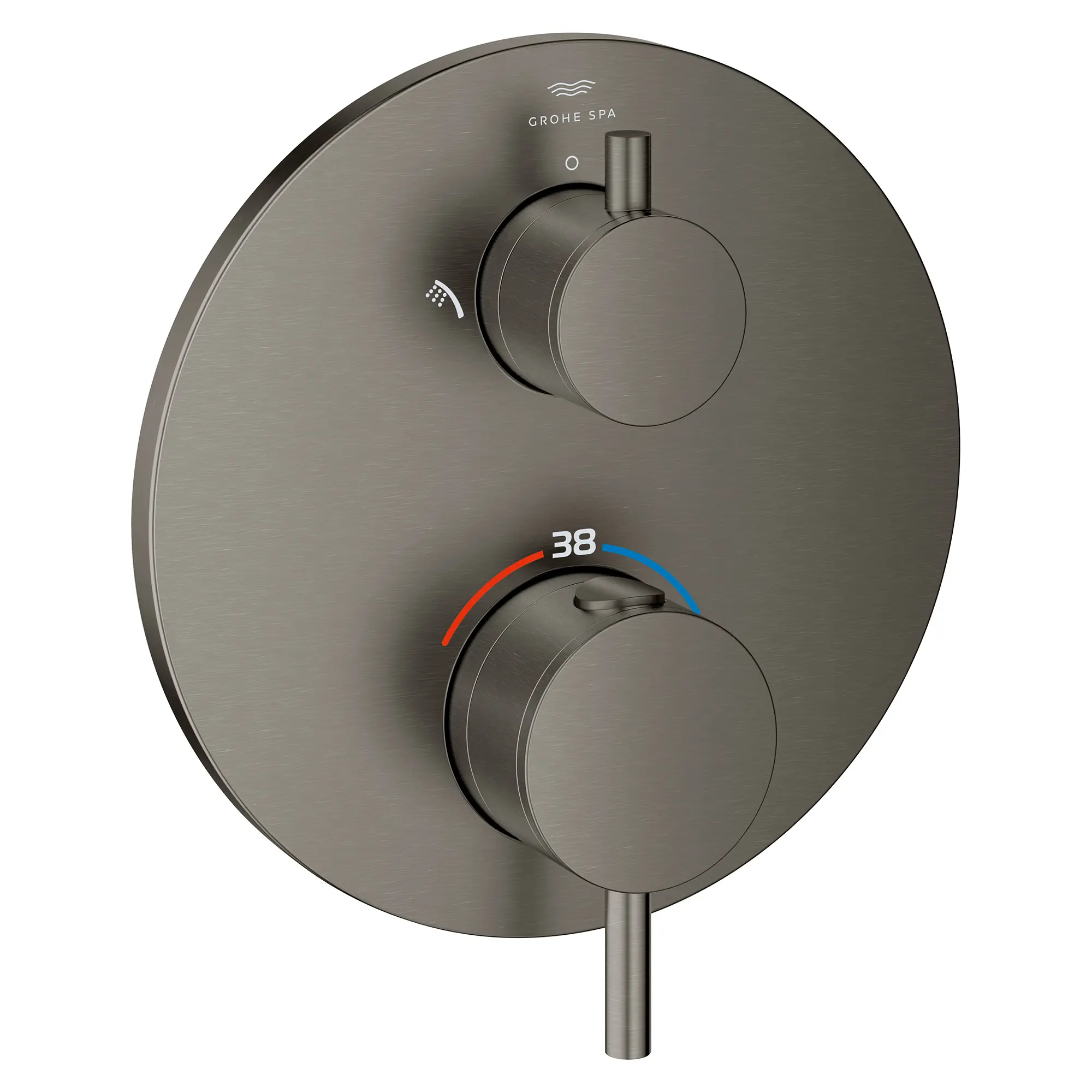

Atrio Single Function 2-Handle Thermostatic Valve Trim

NEW! Launching Summer 2026

3 new finishes: Hard Graphite, Brushed Hard Graphite & Brushed Warm Sunset
Available for Quoting Only

Brushed Hard Graphite 24360AL0 DISCONTINUED
List Price: $1,460.00
ADA Compliant Enjoy More Rewards LIXIL Select
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Technical Features
  • GROHE LongLife finish
  • GROHE TurboStat compact cartridge with wax thermoelement
  • Thermostatic temperature control with GROHE SafeStop safety button at 100°F/38°C
  • GROHE SafeStop Plus temperature limiter at 115° F/46° C
  • Volume control with ceramic disc stop valve, 120°
  • 6 1/4" Metal wall trim plate with GROHE FastFixation (concealed mounting screws)
  • Metal trim angle adjustable up to 6°
  • Upper handle includes integrated volume control and On/Off
  • ADA compliant metal lever handles
  • Includes service stops,7.1gpm at 45psi,Requires GROHE Rapido SmartBox (35 601) (sold separately)
Description
Net Weight
SKU
Color
List Price USD
Atrio Single Function 2-Handle Thermostatic Valve Trim
4 lb (1.8 kg)
24360AL0
Brushed Hard Graphite (GAL)
1460
24360000
Chrome (G00)
1007
243602430
Matte Black (243)
1359
24360A00
Hard Graphite (GA0)
1460
24360DL0
Brushed Warm Sunset (GDL)
1460
24360EN0
Brushed Nickel (GEN)
1359
24360GN0
Brushed Cool Sunrise (GGN)
1460
Required Components (Not Included)
Universal Rough-In Box
4 lb (1.8 kg)
35601000
No Finish
194
Download Specification Sheet
ADA Compliant: Yes
Brand: GROHE SPA
Category: Thermostats
Color / Finish: Brushed Hard Graphite
Collections: Atrio New
Fitting Material: Zinc,Metal/Plastic
Number of Handles: 2
Fixture or Fitting Material: Zinc<multisep/>Metal/Plastic
Hardware Included: Yes
LIXIL Select: Yes
Height: 176
Length: 43
Width: 158
Residential or Commercial: Residential
Subcategory: Thermostats Trim
Temperature Control: Yes
Valve Type: Thermostatic & Volume Control
Volume Control: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Installation Instructions

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
