Vormax

VorMax® Plus Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Right-Hand Trip Lever Toilet With Seat

The VorMax Plus Chair Height Elongated Toilet from American Standard infuses LYSOL® toilet bowl cleaner into the water with each flush, freshening the bowl day after day. VorMax technology has been proven to clean the bowl 2X better than a regular toilet, thanks to a unique flushing system that produces a powerful jetted scrub. CleanCurve rim eliminates hidden, hard to reach areas where dirt and buildup can collect. Our EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria. Backed by an industry-leading warranty, this ultra-low consumption toilet uses 20% less water and is WaterSense® certified for high efficiency and performance. Easy to install, it features an elongated bowl and 17-in. height to ensure comfort and accessibility.

White 238AA105CP.020 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green CEC Certified Everclean Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • POWERFUL FLUSH - Patented flush technology sends twice as much jetted water to the rim
  • FRESHNESS IN EVERY FLUSH - Specially formulated FreshInfuser releases the cleaning power of LYSOL® and lasts up to 30 days
  • BUILT-IN FRESHINFUSER COMPARTMENT – Seamlessly hidden and easy to access
  • FRESHINFUSERS INCLUDED – Two VorMax Plus FreshInfuser packs are included with purchase
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
  • RIGHT-HAND TRIP LEVER - Chrome-plated finish
  • 12-INCH ROUGH-IN
  • INDUSTRY-LEADING WARRANTY — Lifetime warranty of chinaware, 10 years on mechanical parts, and 1 year on seat
  • WATERSENSE® CERTIFIED — Uses 20 percent less water and performs as well as or better than regular toilets
  • CHAIR-HEIGHT COMFORT — Measures 17” tall, including seat, for ease of use compared to standard height. Slight variation in height may occur based on the height of the seat used.\n,ADA COMPLIANT — Meets Americans with Disabilities Act requirements for use and accessibility\n,DURABLE CONSTRUCTION — Made from quality vitreous china for strength and reliability
Technical Features
  • Automatic self-cleaning VorMax® toilet bowl that freshens the bowl with every flush
  • The specially formulated VorMax® Plus FreshInfuser® features the cleaning power of LYSOL* and lasts up to 30 days†
  • The VorMax® jetted scrub plus the cleaning power of LYSOL* work together to keep the bowl clean and smelling fresh
  • Two VorMax® Plus FreshInfuser® packs included with purchase of toilet
  • Cleaning compartment is seamlessly hidden and easy to access
  • Slow-close, quick release seat included for easy cleaning
  • VorMax® flushing technology cleans two times better than conventional toilets‡
  • Combination bowl with seat plus tank
  • 12" (305 mm) rough-in
  • Chair Height elongated siphon action bowl,High efficiency toilet (HET) 1.28 gpf/4.8 Lpf,Meets EPA WaterSense®,EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,Transitional styling,CleanCurve rim eliminates rim area where dirt and build-up hide,16-1/2" (419 mm) rim height for accessible applications,2-1/16" (52 mm) trapway,Dual injection flush valves,Chrome trip lever,Two color-matched bolt caps,10-year warranty,Trip lever on right-hand side
Nominal Dimensions: 30-3/16 in x 17-7/8 in x 32-1/4 in (767 mm x 454 mm x 819 mm)
Description
Net Weight
SKU
Color
List Price USD
VorMax® Plus Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Right-Hand Trip Lever Toilet With Seat
1 lb (0.4 kg)
238AA105CP.020 *
White (020)
0
Separate Components
Vormax Elongated Toilet Bowl with Vormax Plus Seat and Two FreshInfusers
61 lb (27.7 kg)
3385A100CP.020 *
White
377
spacer
VorMax® 1.28 gpf/4.8 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
36 lb (16.5 kg)
4385A105.020
White
269
spacer
VorMax® 12-Inch Rough Toilet Tank Cover
8 lb (3.6 kg)
735216-400.020
White
121


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Collections: Vormax
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 2.063
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
MAP Performance Rating: 1000
Number of Flush Valves: 2
Height: 32-1/4
Length: 30-3/16
Length: 30-3/16
Width: 17-7/8
Residential or Commercial: Residential
Rough In Size: 12
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Right Front
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Toilet Seat Type: Closed
Trapway Diameter: 2.0625
Toilet Type: Two Piece
Warranty: 10 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

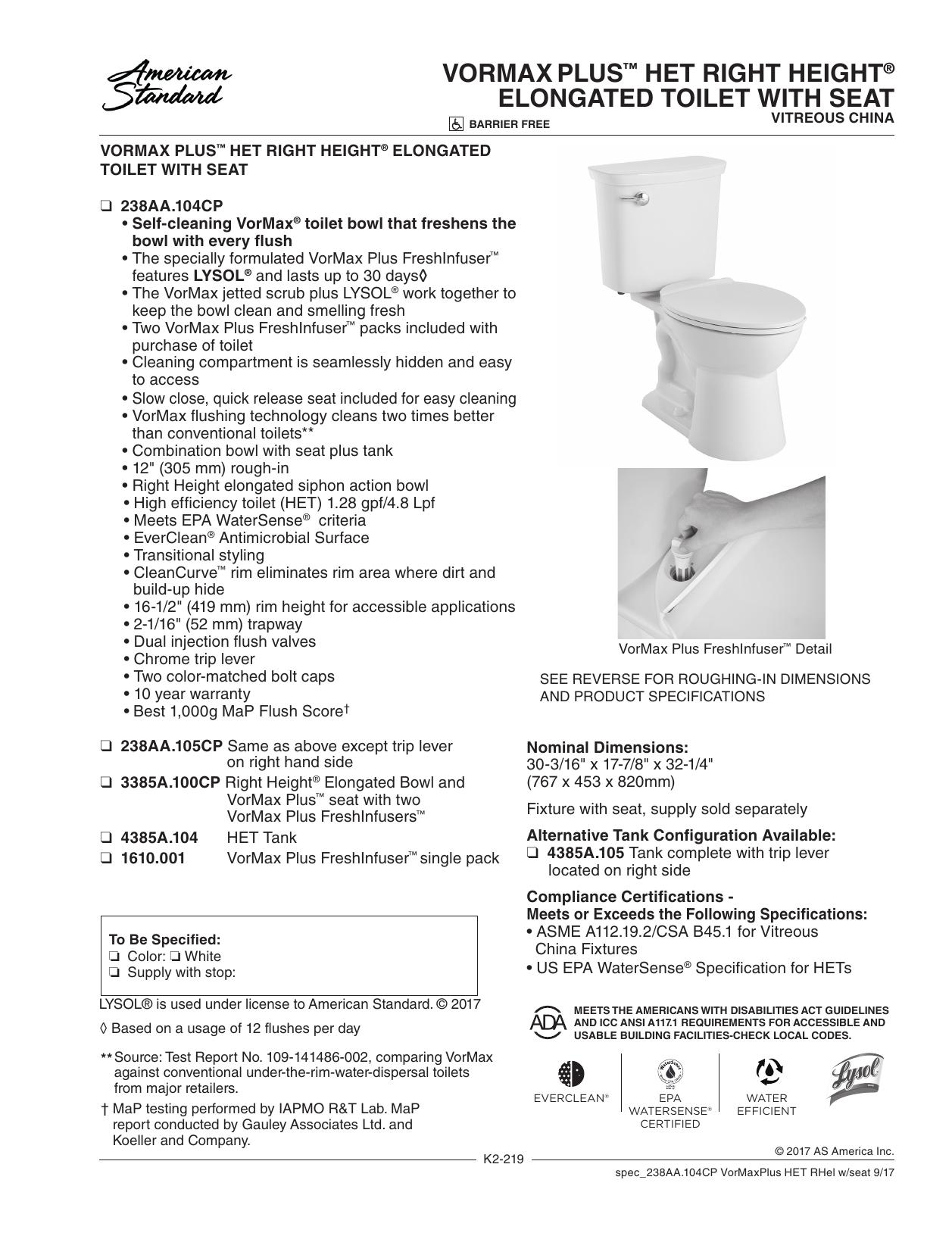

Specification Sheet

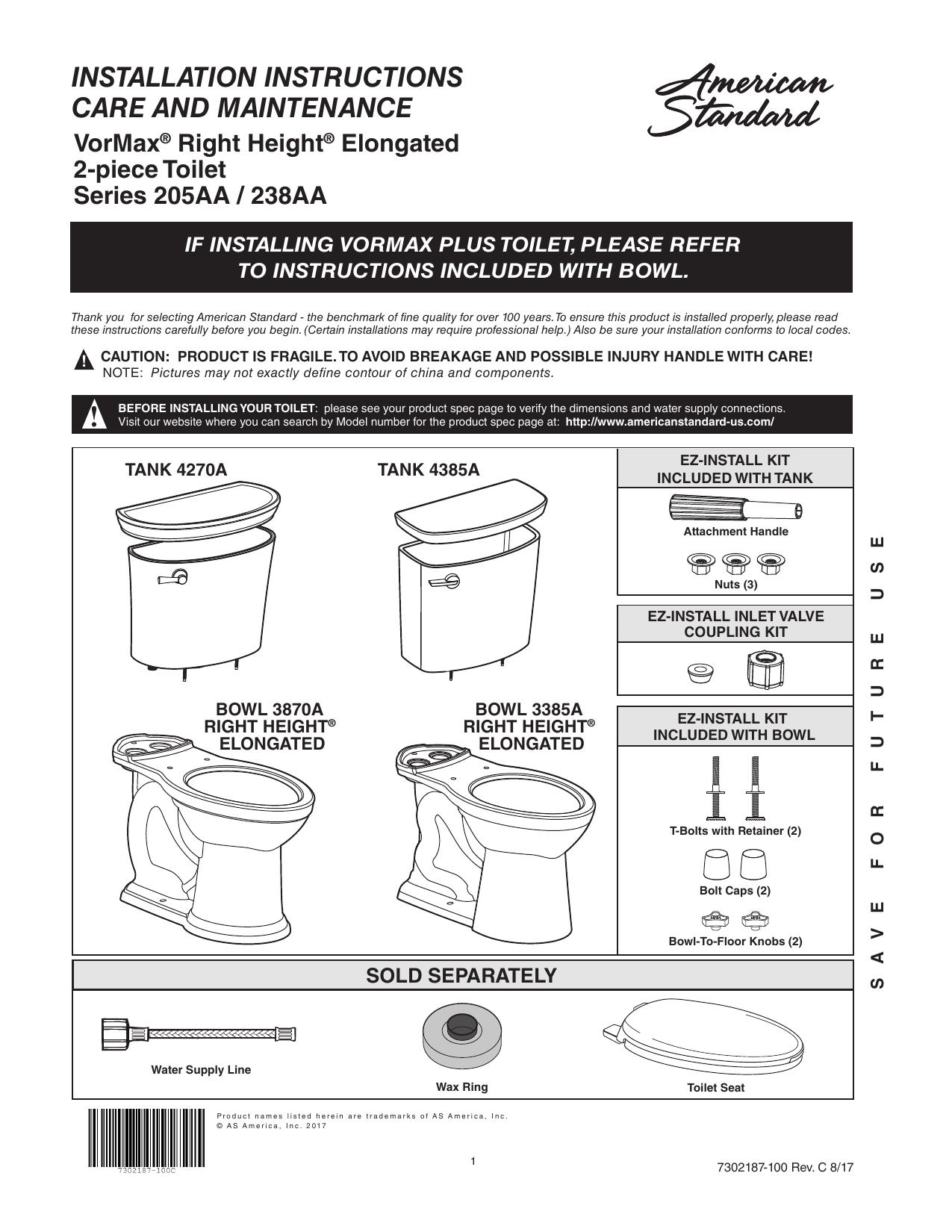

Installation Instructions
