Vormax

VorMax® 1.0 gpf/3.8 Lpf 12-Inch Rough Tank Only

The VorMax 1.0 gpf/3.8 Lpf 12-Inch Rough Tank from American Standard features the patented technology of a dual injector flushing system for a powerful jetted flush. Ultra-high efficient design uses just 1.0 gallons per flush, for substantial water savings without sacrificing performance.

White 4385A114.020 DISCONTINUED
List Price: $263.00
Cal Green CEC Certified Enjoy More Rewards Environmental Product Declaration Everclean USMCA Compliant WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Tank only – Bowl and seat sold separately
  • Powerful flush - Patented flush technology sends twice as much jetted water to the rim
  • Ultra-high efficiency - UHET uses 1.0 gallons per flush to conserve water
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Industry-leading warranty - Lifetime warranty of chinaware, 10 years on mechanical parts
  • Finishing touch - Includes chrome-plated trip lever
  • Durable construction - Made from quality vitreous china for strength and reliability
Technical Features
  • The VorMax jetted scrub toilet tank plus LYSOL® work together to keep the bowl clean and smelling fresh
  • 12" rough UHET tank with left hand chrome trip lever
  • Ultra-high efficiency toilet (UHET) 1.0 gpf/3.8 Lpf
  • The specially formulated VorMax Plus FreshInfuser features LYSOL® and lasts for up to 360 flushes
Nominal Dimensions: 18-1/16 in x 8-3/4 in x 15-1/4 in (459 mm x 222 mm x 387 mm)
Description
Net Weight
SKU
Color
List Price USD
VorMax® 1.0 gpf/3.8 Lpf 12-Inch Rough Tank Only
36 lb (16.5 kg)
4385A114.020
White (020)
263
Spare Parts
lush Valve Assembly UHET / HET VORMAX
1 lb (0.7 kg)
7381655-201.0070A
No Finish
125
spacer
Left-Hand Trip Lever
0 lb (0.1 kg)
7381740-200.0020A
Chrome
102
7381740-200.0130A
Polished Nickel
113
7381740-200.2780A *
Legacy Bronze
128
7381740-200.2950A
Brushed Nickel
121


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Color / Finish: White
Collections: Vormax
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flapper/Piston
Flush Valve Size: 2.063
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.0 GPF
MAP Performance Rating: 1000
Number of Flush Valves: 2
Height: 15-1/4
Length: 18-1/16
Width: 8-3/4
Residential or Commercial: Residential
Rough In Size: 12
Subcategory: Floor Standing Toilets
Toilet Mount Type: Floor Mount
Toilet Type: Tank Only
USMCA Compliant: Yes
Warranty: 10 Year Limited Warranty
Download All Supporting Documents

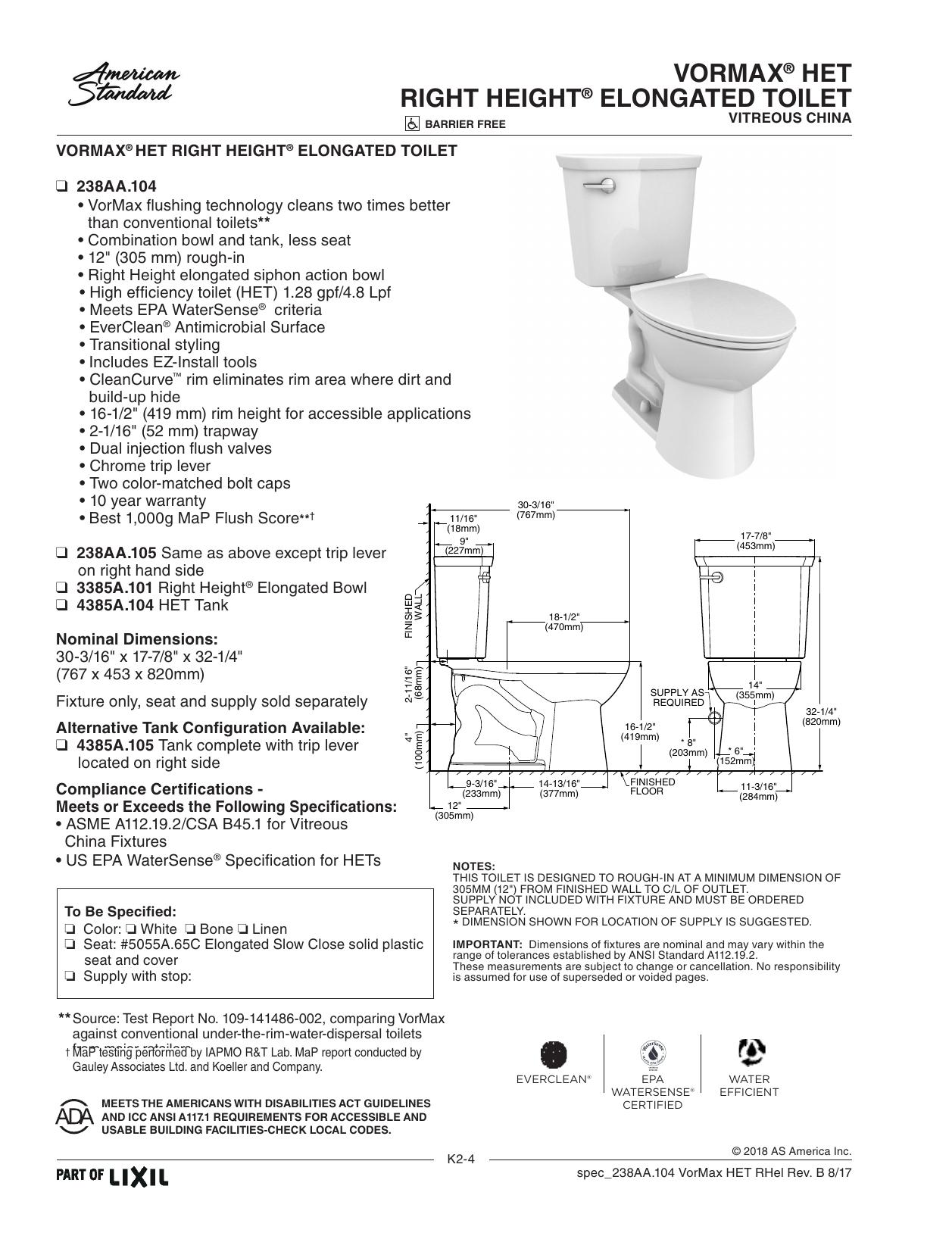

Specification Sheet

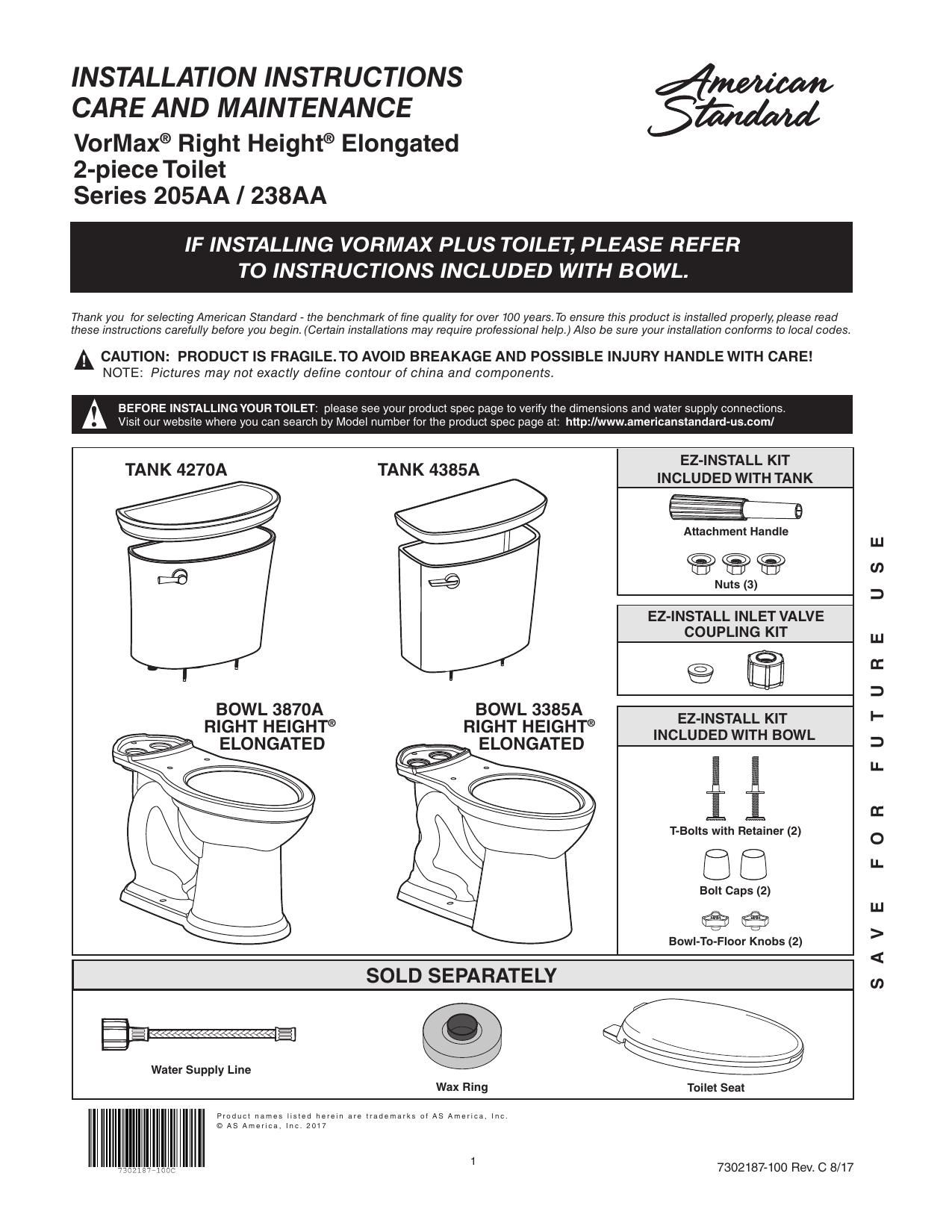

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
3D Objects are not currently available for this product
