Features
- Cadet Flushing System
- Vitreous china
- Meets EPA WaterSense® criteria
- PowerWash® rim scrubs bowl with each flush
- Robust metal trip lever & metal shank fill valve
- Includes EZ-Install Tools w/color match bowl caps
- Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
- Color matched trip lever is supplied
- Limited Lifetime warranty on chinaware, limited 5-yr. on parts
Technical Features
- Includes tank, bowl, and installation kit (seat not included)
- Bowl Shape: Round-Front
- Rim Height: Chair Height measures 17" (with seat) rim height, ADA compliant
- Rough-In: 12" (305 mm)
- Configuration: Two-piece exposed trapway design
- Flush Rate: 1.28 gpf (4.8Lpf) single flush high-efficiency toilet; meets EPA WaterSense® criteria
- Made with durable metal components including metal trip lever, arm and brass shank
- Metal trip-lever, chrome
- Trapway: 2-1/8" (54 mm) fully glazed
- PowerWash® Rim Design,EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,Provides corner toilet installation solution,Limited Lifetime Warranty, see warranty page on website for detail
Nominal Dimensions: 33-3/16 in x 19-3/8 in x 32-1/16 in (843 mm x 492 mm x 814 mm)

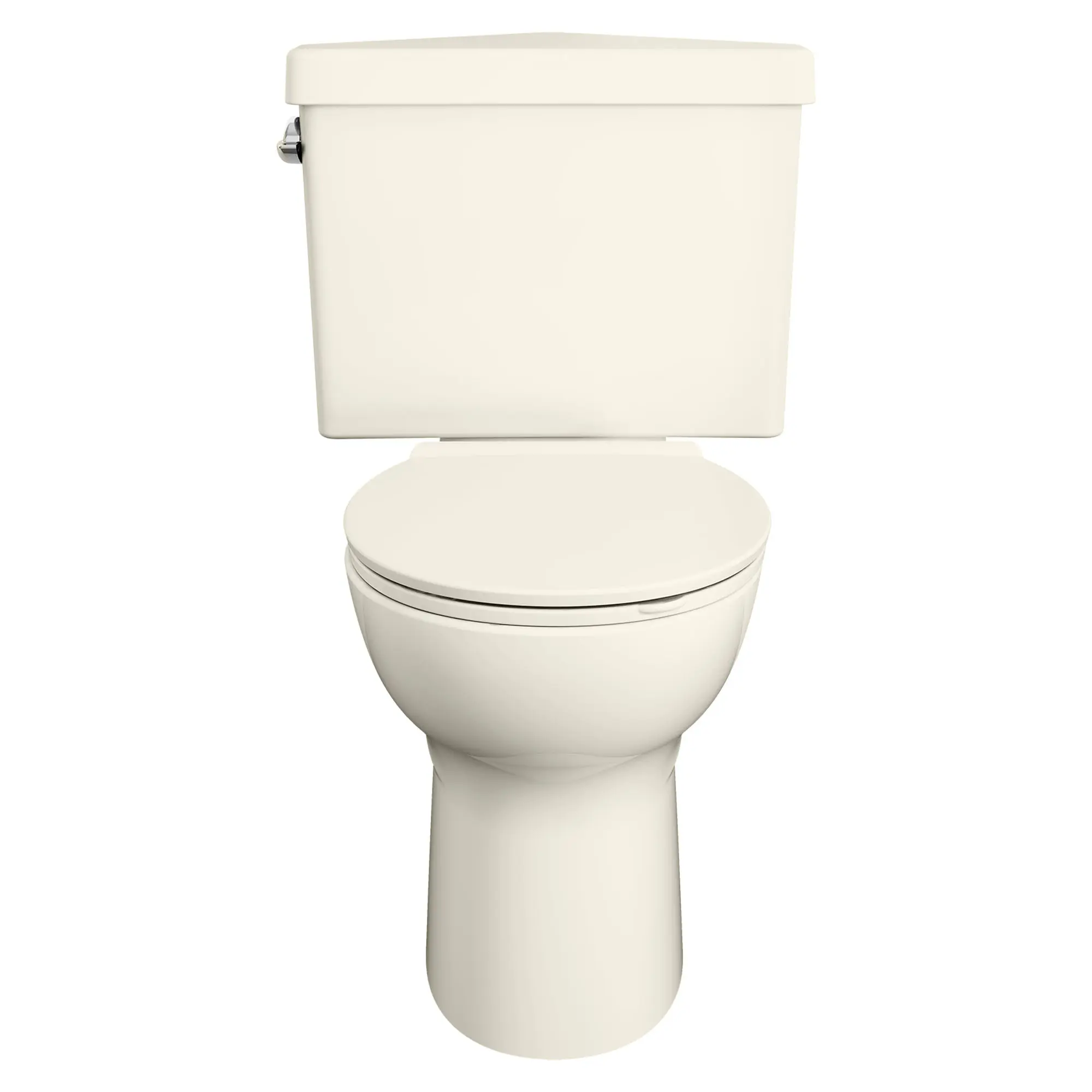

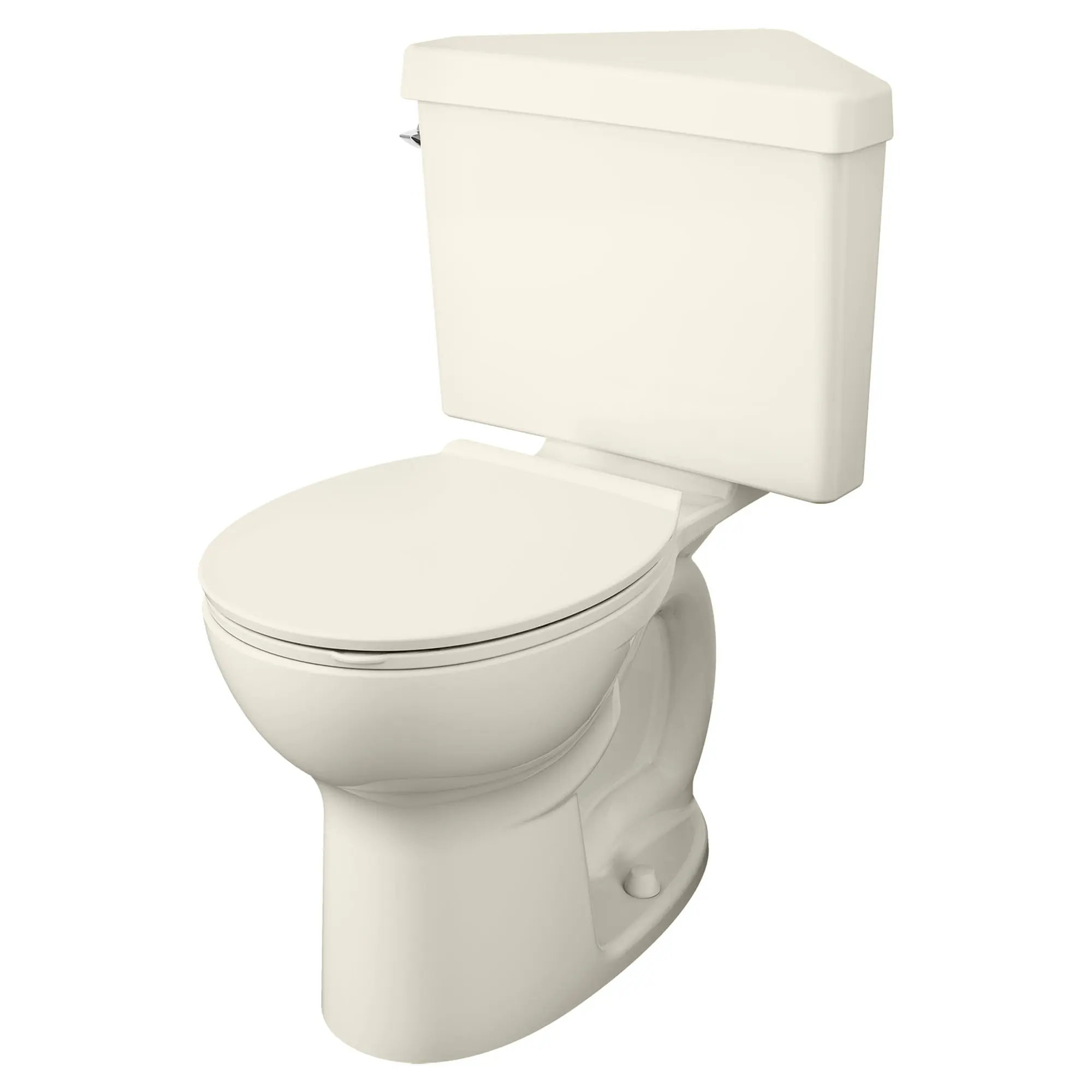

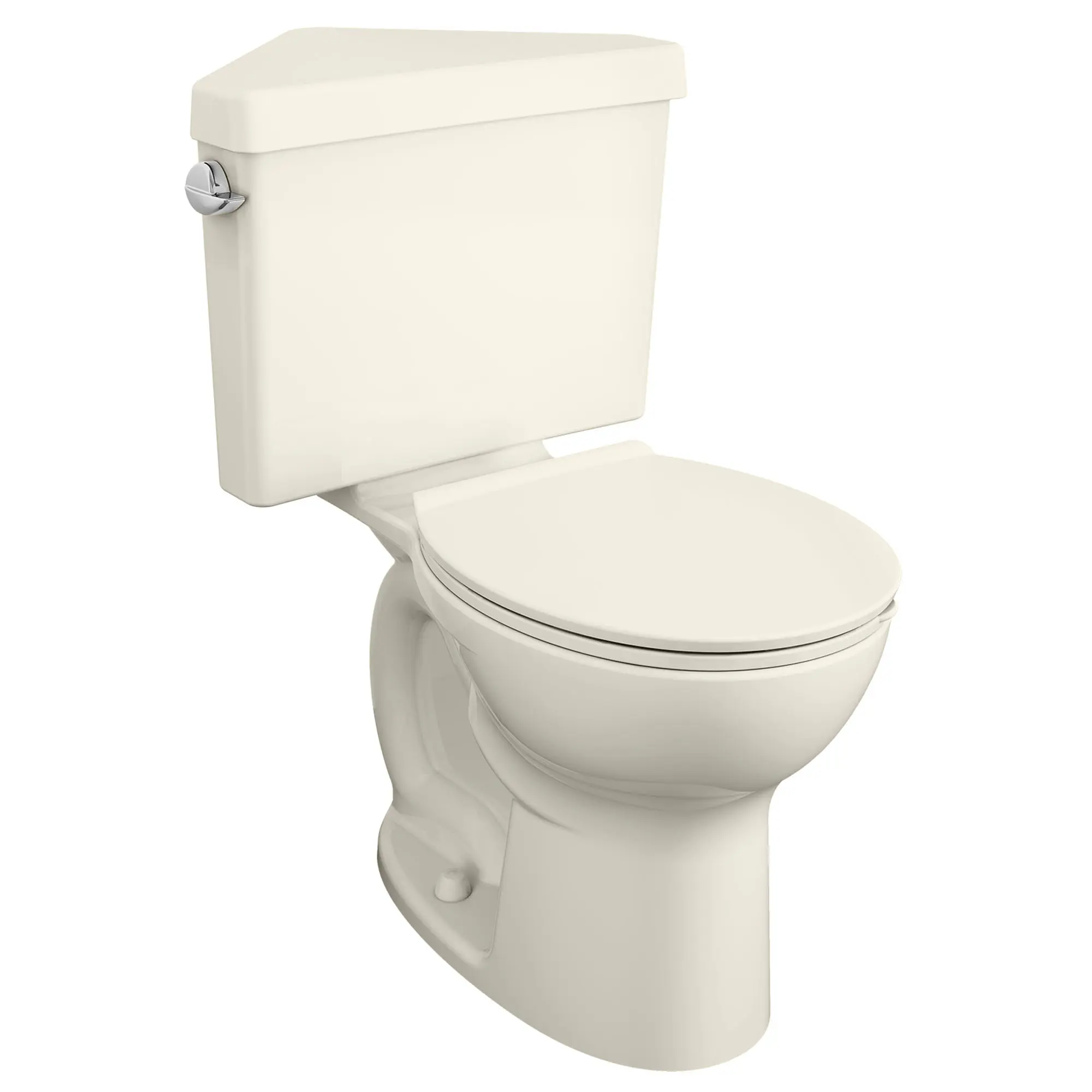

Triangle Cadet® PRO Two-Piece 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet
1 lb (0.4 kg)
Linen (222)
0
White (020)
622
Bone (021)
0
Cadet® PRO Chair Height Round Front Bowl
53 lb (23.9 kg)
White
269
Linen
407
spacer
Triangle Cadet® PRO 1.28 gpf /4.8 Lpf Triangle Tank
37 lb (16.8 kg)
White
353
spacer
Triangle Cadet® PRO 12-Inch Rough Toilet Tank Cover
7 lb (3.3 kg)
White
140
Cardiff Slow-Close Round Front Toilet Seat
3 lb (1.4 kg)
White
77
Triangle Cadet® PRO Two-Piece 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet
1 lb (0.4 kg)
Linen (222)
0
White (020)
622
Bone (021)
0
Cadet® PRO Chair Height Round Front Bowl
53 lb (23.9 kg)
White
269
Linen
407
spacer
Triangle Cadet® PRO 1.28 gpf /4.8 Lpf Triangle Tank
37 lb (16.8 kg)
White
353
spacer
Triangle Cadet® PRO 12-Inch Rough Toilet Tank Cover
7 lb (3.3 kg)
White
140
Cardiff Slow-Close Round Front Toilet Seat
3 lb (1.4 kg)
White
77
Models marked with * are discontinued, but product may still be available while supplies last.
Didn't find the PDF or file you were looking for? Reach out to our team via our
Contact Form.
3D Objects are not currently available for this product
