Aspirations Ecostrength

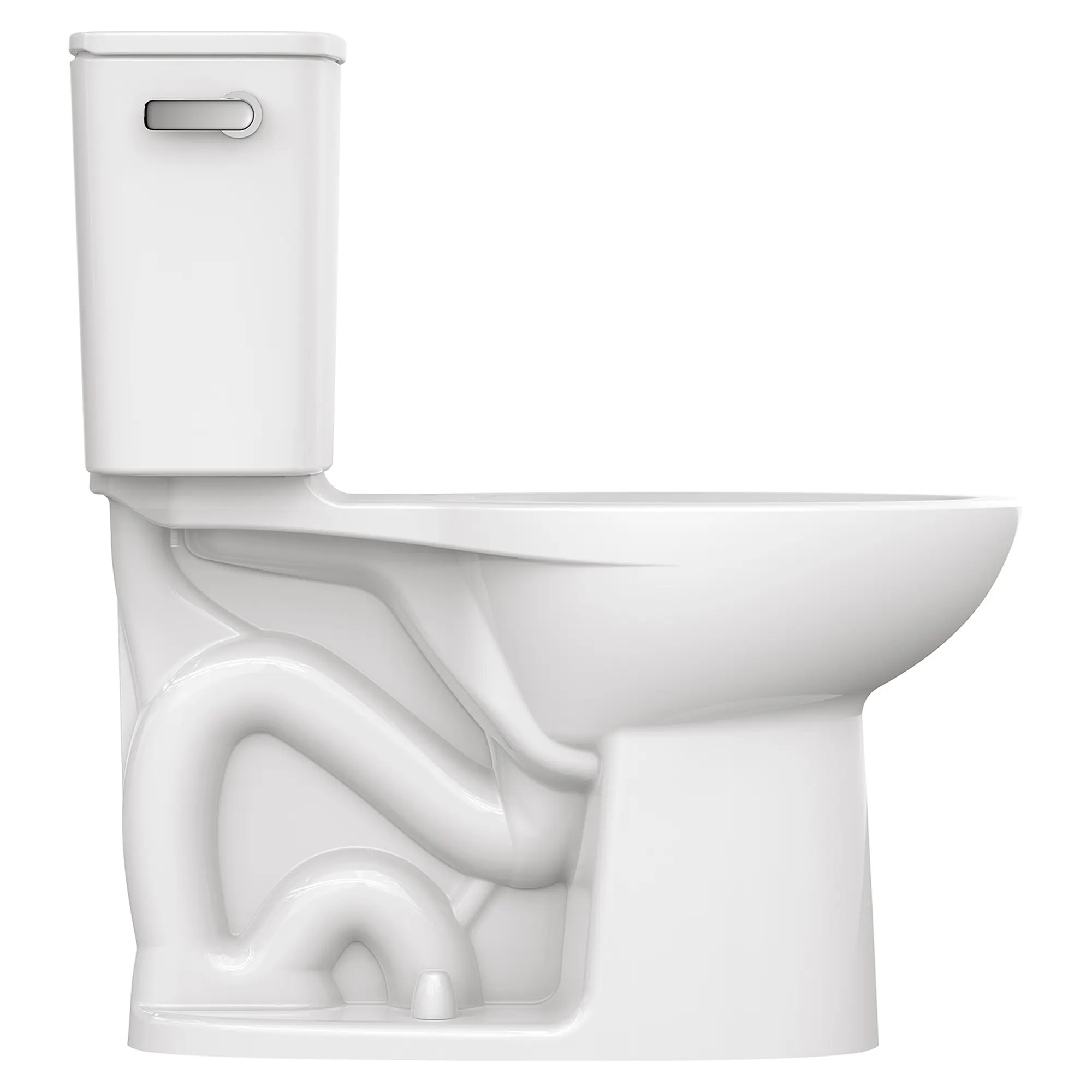

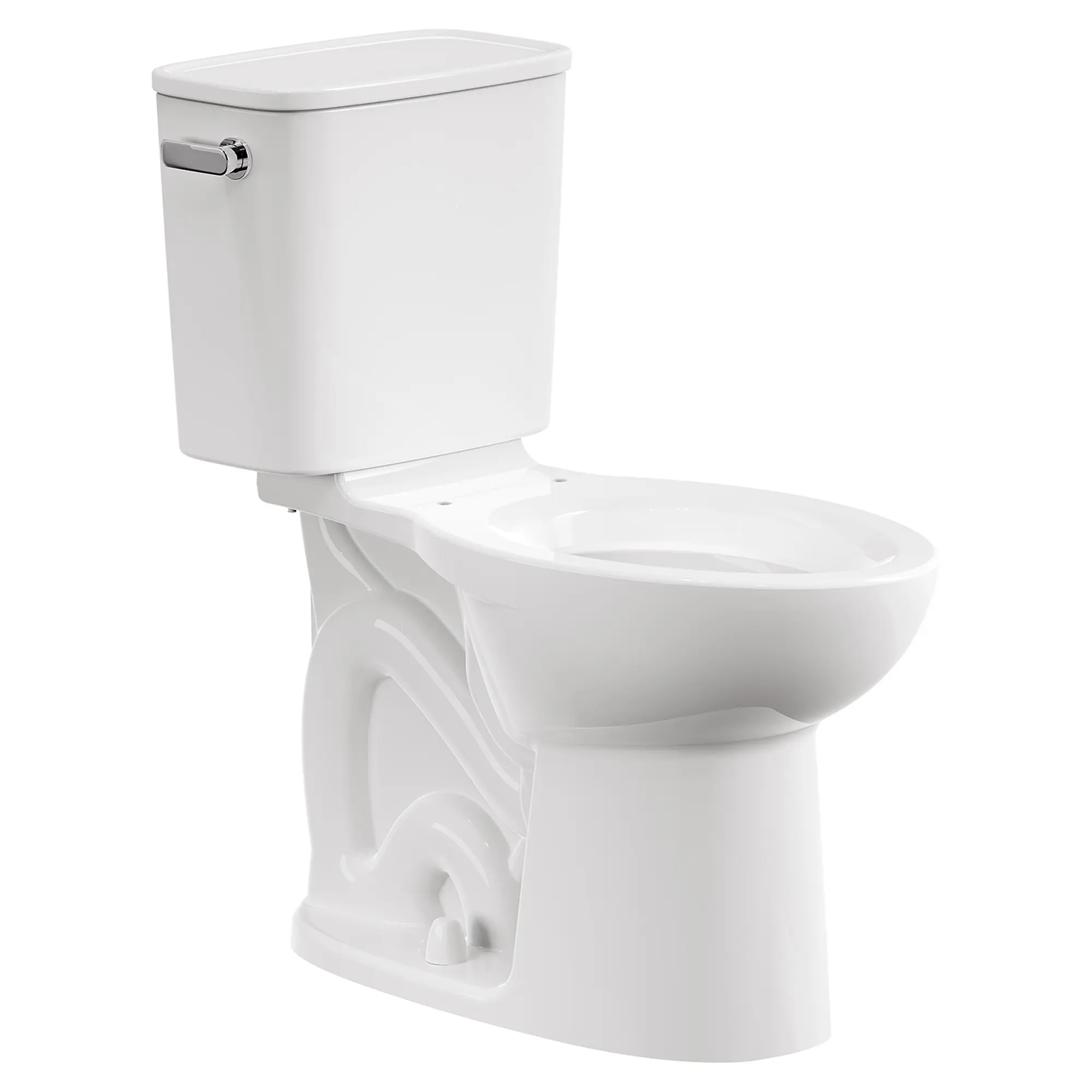

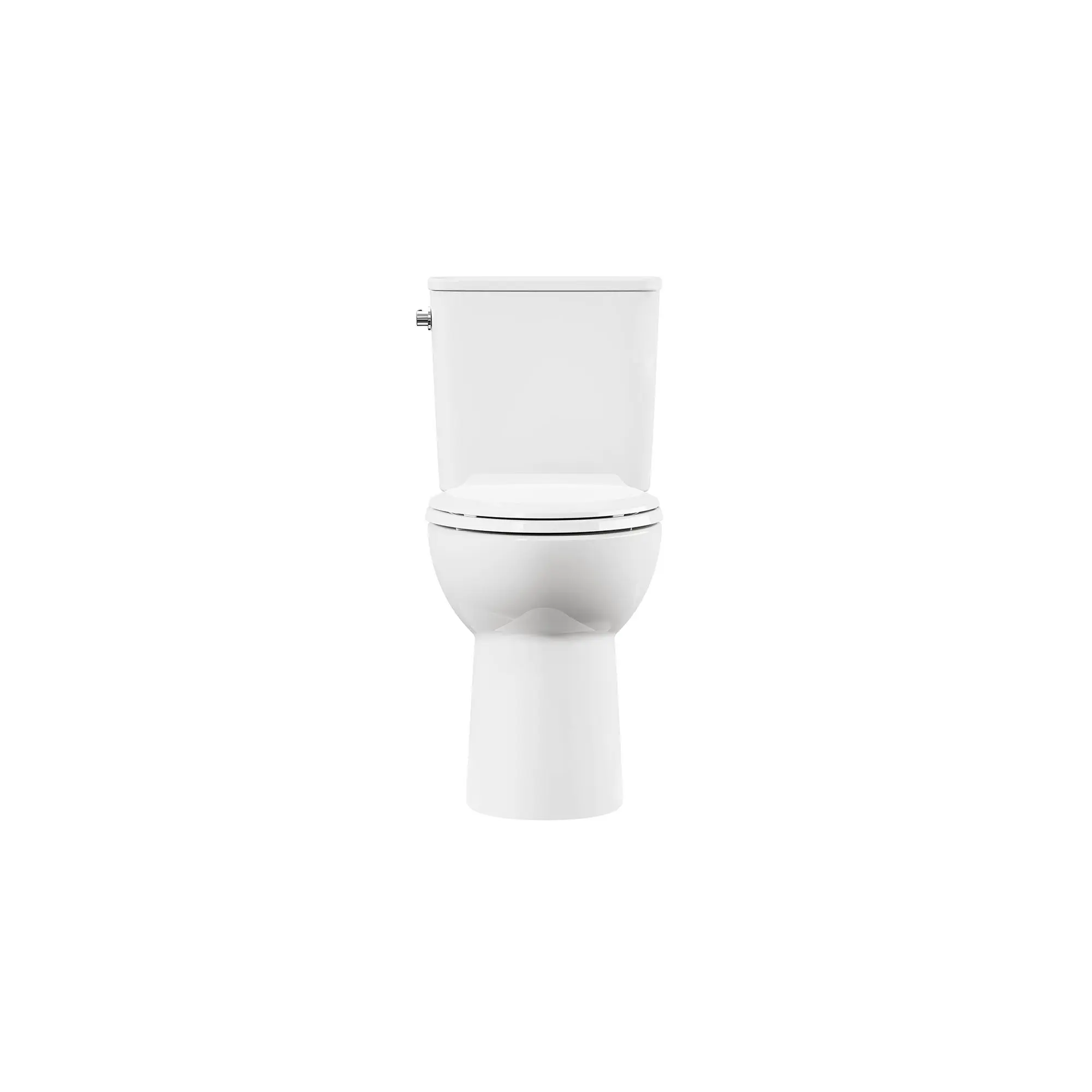

EcoStrength Aspirations Two-Piece 0.80 gpf/3 Lpf Chair Height Elongated Toilet Less Seat

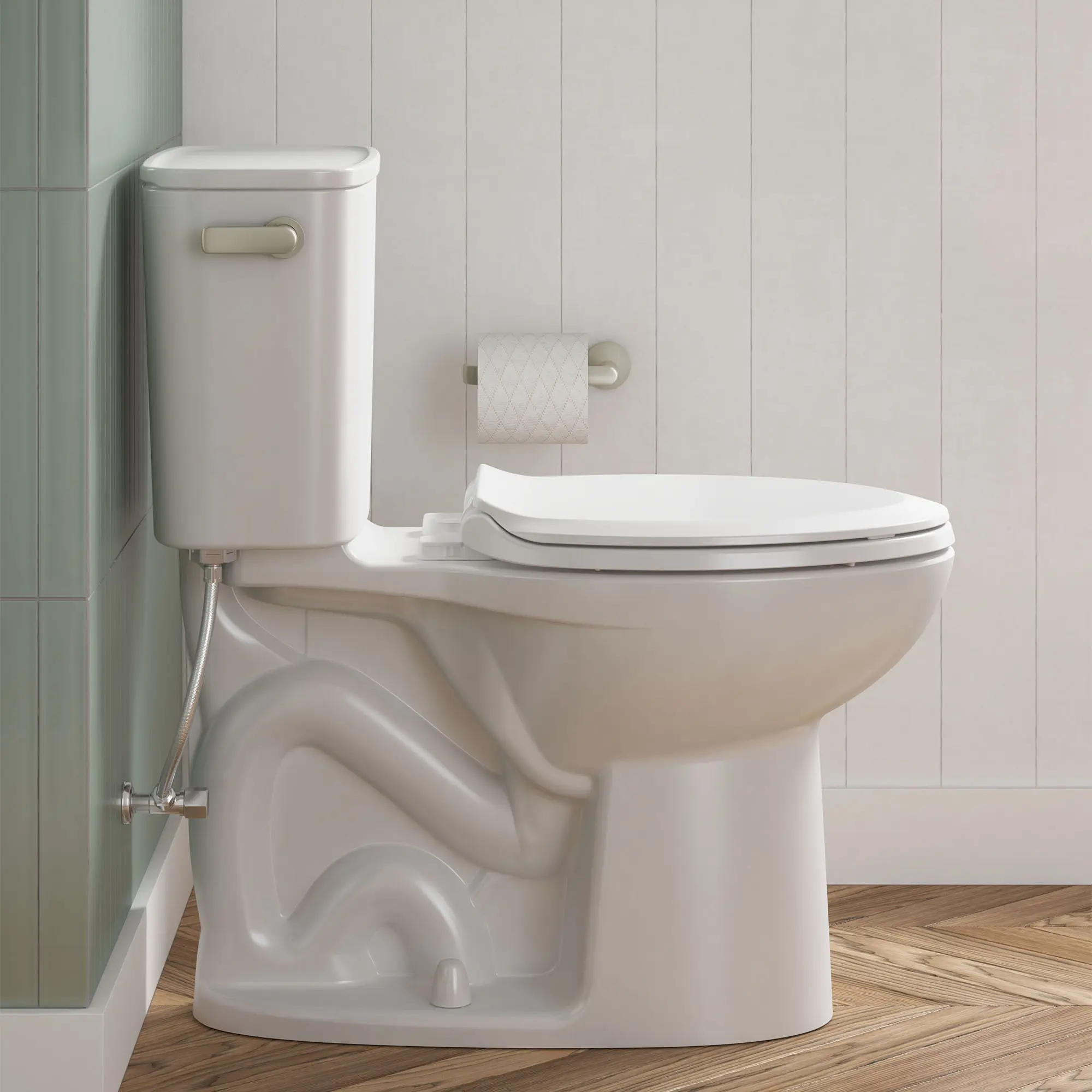

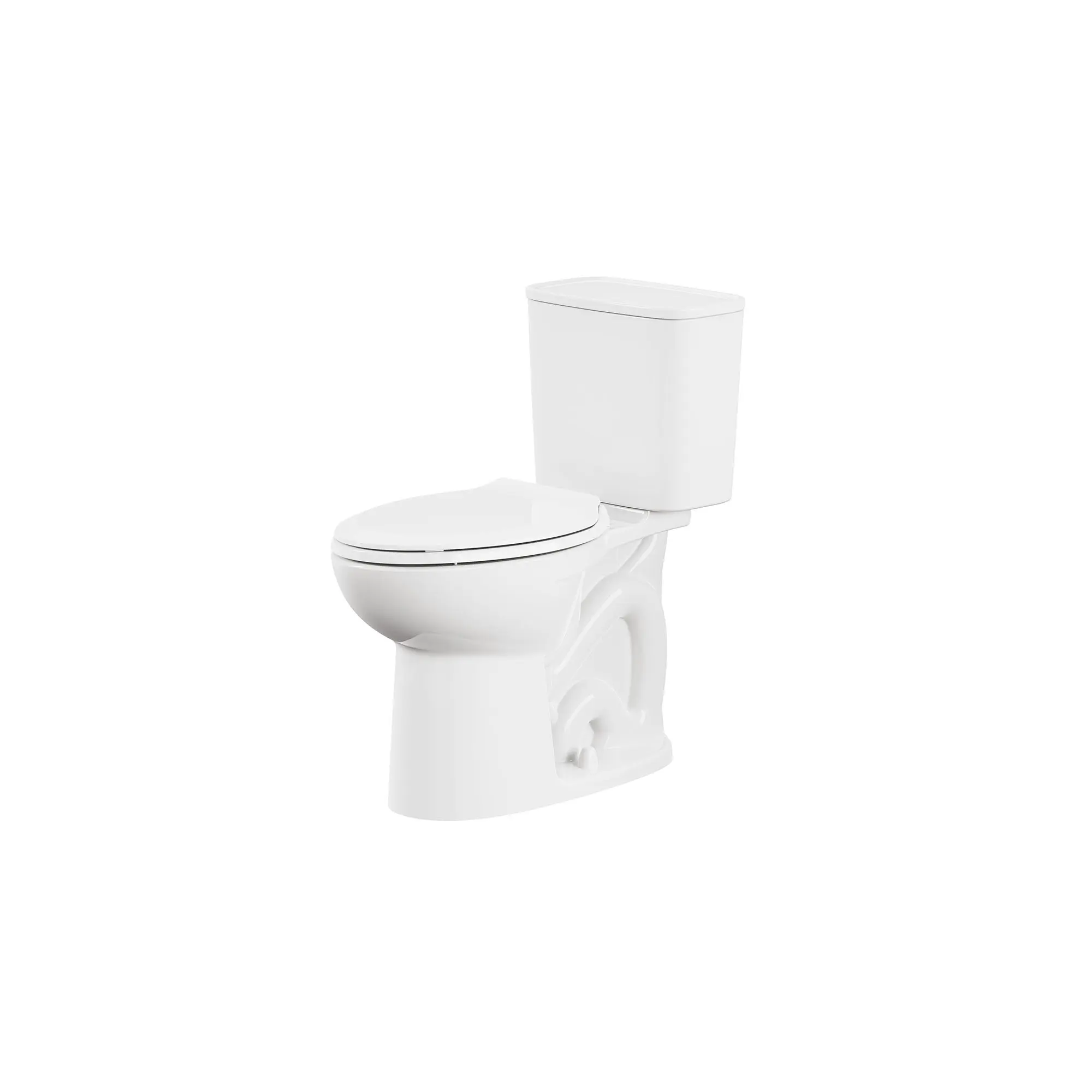

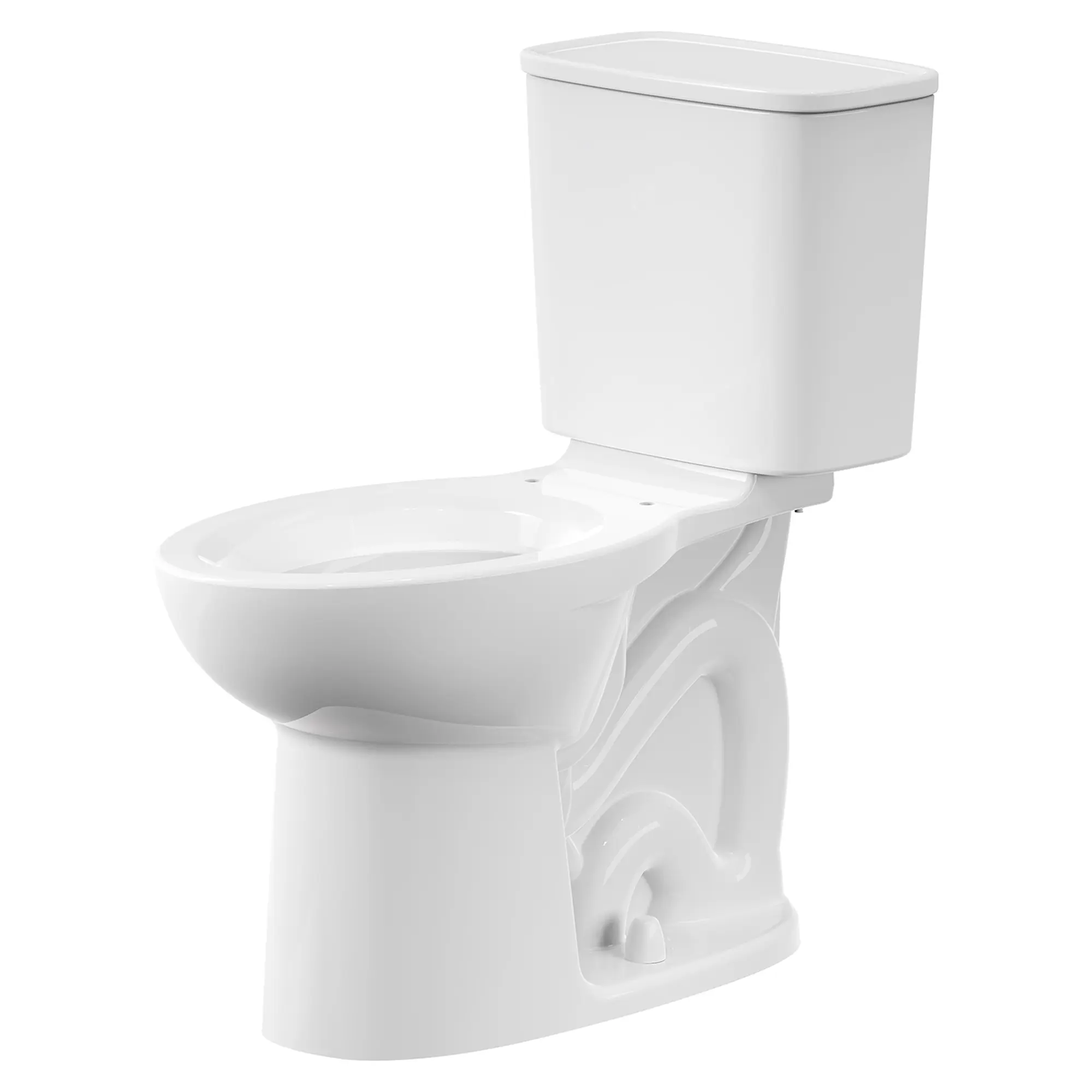

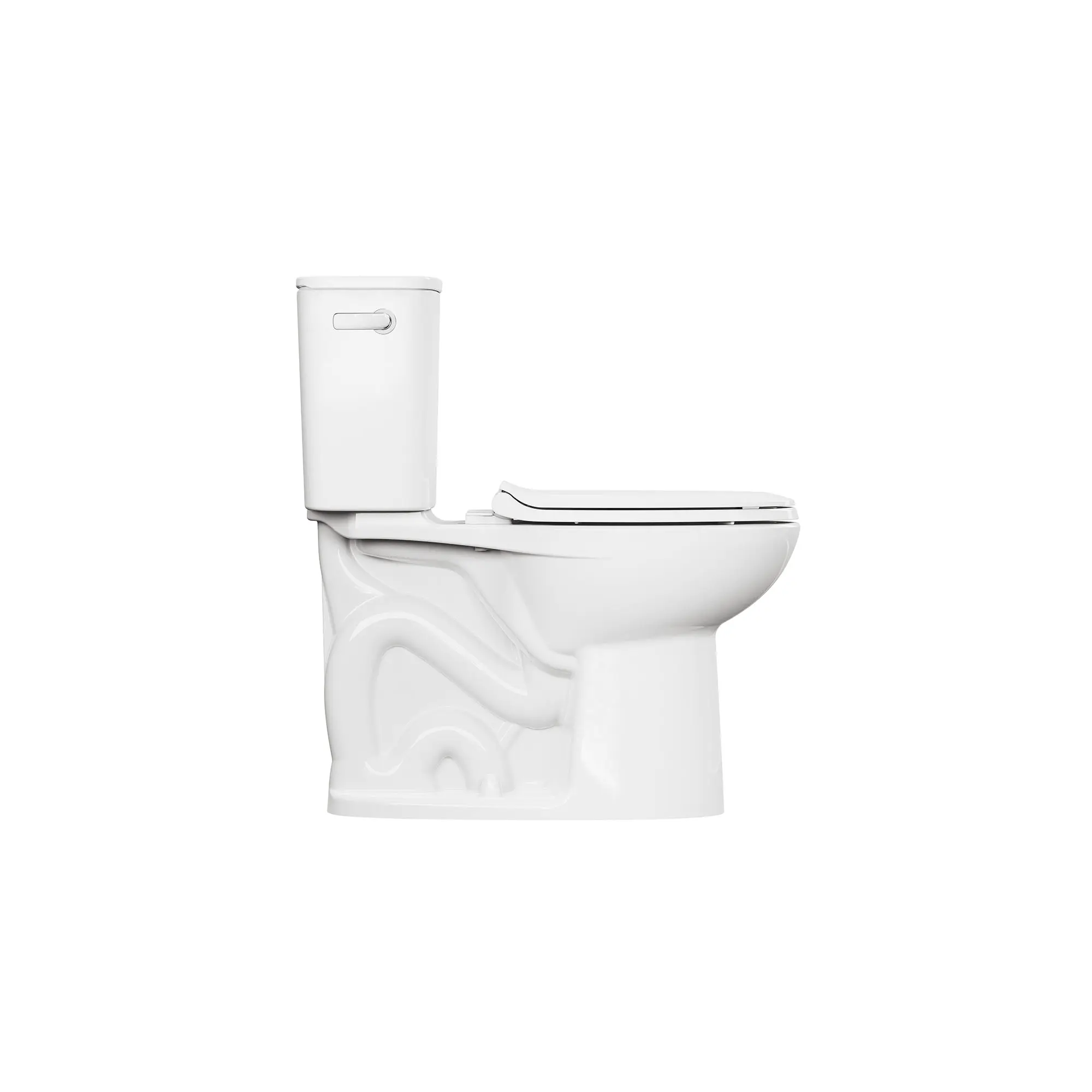

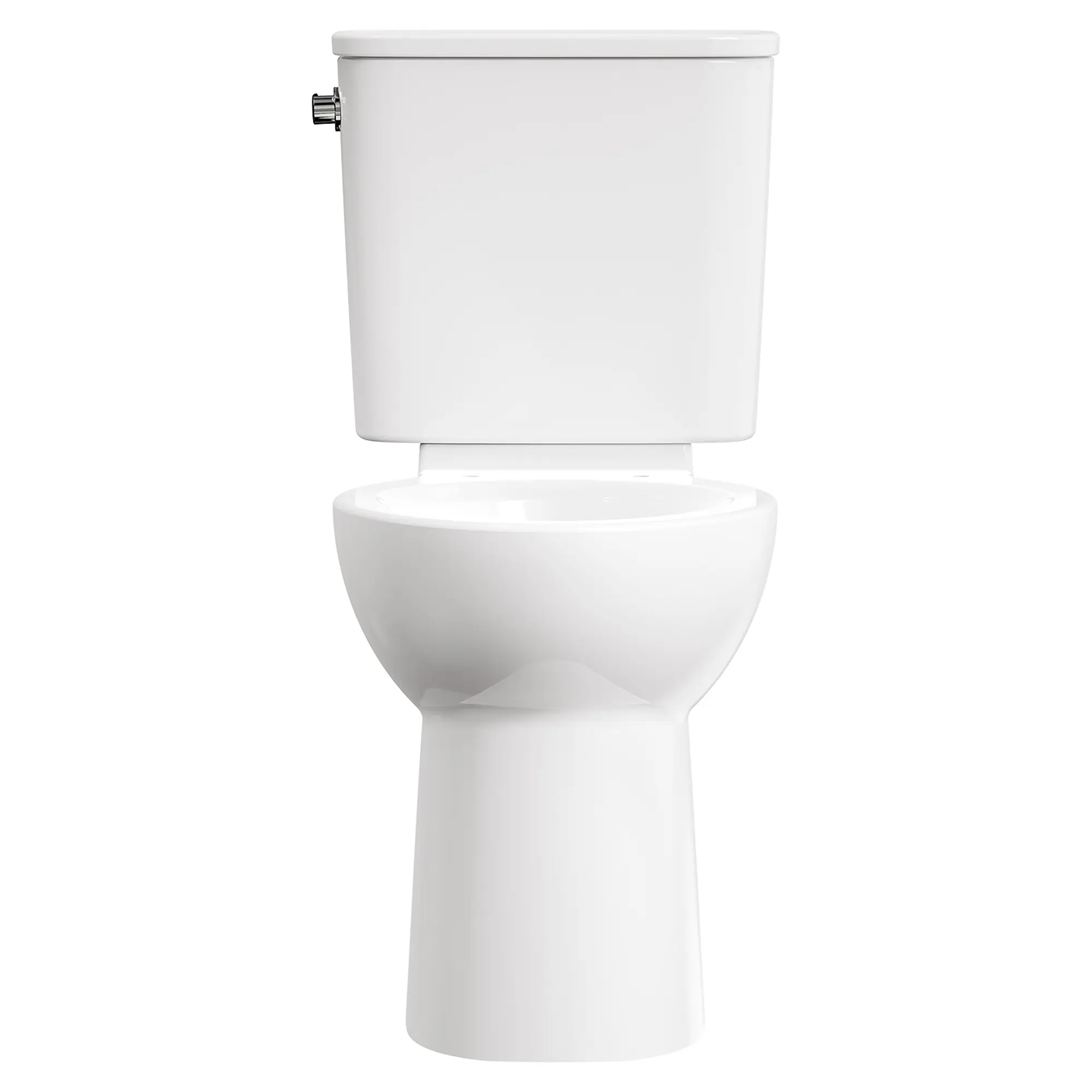

The EcoStrength Aspiration Chair-Height Elongated Toilet from American Standard leads the industry with its water-saving design that uses just 0.8 gpf/3.0 Lpf to produce a powerful and effective flush. This ultra-low flow toilet features vacuum-assisted technology that combines less than a gallon of water with strong suction power, resulting in a clean, clear bowl with every flush. The EcoStrength two-piece toilet has a 17 in. (432mm) bowl height for comfort and easy accessibility.

White 250AA809.020 DISCONTINUED
List Price: $426.00
ADA Compliant Cal Green CEC Certified USMCA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Uses 0.80 gpf/3.0 Lpf: Ultra-high efficiency toilet uses 50% less water than a standard toilet while delivering a powerful flush
  • Bowl-cleaning flush: Under-the-rim design releases water to scrub the bowl with every flush and EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Chair-height bowl: 17 in. (432mm) bowl height makes sitting and standing easier and more comfortable
  • Clog resistant: Equipped with a flapperless flush valve that provides 360° of water flow into the bowl and a 2 1/8-in. (55mm) trapway to deliver the force and clearance needed to clear the bowl efficiently
  • WaterSense certified: Uses less water while maintaining great performance
  • Bowl stays cleaner: Generous water surface area helps to maintain bowl cleanliness
  • Rough-in: 12-in. (305mm)
  • Includes: EZ-Install tools and Metal Chrome trip lever. Trip lever is also available in Brushed Nickel and Matte Black, sold separately
  • Sold separately: Toilet seat, wax ring and supply lines are not included. We recommend slow-close seat EL 5503A00B.020.
  • Warranty: Limited Lifetime Warranty. See warranty page on website for more details.
Technical Features
  • Includes tank, bowl, and installation kit (seat not included)
  • Bowl Shape: Elongated
  • Rim Height: Chair Height measures 17" rim height, ADA compliant
  • Rough-In: 12" (305 mm)
  • Configuration: Two-piece exposed trapway design
  • Flush Rate: 0.8 gpf (3.0Lpf) single flush ultra high-efficiency toilet
  • Metal trip-lever, chrome
  • Trapway: 2-1/8" (54 mm) fully glazed
  • Box Rim Design
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,Meets EPA WaterSense® and MaP PREMIUM criteria,EZ-installation kit included, no tools needed,Limited Lifetime Warranty, see warranty page on website for details
Nominal Dimensions: 29-7/16 in x 14-11/16 in x 31-3/16 in (748 mm x 373 mm x 792 mm)
Description
Net Weight
SKU
Color
List Price USD
EcoStrength Aspirations Two-Piece 0.80 gpf/3 Lpf Chair Height Elongated Toilet Less Seat
1 lb (0.4 kg)
250AA809.020
White (020)
426
Separate Components
EcoStrength Aspiration Chair Height Elongated Bowl
55 lb (24.9 kg)
3407A101.020
White
221
spacer
EcoStrength Aspiration 0.80 gpf/ 3Lpf RHTL Toilet Tank
27 lb (12.4 kg)
4408A808.020
White
205
spacer
EcoStrength Aspiration 0.80 gpf/ 3Lpf Toilet Tank
27 lb (12.4 kg)
4408A809.020
White
205
spacer
Cadet® Aspirations Tank Cover
7 lb (3.2 kg)
735232-400.020
White
113
spacer
Left-Hand Trip Lever
1 lb (0.3 kg)
7381987-100.0020A
Chrome
61
7381987-100.2430A
Matte Black
91
7381987-100.2950A
Brushed Nickel
87
7381987-100.GN00A
Brushed Cool Sunrise
92
spacer
Right-Hand Trip Lever
13 lb (6.0 kg)
7381987-101.0020A
Chrome
61
7381987-101.2430A
Matte Black
91
7381987-101.2950A
Brushed Nickel
87
7381987-101.GN00A
Brushed Cool Sunrise
92
Optional Components (Not Included)
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
5503A00B.020
White
67
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Color / Finish: White
Collections: Aspirations Ecostrength
WaterSense: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 0.8 GPF
Number of Flush Valves: 2
Height: 31-3/16
Length: 29-7/16
Width: 14-11/16
Residential or Commercial: Residential
Rough In Size: 12
Subcategory: Floor Standing Toilets
Bowl Height With Seat: 17-1/2
Toilet Mount Type: Floor Mount
Trapway: Exposed
Trapway Diameter: 2-1/8
Toilet Type: Two Piece
USMCA Compliant: Yes
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Specification Sheet

Installation Instructions

Replacement Parts

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
