Features
- Uses 0.80 gpf/3.0 Lpf: Ultra-high efficiency toilet uses 50% less water than a standard toilet while delivering a powerful flush
- Bowl-cleaning flush: Under-the-rim design releases water to scrub the bowl with every flush and EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
- Chair-height bowl: 17 in. (432mm) bowl height makes sitting and standing easier and more comfortable
- Clog resistant: Equipped with a flapperless flush valve that provides 360° of water flow into the bowl and a 2 1/8-in. (55mm) trapway to deliver the force and clearance needed to clear the bowl efficiently
- WaterSense certified: Uses less water while maintaining great performance
- Bowl stays cleaner: Generous water surface area helps to maintain bowl cleanliness
- Rough-in: 12-in. (305mm)
- Includes: EZ-Install tools and Chrome trip lever. Trip lever is also available in Brushed Nickel and Matte Black, sold separately
- Sold separately: Toilet seat, wax ring and supply lines are not included. We recommend slow-close seat EL 5503A00B.020.
- Warranty: Limited Lifetime Warranty. See warranty page on website for more details.
Technical Features
- Includes tank, bowl, and installation kit (seat not included)
- Bowl Shape: Elongated
- Rim Height: Chair Height measures 17" rim height, ADA compliant
- Rough-In: 12" (305 mm)

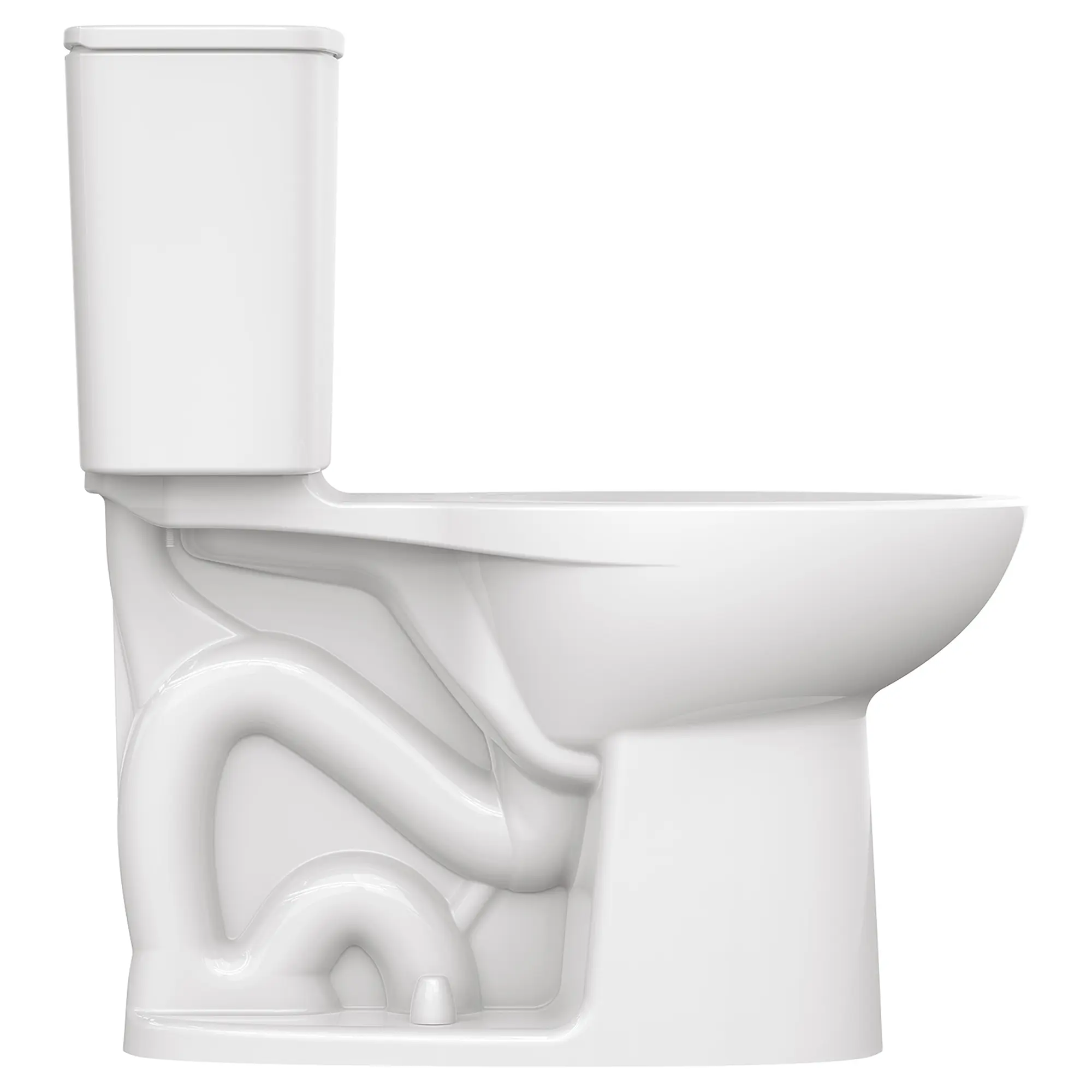

- Configuration: Two-piece exposed trapway design
- Flush Rate: 0.8 gpf (3.0Lpf) single flush ultra high-efficiency toilet
- Right-handed metal trip-lever, chrome
- Trapway: 2-1/8" (54 mm) fully glazed
- Box Rim Design
- EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,Meets EPA WaterSense® and MaP PREMIUM criteria,EZ-installation kit included, no tools needed,Limited Lifetime Warranty, see warranty page on website for details
Nominal Dimensions: 29-7/16 in x 14-11/16 in x 31-3/16 in (748 mm x 373 mm x 792 mm)

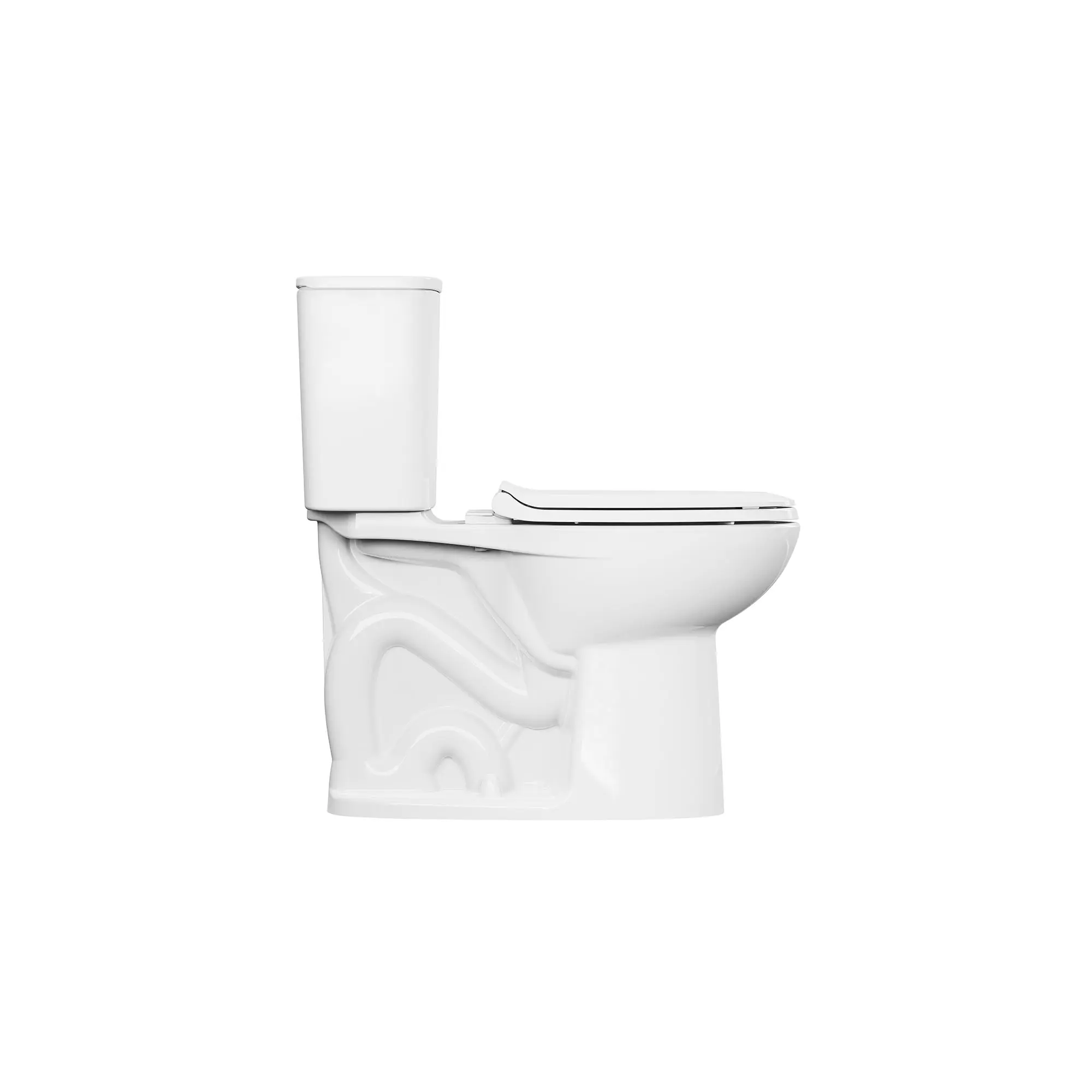

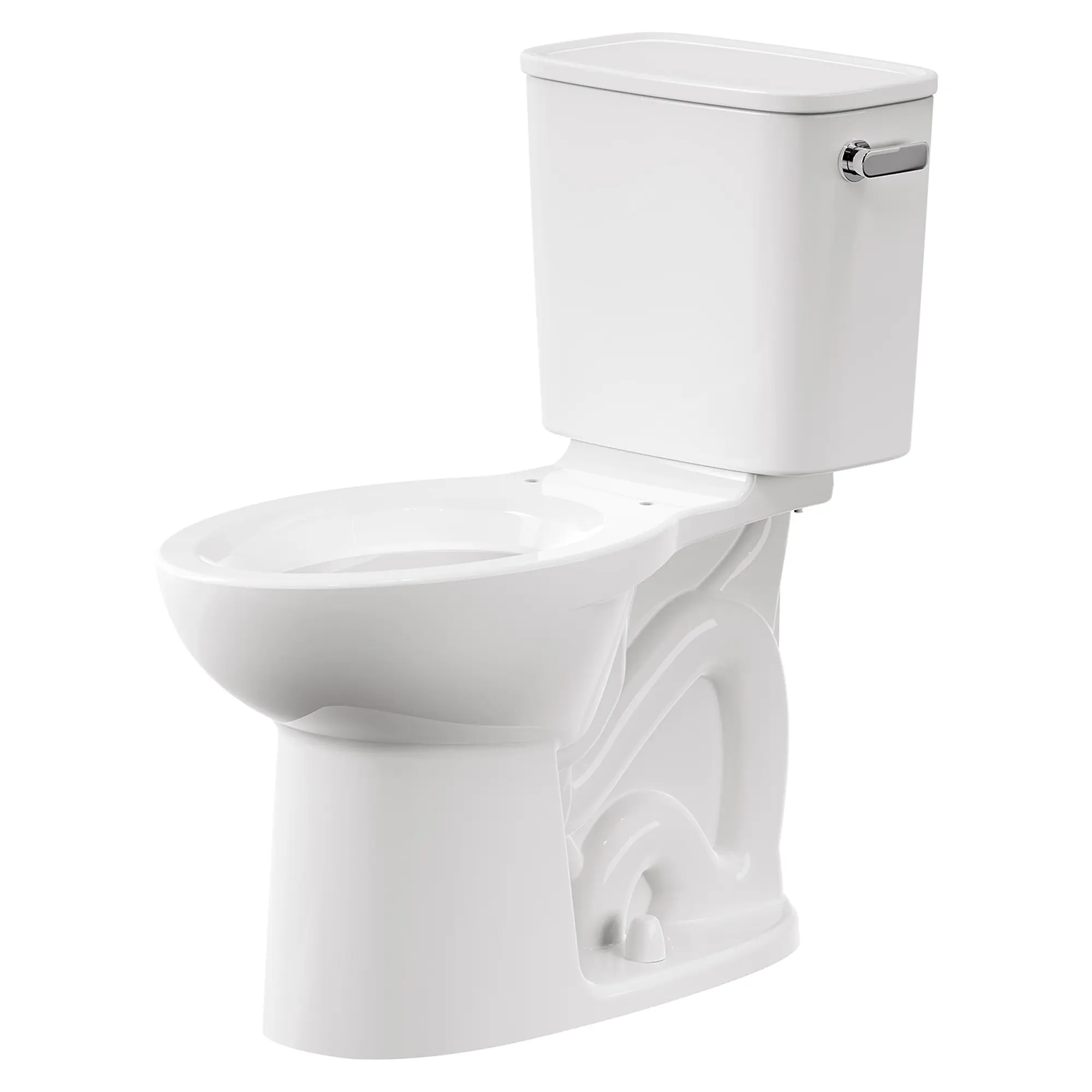

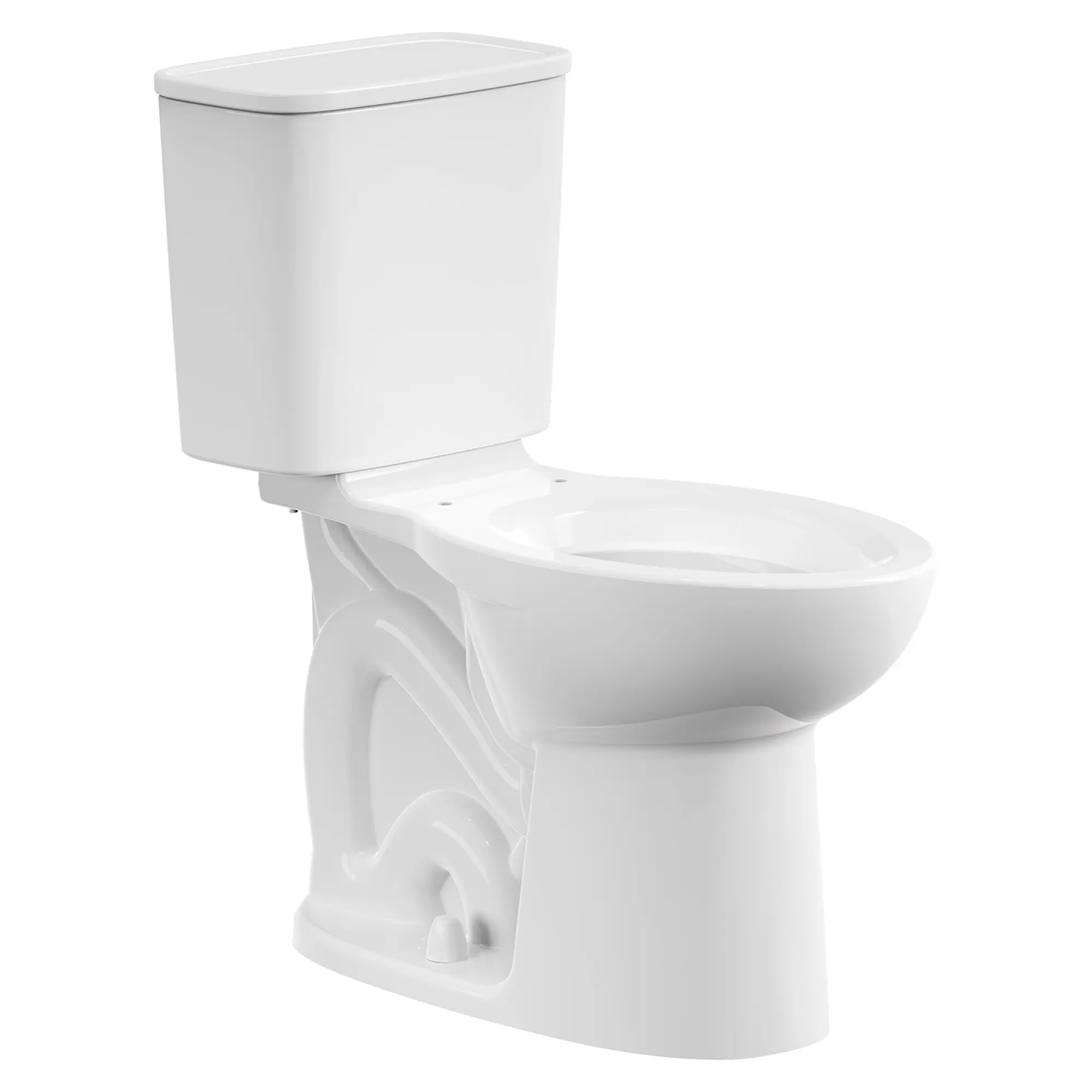

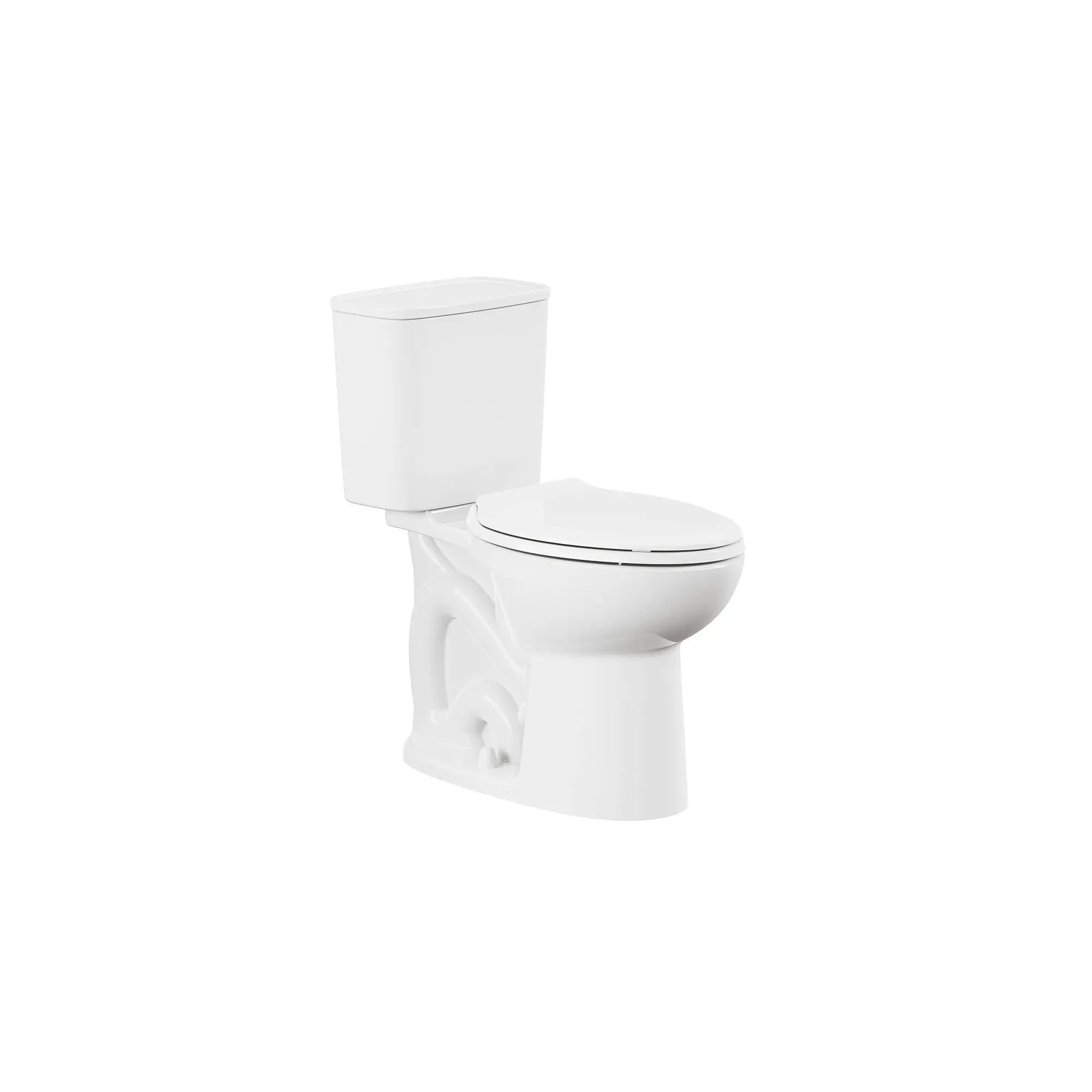

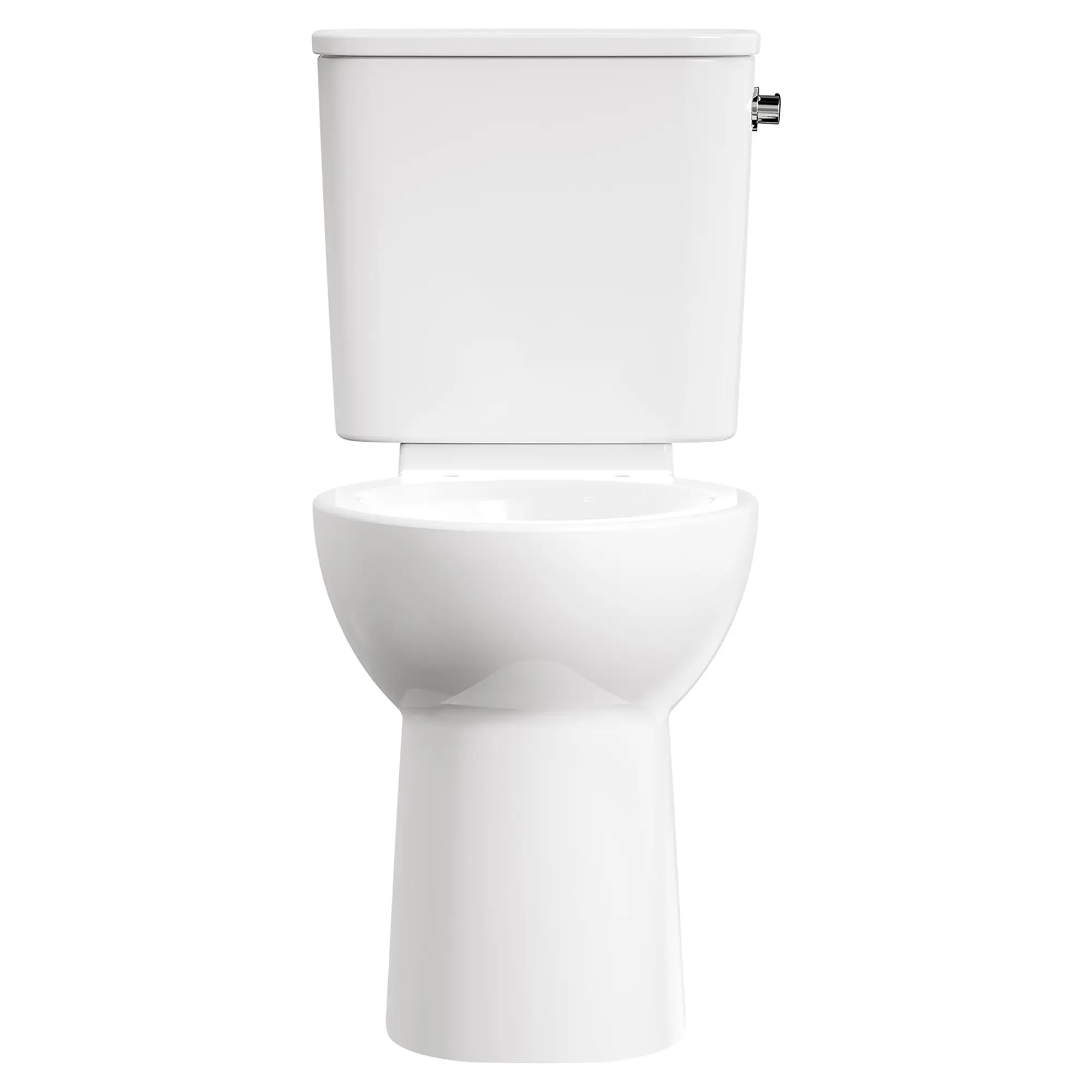

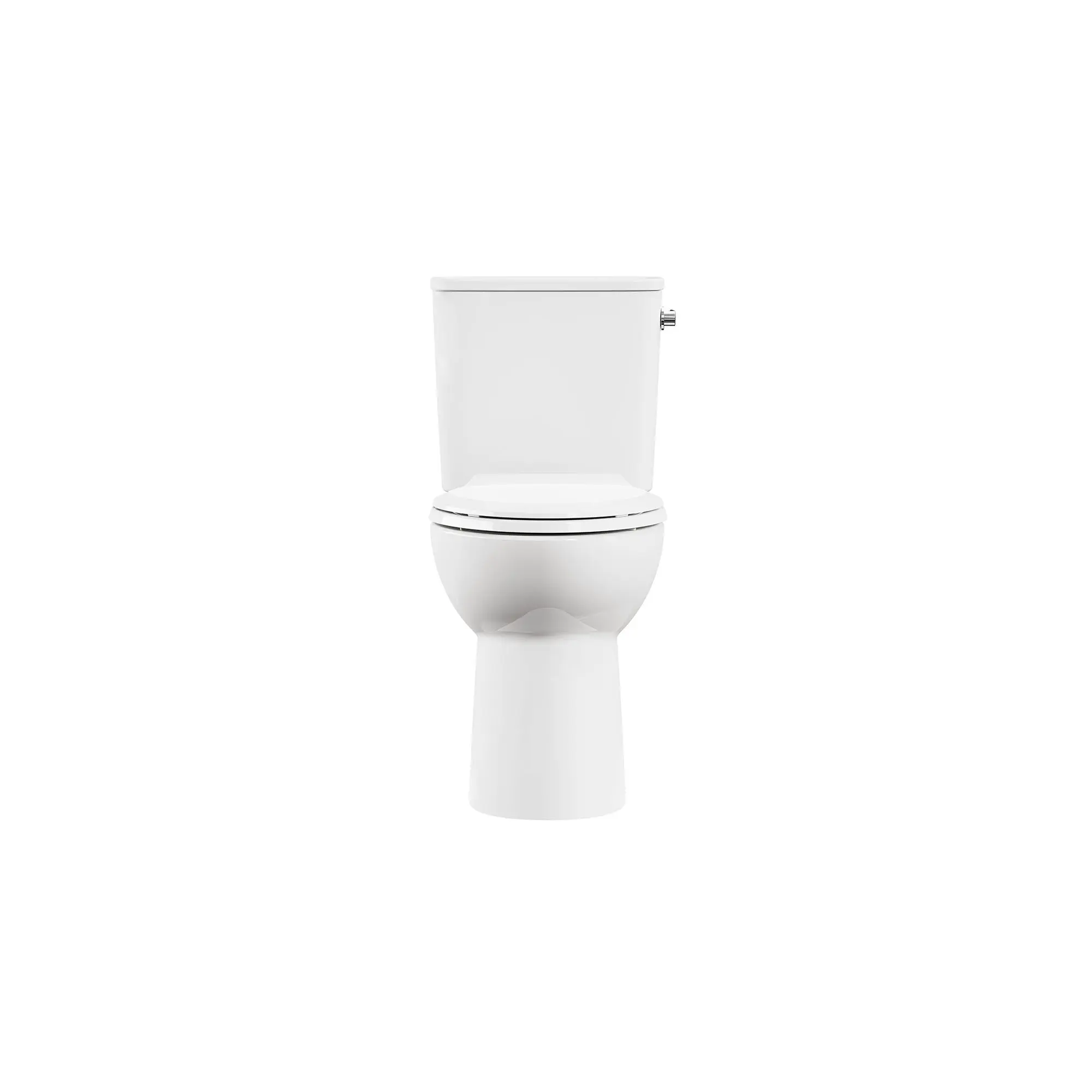

EcoStrength Aspiration Two-Piece 0.80 gpf/3 Lpf Chair Height Elongated Toilet Less Seat with RHTL
1 lb (0.4 kg)
0
EcoStrength Aspiration Chair Height Elongated Bowl
55 lb (24.9 kg)
0
spacer
EcoStrength Aspiration 0.80 gpf/ 3Lpf RHTL Toilet Tank
27 lb (12.4 kg)
0
spacer
Right-Hand Trip Lever
13 lb (6.0 kg)
0
0
0
0
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
0
EcoStrength Aspiration Two-Piece 0.80 gpf/3 Lpf Chair Height Elongated Toilet Less Seat with RHTL
1 lb (0.4 kg)
0
EcoStrength Aspiration Chair Height Elongated Bowl
55 lb (24.9 kg)
0
spacer
EcoStrength Aspiration 0.80 gpf/ 3Lpf RHTL Toilet Tank
27 lb (12.4 kg)
0
spacer
Right-Hand Trip Lever
13 lb (6.0 kg)
0
0
0
0
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
0
