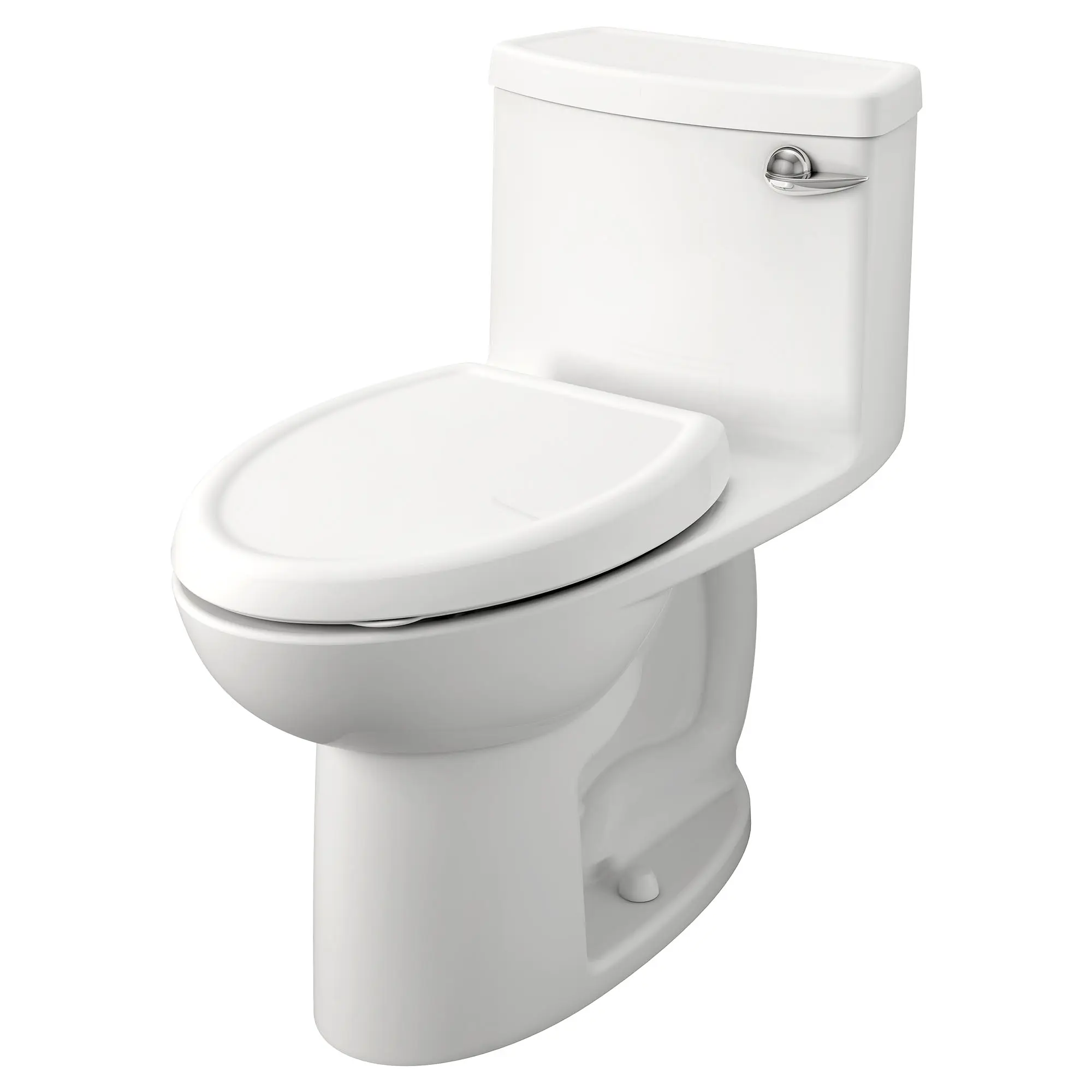

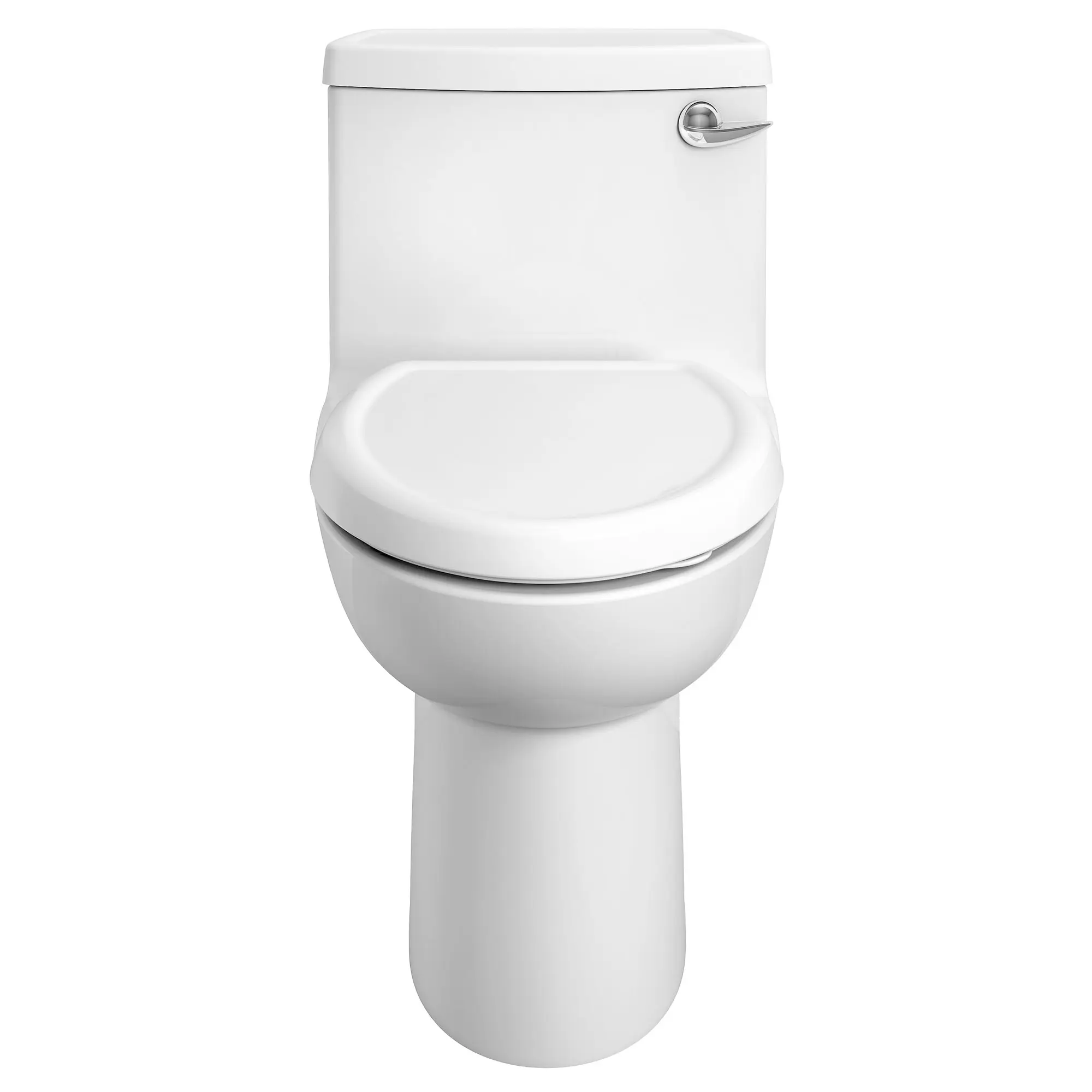

Compact Cadet® 3 One-Piece 1.28 gpf/4.8 Lpf Chair Height Right-Hand Trip Lever Elongated Toilet With Seat

The Compact Cadet 3 FloWise Right Height Elongated Toilet from American Standard combines power, comfort and smart design in a seamless, one-piece style. This high-efficiency, ultra-low consumption toilet uses 20% less water than conventional toilets without sacrificing performance. The compact, elongated Cadet 3 is the perfect alternative to a round-front toilet, offering a comfortable height and sleek, elongated style, designed to fit where space is limited.

Features
  • Compact, elongated design
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on toilet and seat
  • Includes slow-close seat and lid for silent, no-slam convenience
  • One-piece construction eliminates the gap where dirt and grime collects for easy cleaning
  • Right Height bowl for sitting and standing comfort is ADA compliant
  • FloWise technology ensures highest level of water conservation available
  • Uses 1.28 gallons per flush (4.8 Lpf) and is WaterSense® certified
  • Cadet 3 flushing system with 2-1/8 in. glazed trap-way and oversized 3 in. flush valve for a thorough, powerful flush
  • Seat features sanitary lift tab to avoid direct contact with seat
Technical Features
  • Chair Height elongated bowl
  • Space saving compact elongated bowl fits in the space of a round front
  • 12" (305 mm) rough-in
  • High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • Meets EPA WaterSense® criteria
  • 16-1/2" (419 mm) bowl rim height for accessible application
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria on toilet and seat
  • Includes color-matched and design-matched solid plastic toilet seat and cover with slow-close hinges and EverClean® antimicrobial surface
  • Seat features unique sanitary seat lift tab
  • 3" (76 mm) flush valve,9" x 8" (229 x 203 mm) water surface area,2-1/8" (54 mm) trapway,Two color-matched bolt caps,Five-year warranty,Trip lever on right-hand side
Nominal Dimensions: 27-11/16 in x 15 in x 27-3/8 in (703 mm x 381 mm x 695 mm)
Description
Net Weight
SKU
Color
List Price USD
Compact Cadet® 3 One-Piece 1.28 gpf/4.8 Lpf Chair Height Right-Hand Trip Lever Elongated Toilet With Seat
92 lb (41.9 kg)
White (020)
836
Separate Components
Cadet 3 Slow-Close Elongated Toilet Seat
4 lb (2.0 kg)
White
95
spacer
Compact Cadet® 3 One-Piece Toilet Tank Cover
15 lb (6.8 kg)
White
164
spacer
Right-Hand Trip Lever
0 lb (0.0 kg)
Chrome
36
Spare Parts
Cadet 3 Slow-Close Elongated Toilet Seat
4 lb (2.0 kg)
White
95
spacer
Compact Cadet® 3 One-Piece Toilet Tank Cover
15 lb (6.8 kg)
White
164
spacer
Right-Hand Trip Lever
0 lb (0.0 kg)
Chrome
36
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Department of Energy Certified: Yes
Collections: Cadet®
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 3
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Handle Finish: CHROME
MAP Performance Rating: 1000
Number of Batteries Included: Not Applicable (N/A)
Number of Flush Valves: 1
Height: 27-3/8
Length: 27-11/16
Width: 15
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Right Front
Bowl Height With Seat: 18-11/16
Toilet Water Efficiency: Ultra Height Efficiency Toilet
Toilet Mount Type: Floor Mount
Seat Included: Yes
Trapway Diameter: 2-1/8
Toilet Type: One Piece
USMCA Compliant: Yes
Warranty: 5 Year Limited Warranty
There are no design files currently available for this product
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
