Features
- HIGH-EFFICIENCY TOILET (HET): Powerful and efficient toilet uses 1.28 gpf/4.8 Lpf
- BOWL-CLEANING FLUSH: PowerWash® rim design scrubs bowl with every flush
- AFFORDABLE PRICE: Performance you can count on
- POWERFUL FLUSH: Equipped with a 3-in. flush valve and 2-in. trapway to deliver the force and clearance needed to clear the bowl efficiently
- WATERSENSE CERTIFIED: Uses less water while maintaining great performance
- BOWL STAYS CLEANER: Generous 9-in. x 8-in. water surface area helps to maintain bowl cleanliness
- ROUGH-IN: 10-in.
- INCLUDES: Color-matched trip lever
- SOLD SEPARATELY: Toilet seat, wax ring and supply lines are not included
- WARRANTY: Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts
Technical Features
- Combination bowl and tank, less seat
- High efficiency toilet (HET), ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
- Meets EPA WaterSense® criteria
- PowerWash® rim helps clean bowl with each flush
- 3" (76 mm) flush valve with 2" (51 mm) fully glazed trapway for optimal flushing performance
- 10" (254 mm) rough-in
- Generous 9" x 8" (229 x 203 mm) water surface area
- Color-matched trip lever is supplied
- Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts, and limited 1-year warranty on seat which is purchased separately

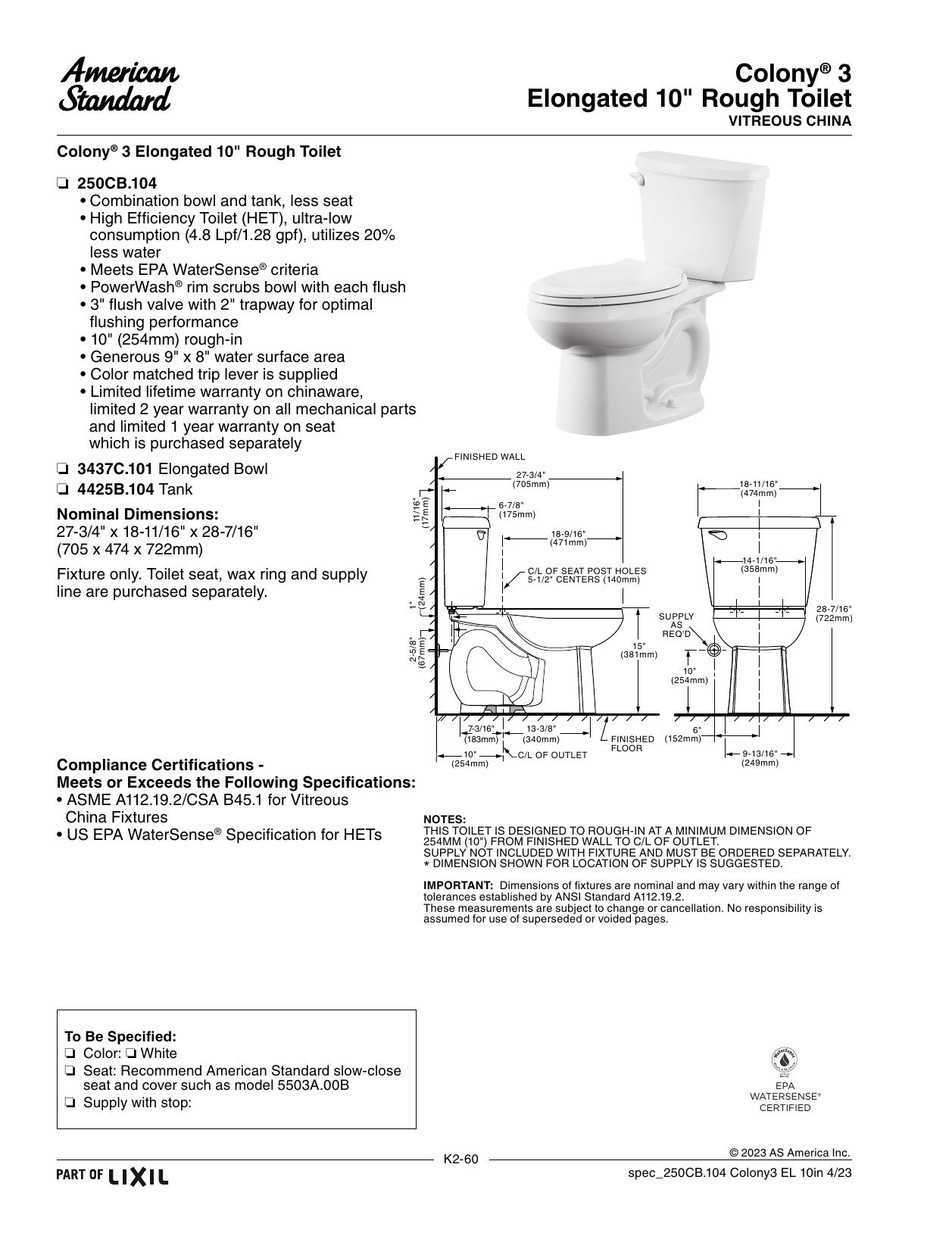

Nominal Dimensions: 27-3/4 in x 18-11/16 in x 28-7/16 in (705 mm x 475 mm x 722 mm)
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
White (020)
338
Colony®3 Standard Height Elongated Bowl
43 lb (19.7 kg)
White
163
spacer
Colony®3 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
26 lb (12.0 kg)
White
175
spacer
Left-Hand 30 Degree Plastic Toilet Trip Lever
0 lb (0.0 kg)
Chrome
43
White
36
spacer
Colony®3 Standard Height Elongated Bowl
43 lb (19.7 kg)
White
163
spacer
Colony®3 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
26 lb (12.0 kg)
White
175
spacer
Colony®3 10-Inch Rough Toilet Tank Cover
7 lb (3.1 kg)
White
81
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
White
67
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
White (020)
338
Colony®3 Standard Height Elongated Bowl
43 lb (19.7 kg)
White
163
spacer
Colony®3 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
26 lb (12.0 kg)
White
175
spacer
Left-Hand 30 Degree Plastic Toilet Trip Lever
0 lb (0.0 kg)
Chrome
43
White
36
spacer
Colony®3 Standard Height Elongated Bowl
43 lb (19.7 kg)
White
163
spacer
Colony®3 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
26 lb (12.0 kg)
White
175
spacer
Colony®3 10-Inch Rough Toilet Tank Cover
7 lb (3.1 kg)
White
81
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
White
67
