Features
- Chair height toilet: With a 16 ½-in. bowl height, access is easy and comfortable
- Great flush performance: Features a 3-in. flush valve and fully glazed 2-in. trapway for a powerful flush
- Bowl-cleaning flush: A forceful rush of water from the PowerWash rim helps to scrub the bowl with every flush
- Durable construction: Made from quality vitreous china for strength and reliability
- Includes: 12-inch rough-in configuration including color-matched trip lever and bolt caps
- Warranty: Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts
Technical Features
- Combination bowl and tank, less seat
- High efficiency toilet (HET), ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
- Meets EPA WaterSense® criteria
- PowerWash® rim helps clean bowl with each flush
- 3" (76 mm) flush valve with 2" (51 mm) fully glazed trapway for optimal flushing performance
- 16-1/2" (419 mm) rim height for accessible applications
- 12" (305 mm) rough-in
- Generous 9" x 8" (229 x 203 mm) water surface area
- Color-matched trip lever is supplied
- Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts, and limited 1-year warranty on seat which is purchased separately
Nominal Dimensions: 29-3/4 in x 17-15/16 in x 29-15/16 in (756 mm x 456 mm x 760 mm)

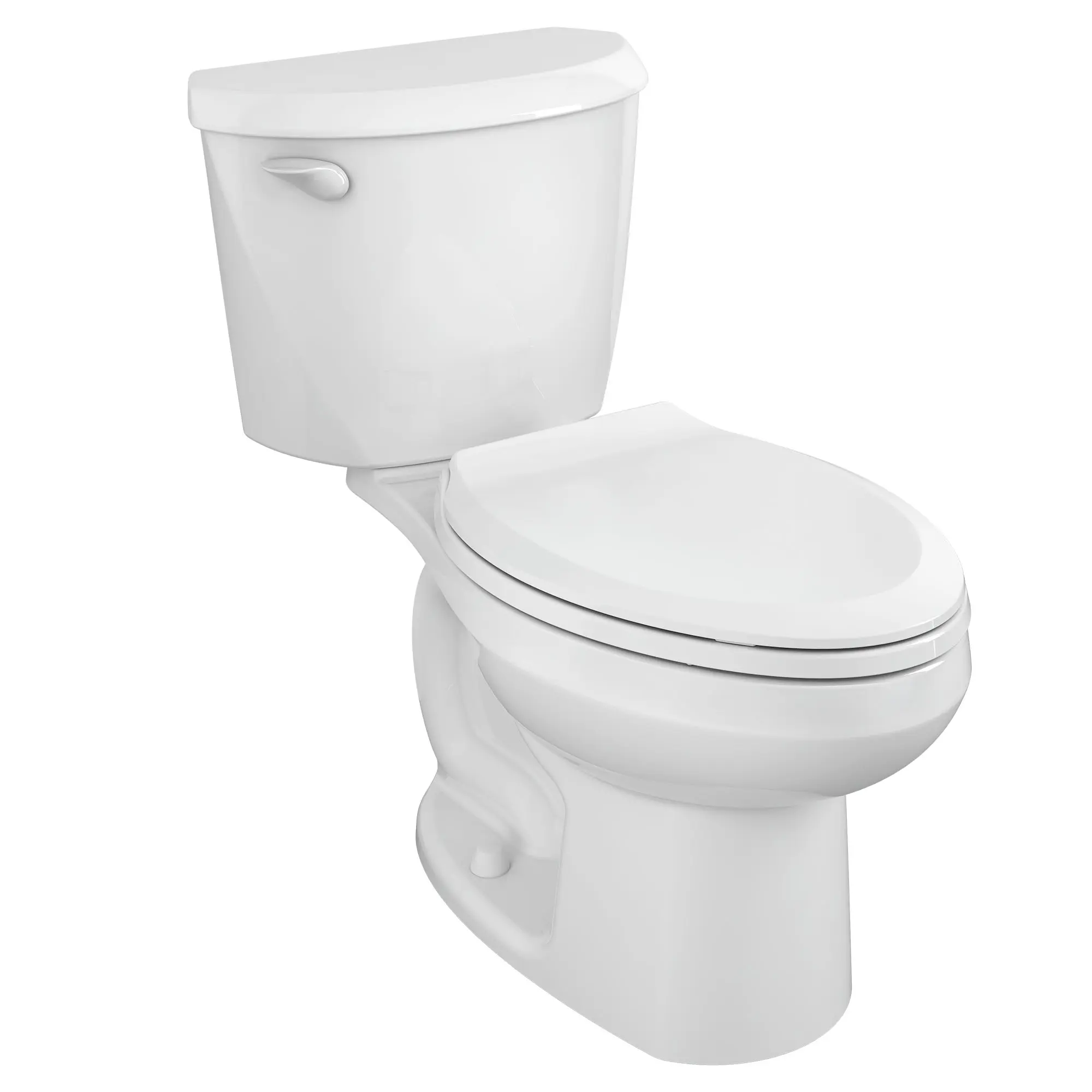

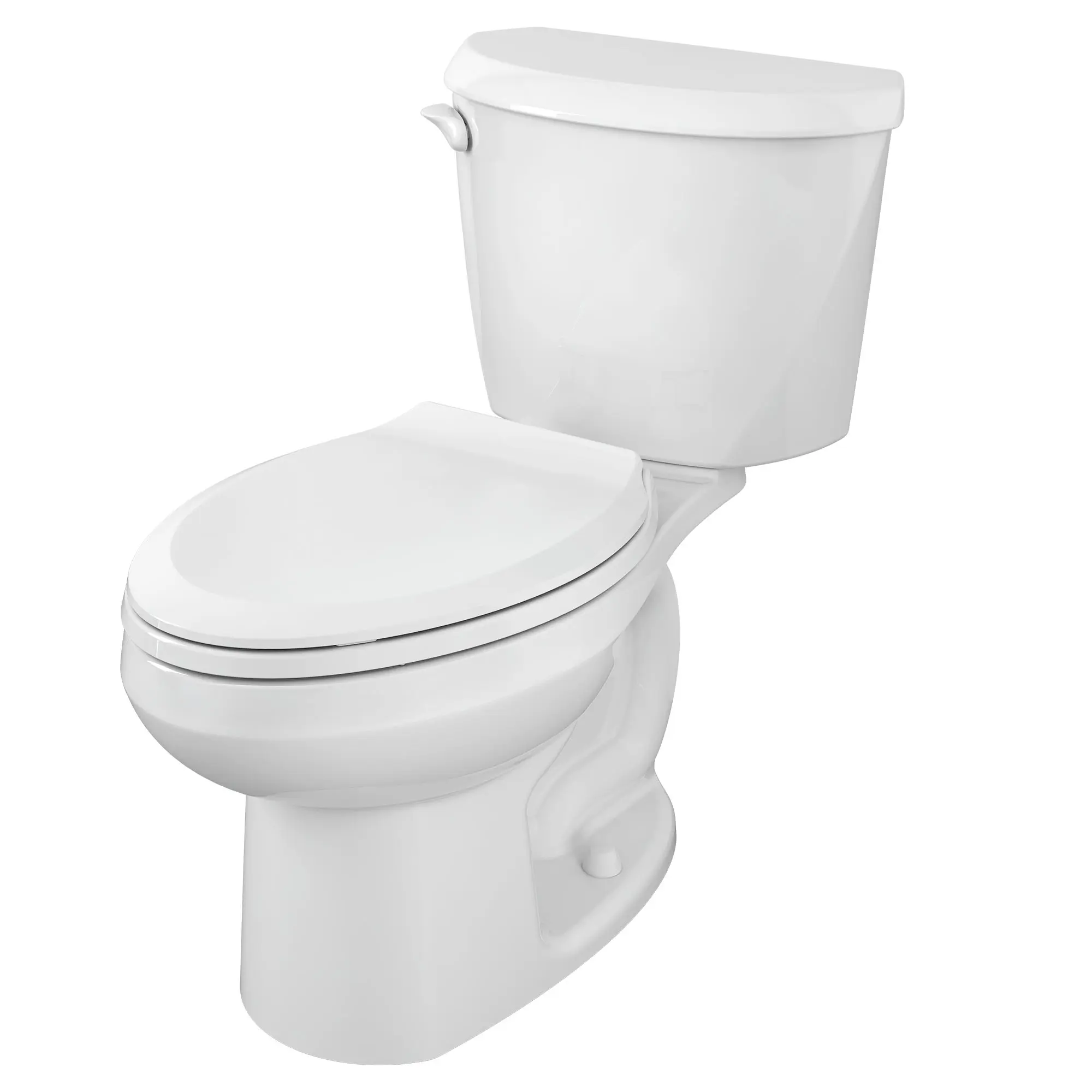

Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Round Front Toilet Less Seat
1 lb (0.4 kg)
White (020)
359
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Tank
27 lb (12.4 kg)
White
136
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
27 lb (12.4 kg)
White
136
spacer
Left-Hand 30 Degree Plastic Toilet Trip Lever
0 lb (0.0 kg)
Chrome
43
White
36
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Lined Tank
27 lb (12.4 kg)
White
163
spacer
Colony/Evolution2/Colony®3 Toilet Tank Cover
7 lb (3.3 kg)
White
88
spacer
Right-Hand Trip Lever
0 lb (0.0 kg)
Chrome
36
White
35
Transitional Slow-Close Round-Front Toilet Seat
3 lb (1.2 kg)
White
61
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Round Front Toilet Less Seat
1 lb (0.4 kg)
White (020)
359
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Tank
27 lb (12.4 kg)
White
136
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
27 lb (12.4 kg)
White
136
spacer
Left-Hand 30 Degree Plastic Toilet Trip Lever
0 lb (0.0 kg)
Chrome
43
White
36
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Lined Tank
27 lb (12.4 kg)
White
163
spacer
Colony/Evolution2/Colony®3 Toilet Tank Cover
7 lb (3.3 kg)
White
88
spacer
Right-Hand Trip Lever
0 lb (0.0 kg)
Chrome
36
White
35
Transitional Slow-Close Round-Front Toilet Seat
3 lb (1.2 kg)
White
61
