Colony®

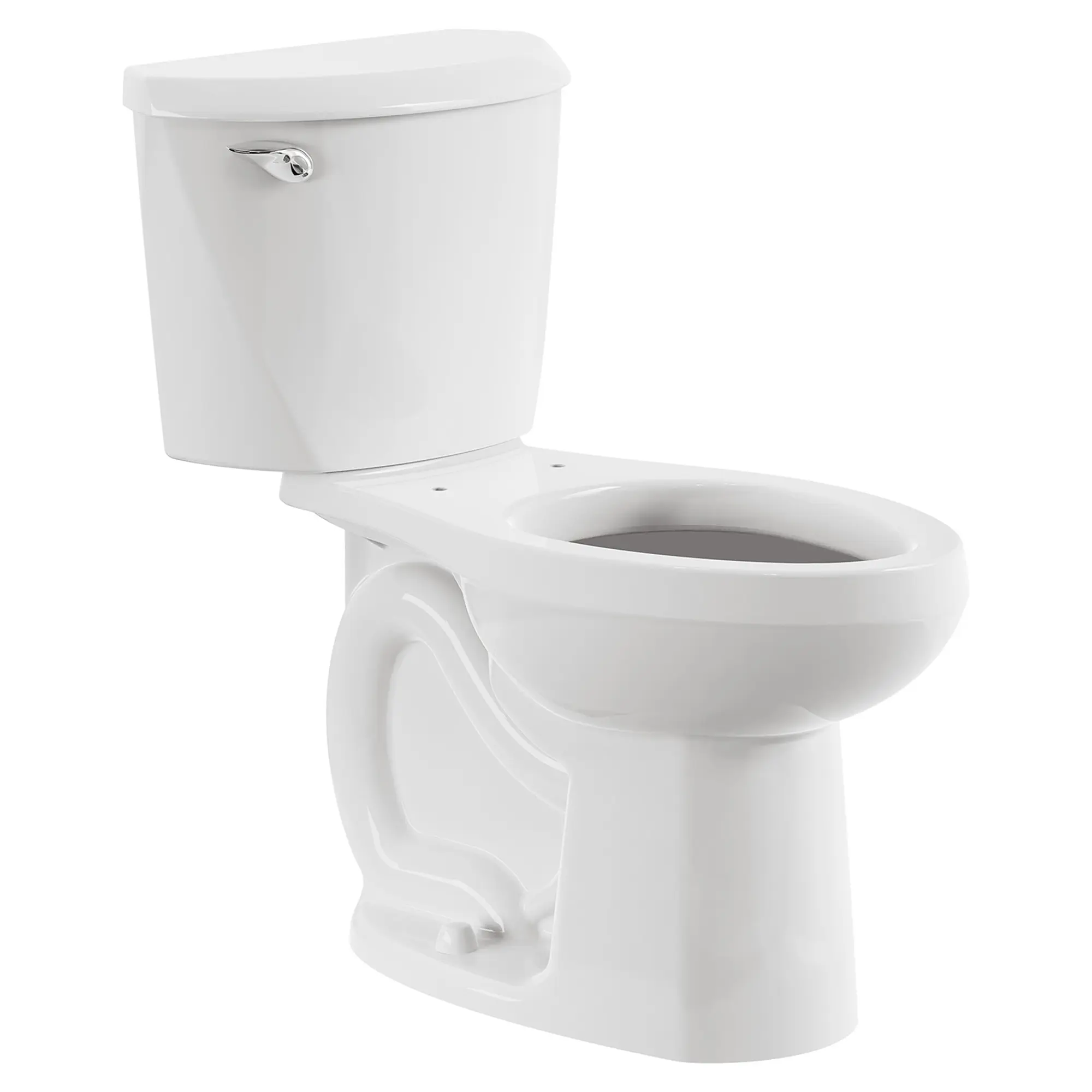

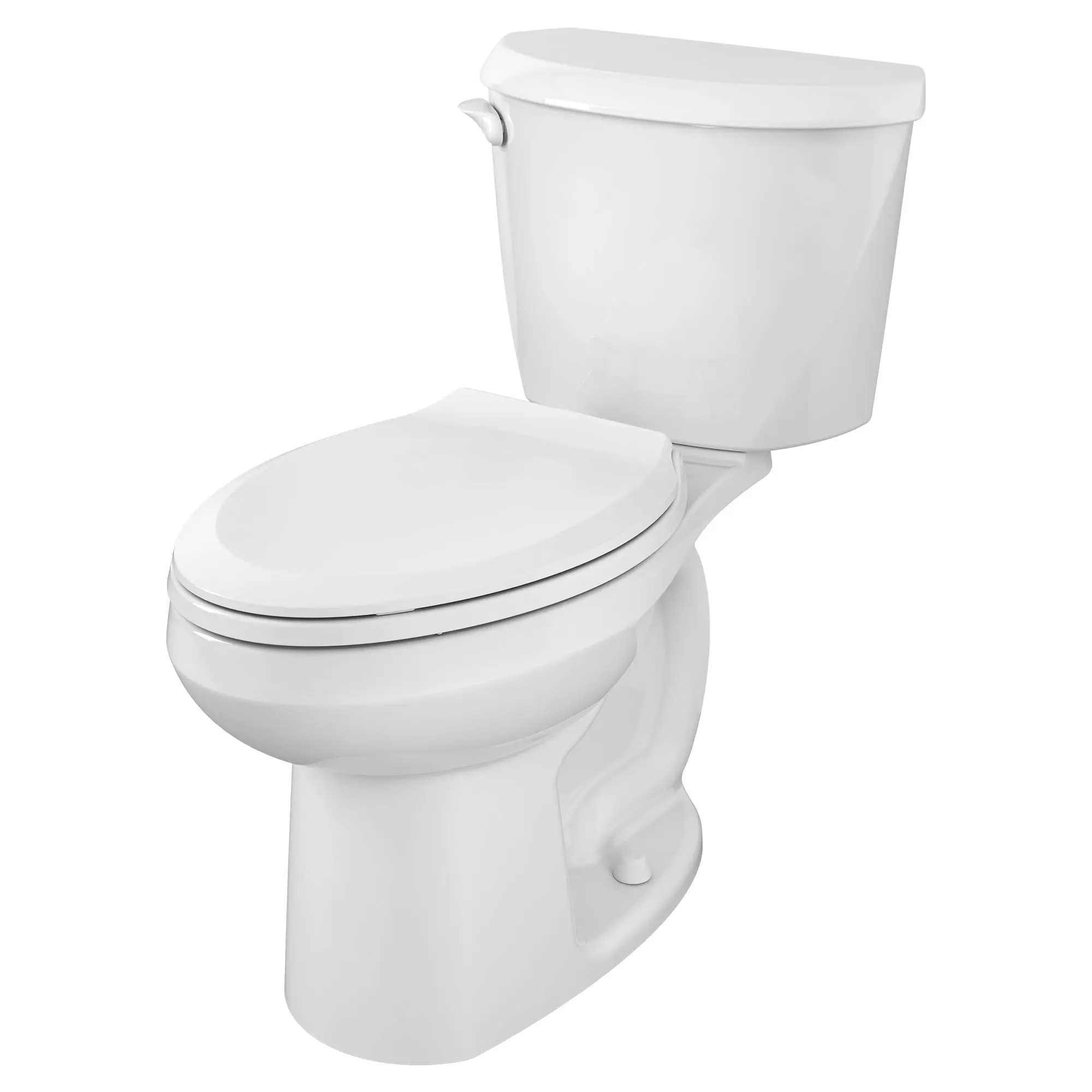

Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Elongated Toilet Less Seat

The Colony3 Elongated Chair Height Toilet from American Standard provides the power, comfort and efficiency today’s home demands. This transitional style is engineered for savings, using 20% less water than standard toilets while maintaining impressive performance. Chair height ensures effortless access and ease when sitting and standing.

White 250AA104.020 DISCONTINUED
List Price: $378.00
ADA Compliant Cal Green CEC Certified USMCA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Clean, simple style complements every bathroom decor
  • Comfortable 16-1/2-in. rim height for easy access
  • Great flush performance with 3-in. flush valve
  • Uses 1.28 gpf / 4.8 Lpf with optimal efficiency
  • Fully glazed 2-in. trapway to help avoid clogs
  • Meets WaterSense® criteria for water savings
  • Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts
  • Includes color-matched trip lever
  • 12-in. rough in
  • Toilet seat, wax ring and supply line are sold separately
Technical Features
  • Combination bowl and tank, less seat
  • High efficiency toilet (HET), ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • Meets EPA WaterSense® criteria
  • PowerWash® rim helps clean bowl with each flush
  • 3" (76 mm) flush valve with 2" (51 mm) fully glazed trapway for optimal flushing performance
  • 16-1/2" (419 mm) rim height for accessible applications
  • 12" (305 mm) rough-in
  • Generous 9" x 8" (229 x 203 mm) water surface area
  • Color-matched trip lever is supplied
  • Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts, and limited 1-year warranty on seat which is purchased separately
Nominal Dimensions: 29-3/4 in x 17-15/16 in x 29-15/16 in (756 mm x 456 mm x 760 mm)
Description
Net Weight
SKU
Color
List Price USD
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Elongated Toilet Less Seat
1 lb (0.4 kg)
250AA104.020
White (020)
378
Separate Components
Colony®3 Chair-Height Elongated Bowl
0 lb (0.0 kg)
3437A101.020
White
242
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Tank
27 lb (12.4 kg)
4425A104.020
White
136
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
27 lb (12.4 kg)
4425A105.020
White
136
spacer
Left-Hand 30 Degree Plastic Toilet Trip Lever
0 lb (0.0 kg)
047192-0020A
Chrome
43
047192-0200A
White
36
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
27 lb (12.4 kg)
4425A105.020
White
136
spacer
Colony®3 1.28 gpf/4.8 Lpf 12-Inch Rough Lined Tank
27 lb (12.4 kg)
4425A154.020
White
163
spacer
Colony/Evolution2/Colony®3 Toilet Tank Cover
7 lb (3.3 kg)
735131-400.020
White
88
spacer
Right-Hand Trip Lever
0 lb (0.0 kg)
738171-0020A
Chrome
36
738171-0200A
White
35
Optional Components (Not Included)
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
5503A00B.020
White
67
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Department of Energy Certified: Yes
Collections: Colony®
WaterSense: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 3
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Handle Finish: WHITE
MAP Performance Rating: 1000
Number of Flush Valves: 1
Number of Flush Valves: 1
Height: 29-15/16
Length: 29-3/4
Width: 17-15/16
Residential or Commercial: Builder
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Front
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2
Toilet Type: Two Piece
USMCA Compliant: Yes
Warranty: Limited Lifetime Warranty on Chinaware; 5-Year Warranty on Mechanical Parts; 1-Year Warranty on Seat
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
