Features
- HIGH-EFFICIENCY TOILET (HET): Powerful and efficient toilet uses 1.28 gpf/4.8 Lpf
- BOWL-CLEANING FLUSH: PowerWash® rim design scrubs bowl with every flush
- AFFORDABLE PRICE: Performance you can count on
- CHAIR-HEIGHT BOWL: 16 1/2-in. bowl height makes sitting and standing easier and more comfortable
- POWERFUL FLUSH: Equipped with a 3-in. flush valve and 2-in. trapway to deliver the force and clearance needed to clear the bowl efficiently
- WATERSENSE CERTIFIED: Uses less water while maintaining great performance
- BOWL STAYS CLEANER: Generous 9-in. x 8-in. water surface area helps to maintain bowl cleanliness
- ROUGH-IN: 10-in.
- INCLUDES: Color-matched trip lever
- SOLD SEPARATELY: Toilet seat, wax ring and supply lines are not included,WARRANTY: Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts
Technical Features
- Combination bowl and tank, less seat
- High efficiency toilet (HET), ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
- Meets EPA WaterSense® criteria
- PowerWash® rim helps clean bowl with each flush
- 3" (76 mm) flush valve with 2" (51 mm) fully glazed trapway for optimal flushing performance
- 16-1/2" (419 mm) rim height for accessible applications
- 10" (254 mm) rough-in
- Generous 9" x 8" (229 x 203 mm) water surface area
- Color-matched trip lever is supplied
- Limited lifetime warranty on chinaware, limited 5-year warranty on all mechanical parts, and limited 1-year warranty on seat which is purchased separately
Nominal Dimensions: 29-3/4 in x 18-11/16 in x 29-15/16 in (756 mm x 475 mm x 760 mm)

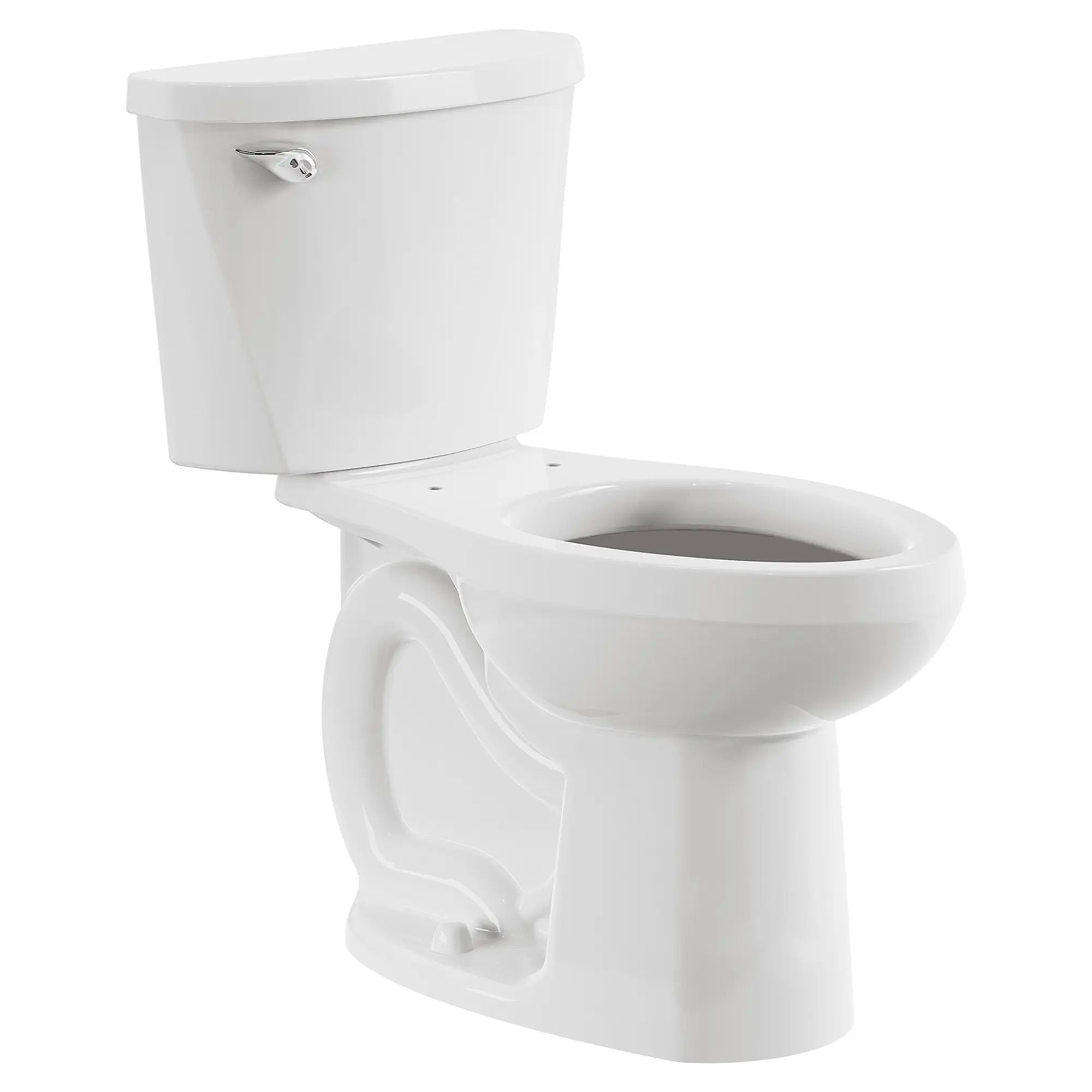

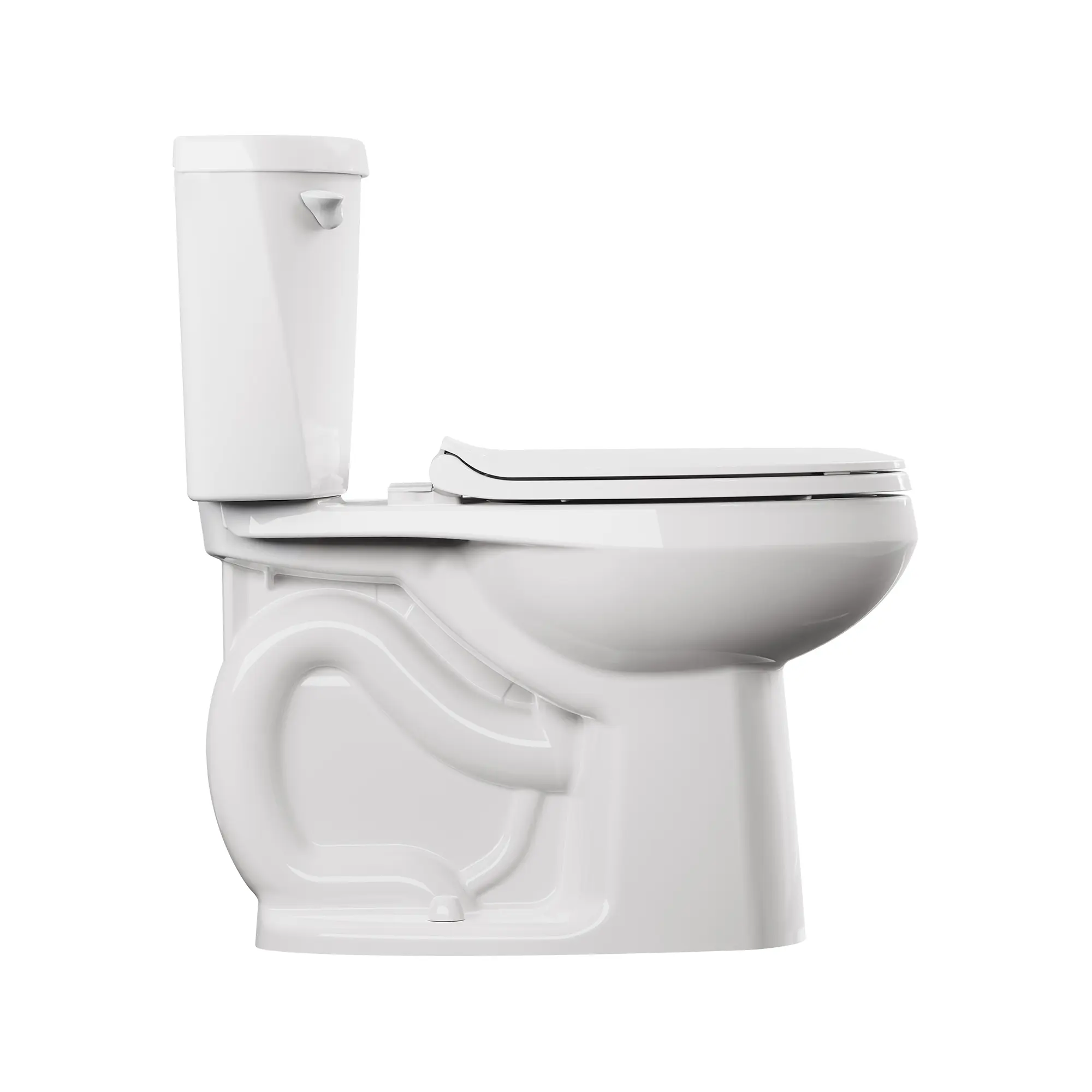

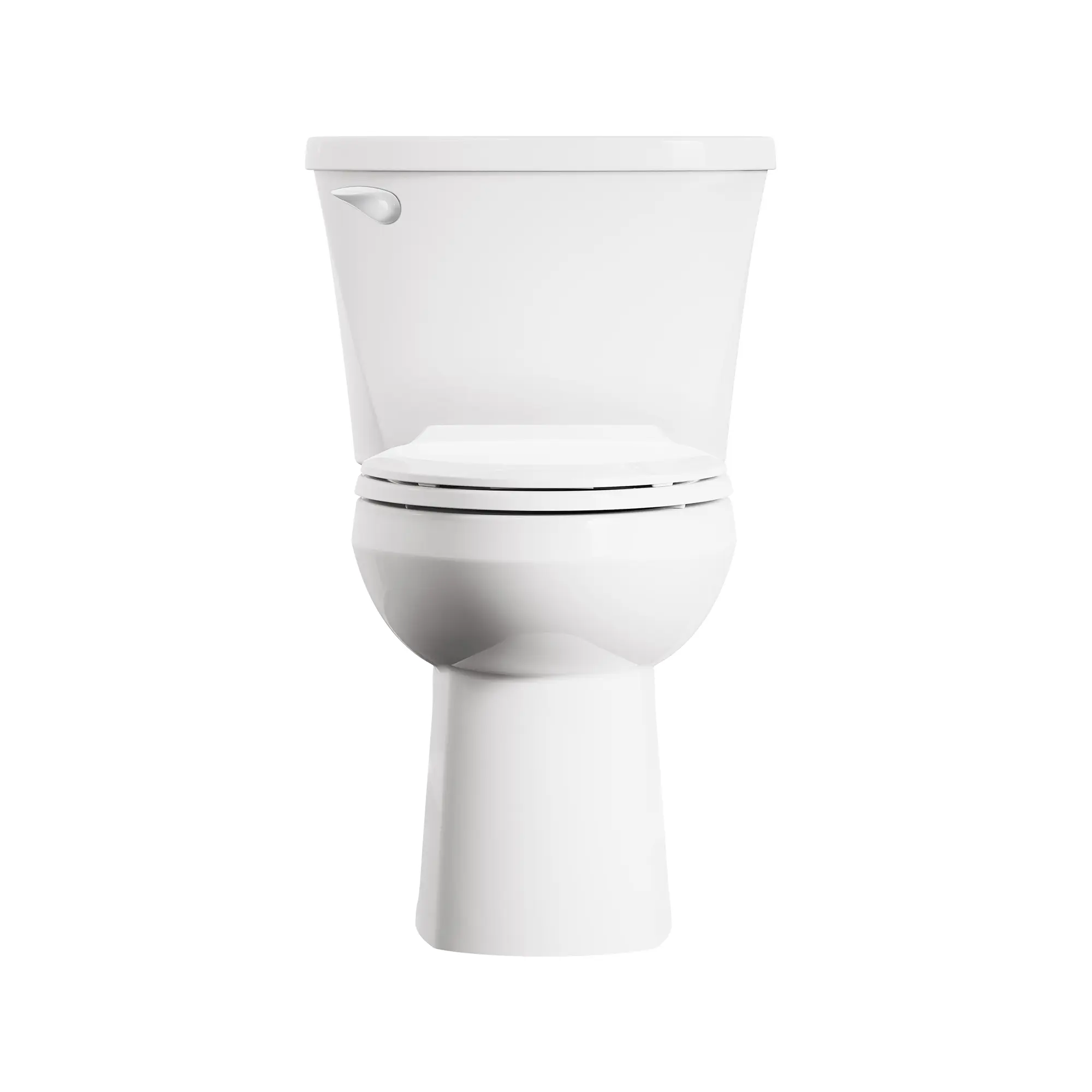

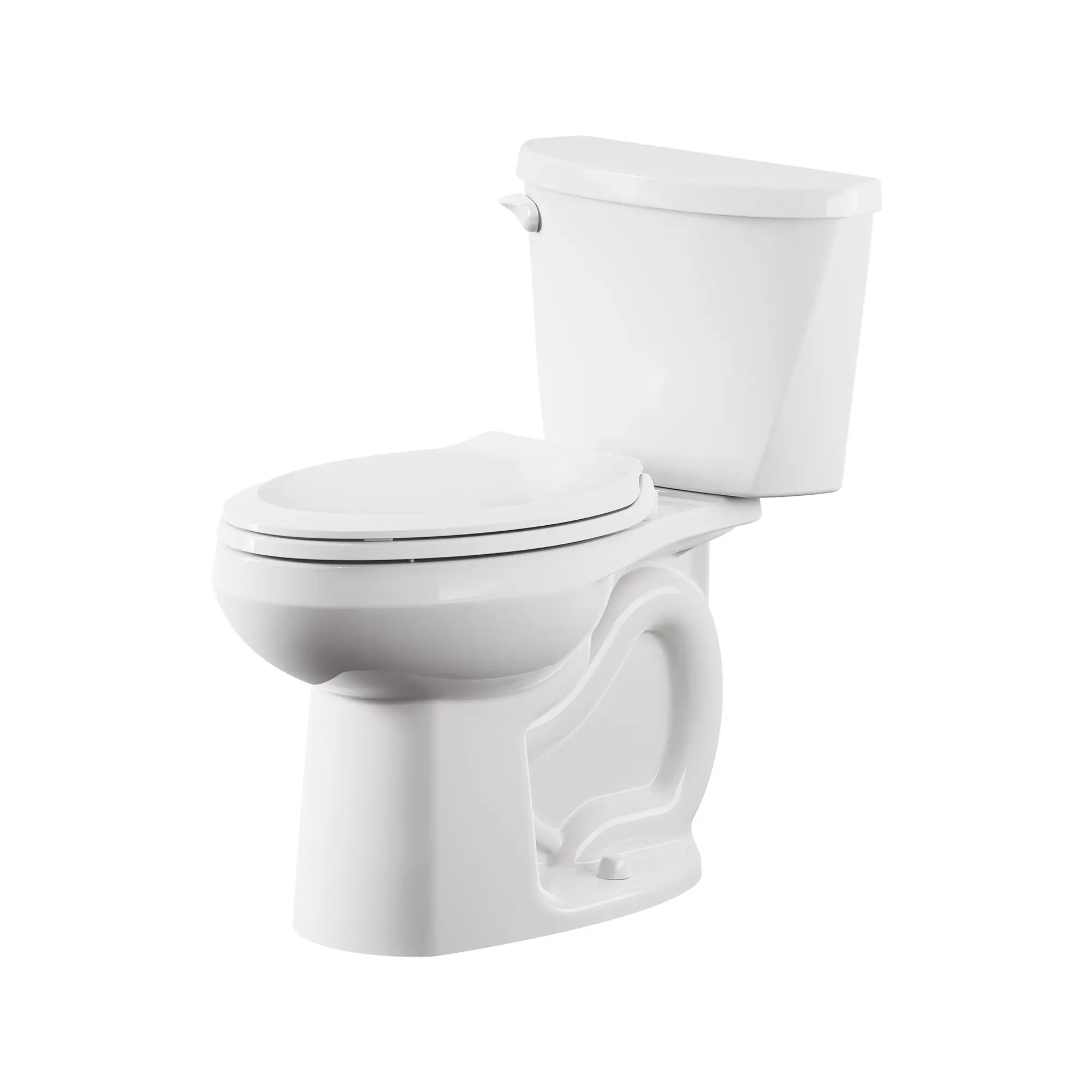

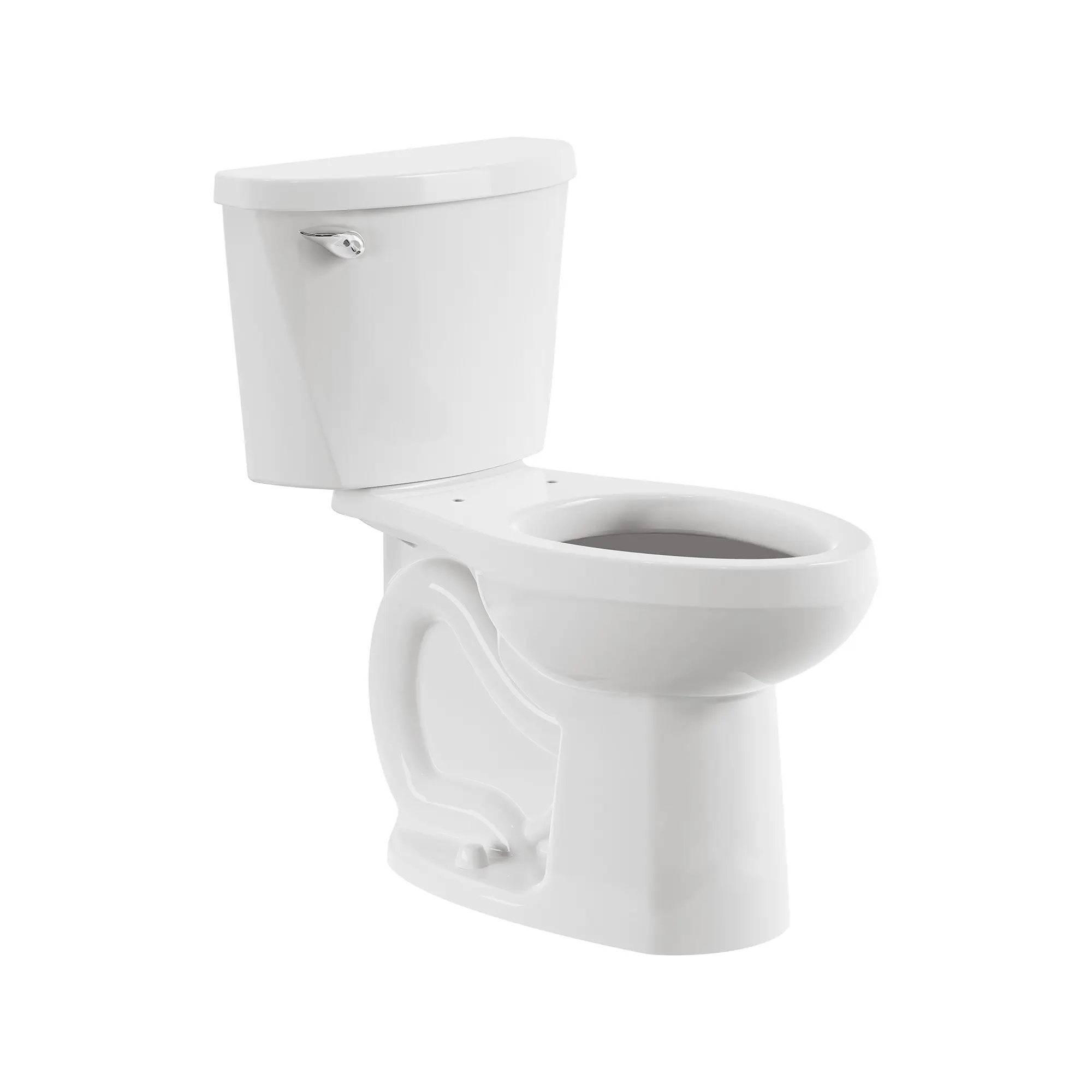

Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
White (020)
417
Colony®3 Chair-Height Elongated Bowl
0 lb (0.0 kg)
White
242
spacer
Colony®3 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
26 lb (12.0 kg)
White
175
spacer
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
White
417
spacer
Colony/Evolution2/Colony®3 Toilet Tank Cover
7 lb (3.3 kg)
White
88
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
White
67
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
White (020)
417
Colony®3 Chair-Height Elongated Bowl
0 lb (0.0 kg)
White
242
spacer
Colony®3 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
26 lb (12.0 kg)
White
175
spacer
Colony®3 Two-Piece 1.28 gpf/4.8 Lpf Chair-Height Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
White
417
spacer
Colony/Evolution2/Colony®3 Toilet Tank Cover
7 lb (3.3 kg)
White
88
Transitional Slow-Close Elongated Toilet Seat
3 lb (1.3 kg)
White
67
Didn't find the PDF or file you were looking for? Reach out to our team via our
Contact Form.
There are no design files currently available for this product
3D Objects are not currently available for this product
