Colony®

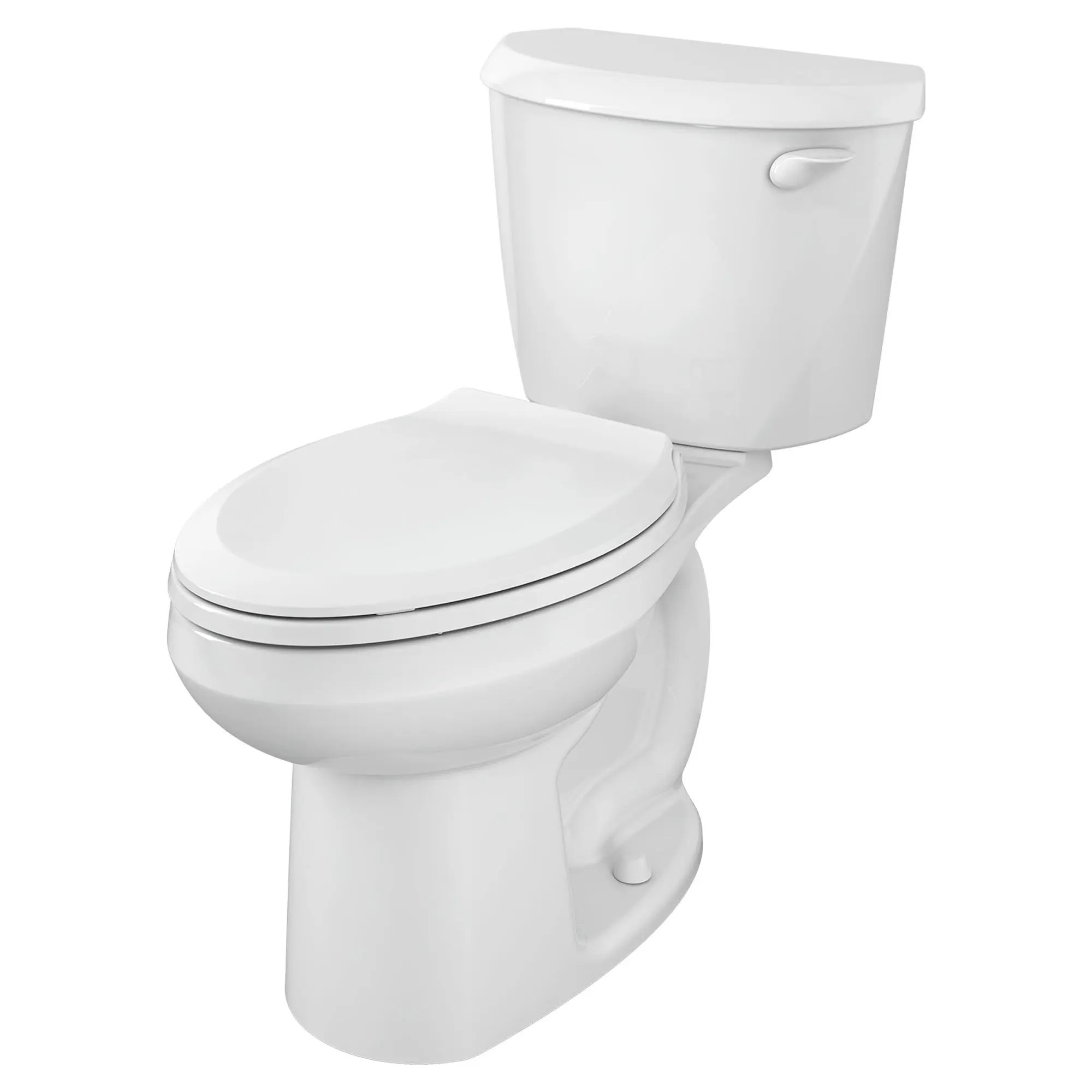

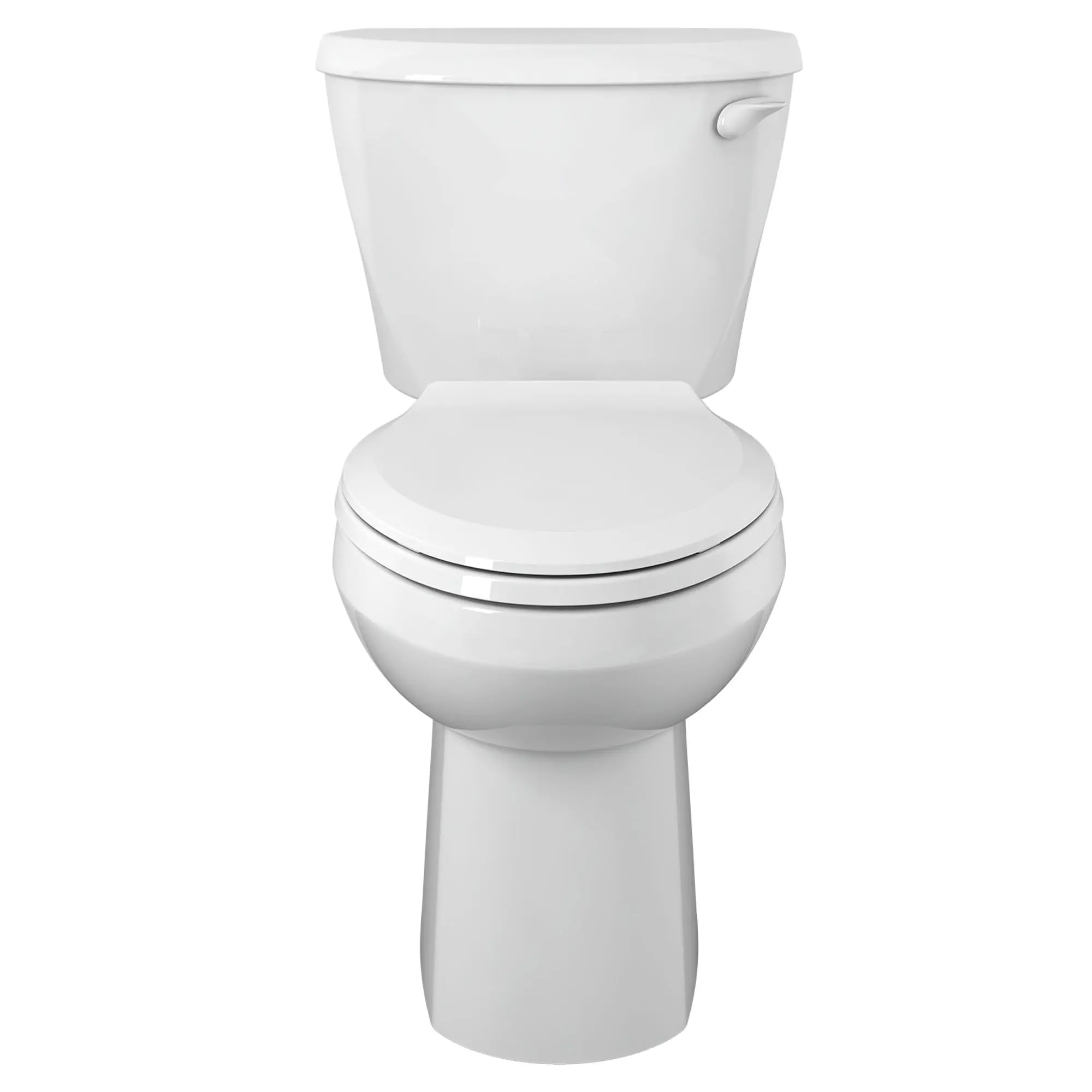

Colony® Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Right Hand Trip Lever Toilet Less Seat

The Colony Chair Height Elongated Toilet delivers the worry-free reliability that has defined the American Standard brand for more than 140 years. Colony is a low-consumption toilet that uses 20% less water than a regular toilet and is WaterSense® certified for high efficiency. At a chair-height of 17”, including seat, and an elongated bowl shape, it ensures accessibility and optimal comfort. The Colony toilet is easy to install and is backed by an industry-leading warranty that includes lifetime on chinaware plus 2 years on mechanical parts, twice the industry standard of 1 year. You can be confident Colony will stand the test of time.

White 221AA105.020 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green CEC Certified Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 12-INCH ROUGH-IN
  • RIGHT-HAND TRIP LEVER - Durable metal in Polished Chrome finish
  • WATERSENSE® CERTIFIED — Uses 20 percent less water and performs as well as or better than regular toilets
  • CHAIR-HEIGHT COMFORT — Measures 17” tall, including seat, for ease of use compared to standard height. Slight variation in height may occur based on the height of the seat used.
  • ADA COMPLIANT — Meets Americans with Disabilities Act requirements for use and accessibility
  • POWERWASH® RIM — Scrubs the bowl clean with every flush
  • DURABLE CONSTRUCTION — Made from quality vitreous china for strength and reliability
  • FINISHING TOUCHES — Includes color-matched bowl caps and trip lever
Technical Features
  • Same as above with trip lever on right-hand side
  • Combination bowl and tank, less seat
  • 12" (305 mm) rough-in
  • 16-1/2" (419 mm) rim height for accessible application
  • High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • Meets EPA WaterSense® criteria
  • Elongated siphon action bowl with direct fed jet and excellent rim wash
  • 2" (51 mm) trapway
  • 9" x 8" (229 x 203 mm) water surface area
  • 2" (51 mm) flapper flush valve,Color-matched trip lever,Two color-matched bolt caps,Two-year warranty,Trip lever on right-hand side
Nominal Dimensions: 29-3/4 in x 18 in x 29-7/8 in (756 mm x 457 mm x 759 mm)
Description
Net Weight
SKU
Color
List Price USD
Colony® Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Right Hand Trip Lever Toilet Less Seat
1 lb (0.4 kg)
221AA105.020 *
White (020)
0
Separate Components
Colony®/Evolution 2 Chair Height Elongated Bowl
45 lb (20.6 kg)
3068001.020 *
White
217
spacer
Colony®/Evolution 2 1.28 gpf/4.8 Lpf 12-Inch Rough Right Hand Trip Lever Tank
27 lb (12.4 kg)
4061813.020 *
White
109
spacer
Colony/Evolution2/Colony®3 Toilet Tank Cover
7 lb (3.3 kg)
735131-400.020
White
88
Optional Components (Not Included)
Cardiff Slow-Close Elongated Toilet Seat
3 lb (1.5 kg)
5257A65MT.020
White
85
spacer
Laurel Elongated Wood Toilet Seat
7 lb (3.2 kg)
5311012.020
White
61
Spare Parts
Right-Hand Trip Lever
0 lb (0.0 kg)
738171-0020A
Chrome
36
738171-0200A
White
35


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Department of Energy Certified: Yes
Collections: Colony®
WaterSense: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
MAP Performance Rating: 800
Number of Flush Valves: 1
Height: 29-7/8
Length: 29-3/4
Width: 18
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Right Front
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2
Toilet Type: Two Piece
Warranty: 2 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

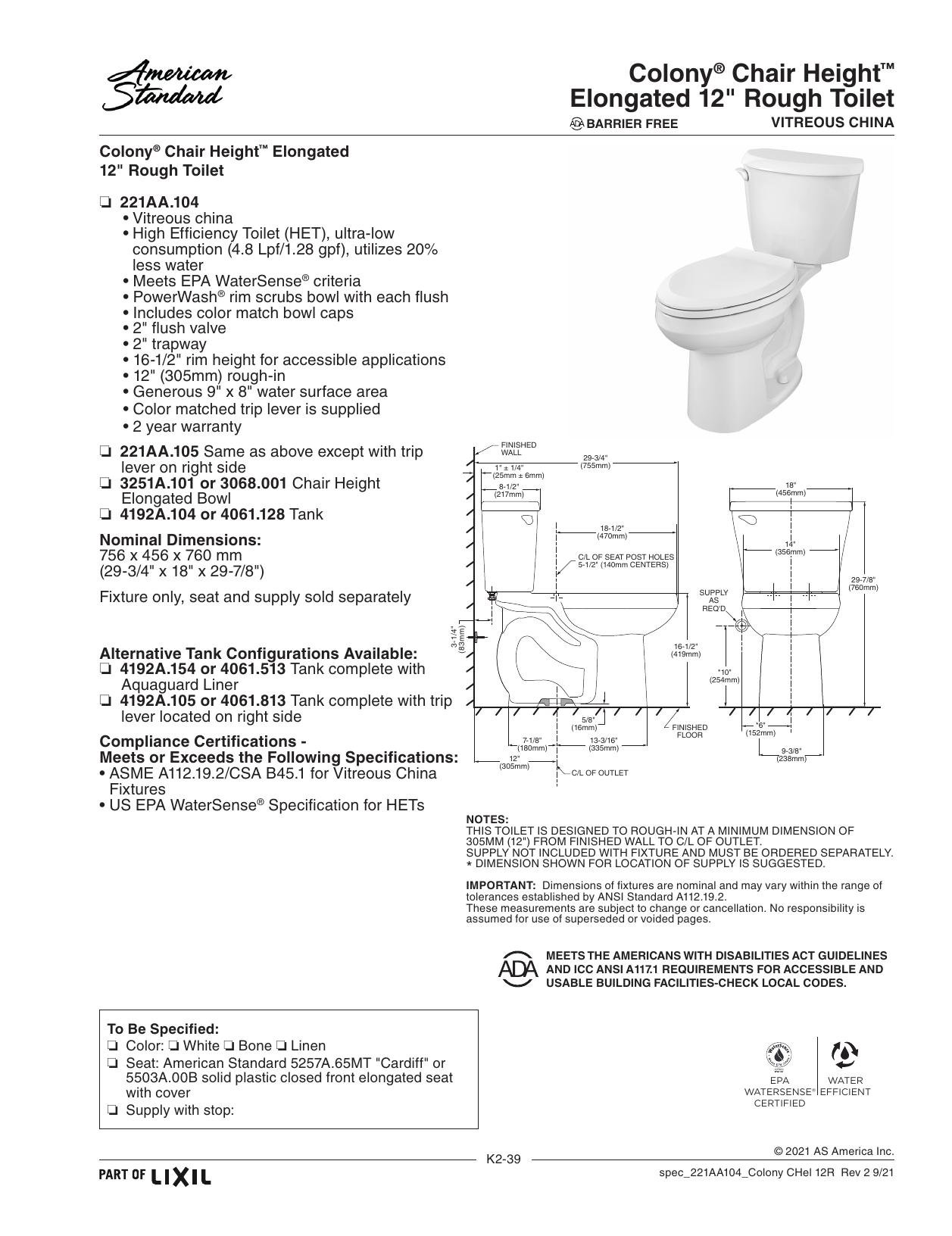

Specification Sheet

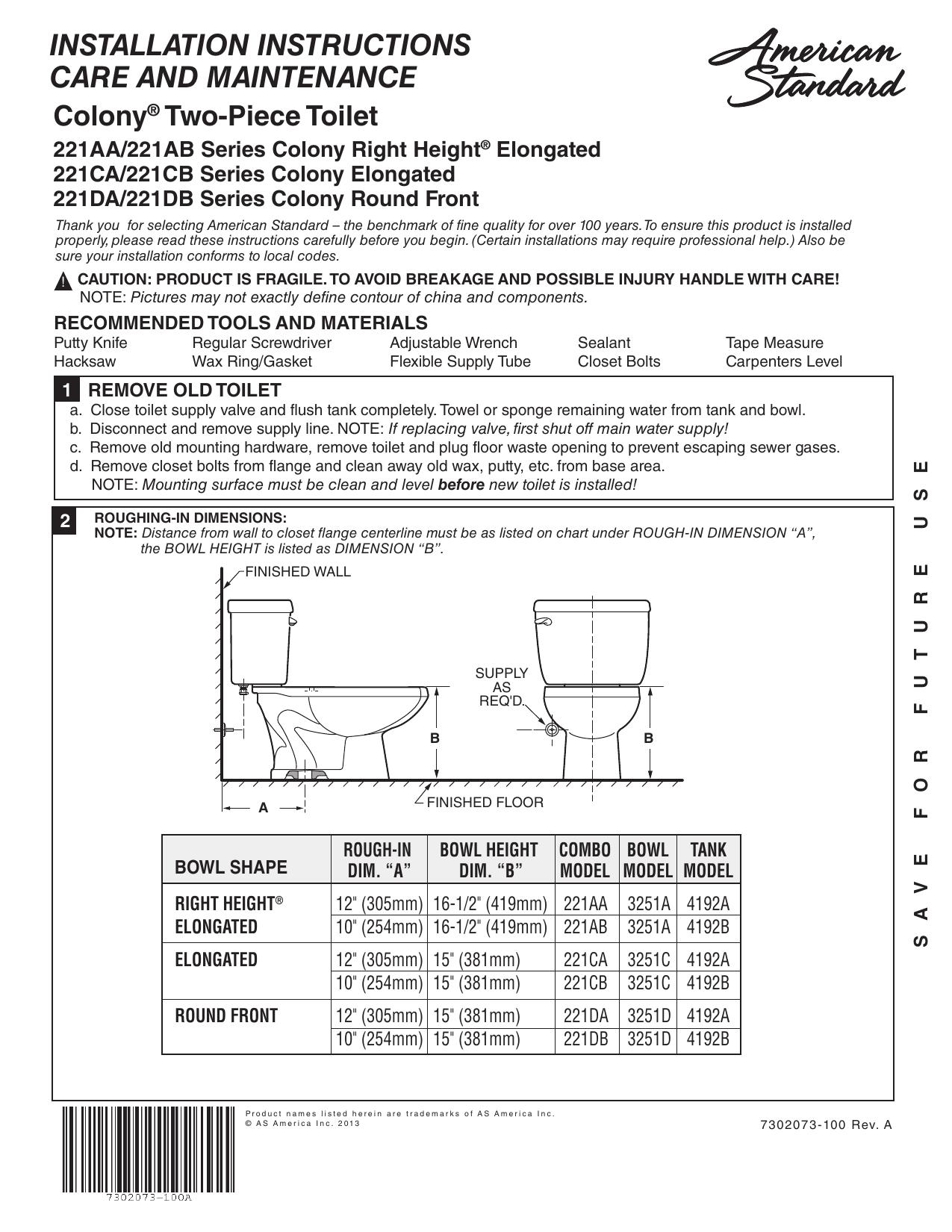

Installation Instructions
