Features
- TRADE EXCLUSIVE
- 1,000 MAP SCORE – Achieves highest rating possible for flush performance
- 12-INCH ROUGH-IN
- Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
- CHAIR-HEIGHT COMFORT — Measures 17” tall, including seat, for ease of use compared to standard height. Slight variation in height may occur based on the height of the seat used.
- ADA COMPLIANT — Meets Americans with Disabilities Act requirements for use and accessibility
- LESS SEAT - Toilet seat is sold separately
- ROBUST METAL - Trip lever and shank fill valve made of durable metal
- FINISHING TOUCHES - Includes Chrome finish toilet handle and color-matched bowl caps
- DURABLE CONSTRUCTION — Made from quality vitreous china for strength and reliability
Technical Features
- Includes tank, bowl, and installation kit (seat not included)
- Bowl Shape: Round-Front
- Rim Height: Chair Height measures 17" (with seat) rim height, ADA compliant
- Rough-In: 12" (305 mm)
- Configuration: Two-piece exposed trapway design
- Flush Rate: 1.60 gpf (6Lpf) single flush low-consumption toilet
- Made with durable metal components including metal trip lever, arm and brass shank
- Metal trip-lever, chrome
- Trapway: 2-3/8" (60 mm) fully glazed
- PowerWash® Rim Design,EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,EZ-installation kit included, no tools needed,Limited Lifetime Warranty, see warranty page on website for detail
Nominal Dimensions: 28-1/4 in x 19 in x 31 in (718 mm x 483 mm x 787 mm)

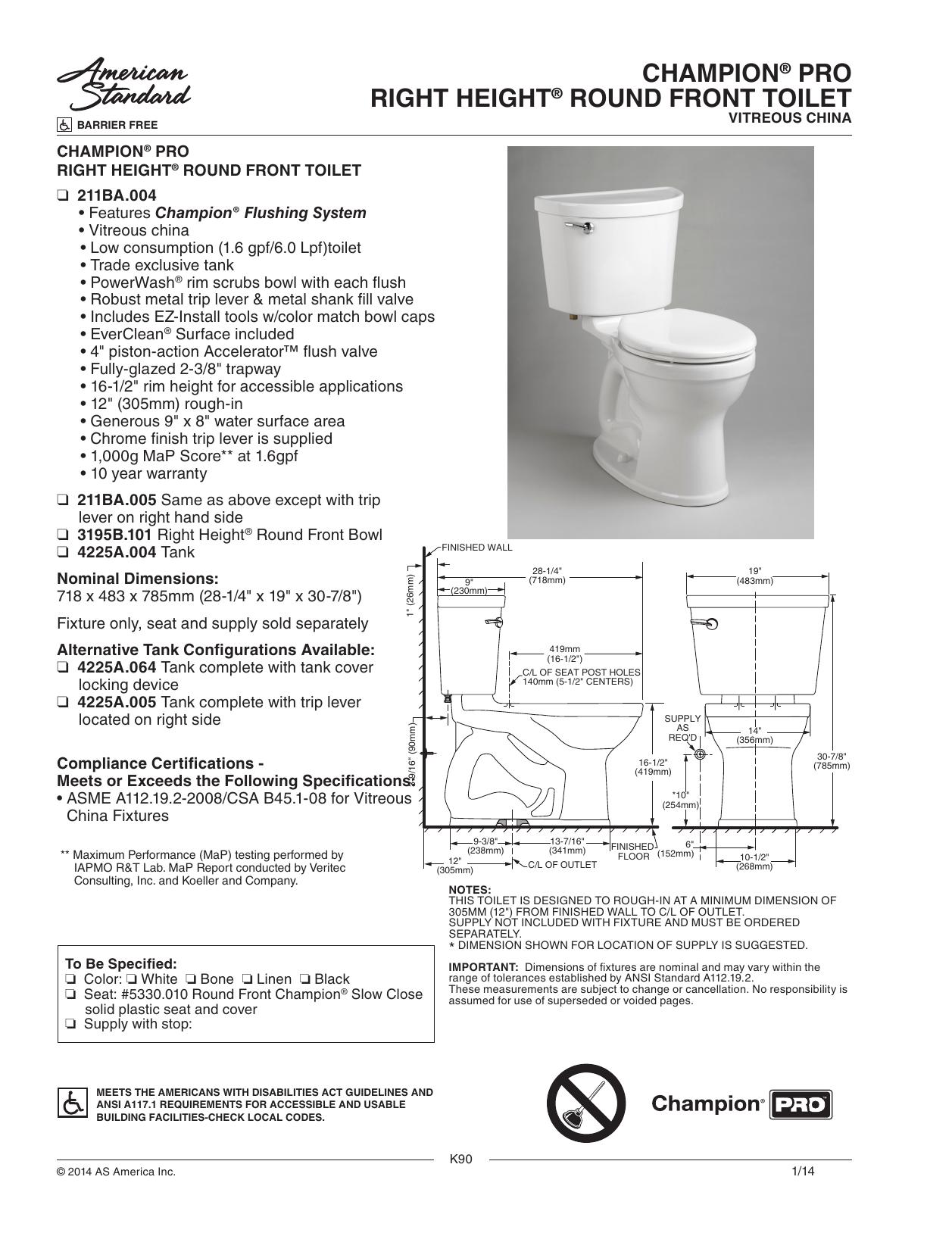

Champion® PRO Two-Piece 1.6 gpf/6.0 Lpf Chair Height Round Front Toilet Less Seat
1 lb (0.4 kg)
White (020)
518
Bone (021)
607
Linen (222)
607
Champion® PRO Chair Height Round Front Bowl
57 lb (25.9 kg)
White
269
spacer
Champion® PRO 1.6 gpf/6.0 Lpf 12-Inch Rough Tank
31 lb (14.1 kg)
White
249
spacer
Champion® PRO 1.6 gpf/6.0 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
31 lb (14.1 kg)
White
282
spacer
Champion® PRO 12-Inch Rough Toilet Tank Cover
8 lb (3.7 kg)
White
106
spacer
Right-Hand Trip Lever
0 lb (0.2 kg)
Chrome
56
Brushed Nickel
78
Champion® Slow-Close & Easy Lift-Off Round Front Toilet Seat
3 lb (1.4 kg)
White
97
Champion® PRO Two-Piece 1.6 gpf/6.0 Lpf Chair Height Round Front Toilet Less Seat
1 lb (0.4 kg)
Bone
607
Linen
607
spacer
Champion PRO Two-Piece 1.6 gpf/6.0 Lpf Chair Height Round Front Right-Hand Trip Lever Toilet Less Seat
1 lb (0.4 kg)
White
551
Left-Hand Trip Lever
0 lb (0.2 kg)
Chrome
59
Polished Nickel
65
White
74
Oil Rubbed Bronze
146
Matte Black
82
Legacy Bronze
93
Brushed Nickel
78
Champion® PRO Two-Piece 1.6 gpf/6.0 Lpf Chair Height Round Front Toilet Less Seat
1 lb (0.4 kg)
White (020)
518
Bone (021)
607
Linen (222)
607
Champion® PRO Chair Height Round Front Bowl
57 lb (25.9 kg)
White
269
spacer
Champion® PRO 1.6 gpf/6.0 Lpf 12-Inch Rough Tank
31 lb (14.1 kg)
White
249
spacer
Champion® PRO 1.6 gpf/6.0 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
31 lb (14.1 kg)
White
282
spacer
Champion® PRO 12-Inch Rough Toilet Tank Cover
8 lb (3.7 kg)
White
106
spacer
Right-Hand Trip Lever
0 lb (0.2 kg)
Chrome
56
Brushed Nickel
78
Champion® Slow-Close & Easy Lift-Off Round Front Toilet Seat
3 lb (1.4 kg)
White
97
Champion® PRO Two-Piece 1.6 gpf/6.0 Lpf Chair Height Round Front Toilet Less Seat
1 lb (0.4 kg)
Bone
607
Linen
607
spacer
Champion PRO Two-Piece 1.6 gpf/6.0 Lpf Chair Height Round Front Right-Hand Trip Lever Toilet Less Seat
1 lb (0.4 kg)
White
551
Left-Hand Trip Lever
0 lb (0.2 kg)
Chrome
59
Polished Nickel
65
White
74
Oil Rubbed Bronze
146
Matte Black
82
Legacy Bronze
93
Brushed Nickel
78
Models marked with * are discontinued, but product may still be available while supplies last.
