Cadet®

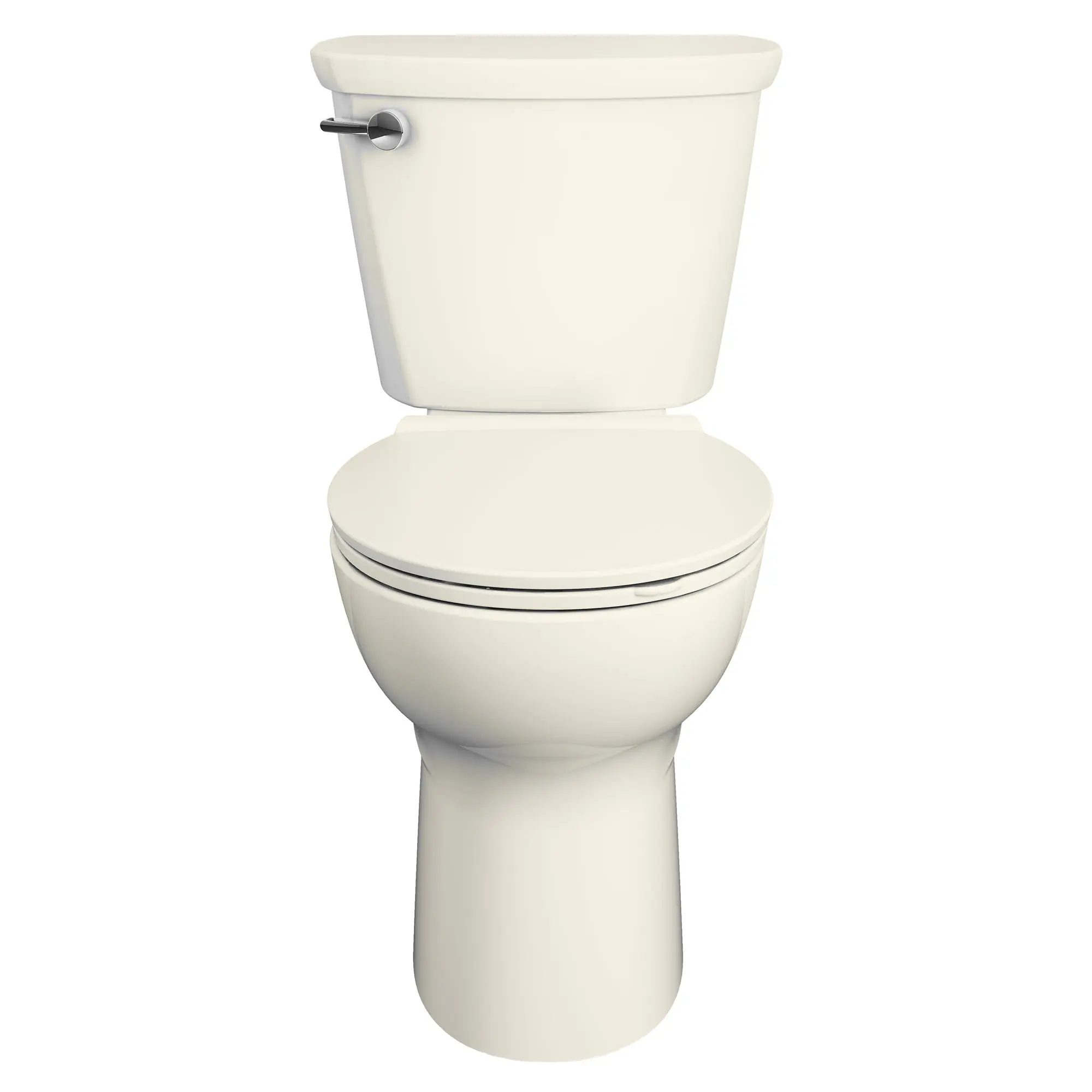

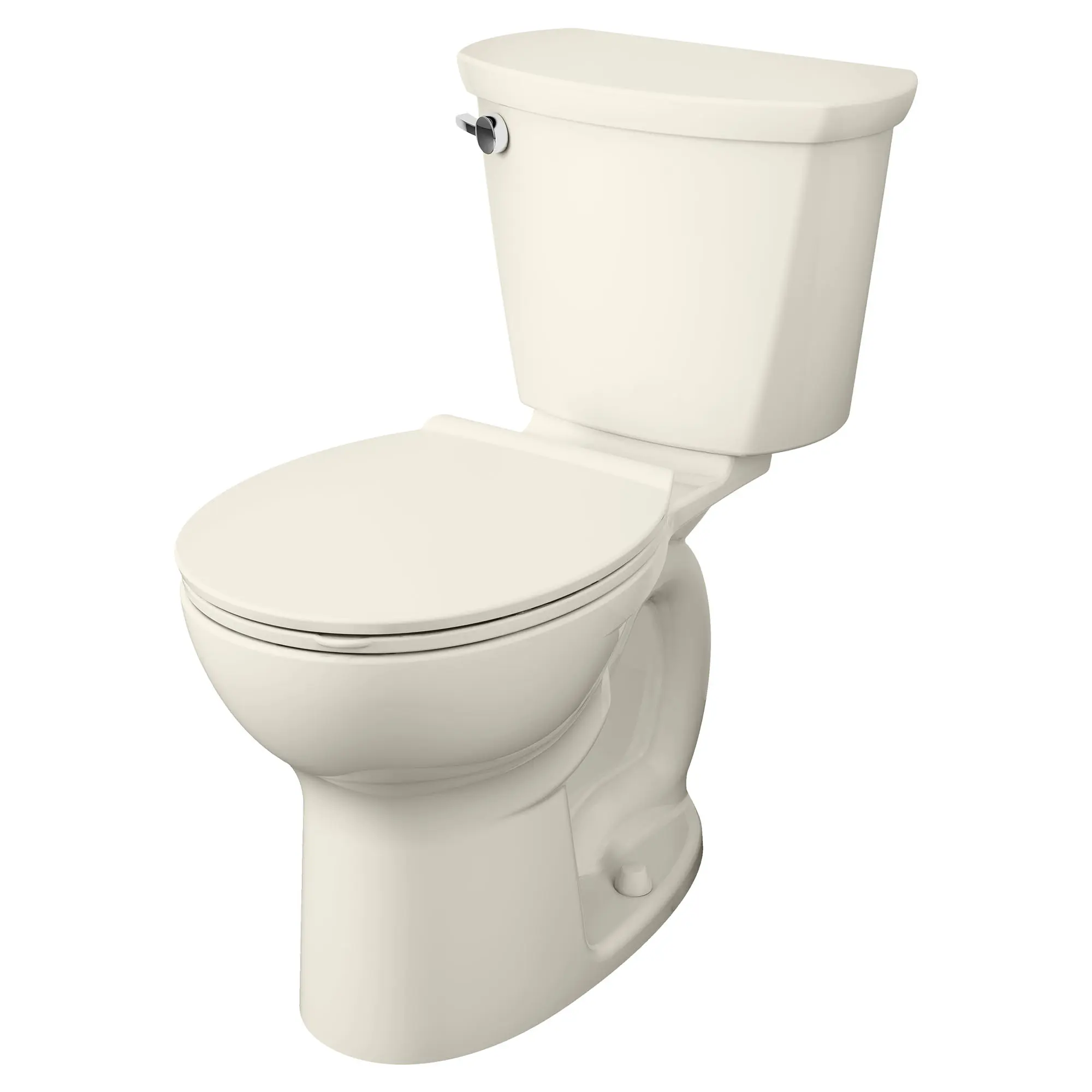

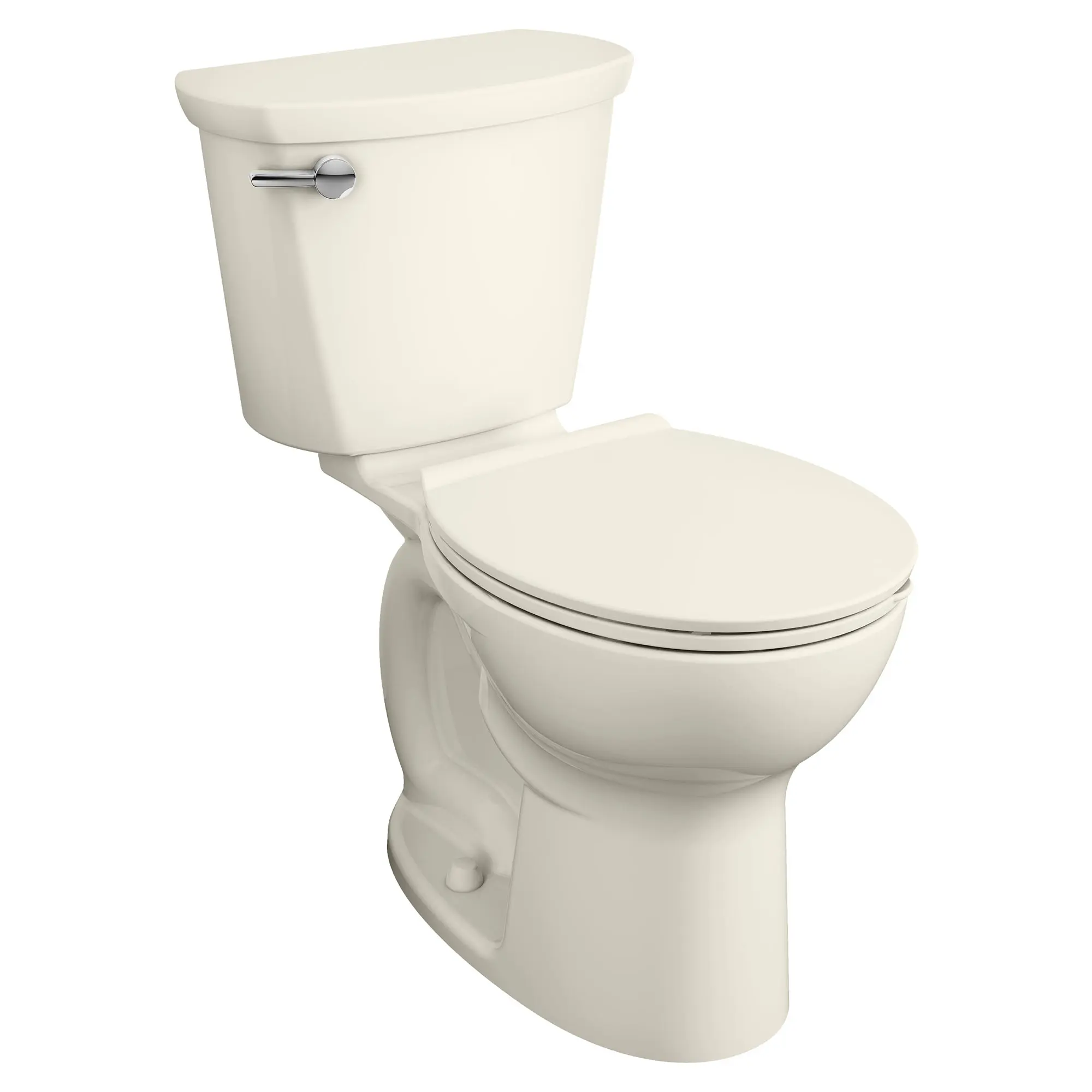

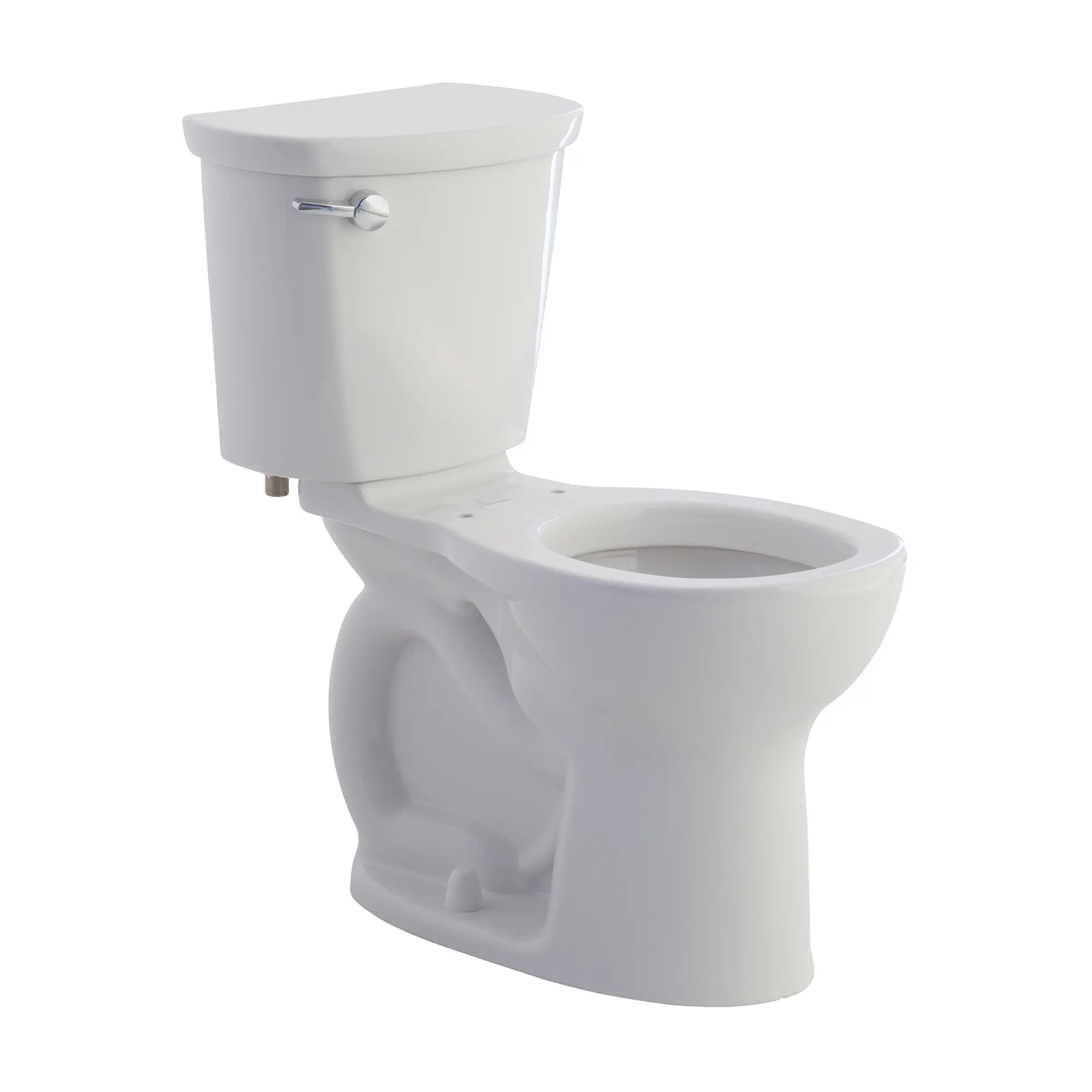

Cadet® PRO Two-Piece 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet Less Seat

The Cadet PRO Chair-Height Round-Front Toilet from American Standard is plumber tested and plumber approved. The Cadet is backed by an industry-leading warranty that includes limited lifetime on chinaware, limited 5 years on mechanical parts. This chair-height toilet offers added comfort, and features a round front to accommodate smaller bathrooms perfectly. Engineered for high-efficiency, low consumption, it uses 1.28 gallons per flush, 20% less water than a regular toilet, and is WaterSense® certified, your assurance of optimal water savings, quality and performance. The EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria.

Linen 215BA104.222 DISCONTINUED
List Price: $706.00
ADA Compliant Cal Green CEC Certified Everclean USMCA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Combination bowl and tank, less seat
  • 12" (305 mm) rough-in
  • WaterSense® certified: Uses 20 percent less water and performs as well as or better than regular toilets
  • Chair-height comfort: Measures 17” tall, including seat, for ease of use compared to standard height. Slight variation in height may occur based on the height of the seat used.
  • ADA compliant: Meets Americans with Disabilities Act requirements for use and accessibility
  • PowerWash® rim: Scrubs the bowl clean with every flush
  • Finishing touches: Includes color-matched bowl caps and trip lever
  • Metal parts: Robust metal trip lever and metal shank fill valve
  • Durable construction: Made from quality vitreous china for strength and reliability
  • Less seat: Toilet seat is sold separately
Technical Features
  • Includes tank, bowl, and installation kit (seat not included)
  • Bowl Shape: Round-Front
  • Rim Height: Chair Height measures 17" (with seat) rim height, ADA compliant
  • Rough-In: 12" (305 mm)
  • Configuration: Two-piece exposed trapway design
  • Flush Rate: 1.28 gpf (4.8Lpf) single flush high-efficiency toilet; meets EPA WaterSense® criteria
  • Made with durable metal components including metal trip lever, arm and brass shank
  • Metal trip-lever, chrome
  • Trapway: 2-1/8" (54 mm) fully glazed
  • PowerWash® Rim Design,EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,Limited Lifetime Warranty, see warranty page on website for detail
Nominal Dimensions: 28-1/4 in x 17-1/4 in x 30-1/4 in (718 mm x 438 mm x 768 mm)
Description
Net Weight
SKU
Color
List Price USD
Cadet® PRO Two-Piece 1.28 gpf/4.8 Lpf Chair Height Round Front Toilet Less Seat
1 lb (0.4 kg)
215BA104.222
Linen (222)
706
215BA104.020
White (020)
431
215BA104.021
Bone (021)
706
Separate Components
Cadet® PRO Chair Height Round Front Bowl
53 lb (23.9 kg)
3517B101.020
White
269
3517B101.021
Bone
407
3517B101.222
Linen
407
spacer
Cadet® PRO 1.28 gpf/4.8 Lpf 12-Inch Rough Tank
28 lb (12.6 kg)
4188A104.020
White
162
4188A104.021
Bone
299
4188A104.222
Linen
299
spacer
Cadet® PRO 1.28 gpf/4.8 Lpf 12-Inch Rough Right-Hand Trip Lever Tank
28 lb (12.6 kg)
4188A105.020
White
194
spacer
Cadet® PRO 1.28 gpf/4.8 Lpf 12-Inch Rough Lined Tank
28 lb (12.6 kg)
4188A154.020
White
258
spacer
Cadet® PRO 12-Inch Rough Toilet Tank Cover
7 lb (3.3 kg)
735172-400.020
White
102
735172-400.021
Bone
129
735172-400.222
Linen
129
spacer
Left-Hand Trip Lever
0 lb (0.2 kg)
7381231-200.GN00A
Brushed Cool Sunrise
86
spacer
Right-Hand Trip Lever
0 lb (0.2 kg)
7381231-201.0020A
Chrome
51
7381231-201.2240A
Oil Rubbed Bronze
220
7381231-201.2950A
Brushed Nickel
77
Optional Components (Not Included)
Cardiff Slow-Close Round Front Toilet Seat
3 lb (1.4 kg)
5259B65MT.020
White
77
5259B65MT.021
Bone
85
5259B65MT.222
Linen
85
Spare Parts
Left-Hand Trip Lever
0 lb (0.2 kg)
7381231-200.0020A
Chrome
54
7381231-200.0130A
Polished Nickel
65
7381231-200.0990A *
Polished Brass
56
7381231-200.2240A
Oil Rubbed Bronze
94
7381231-200.2430A
Matte Black
81
7381231-200.2780A *
Legacy Bronze
129
7381231-200.2950A
Brushed Nickel
76


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Round
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: Linen
Department of Energy Certified: Yes
Collections: Cadet®
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 3
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
MAP Performance Rating: 1000
Number of Flush Valves: 1
Height: 30-1/4
Length: 28-1/4
Length: 28-1/4
Width: 17-1/4
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Front
Toilet Water Efficiency: Hight Efficiency Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/8
Toilet Type: Two Piece
USMCA Compliant: Yes
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
