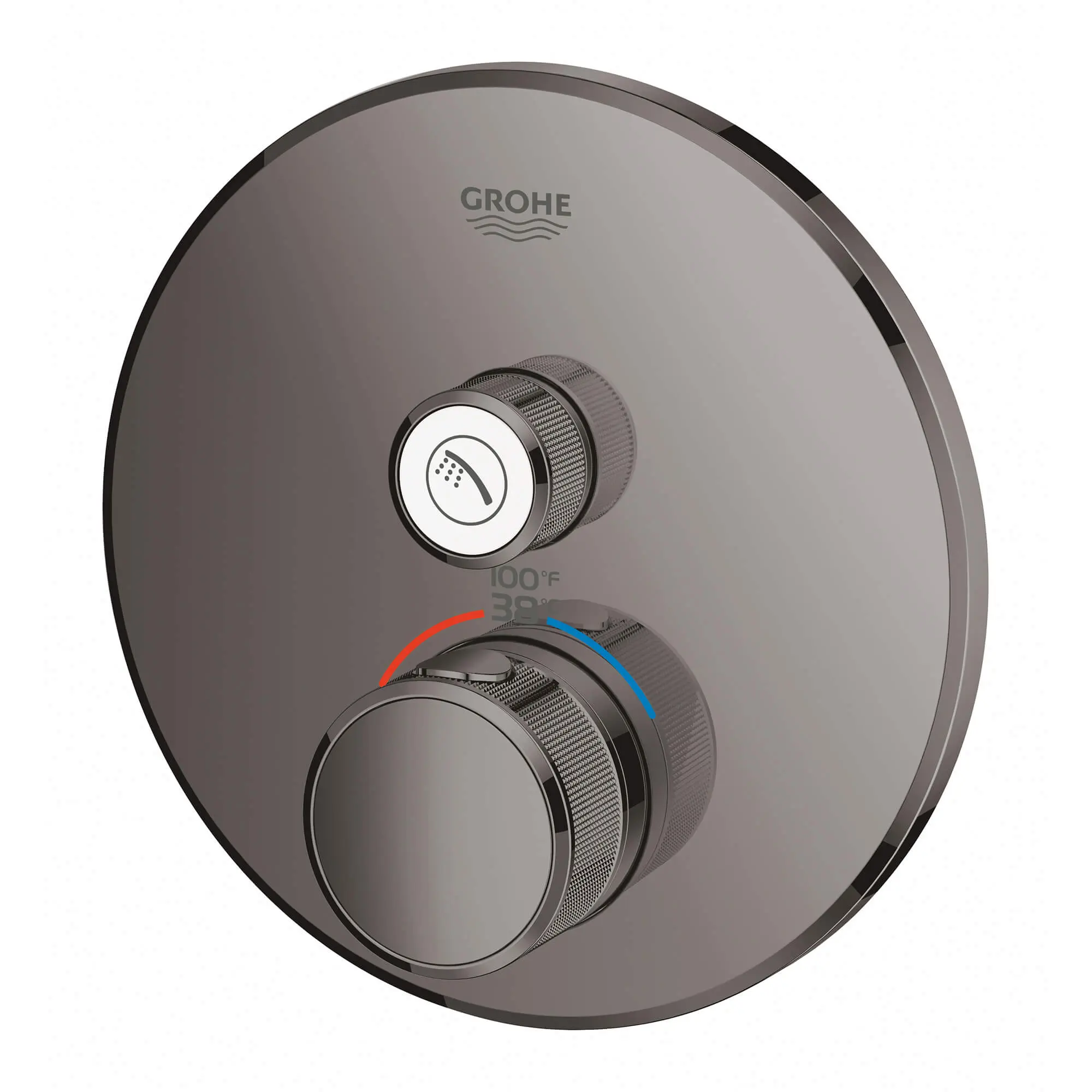

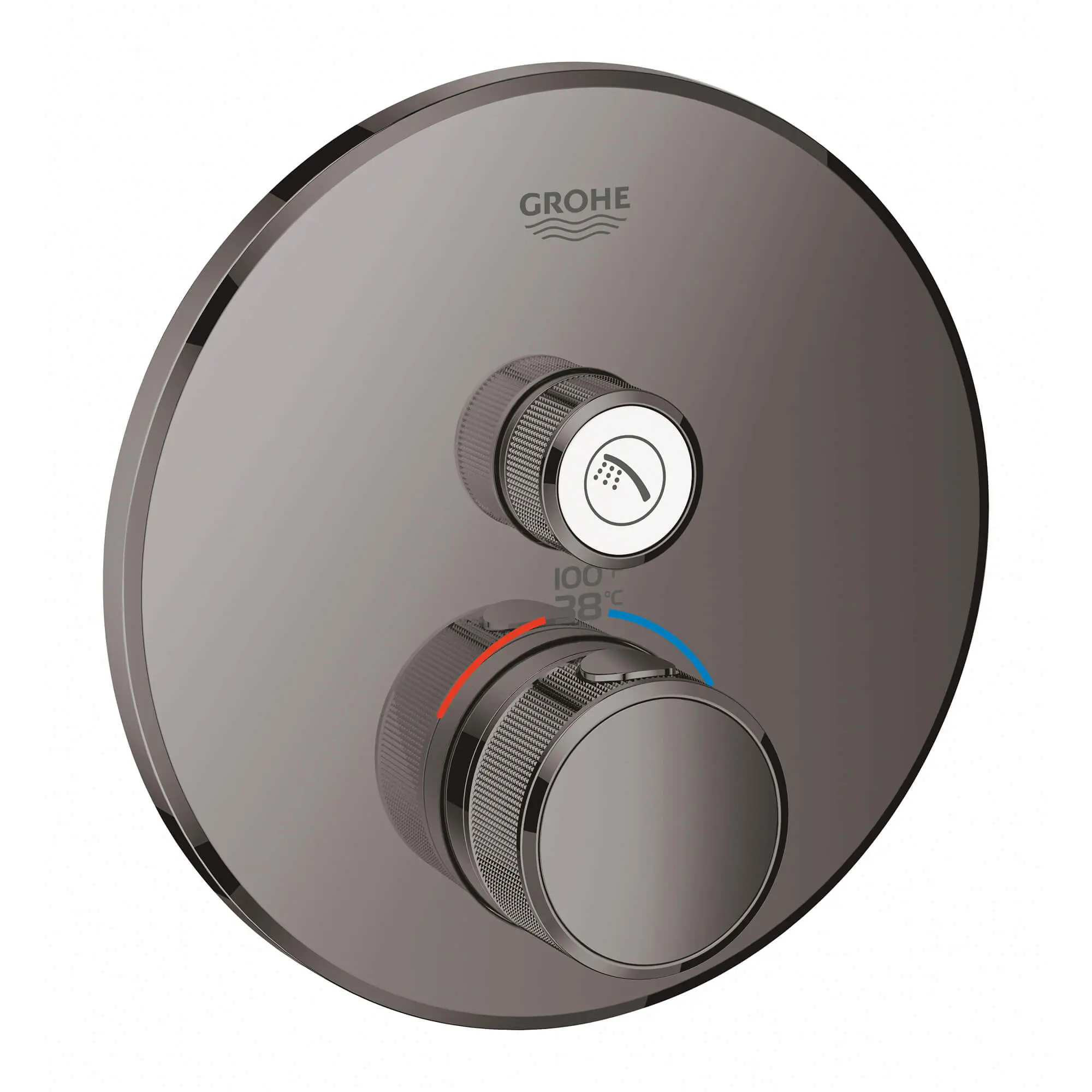

Grohtherm® SmartControl

Single Function Thermostatic Valve Trim

The innovative GrohTherm SmartControl Single Function Thermostatic Valve Trim is a clean, minimalist design that allows you to control your shower with push-turn ease. Integrated GROHE TurboStat maintains a consistent water temperature for a more enjoyable experience. The GROHE SafeStop override button allows you to set a maximum temperature of 100° F/38° C to prevent scalding, ensuring safety for the whole family. Water-saving GROHE EcoJoy technology gives you the option of a reduced flow rate with no compromise on performance.

Hard Graphite 29136A00 DISCONTINUED
List Price: $1,139.00
Cal Green Enjoy More Rewards LIXIL Select
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE LongLife finish
  • GROHE TurboStat Compact cartridge with wax thermoelement
  • GROHE SafeStop safety button at 100°F/38°C
  • Metal wall escutcheon with GROHE QuickFix (covered escutcheon and shaft sealing, covered fixing), 6° angle adjustable
  • Required rough-in-set sold separately (GROHE Rapido SmartBox 35 601 000)
  • 3/8" (10mm) thin profile escutcheon
  • SmartControl push for ON-OFF, turn for volume adjustment from EcoJoy to Full Flow
  • Includes various icons to customize push buttons
  • Built-in check valve with dirt strainer
  • Maximum flow performance: 7.7gpm (29L/min) @ 43.5 psi (3 bar),Optional flow reducer for CALGreen compliance included
Technical Features
  • GROHE LongLife finish
  • GROHE SmartControl: push for ON-OFF, turn for volume adjustment from EcoJoy to Full Flow, exchangeable symbols
  • GROHE TurboStat compact 3/4" cartridge with wax thermo element
  • GROHE SafeStop safety button with manual override at 100°F/38°C
  • GROHE SafeStop Plus temperature limiter at 115° F/46° C
  • 6 1/4" Metal wall escutcheon with GROHE QuickFix
  • 3/8" Thin profile escutcheon
  • Wall plate is angle adjustable up to 6°
  • Optional flow reducer for CALGreen compliance included
  • Built-in check valve with dirt strainer,Includes icons to customize push buttons: Hand Shower, Showerhead & Bath Filler,Includes service stops,Maximum flow performance: 7.7gpm (29L/min) @ 43.5psi (3 bar),Requires Grohtherm Rapido SmartBox (35 601) (sold separately)
Description
Net Weight
SKU
Color
List Price USD
"Grohtherm SmartControl Single Function Thermostatic Valve Trim"
4 lb (1.6 kg)
29136A00
Hard Graphite (GA0)
1139
29136000
Chrome (G00)
785
291362430
Matte Black (243)
1061
29136BE0 *
Polished Nickel (GBE)
853
29136EN0
Brushed Nickel (GEN)
1061
29136GN0
Brushed Cool Sunrise (GGN)
1139
Required Components (Not Included)
"Rapido Smartbox Universal Rough-In Box"
4 lb (1.8 kg)
35601000
No Finish
194
Optional Components (Not Included)
SmartControl Icon Caps
0 lb (0.0 kg)
14077XH0
Frosted Granite
53
Spare Parts
Seal
0 lb (0.1 kg)
48360000
Chrome
27


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: GROHE
Cal Green: Yes
Category: Thermostats
Color / Finish: Hard Graphite
Department of Energy Certified: Yes
Collections: Grohtherm® SmartControl
Handle Type: Push Button
Fitting Material: Metal
Kitchen or Bathroom: Bath
LIXIL Select: Yes
Height: 158
Length: 43
Width: 158
Residential or Commercial: Residential
Subcategory: Thermostats Trim
Valve Type: Thermostatic Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Installation Instructions

Replacement Parts
