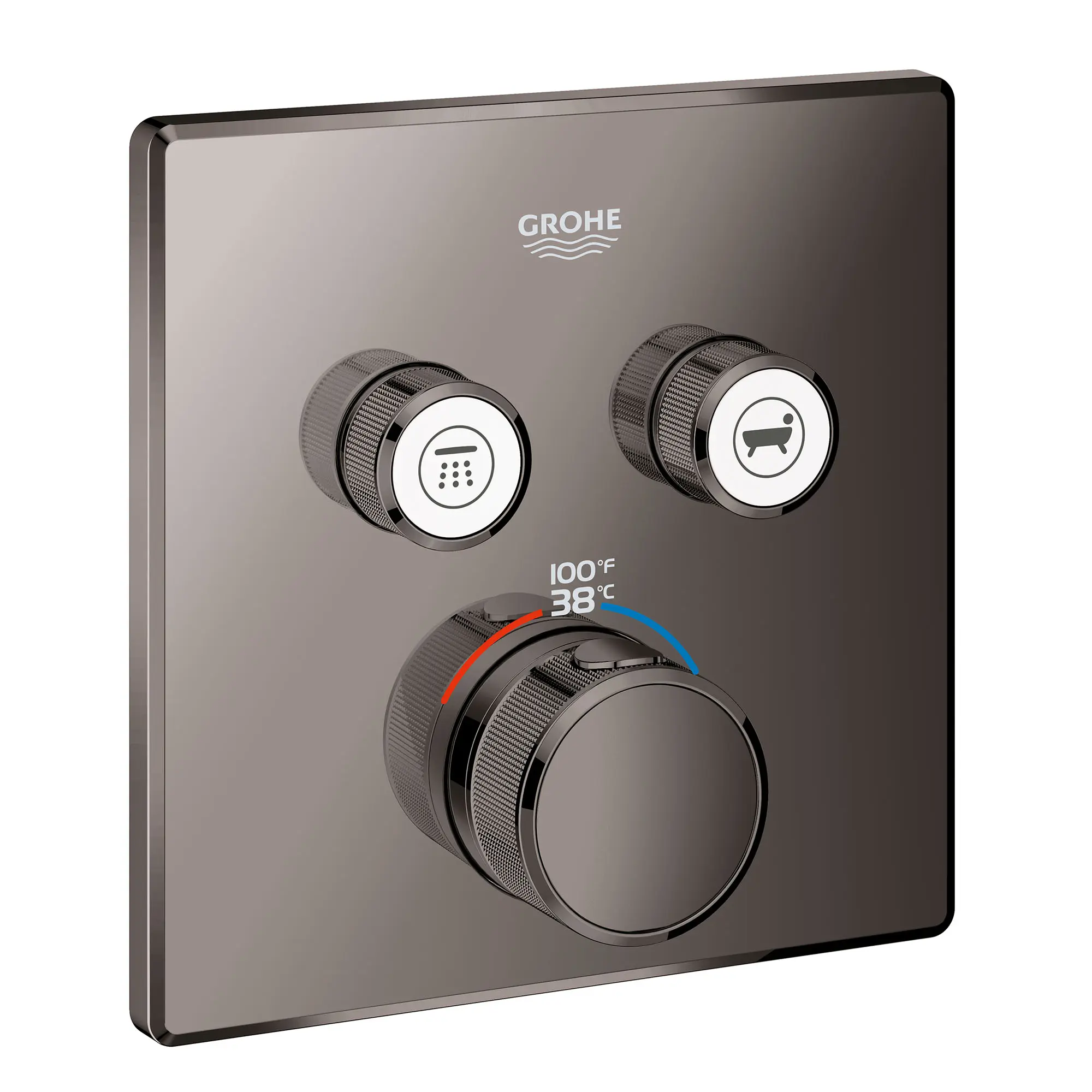

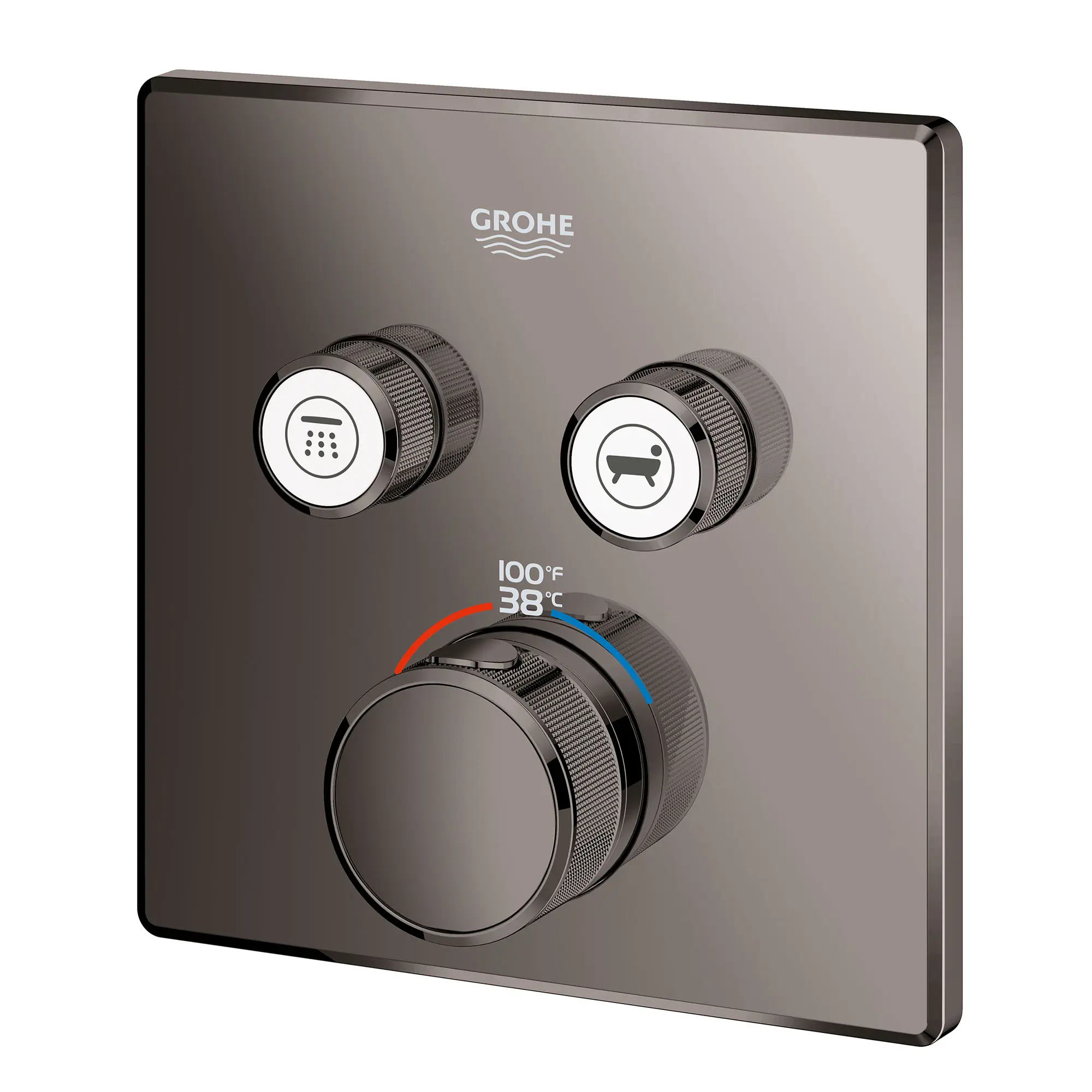

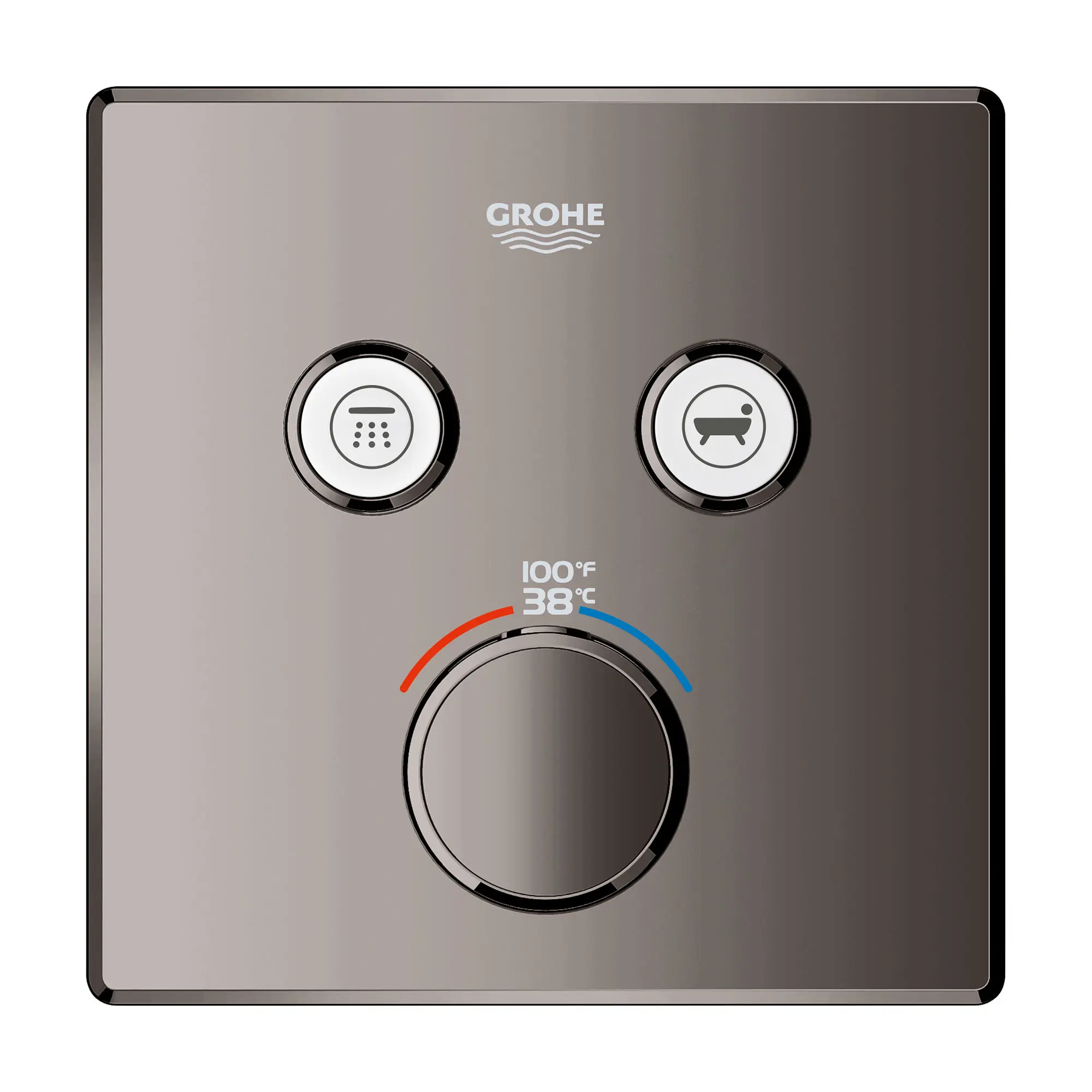

Grohtherm® SmartControl

Dual Function Thermostatic Valve Trim

The Grohtherm SmartControl Dual Function Thermostatic Trim from GROHE is a slim, contemporary design that will enhance any bathroom and make showering more enjoyable. Innovative and intuitive to use, the dual-function SmartControl lets you adjust water volume from two spray sources with the simple push-turn of a button. Easily switch between sprays, experience each spray individually or enjoy both at the same time. It features integrated GROHE Turbostat technology to keep water temperature consistent for the duration of your shower, preventing any unpleasant hot/cold fluctuations. Please note that this product must be installed in combination with the GROHE Rapido SmartBox (35601000).

Hard Graphite 29141A00 DISCONTINUED
List Price: $1,242.00
Enjoy More Rewards LIXIL Select
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE SmartControl is easy to use: push for on/off, turn for volume adjustment
  • GROHE EcoJoy uses less water without sacrificing performance
  • GROHE LongLife finish
  • GROHE SafeStop override button allows you to set a maximum temperature of 100° F/38° C to prevent scalding
  • GROHE QuickFix installation system requires fewer, less complicated parts to reduce installation time by as much as 50%
  • Includes optional flow reducer to conserve water
  • Includes icons to customize push buttons: hand shower, shower head, body spray, bath filler
  • Limited lifetime warranty
Technical Features
  • GROHE LongLife finish
  • GROHE SmartControl: push for ON-OFF, turn for volume adjustment from EcoJoy to Full Flow, exchangeable symbols
  • GROHE TurboStat compact 3/4" cartridge with wax thermo element
  • GROHE SafeStop safety button with manual override at 100°F/38°C
  • GROHE SafeStop Plus temperature limiter at 115° F/46° C
  • Multiple outlets can be run simultaneously
  • 6 1/4" Metal wall escutcheon with GROHE QuickFix
  • 3/8" Thin profile escutcheon
  • Wall plate is angle adjustable up to 6°
  • Optional flow reducer for CALGreen compliance included (Note: Cannot be used for shower systems that include tub spout),Built-in check valve with dirt strainer,Includes icons to customize push buttons: Hand Shower, Showerhead & Bath Filler,Includes service stops,Maximum combined flow performance: 7.7gpm (29L/min) @ 43.5psi (3 bar),Requires Grohtherm Rapido SmartBox (35 601) (sold separately)
Nominal Dimensions: 1-11/16 in x 6-1/4 in x 6-1/4 in (43 mm x 159 mm x 159 mm)
Description
Net Weight
SKU
Color
List Price USD
Dual Function Thermostatic Valve Trim
4 lb (1.8 kg)
29141A00
Hard Graphite (GA0)
1242
29141000
Chrome (G00)
857
291412430
Matte Black (243)
1157
29141EN0
Brushed Nickel (GEN)
1157
29141GN0
Brushed Cool Sunrise (GGN)
1242
Required Components (Not Included)
Universal Rough-In Box
4 lb (1.8 kg)
35601000
No Finish
194
Optional Components (Not Included)
SmartControl Icon Caps
0 lb (0.0 kg)
14077XH0
Frosted Granite
53
Spare Parts
Extension Kit For SmartControl Trims
0 lb (0.1 kg)
14048000
Chrome
246
spacer
Service Stops
0 lb (0.0 kg)
1405300M
Chrome
65
spacer
Cartridge
0 lb (0.2 kg)
48359000
Chrome
134
spacer
Seal
0 lb (0.1 kg)
48360000
Chrome
27
spacer
SmartControl Button Replacement with Icon Caps
0 lb (0.0 kg)
48361000
Chrome
40
spacer
Mounting Plate
1 lb (0.2 kg)
48362000
Chrome
22
spacer
For Grohtherm™ SmartControl/2-Handle Thermostats for SmartBox (35 601)
0 lb (0.2 kg)
49003000
Chrome
315
spacer
3/4" Thermostatic Compact Cartridge
0 lb (0.1 kg)
49028000
Chrome
117
spacer
Temperature Control Handle Safety Button
0 lb (0.1 kg)
49029000
Chrome
156
spacer
Smartcontrol Single Function Thermostatic Escutcheon
1 lb (0.6 kg)
49050000
Chrome
45
spacer
Mounting Set
1 lb (0.5 kg)
49059000
Chrome
53
Download Specification Sheet
Brand: GROHE
Category: Thermostats
Color / Finish: Hard Graphite
Collections: Grohtherm® SmartControl
Handle Type: Push Button
Fitting Material: Metal
Fixture or Fitting Material: Metal
Kitchen or Bathroom: Bath
LIXIL Select: Yes
Height: 6-1/4
Length: 1-11/16
Width: 6-1/4
Residential or Commercial: Residential
Subcategory: Thermostats Trim
Valve Type: Thermostatic Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
.dxf icon 2D CAD File
3D CAD Files
.dxf icon 3D CAD File
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
