Atrio® New

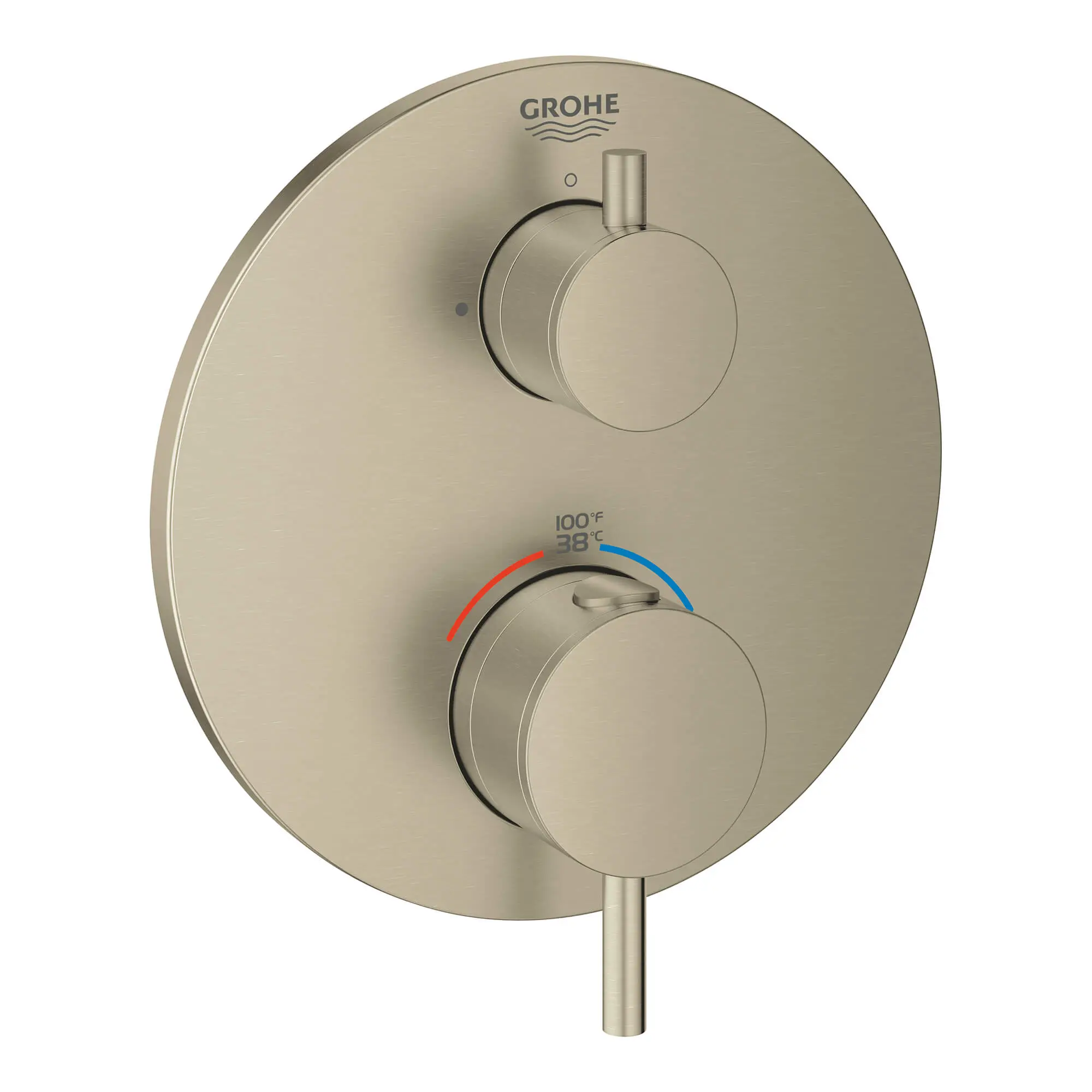

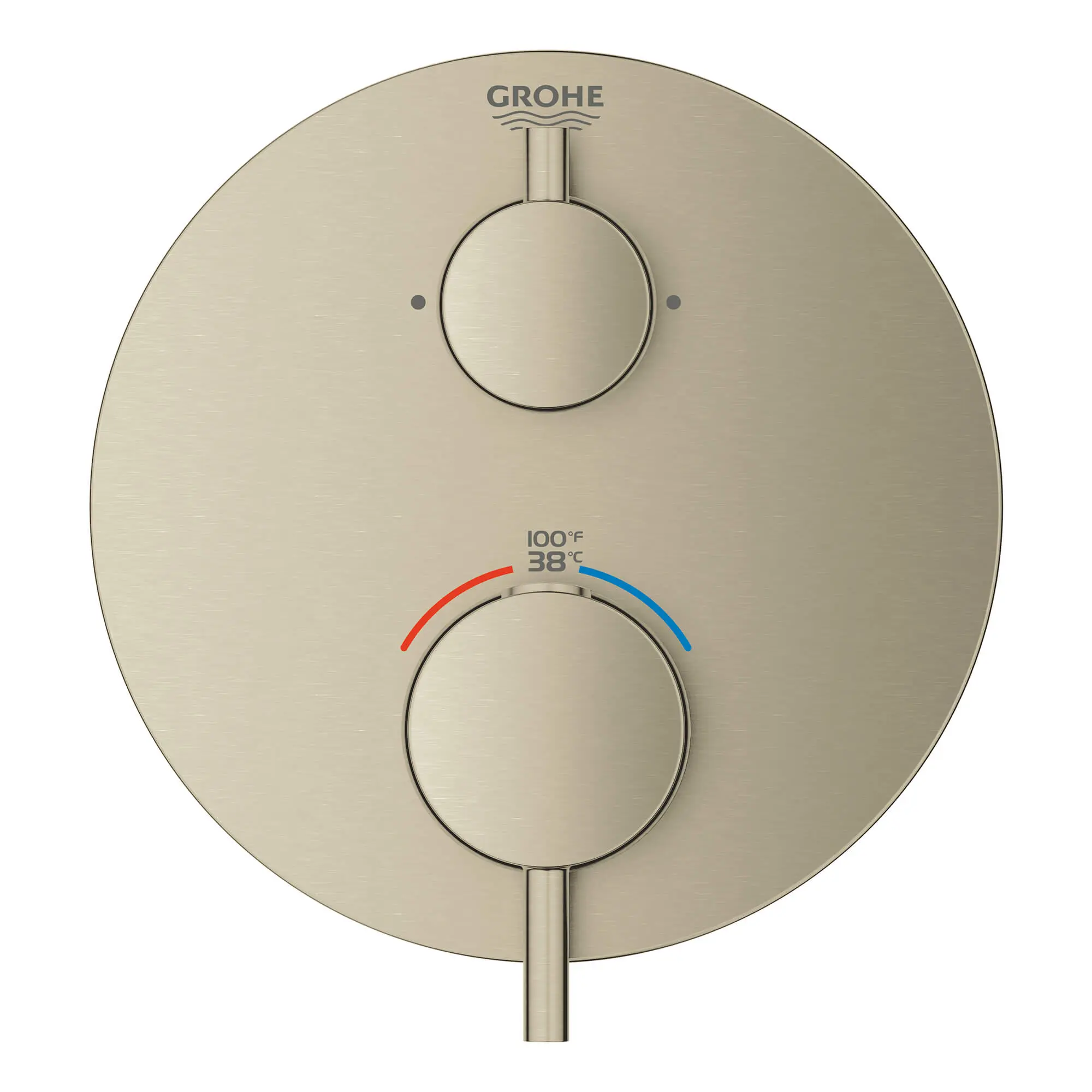

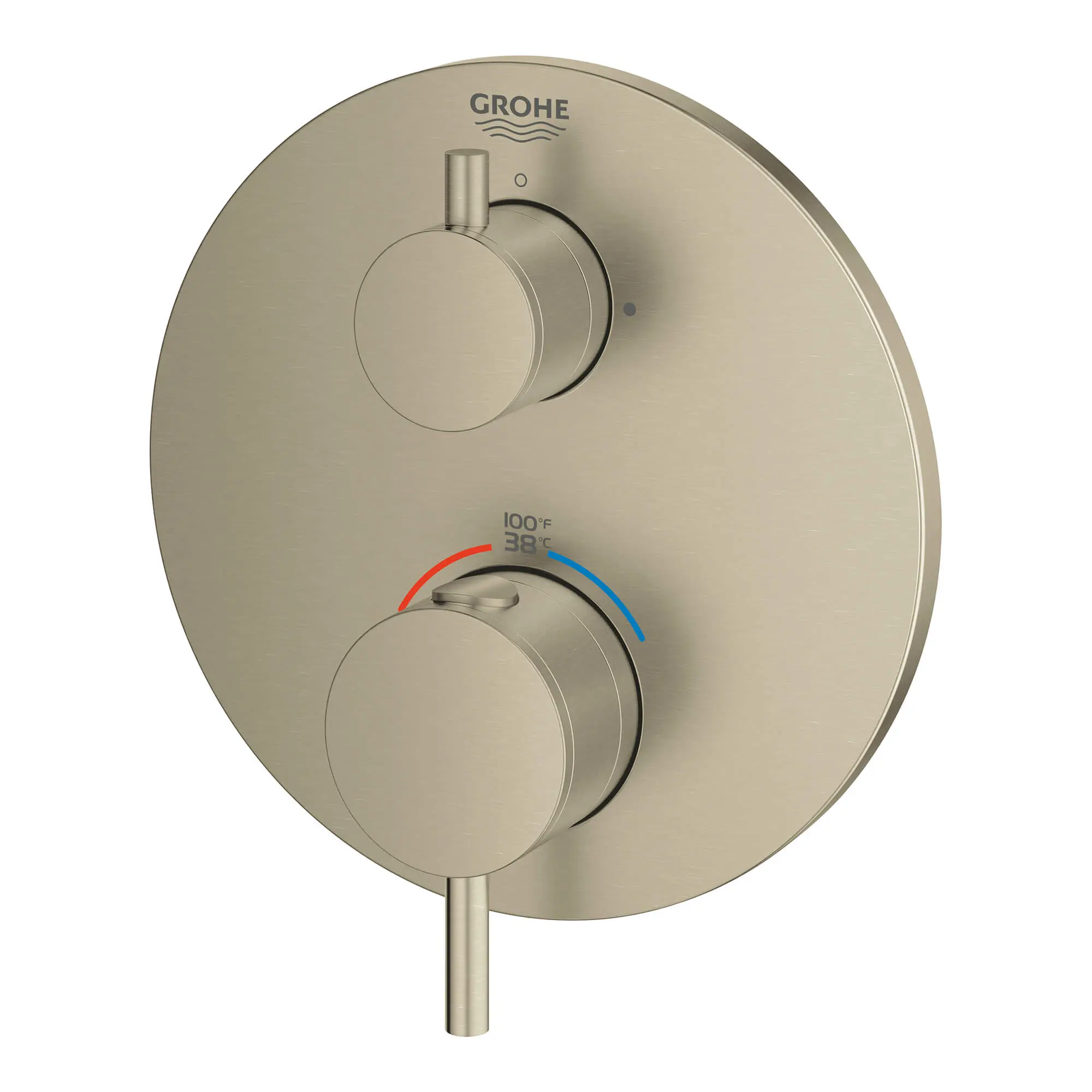

Dual Function 2-Handle Thermostatic Valve Trim

Clean and contemporary, the Atrio New Dual Function 2-Handle Thermostatic Valve Trim gives you convenient control for a more enjoyable shower experience. Upper handle features a 2-way diverter to easily switch from shower head to hand shower. Lower handle controls temperature, keeping it consistent throughout your shower.

Brushed Nickel 24151EN3 DISCONTINUED   Substitution Available (24361EN0)
List Price: $930.00
Cal Green CEC Certified
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE StarLight
  • GROHE TurboStat compact cartridge with wax thermoelement
  • GROHE SafeStop safety button at 100°F/38°C
  • 6 1/4" Metal escutcheon with GROHE QuickFix
  • Upper handle includes integrated 2-way diverter (2 discrete functions)
  • Includes service stops
  • Requires GROHE Rapido SmartBox (35 601 000)
  • Optional Aquadimmer Stop Ring for Shared Function: (14 060 000)
Technical Features
  • GROHE StarLight
  • GROHE TurboStat compact cartridge with wax thermoelement
  • Thermostatic temperature control with GROHE SafeStop safety button at 100°F/38°C
  • GROHE SafeStop Plus temperature limiter at 115° F/46° C
  • 6 1/4" Metal wall trim plate with GROHE QuickFix (concealed mounting screws)
  • Metal trim angle adjustable up to 6°
  • GROHE AquaDimmer (top handle) includes integrated shut off & 2-way diverter (2 discrete functions)
  • ADA compliant metal lever handles
  • Includes service stops
  • 7.1gpm at 45psi,Optional AquaDimmer stop ring for shared function (14 060 000) (sold separately),Requires GROHE Rapido SmartBox (35 601 000) (sold separately)
Nominal Dimensions: 1-11/16 in x 6-1/4 in x 6-1/4 in (43 mm x 159 mm x 159 mm)
Description
Net Weight
SKU
Color
List Price USD
Dual Function 2-Handle Thermostatic Valve Trim
4 lb (1.7 kg)
24151EN3 *
Brushed Nickel (GEN)
930
24151003 *
Chrome (G00)
715
Required Components (Not Included)
Universal Rough-In Box
4 lb (1.8 kg)
35601000
No Finish
194
Substitutions
Dual Function 2-Handle Thermostatic Valve Trim
3 lb (1.3 kg)
24361EN0
Brushed Nickel
1528
Spare Parts
Membrane for 2-Handle Thermostatic Trims
0 lb (0.2 kg)
49080000
No Finish
33
spacer
AquaDimmer Cartridge for Grohtherm 2-Hanlde Thermostatic Trims
0 lb (0.1 kg)
49084000
No Finish
66
spacer
Check Valve Kit for 2-Handle Thermostatic Trims
0 lb (0.0 kg)
49085000
No Finish
27
spacer
Temperature Handle for 2-Handle Thermostatic Trims
0 lb (0.2 kg)
49089EN0
Brushed Nickel
200
spacer
Wall Plate for 2-Handle Round Dual FunctionThermostatic Trims
1 lb (0.4 kg)
49098EN0
Brushed Nickel
200


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: GROHE SPA
Cal Green: Yes
Category: Thermostats
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Atrio® New
Fitting Material: Metal
Fixture or Fitting Material: Metal
Kitchen or Bathroom: Bath
Height: 6-1/4
Length: 1-11/16
Width: 6-1/4
Residential or Commercial: Residential
Subcategory: Thermostats Trim
Valve Type: Thermostatic Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
