Rainshower

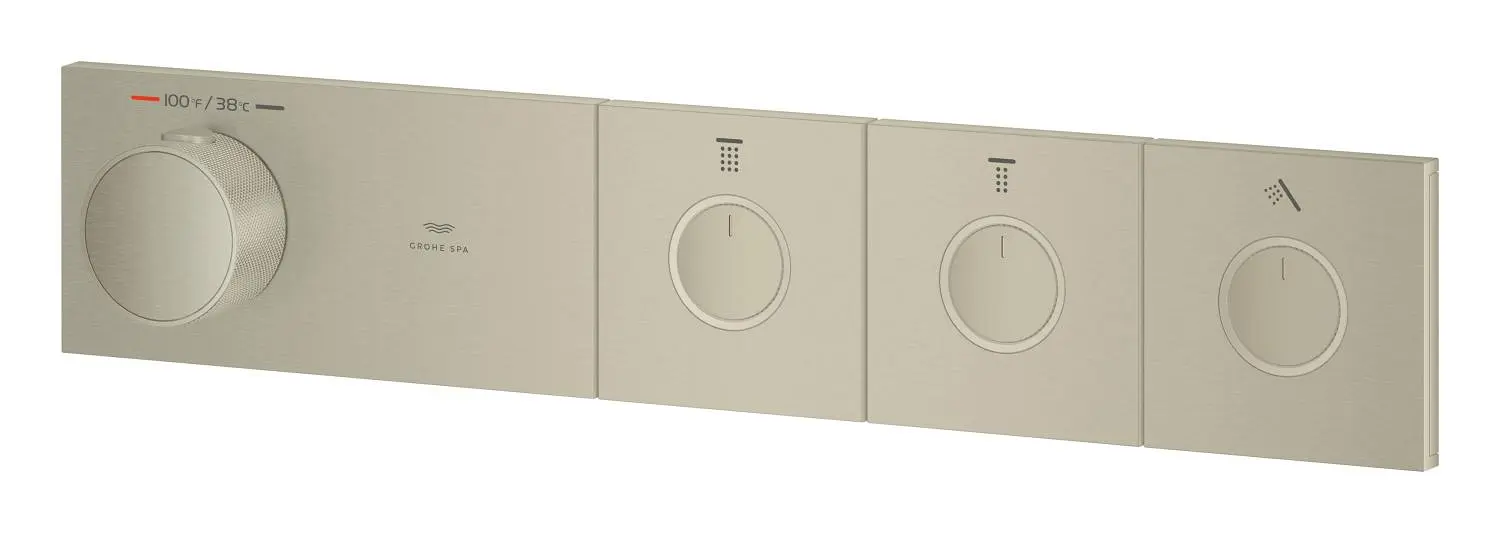

Grohtherm Aqua Tiles 3 Outlet Thermostatic Trim

Harness the invigorating, transformative power of water with the ultimate customizable showering solution. Three, four & five-function selections cater to your unique needs for a spectacularly sleek showering experience unlike any other.

NEW! Launching Spring 2026


Available for Quoting Only

Brushed Nickel 107176EN00 DISCONTINUED
List Price: $919.00
LIXIL Select
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Technical Features
  • GROHE LongLife finish

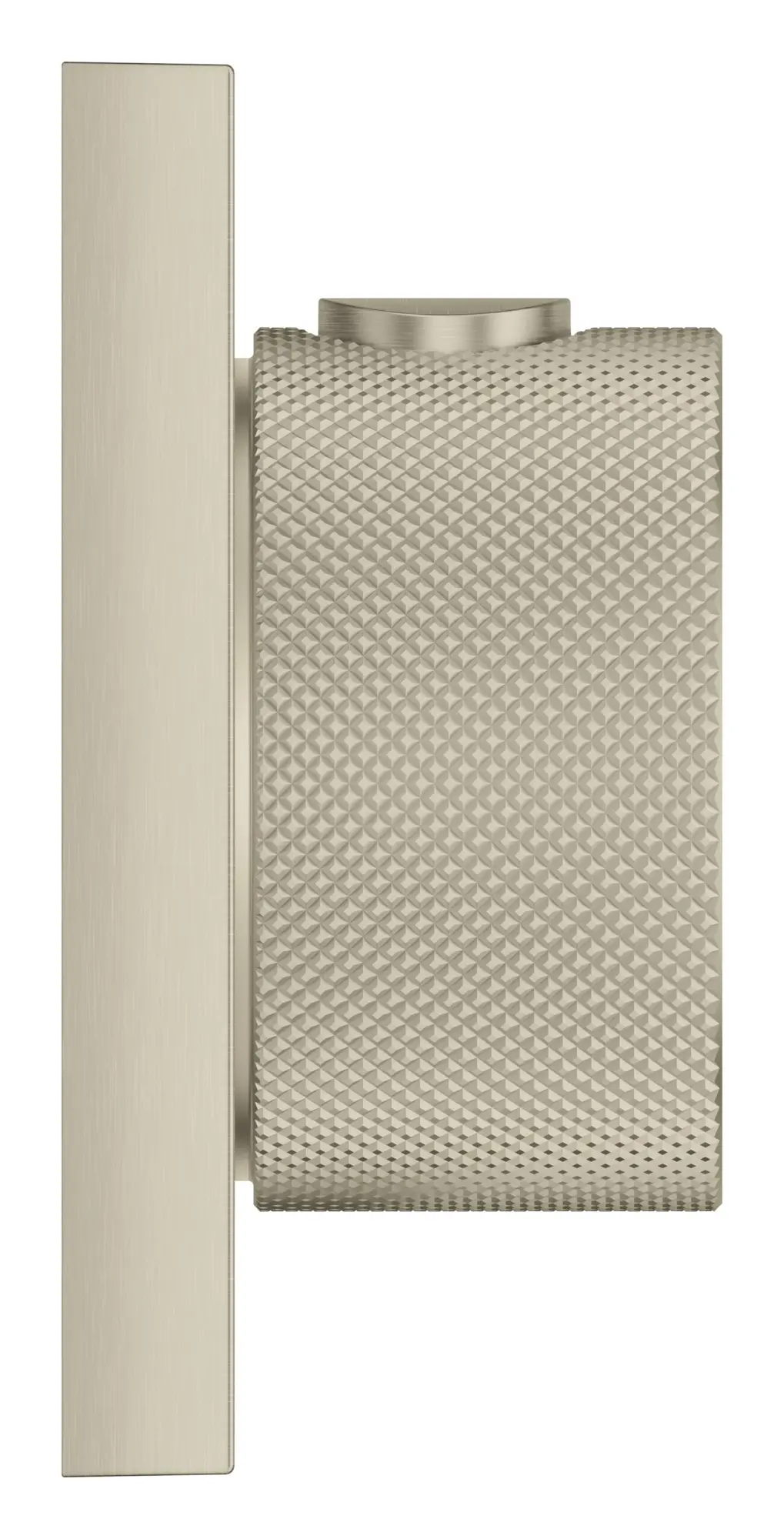

  • GROHE ProGrip Metal with knurl structure
  • GROHE SafeStop safety button at 38°C
  • GROHE SmartControl with recessed metal buttons, push for ON-OFF, turn for volume adjustment from GROHE EcoJoy to full flow
  • Includes 4 exchangeable metal plates with icons to customize push buttons: rainshower, jet spray, massage spray, and hand shower: additional plates sold separately
  • Multiple outlets can be run simultaneously
  • Requires Grohtherm Aqua Tiles 3 outlet valve (1071790000) (sold separately)
  • All outlets on simultaneously maximum flow 12.6 GPM (48 L/min)
  • One outlet maximum flow rate 9.7 GPM (37 L/min)
  • All outlets on simultaneously with CEC limiter maximum flow rate 1.8 gpm (6.8 L/min),One outlet on with CEC limiter maximum flow rate 1.8 gpm (6.8 L/min)
There are no additional components to display for this product
Download Specification Sheet
Brand: GROHE SPA
Category: Thermostats
Color / Finish: Brushed Nickel
Collections: Rainshower
LIXIL Select: Yes
Residential or Commercial: Residential
Subcategory: Thermostats Trim Kit
