Spectra

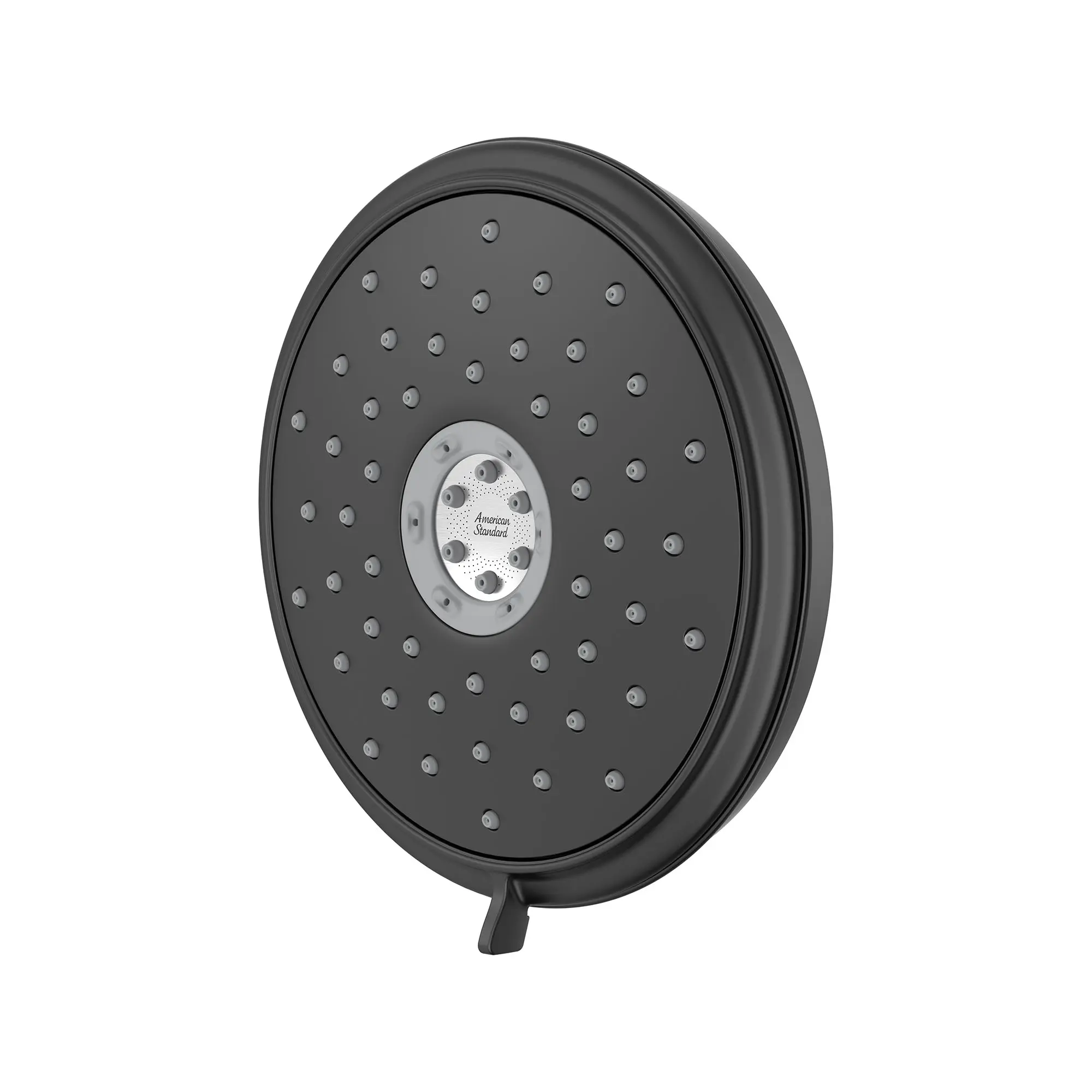

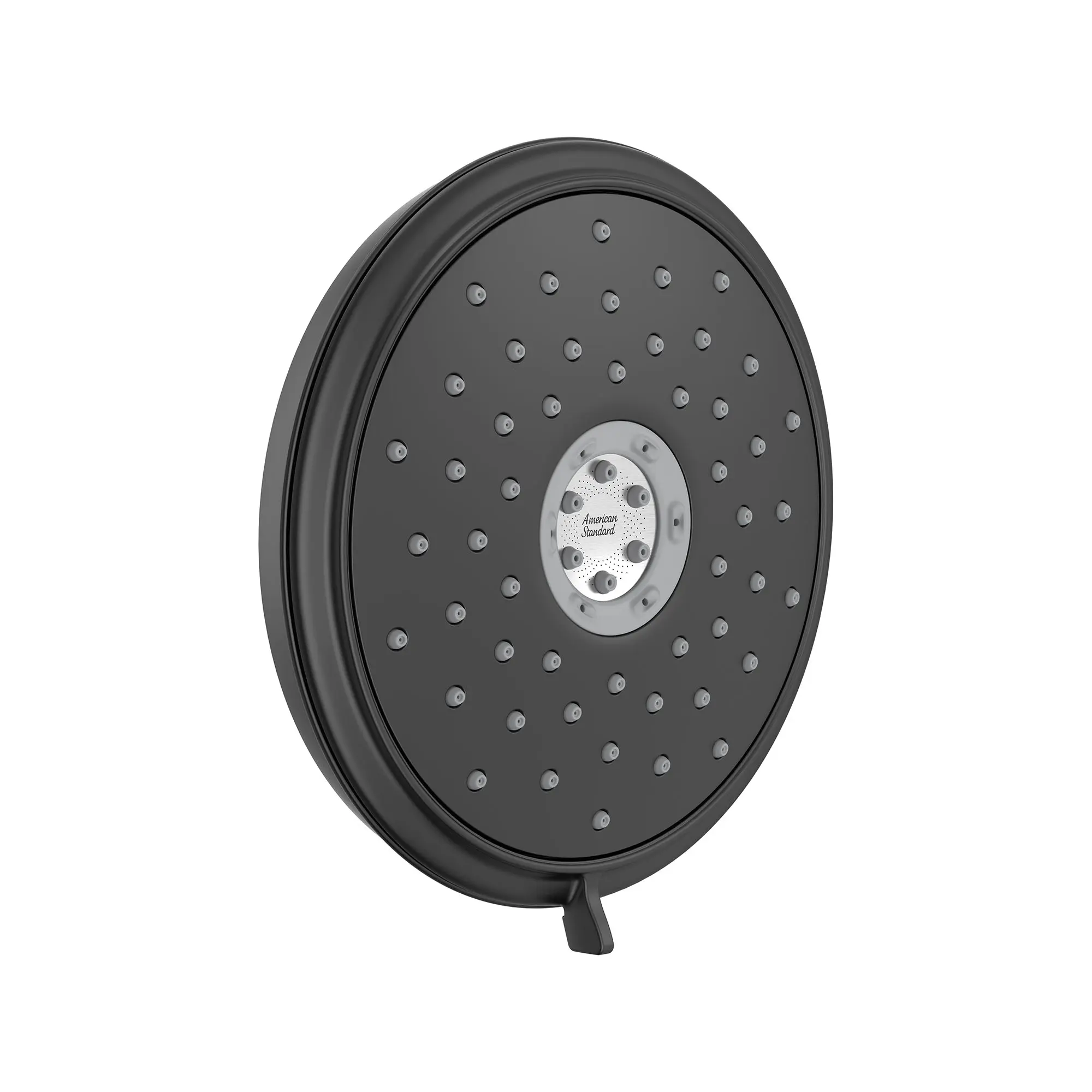

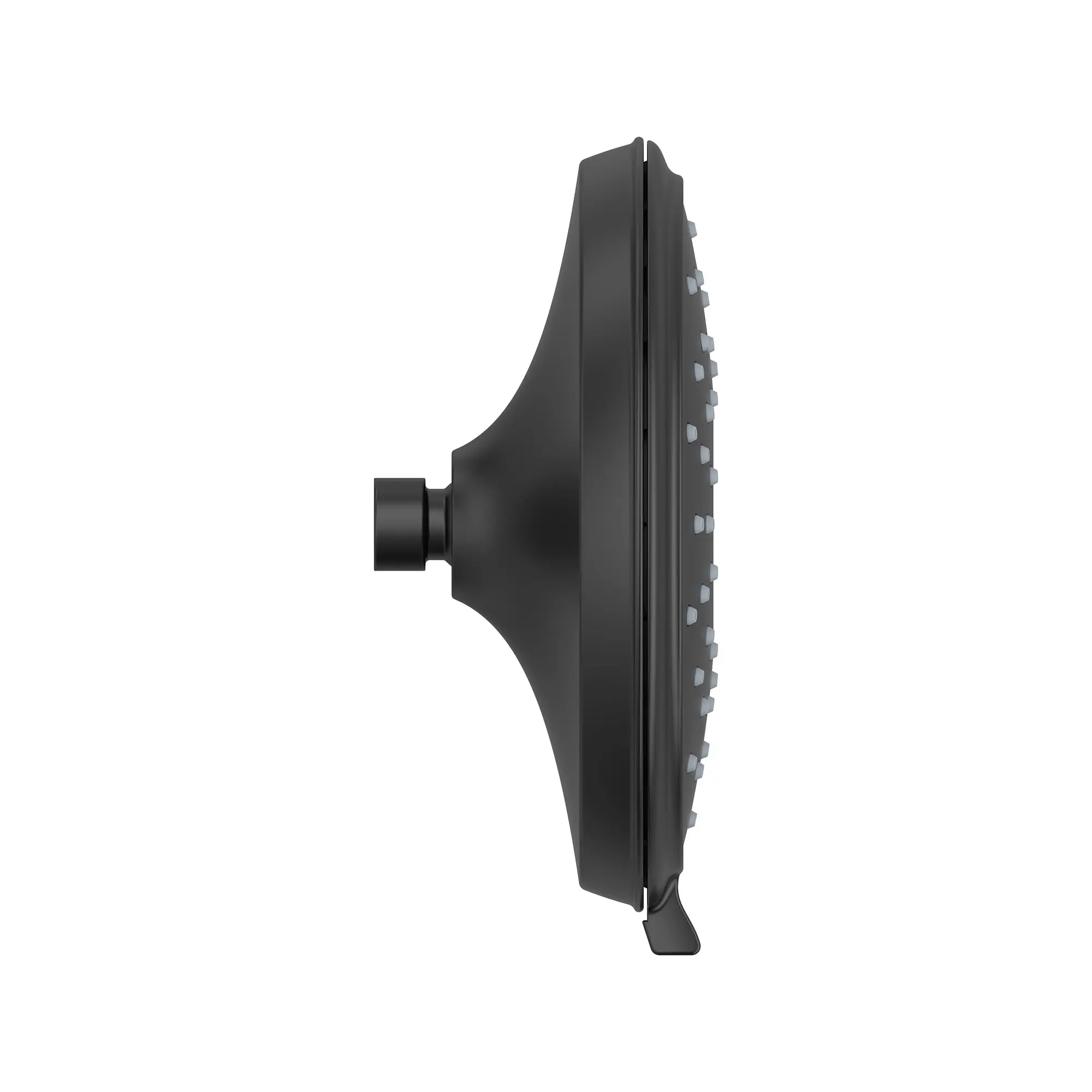

Spectra® Fixed Traditional 7-1/4-Inch 1.8 gpm/6.8 L/min Water-Saving Fixed Showerhead

Experience a shower like never before with the Spectra+ Traditional Fixed 4-Function Showerhead from American Standard. This adjustable showerhead has four separate spray functions from gentle to invigorating massage and is designed to use 28% less water without sacrificing performance.

Matte Black 9138073.243 DISCONTINUED
List Price: $185.00
Cal Green CEC Certified Enjoy More Rewards Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Beautiful finishes that are scratch and tarnish resistant
  • Includes four separate spray functions
  • Drench provides a soaking spray with full body coverage
  • Sensitive is a fine spray that is soft and gentle on the skin
  • Jet provides targeted water coverage
  • Massage brings a pulsating spray to help you unwind and relax
  • Pressure compensating flow device provides a consistent flow over a wide pressure range
  • Metal ball joint
  • Flow rate of 1.8 gpm/6.8 L/min
Technical Features
  • 7-1/4" (184 mm) easy clean showerhead
  • 4-functions adjust from drench to sensitive to jet to massage
  • Pressure-compensating flow control device
  • Showerhead only
  • 1.8 gpm/6.8 L/min maximum flow
  • Limited lifetime warranty
  • Beautiful finishes that are scratch and tarnish resistant
Nominal Dimensions: 3-3/16 in x 7-1/4 in x 7-1/4 in (81 mm x 184 mm x 184 mm)
There are no additional components to display for this product
Download Specification Sheet
Head Diameter: 7-1/4 in
Head Diameter: 7-1/4
Brand: American Standard
Cal Green: Yes
Category: Showers Head Hand Side
CEC Certified: Yes
Color / Finish: Matte Black
Collections: Spectra
WaterSense: Yes
Fitting Connection Size Input: 12.70
Fitting Material: Plastic
Fixture or Fitting Material: Plastic
Shower Shape: Round
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 7-1/4
Length: 3-3/16
Width: 7-1/4
Residential or Commercial: Residential
Number of Spray Settings: 4
Subcategory: Fixed Shower
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
