Rainshower™ Smartactive

310 Shower Head Set, 12" - 2 Sprays, 1.75 GPM (6.6 L/min)

Chrome 26504000 DISCONTINUED
List Price: $997.00
Cal Green CEC Certified
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 12" Square Sprayface
  • 2 Spray Functions: PureRain & ActiveRain
  • Max Flow Rate 1.75 gpm
  • GROHE StarLight Chrome Finish
  • GROHE DreamSpray perfect spray pattern
  • SpeedClean anti-lime system
  • includes 16" shower arm
  • includes 2-way diverter rough-in set 29 900 000 (trim set to be orderer separately)
Technical Features
  • GROHE StarLight
  • GROHE DreamSpray
  • Speed Clean anti-lime system
  • 12" Face
  • 2 Sprays: PureRain, ActiveRain
  • Includes 16" shower arm
  • Includes 2-way diverter rough-in valve (non-shared functions) (29 900 000) (trim set to be ordered separately)
  • Includes rough-in set for shower head
  • Max. flow rate: 1.75gpm (6.6L/min)
Nominal Dimensions: 23-5/16 in x 12-3/16 in x 4-11/16 in (592 mm x 310 mm x 119 mm)
There are no additional components to display for this product
Download Specification Sheet
Brand: GROHE
Cal Green: Yes
Category: Showers Head Hand Side
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Rainshower™ Smartactive
Fitting Connection Size Input: 0-1/2
Mount Type: Wall Mount
Gallons Per Minute (min-max): 1.75
Shower Shape: Square
Input Connection Type: NPT (National Pipe Tapered Threads)
Kitchen or Bathroom: Bath
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 4-11/16
Length: 23-5/16
Width: 12-3/16
Residential or Commercial: Residential
Number of Showerheads: 1
Number of Spray Settings: 2
Spary Patterns: Adjustable
Subcategory: Rain Shower
Valve Input Diameter: 3-9/16
Valve Output Diameter: 3.75
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

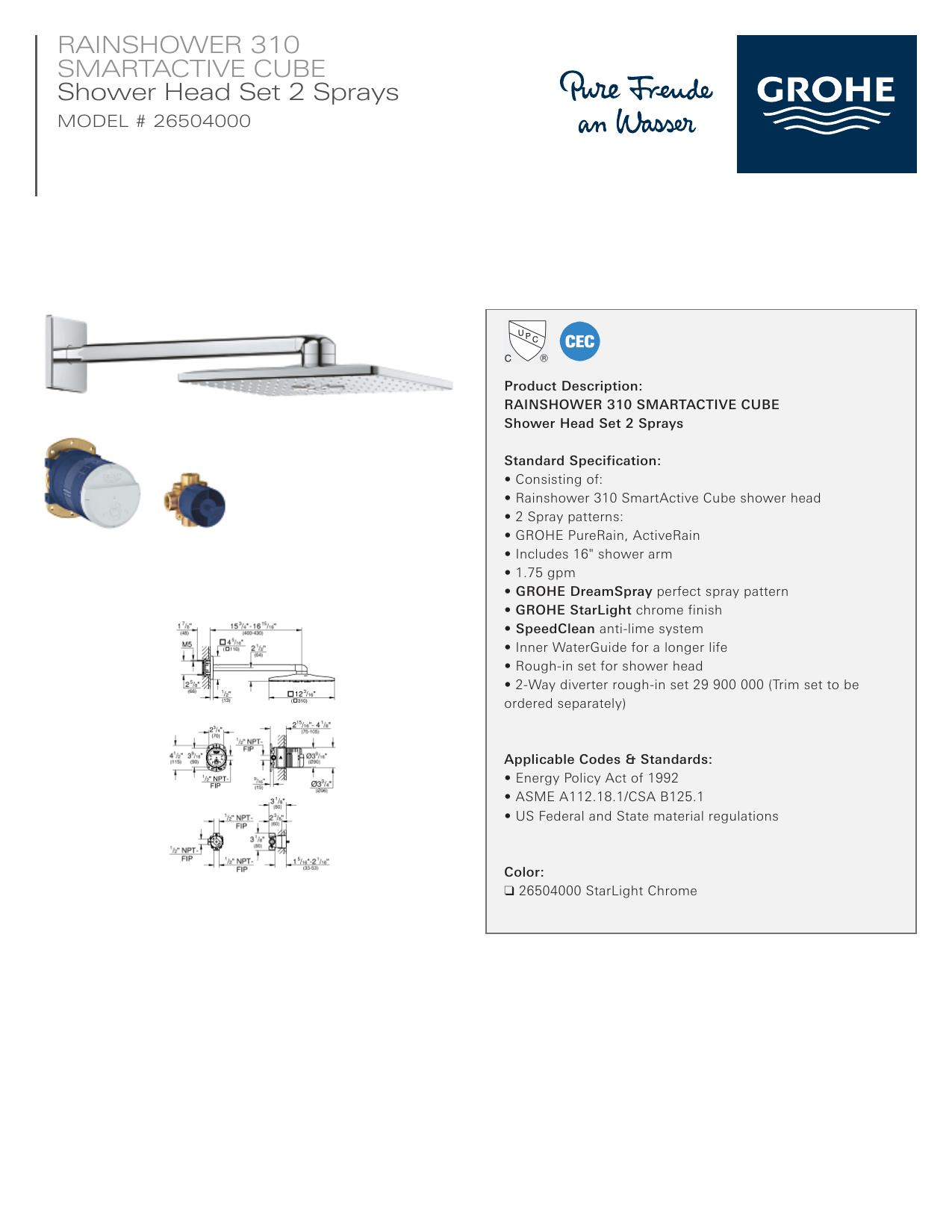

Specification Sheet

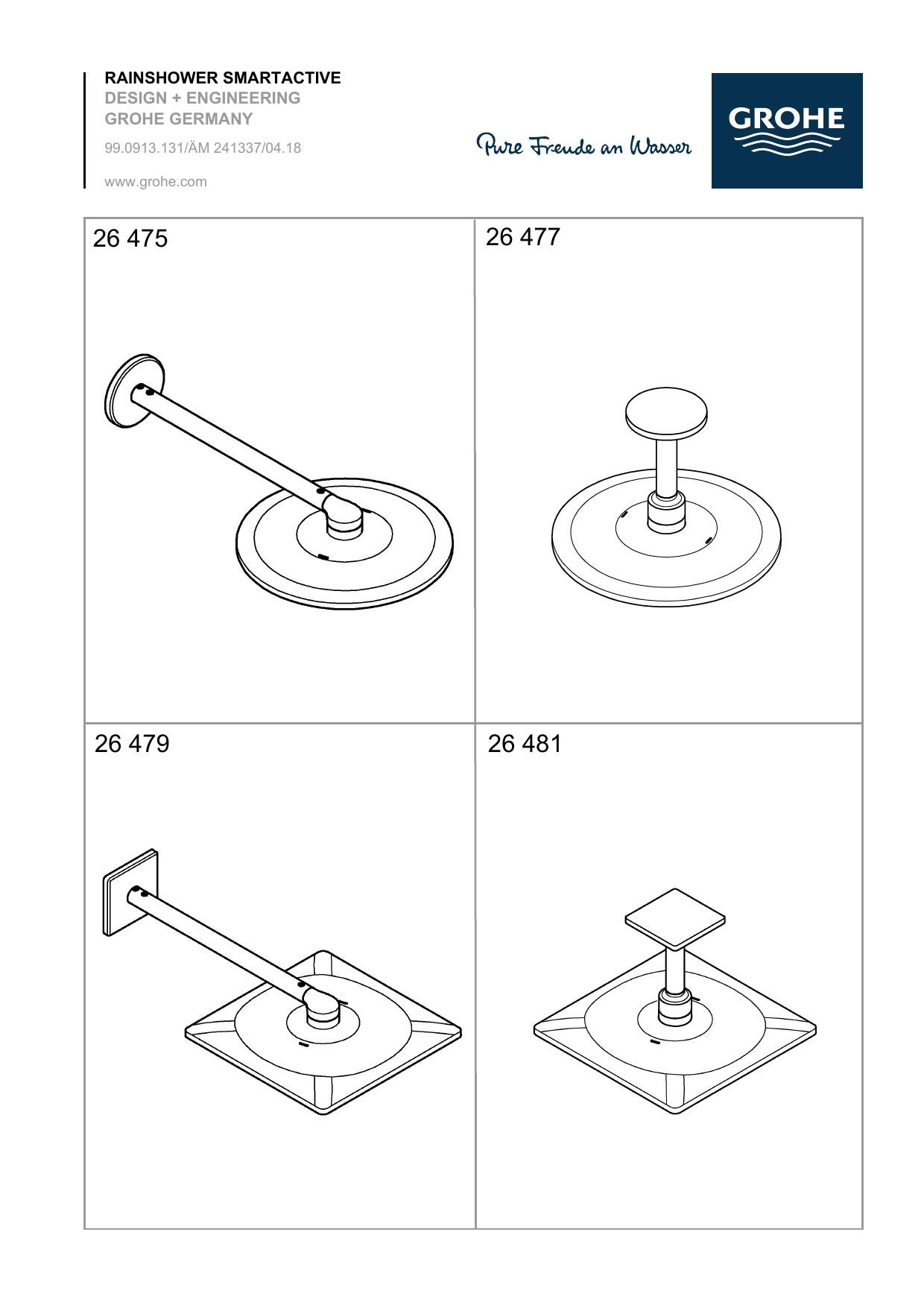

Installation Instructions
