Rainshower Aqua

Grohtherm Aqua Tiles 5 Outlet Thermostatic Valve

Harness the invigorating, transformative power of water with the ultimate customizable showering solution. Three, four & five-function selections cater to your unique needs for a spectacularly sleek showering experience unlike any other.

NEW! Launching Spring 2026


Available for Quoting Only

No Finish 1071820000 DISCONTINUED
List Price: $630.00
LIXIL Select
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Technical Features
  • GROHE TurboStat compact cartridge with wax thermoelement
  • 5 outlets each top and bottom, 1/2" Female NPT
  • Installation Depth minimum 3.4" to maximum 4.6"
  • Leak proof housing
  • Optional flow reducer for CALGreen Compliance Included
  • Maximum flow performance w/outlets simoutaneously running (at 43.5 psi): 13.2 GPM (50 L/min)
  • Flow performance for single outlet (at 43.5 psi): 9.7 GPM (37 L/min)
  • Maximum flow performance w/outlets simoutaneously running with CEC limiter (at 43.5 psi): 1.8 gpm (6.8 L/min)
  • Flow performance for single outlet with CEC limiter (at 43.5 psi): 1.8 gpm (6.8 L/min)
There are no additional components to display for this product
Download Specification Sheet
Brand: GROHE SPA
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Collections: Rainshower Aqua
LIXIL Select: Yes
Residential or Commercial: Residential
Subcategory: Thermostat Valve Rough in
Download All Supporting Documents

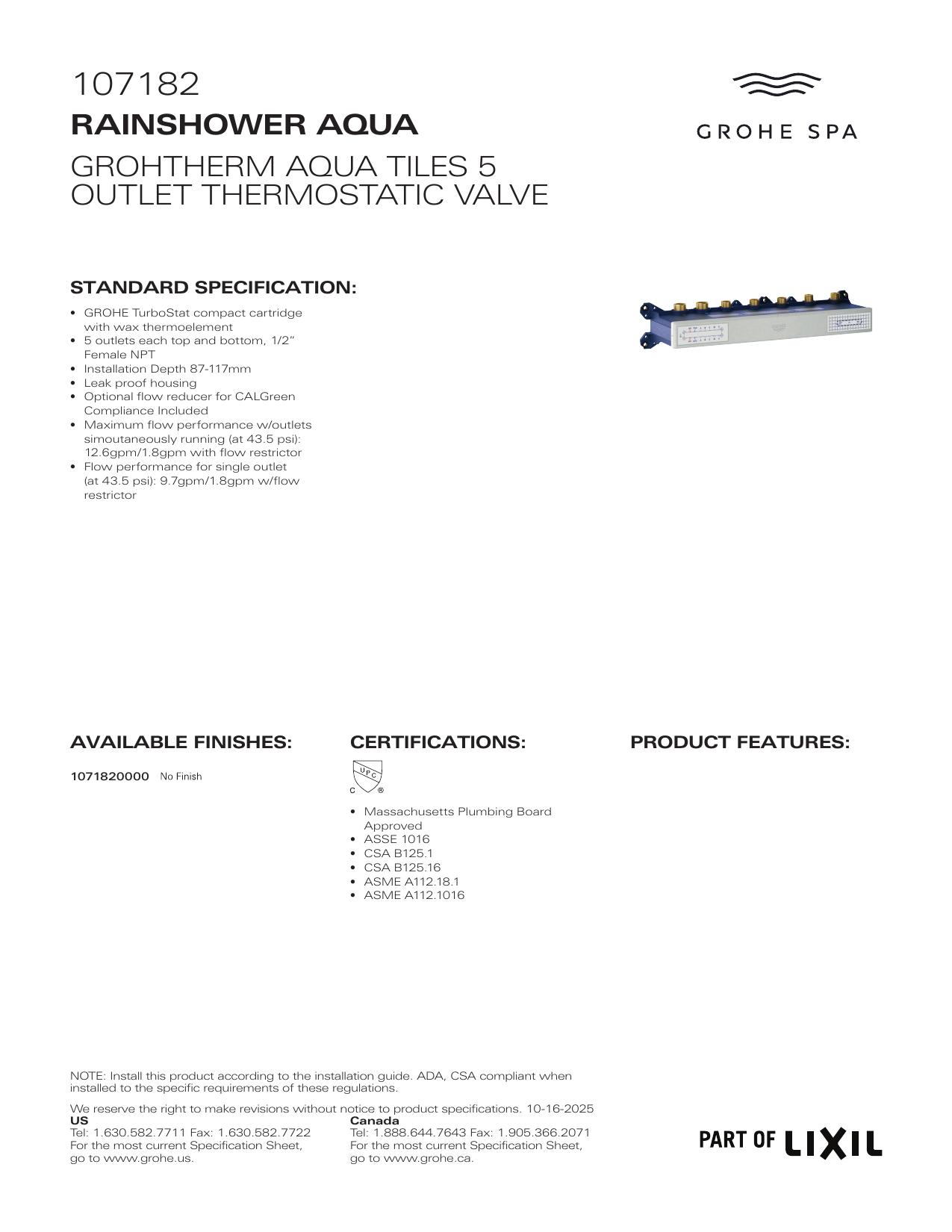

Specification Sheet
