Grohtherm® F

Triple Volume Control Rough-In Set

No Finish 35032000 DISCONTINUED
List Price: $526.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • GROHE SilkMove for a lifetime of smooth operation
  • For grid installation with Grohtherm F system and GrohFlex
  • Built-in box with removable protection cover
  • For masonry and drywall installations
  • Front and back fixing points
  • Pre-assembled 3/4 in. ceramic cartridges, 90 degrees
  • 1 inlet, 3 outlets
  • 1/2 in. NPT connections
  • 2-3/4 in. – 3-15/16 in. installation depth
Technical Features
  • GROHE SilkMove
  • For grid installation with Grohtherm F system and GrohFlex
  • Built-in box with removable protection cover
  • For masonry and drywall installations
  • Front and back fixing points
  • Pre-assembled ¾” ceramic cartridges, 90º
  • 1 Inlet, 3 outlets
  • 1/2" NPT connections
  • 2 ¾" – 3 15 /16" Installation depth
  • 12gpm at 45psi on each outlet
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Department of Energy Certified: Yes
Collections: Grohtherm® F
Fitting Connection Size Input: 0-1/2
Fitting Material: Brass
Fixture or Fitting Material: Brass
Input Connection Type: NPT (National Pipe Tapered Threads)
Kitchen or Bathroom: Bath
Number of Input Valves: 1
Number of Output Valves: 2
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 9-5/16
Width: 5-11/16
Residential or Commercial: Residential
Fixed Shower Head: Yes
Subcategory: On Off Volume Control Valve Rough in
Valve Input Diameter: 1/2
Valve Output Diameter: 0.5
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

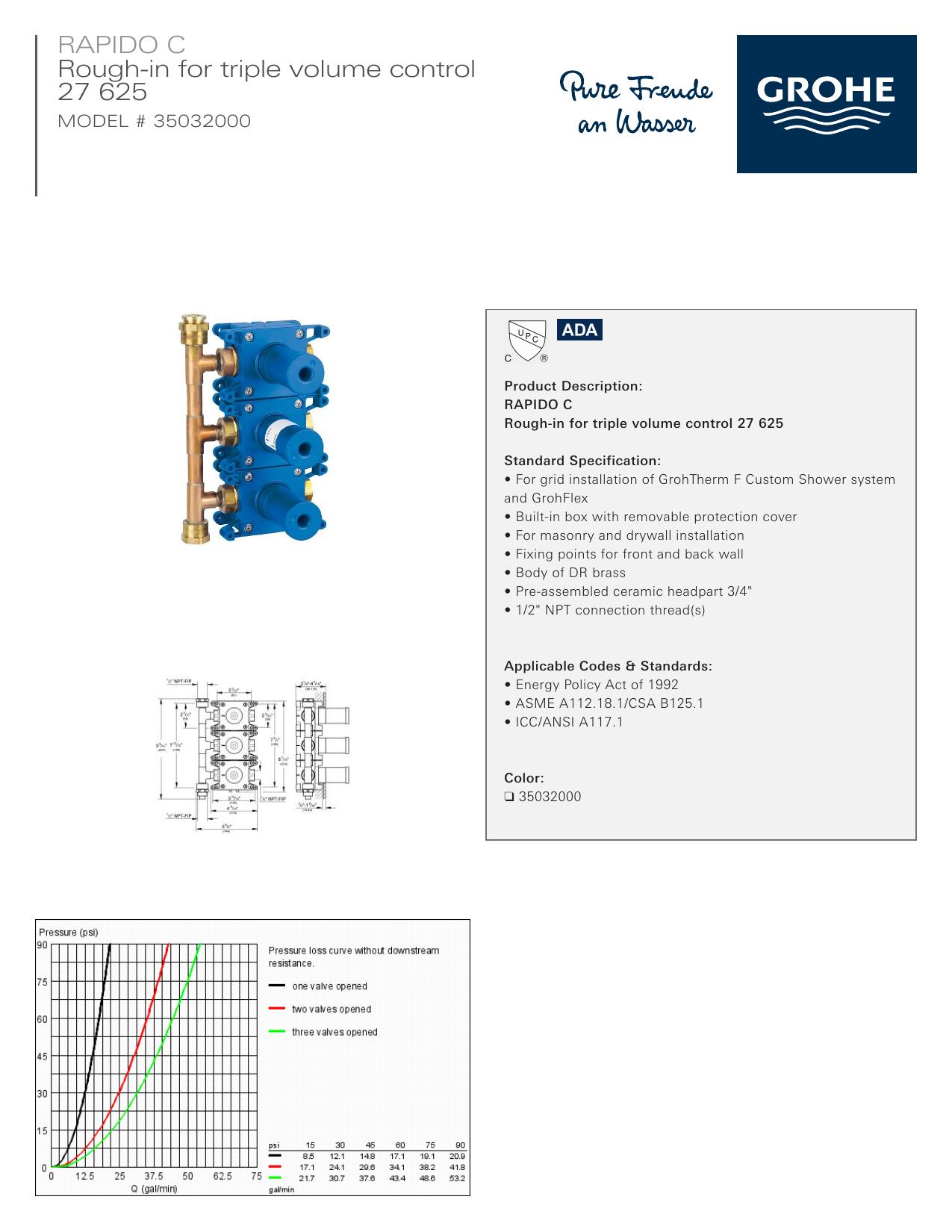

Specification Sheet

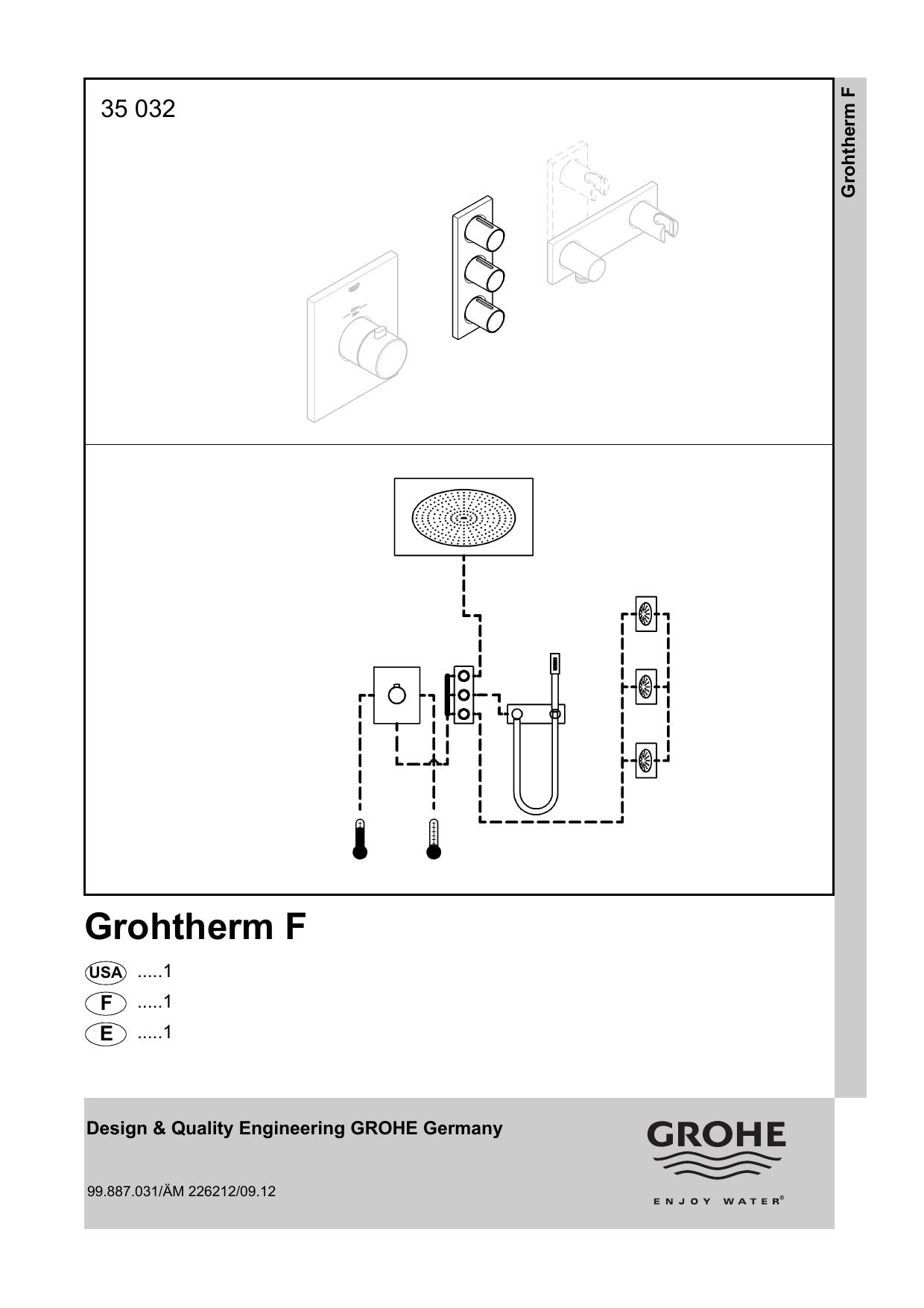

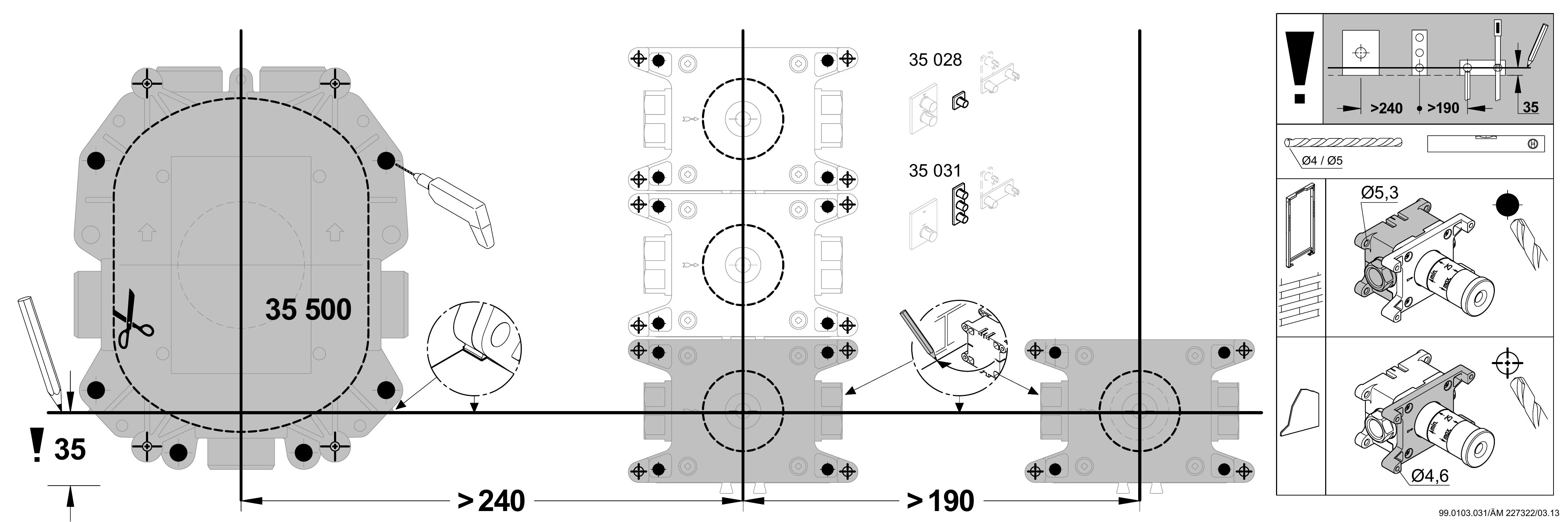

Installation Instructions

Installation Instructions

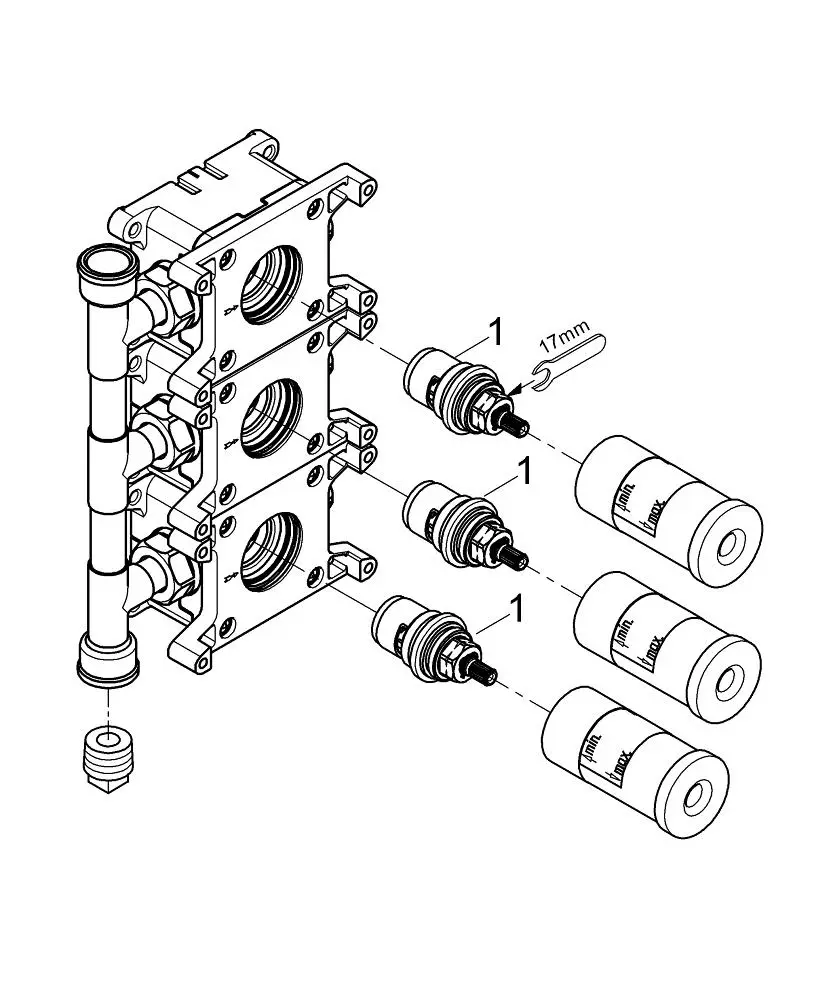

Replacement Parts
