Roughs/Valves

1/2-Inch (13 mm) On/Off Control Rough-In Valve

This in-wall On/Off Volume Control valve lets you turn the water on and off and control the volume of water. For use with 10 styles of trim kits, including: Berwick®, Copeland™, Green Tea®, Moments™, Portsmouth®, Quentin™, Serin® and Town Square® (all sold separately). Your shower system may also require a mixing valve and diverter.On/off valves operate as their name implies - they turn water on and off and control volume of water. Consider this example of a typical installation - a fixed showerhead with three body/side sprays. You get into the shower with all sprays on to get wet, then (using the on/off valve) shut off the body/side sprays to lather up.

No Finish R701 DISCONTINUED
List Price: $72.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ceramic Disc Valving assures drip-free for life performance
  • Durable Cast Brass Valve Body - Excellent for high use applications with prolonged water use
  • Limited Lifetime Warranty - Function & Finish
  • Wide selection of ADA Approved handles available
  • Handle must be ordered separately
  • R 701, R711 product page
Technical Features
  • Ceramic Disc valving assures drip-free for life performance
  • Durable cast brass valve body – excellent for high use applications with prolonged water use
  • Limited lifetime warranty on function and finish
  • Wide selection of ADA approved handles available
  • Handle must be ordered separately
Nominal Dimensions: 2-3/4 in x 3/4 in x 2-1/2 in
There are no additional components to display for this product

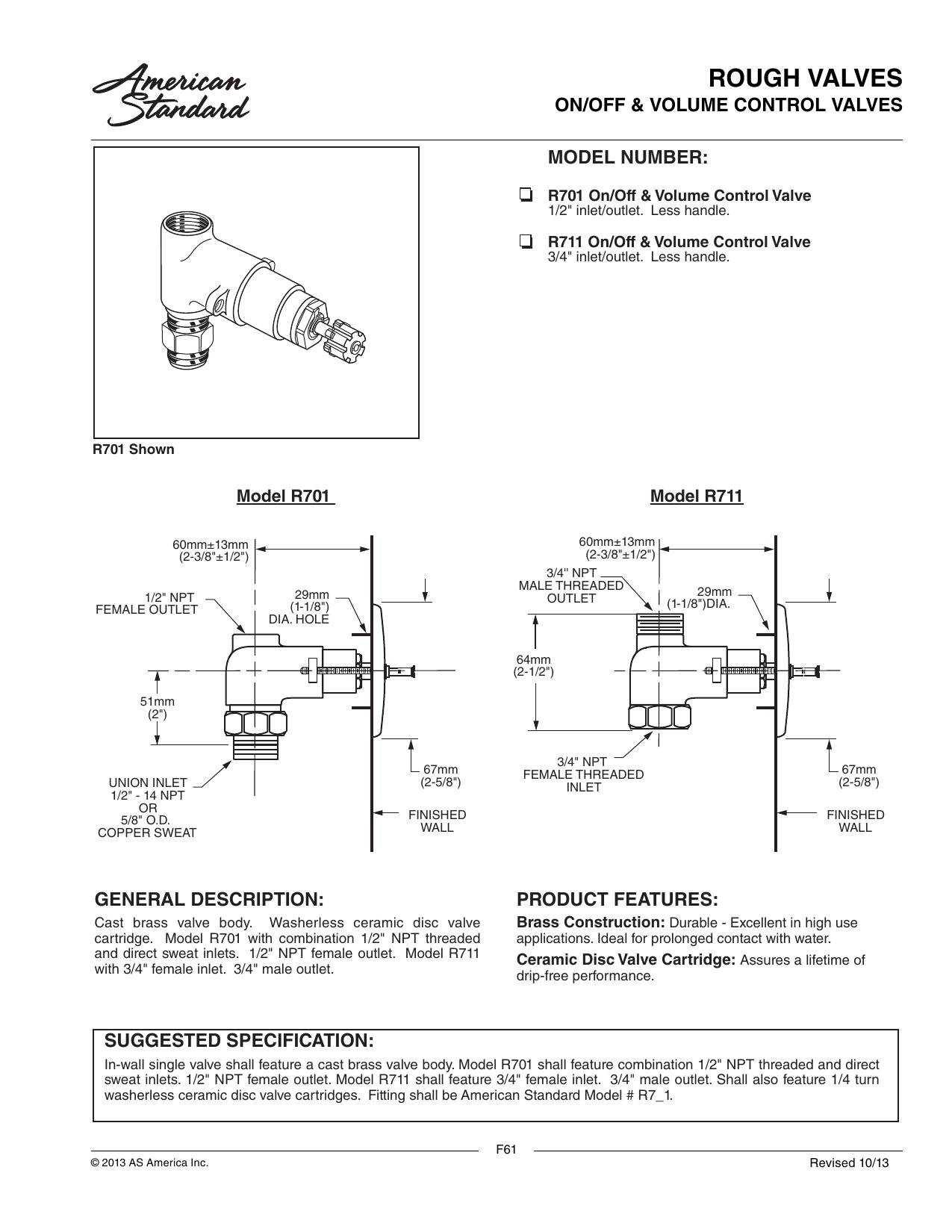

Download Specification Sheet
Brand: American Standard
Category: Rough-ins Concealed Bodies
Color / Finish: No Finish
Collections: Roughs/Valves
Fitting Connection Size Input: 19.05
Fitting Material: Brass
Fixture or Fitting Material: Brass
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Input Valves: 1
Number of Output Valves: 1
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 2-1/2
Length: 2-3/4
Width: 3/4
Residential or Commercial: Residential
Shower Trim Type: Shower
Subcategory: On Off Volume Control Valve Rough in
Download All Supporting Documents

Specification Sheet
