Find Your Salesperson

Afwall

Afwall 1.6 gpf EverClean Toilet with Selectronic Exposed AC Flush Valve System

3351716.020 DISCONTINUED   Substitution Available (3351101.020)
List Price: $0.00
Environmental Product Declaration
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Wall-hung elongated flushometer valve toilet
  • Vitreous china
  • High Efficiency. Operates in the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation chanel
  • Direct-fed siphon jet action
  • 1-1/2" inlet spud
  • Fully glazed 2-1/8 trapway
  • 10" x 12" water surface area
Technical Features
  • Wall-hung elongated flushometer valve toilet
  • Vitreous china
  • High Efficiency. Operates in the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation chanel
  • Direct-fed siphon jet action
  • 1-1/2" inlet spud
  • Fully glazed 2-1/8 trapway
  • 10" x 12" water surface area
Description
Net Weight
SKU
Color
List Price USD
Afwall 1.6 gpf EverClean Toilet with Selectronic Exposed AC Flush Valve System
61 lb (27.8 kg)
3351716.020 *
0
Separate Components
Afwall® Millennium® 1.0 - 1.6 gpf (3.8- 6.0 Lpf) Wall-Hung EverClean® Bowl Less Seat
52 lb (23.6 kg)
3351101.020
0
spacer
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Base Model, 1.6 gpf/6.0 Lpf
11 lb (5.1 kg)
606B161.002
0
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.5 kg)
PK00.HAC *
0
Substitutions
Afwall® Millennium® 1.0 - 1.6 gpf (3.8- 6.0 Lpf) Wall-Hung EverClean® Bowl Less Seat
52 lb (23.6 kg)
3351101.020
0


Models marked with * are discontinued, but product may still be available while supplies last.

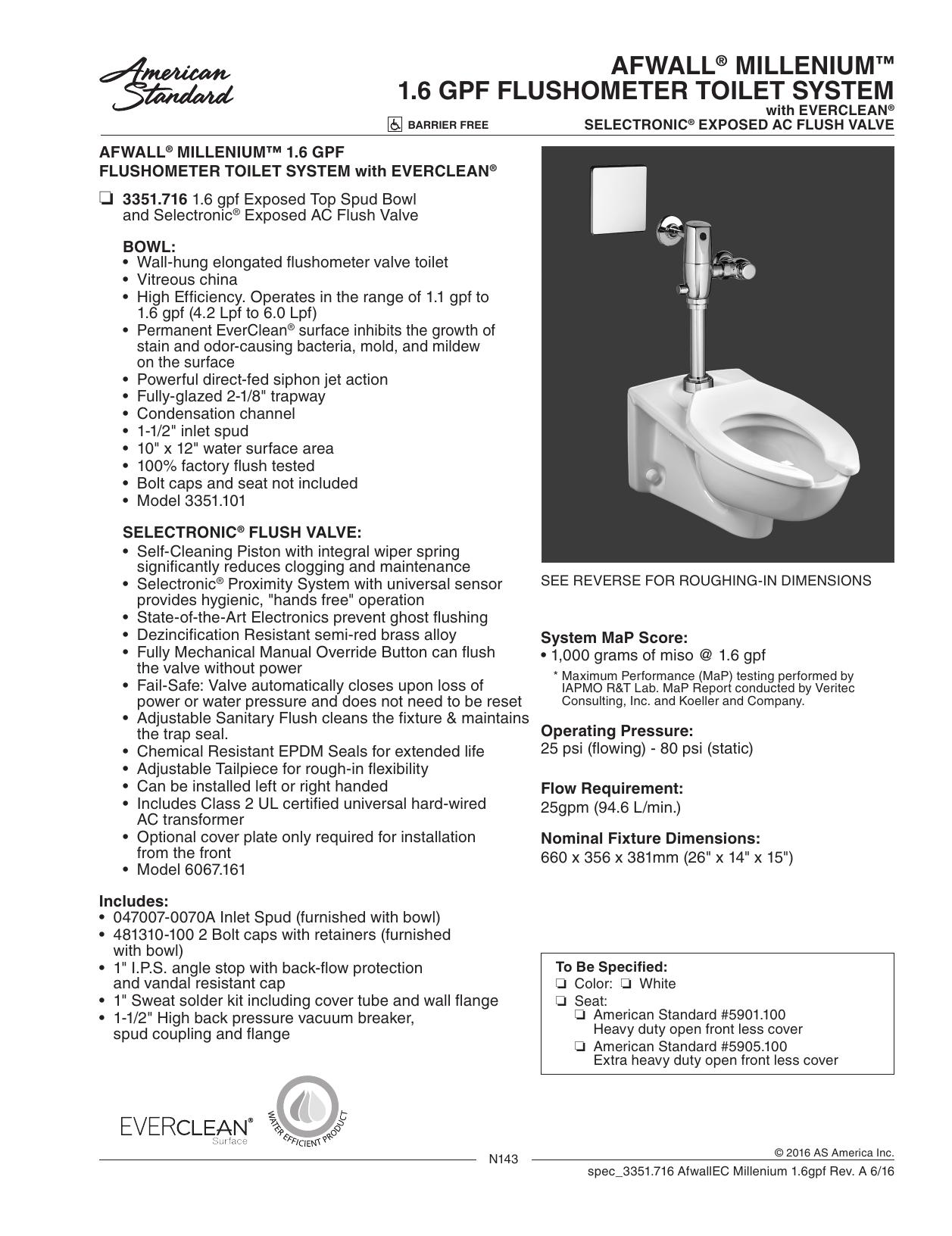

Download Specification Sheet
Front to Back Length: 15.0
Bowl Shape: Elongated
Brand: American Standard
Category: Flush Valves and Sanitary Items
Chair Height: Standard
Color / Finish: White (020)
Collections: Afwall
Fixture Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
MAP Performance Rating: 1000
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Sensor Flush Valve and Sanitary Items
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
