Madera

Madera 15-Inch EverClean® Toilet System With Manual Piston Flush Valve, 1.28 gpf/4.8 Lpf

2855128.020 DISCONTINUED
List Price: $0.00
Cal Green WaterSense Everclean Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 15" (381 mm) rim height
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Nominal Dimensions: 28-1/4 in x 14 in x 30 in (718 mm x 356 mm x 762 mm)
Description
Net Weight
SKU
Color
List Price USD
Madera 15-Inch EverClean® Toilet System With Manual Piston Flush Valve, 1.28 gpf/4.8 Lpf
1 lb (0.4 kg)
2855128.020
0
Separate Components
Madera 1.0 - 1.6 gpf (3.8 - 6.0 Lpf) 15" Height Top Spud Elongated EverClean® Bowl
50 lb (22.8 kg)
3451001.020
0
spacer
Ultima Manual Toilet Flush Valve, Piston-Type, 1.28 gpf/4.8 Lpf
6 lb (2.7 kg)
6047121.002
0
Download Specification Sheet
Front to Back Length: 15.0
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Chair Height: Standard
Color / Finish: White (020)
Flush Value: Exposed
Collections: Madera
WaterSense: Yes
Everclean: Yes
Fitting Connection Size Input: 25.40
Fitting Material: Brass
Fixture Material: Vitreous China
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
MAP Performance Rating: 1000
Number of Output Valves: 1
Height: 30
Height: 30
Length: 28-1/4
Length: 28-1/4
Width: 14
Residential or Commercial: Commercial
Tank Included: Yes
Valve Input Diameter: 1
Valve Output Diameter: 1-1/2
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

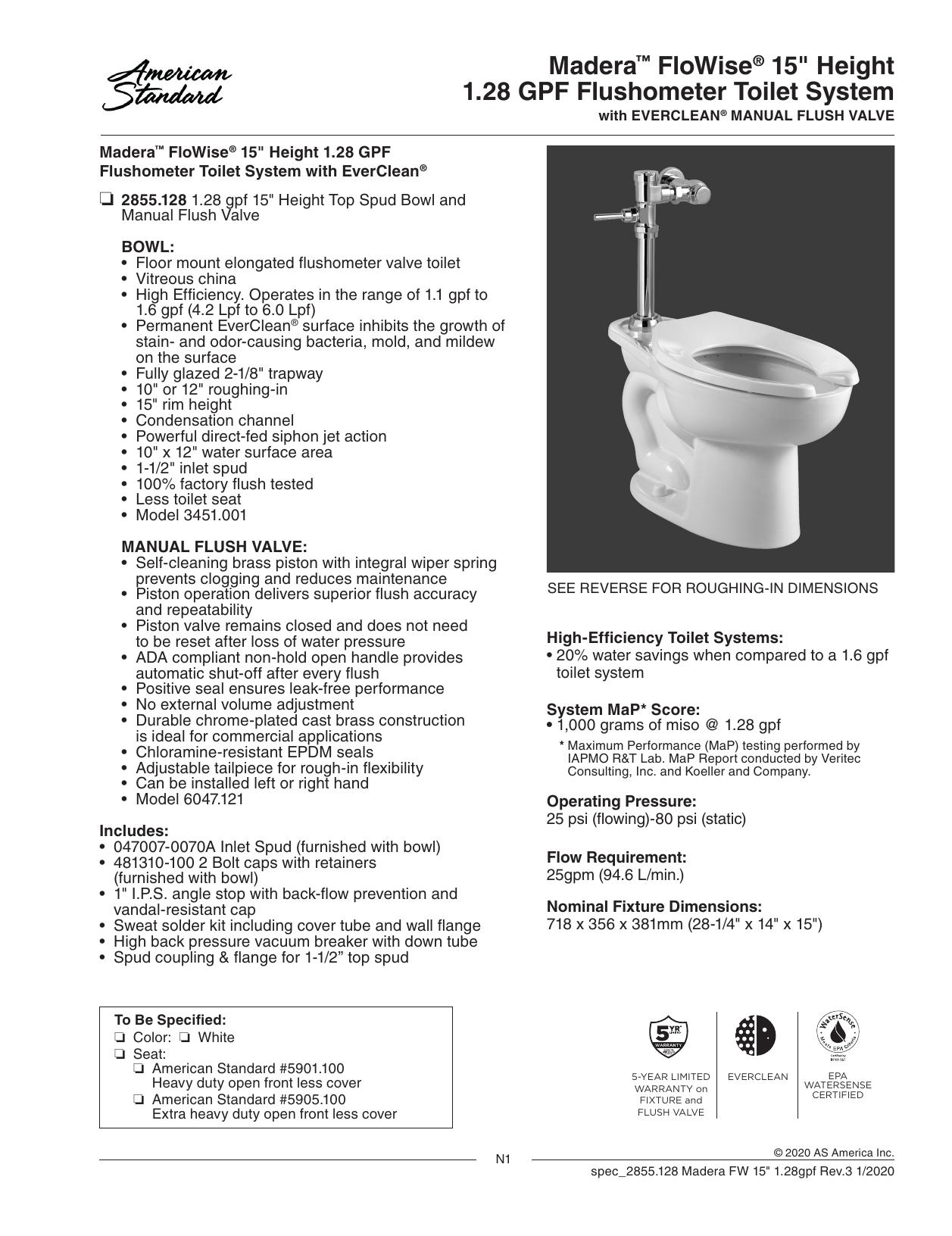

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
