Yorkville® VorMax® Chair Height Back Outlet Elongated EverClean® Bowl

The Yorkville VorMax Floor-Mount Back-Outlet Right Height Elongated Toilet Bowl from American Standard is engineered for the powerful VorMax scrubbing action by circulating water around the bowl from top to bottom. Features the CleanCurve Rim that eliminates hard to reach surfaces where build-up hides, and the EverClean® antimicrobial surface to protect against mold, mildew, odor- and stain-causing bacteria.

White 3359A101.020 DISCONTINUED
List Price: $576.00
ADA Compliant Cal Green CEC Certified Everclean Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Elongated floor-mount flushometer valve toilet, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Conventional glaze
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" 305 mm) rough-in
  • Standard 15" (381 mm) rim height
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Technical Features
  • Elongated floor-mount flushometer valve toilet, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Conventional glaze
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" 305 mm) rough-in
  • Standard 15" (381 mm) rim height
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 28-5/8 in x 14 in x 17-1/2 in (727 mm x 356 mm x 445 mm)
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 17
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Collections: Yorkville
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Gallons Per Flush (min-max): 1.28 GPF
Height: 17-1/2
Length: 28-5/8
Width: 14
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

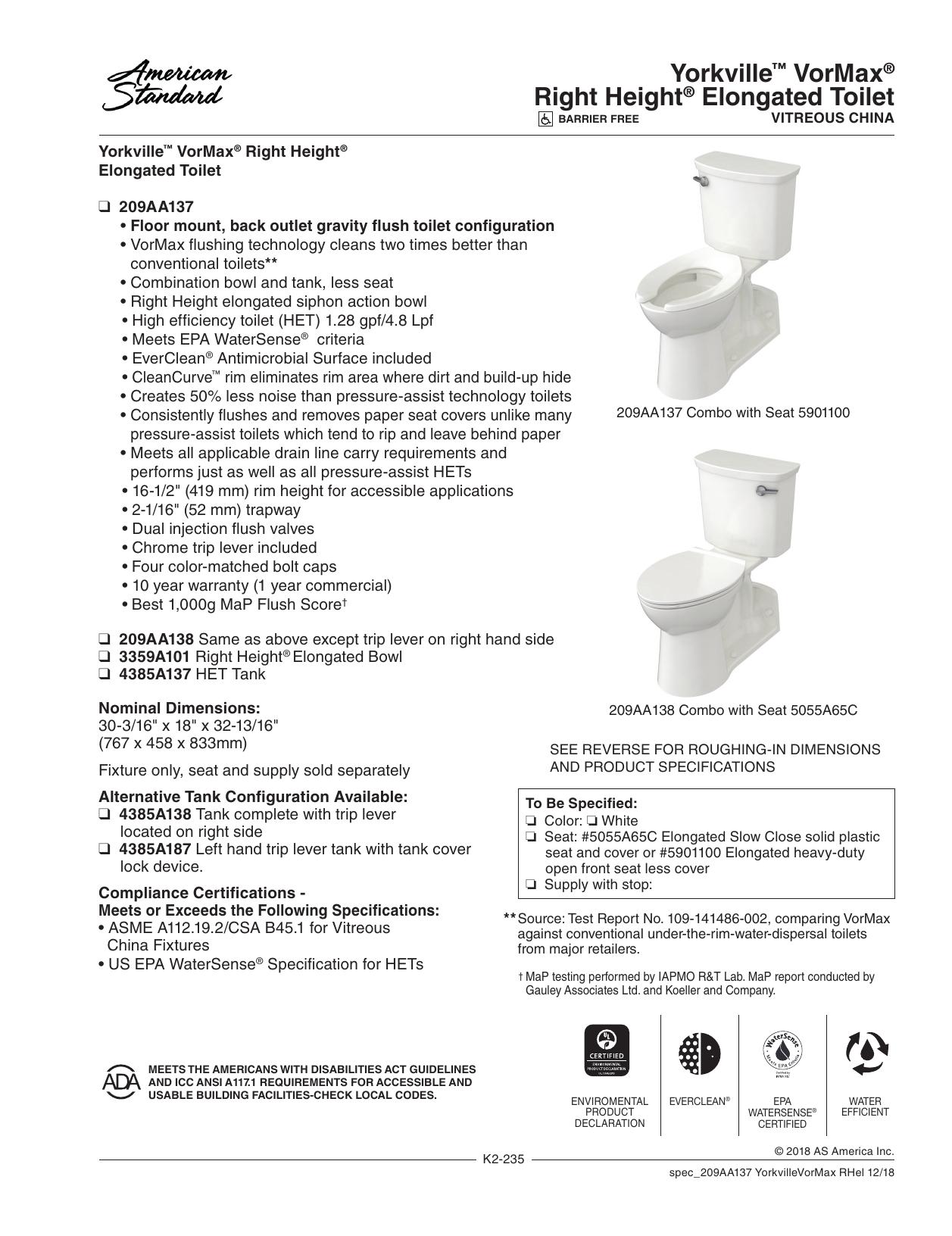

Specification Sheet

Installation Instructions
