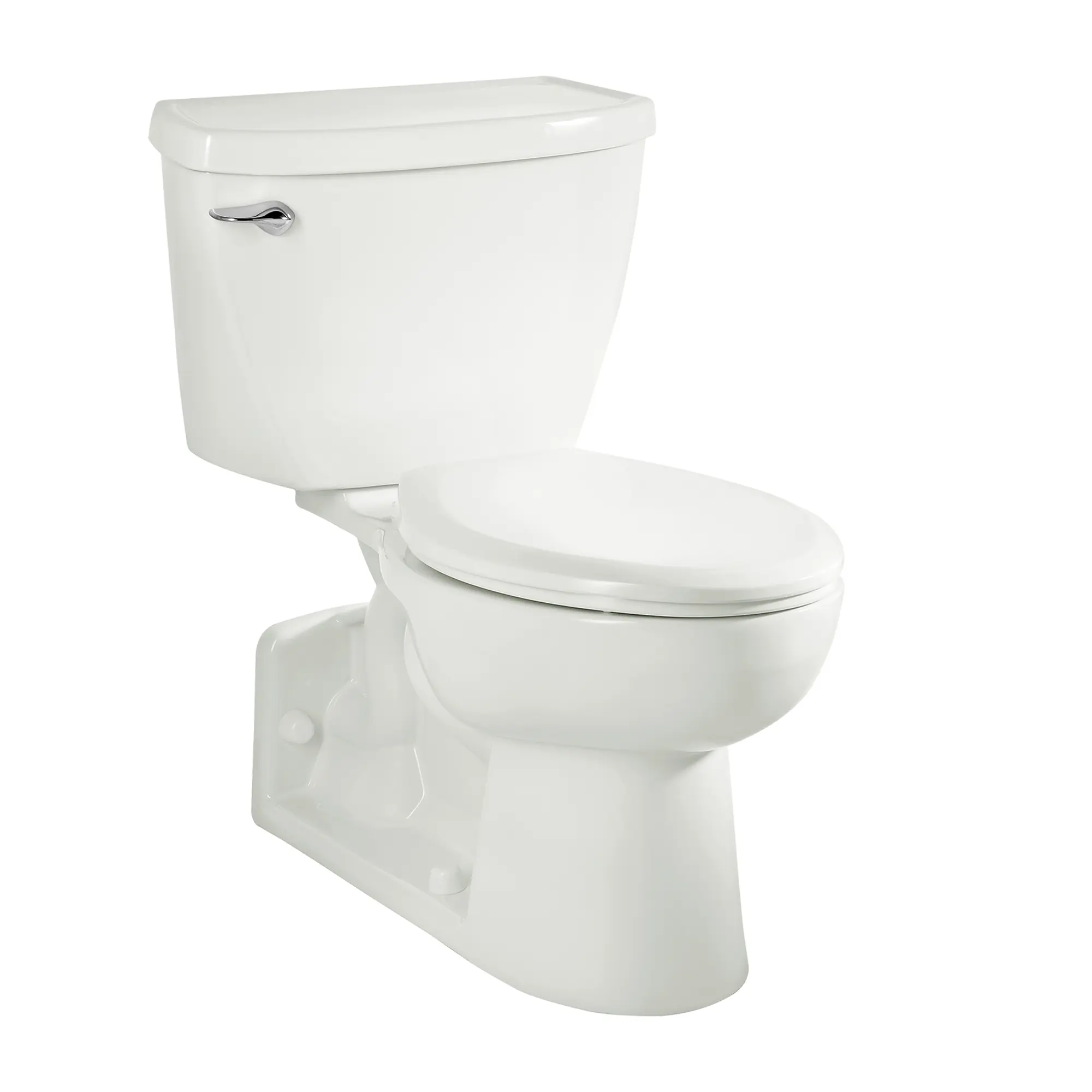

Yorkville® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Chair Height Back Outlet Elongated EverClean® Toilet

The American Standard Yorkville® Two-Piece Chair-Height Toilet is engineered for the rigors of high-traffic commercial environments. Backed by over a century of experience, this durable vitreous china fixture combines powerful, pressure-assisted performance with advanced hygiene features. Its back-outlet design and robust construction make it ideal for renovation or new construction in hospitality, healthcare, or municipal settings. Featuring the powerful 1.6 gpf /6.0 Lpf low-consumption flush and a robust EverClean® surface, the Yorkville® delivers reliability, water efficiency, and superior long-term hygiene for any demanding commercial job. Seat is sold separately.

White 2878016.020 DISCONTINUED
List Price: $970.00
ADA Compliant Everclean USMCA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Commercial-grade performance: Pressure-assisted siphon jet action ensures a powerful, reliable flush, making it ideal for high-use commercial applications
  • Low-consumption water efficiency: Low-consumption 1.6 gpf /6.0 Lpf rating meets standard commercial water usage requirements
  • Superior hygiene: EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Easy exterior cleaning: Sanitary bar on the bowl and a close-coupled pressure-assisted tank create a clean, modern profile that is easy for maintenance staff to wipe down
  • Clog resistance: Equipped with a fully-glazed 2 1/8 inch trapway to resist clogs and maintain optimal performance
  • Comfortable height for all users: 16 ½ inch chair-height bowl makes sitting and standing easier, and is ADA compliant, ideal for adults, seniors, and those with mobility issues
  • Easy, fast installation: Uses the proprietary Speed Connect® tank/bowl coupling system for fast and secure installation, reducing labor time
  • Durable hardware: Includes a metal chrome-plated trip lever and 4 color-matched bolt caps
  • Working pressure: Recommended operating pressure range of 25 psi - 80 psi
  • Please note: Seat is sold separately
Technical Features
  • Floor-mounted, back-outlet toilet bowl and tank less seat
  • Pressure-assisted siphon jet action
  • Low consumption (1.6 gpf/6.0 Lpf)
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • 2-1/8" (54 mm) fully-glazed trapway
  • Condensation channel
  • 10" x 12" water surface area
  • Chrome-plated metal trip lever
  • 4 color-matched bolt caps included
Nominal Dimensions: 29-3/4 in x 20-1/2 in x 30-3/4 in (756 mm x 521 mm x 781 mm)
Description
Net Weight
SKU
Color
List Price USD
Yorkville® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Chair Height Back Outlet Elongated EverClean® Toilet
1 lb (0.4 kg)
2878016.020
White (020)
970
2878016.021 *
Bone (021)
0
2878016.222 *
Linen (222)
0
Separate Components
Yorkville® Pressure Assist Chair Height Back Outlet Elongated EverClean® Bowl
57 lb (25.9 kg)
3703001.020
White
576
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
4142016.020
White
394
spacer
7381886-201.0020A-PRESSURE POD LH TRIP LEVER
0 lb (0.0 kg)
7381886-201.0020A
Chrome
108
spacer
7381886-202.0020A-PRESSURE POD RH TRIP LEVER
0 lb (0.0 kg)
7381886-202.0020A
Chrome
108
Optional Components (Not Included)
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
4142600.020
White
591
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
4142800.020
White
401
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
4142900.020
White
598
spacer
Tank cover for locking device
7 lb (3.3 kg)
735133-401.020
White
92


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Yorkville
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Pressure Assisted
Flush Valve Size: 2
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Height: 30-3/4
Length: 29-3/4
Width: 20-1/2
Residential or Commercial: Commercial
Rough In Size: 12
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Toilet Type: Floor_Standing_Two_Piece_Toilet
USMCA Compliant: Yes
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
3D Objects are not currently available for this product
