Features
- Commercial-grade performance: Pressure-assisted siphon jet action ensures a powerful, reliable flush, making it ideal for high-use commercial applications
- Low-consumption water efficiency: Low-consumption 1.6 gpf /6.0 Lpf rating meets standard commercial water usage requirements
- Superior hygiene: EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
- Easy exterior cleaning: Sanitary bar on the bowl and a close-coupled pressure-assisted tank create a clean, modern profile that is easy for maintenance staff to wipe down
- Clog resistance: Equipped with a fully-glazed 2 1/8 inch trapway to resist clogs and maintain optimal performance
- Easy, fast installation: Uses the proprietary Speed Connect® tank/bowl coupling system for fast and secure installation, reducing labor time
- Durable hardware: Includes a metal chrome-plated trip lever and 4 color-matched bolt caps
- Working pressure: Recommended operating pressure range of 25 psi - 80 psi
- Please note: Seat is sold separately
Technical Features
- Floor-mounted, back-outlet toilet bowl and tank less seat
- Pressure-assisted siphon jet action
- Low consumption (1.6 gpf/6.0 Lpf)
- EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
- Standard 15" (381 mm) rim height
- 2-1/8" (54 mm) fully-glazed trapway
- Condensation channel
- 10" x 12" water surface area
- Chrome-plated metal trip lever
- 4 color-matched bolt caps included

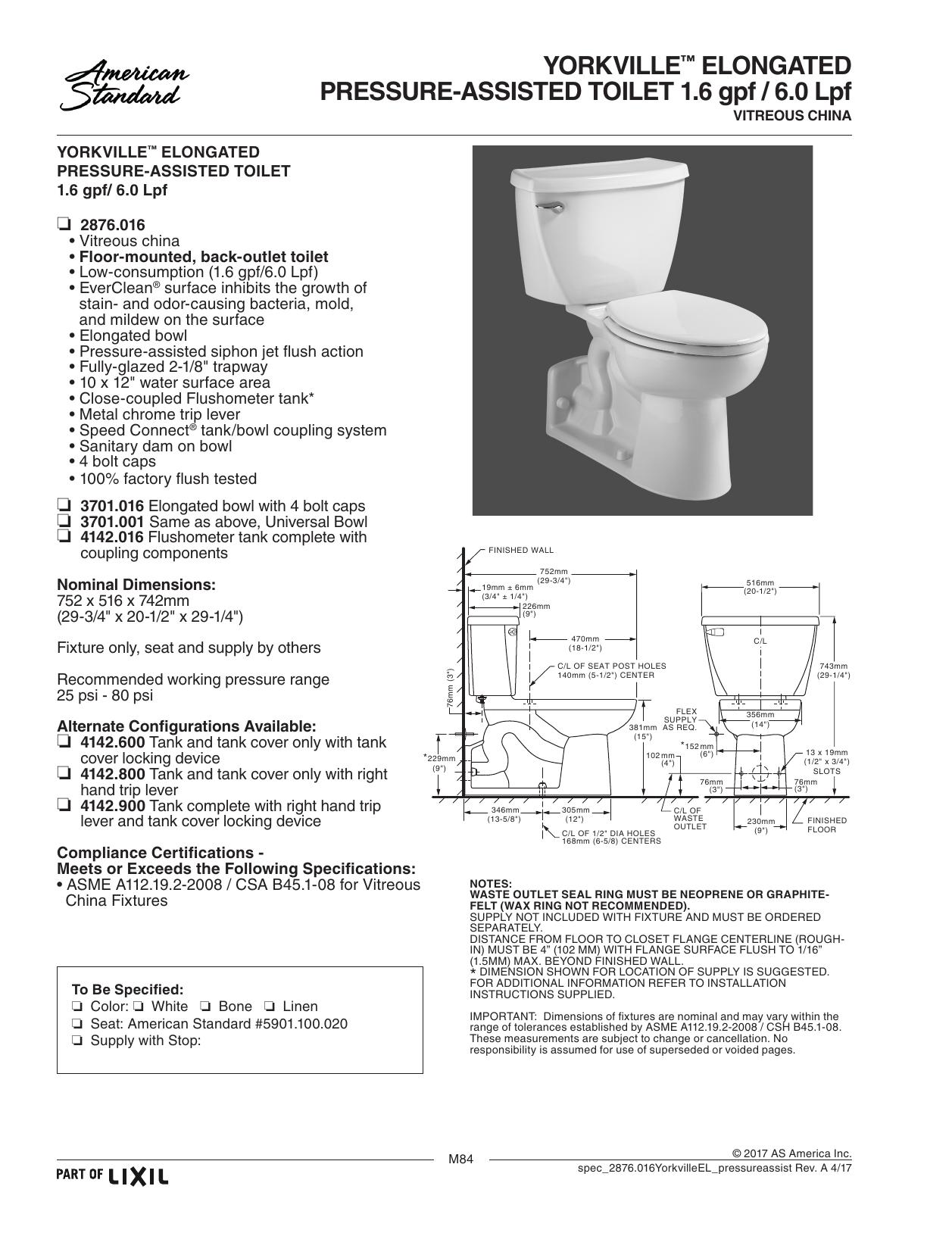

Nominal Dimensions: 29-3/4 in x 20-1/2 in x 30-3/4 in (756 mm x 521 mm x 781 mm)

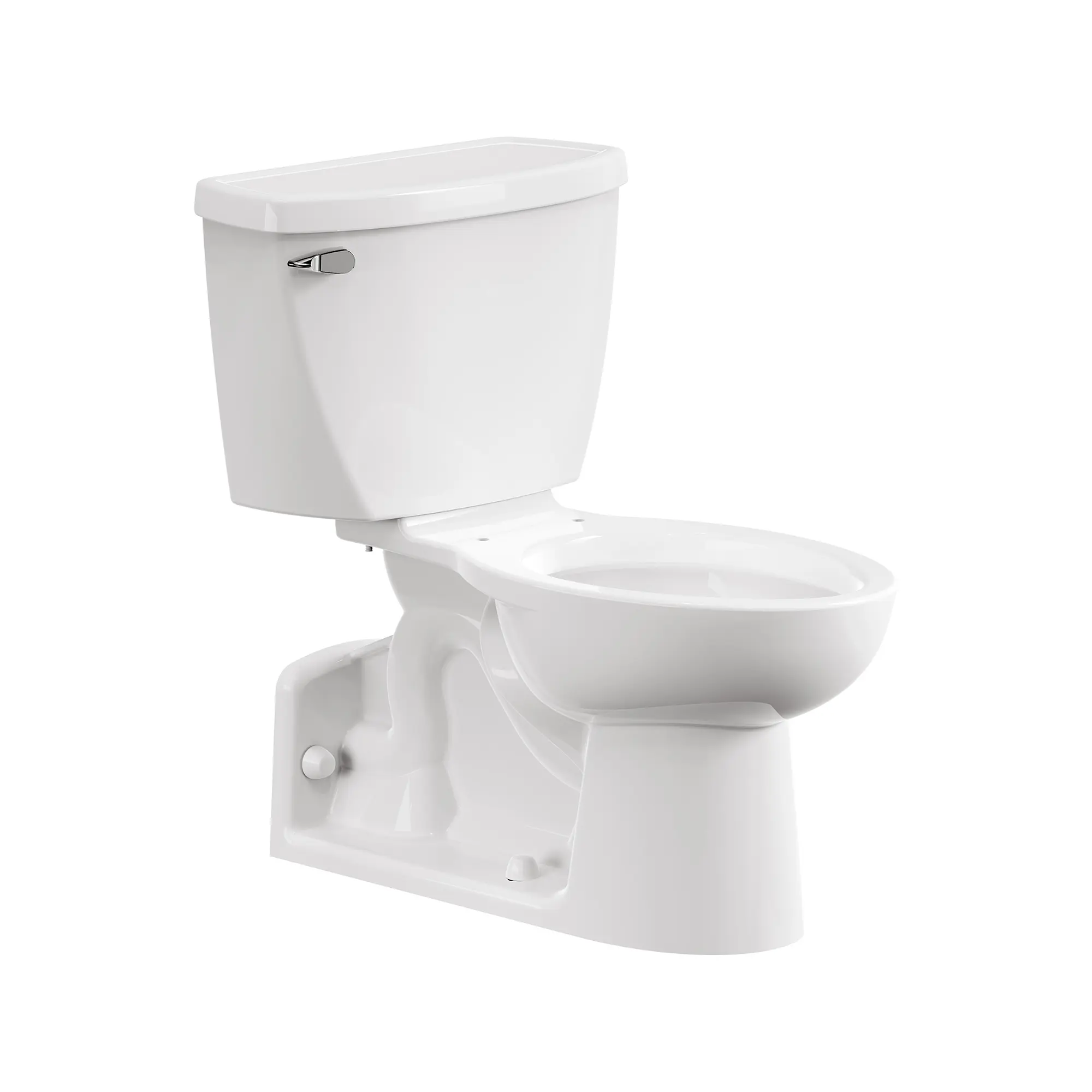

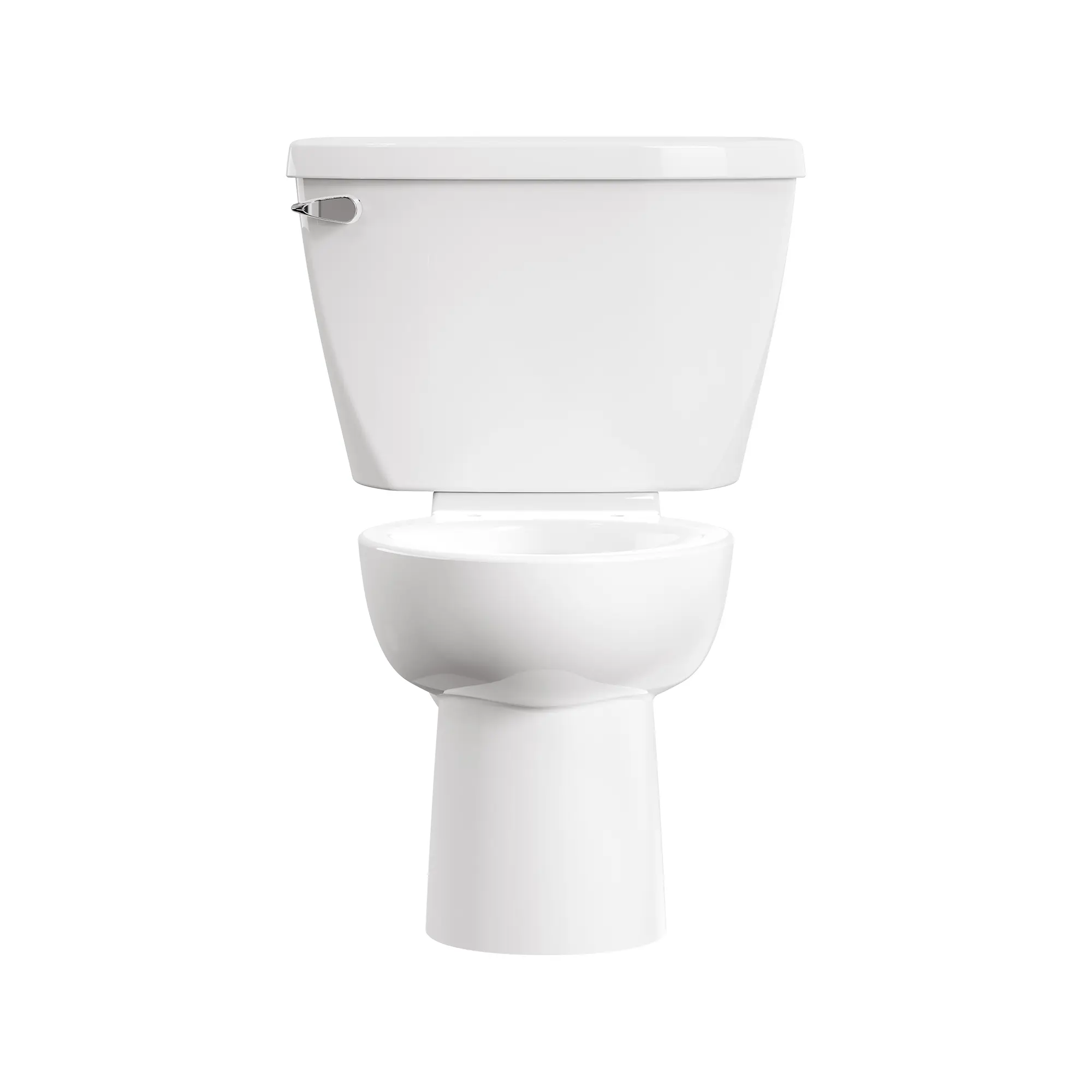

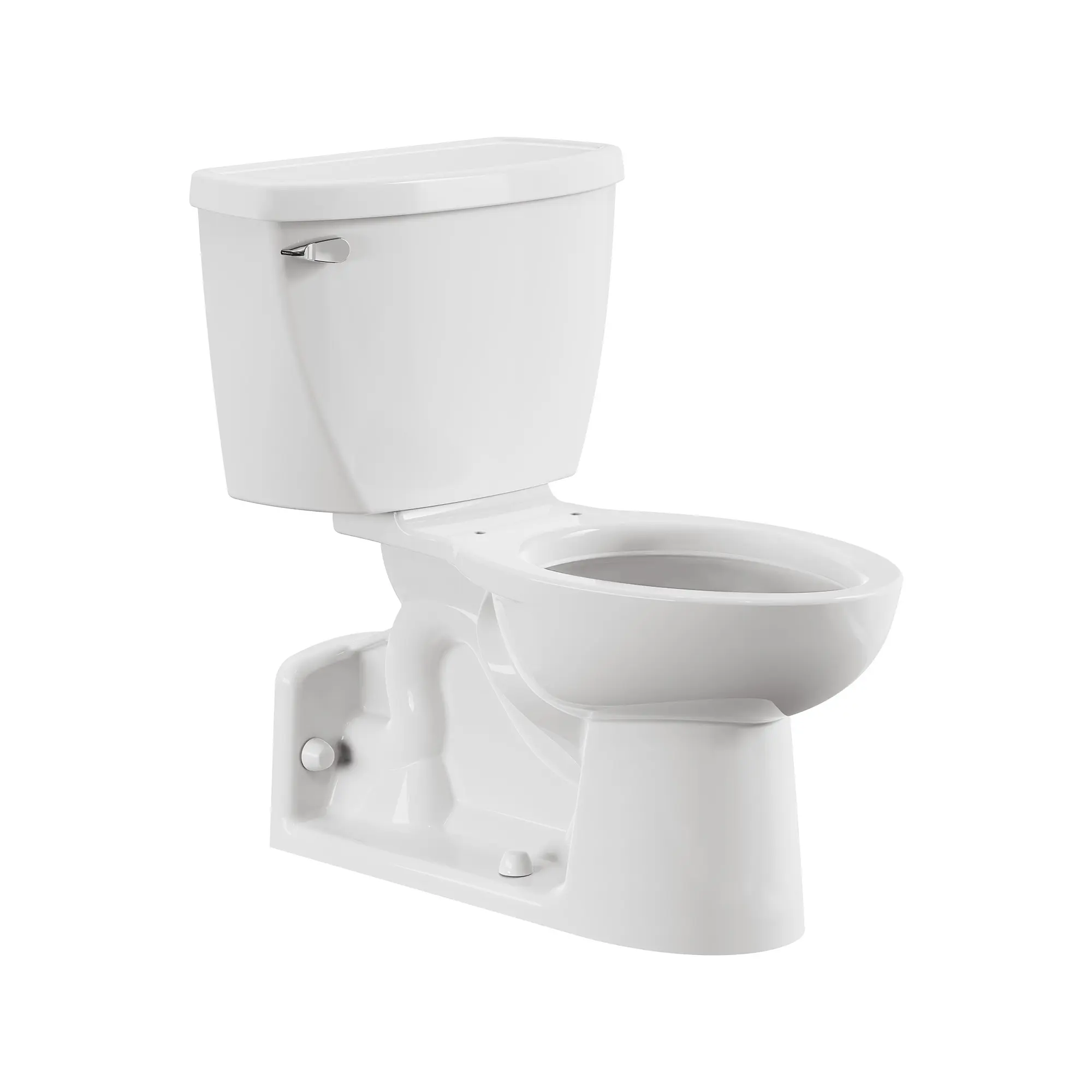

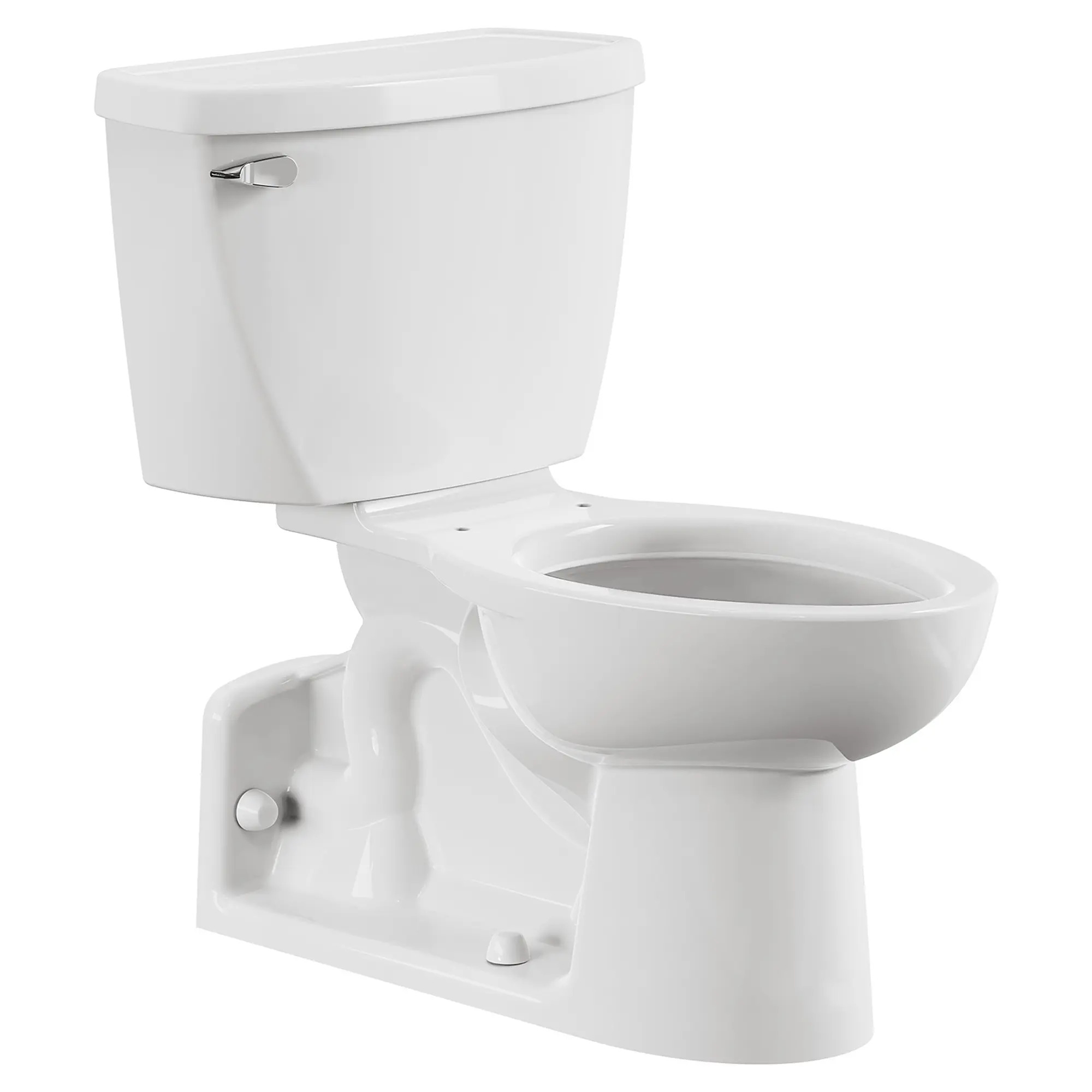

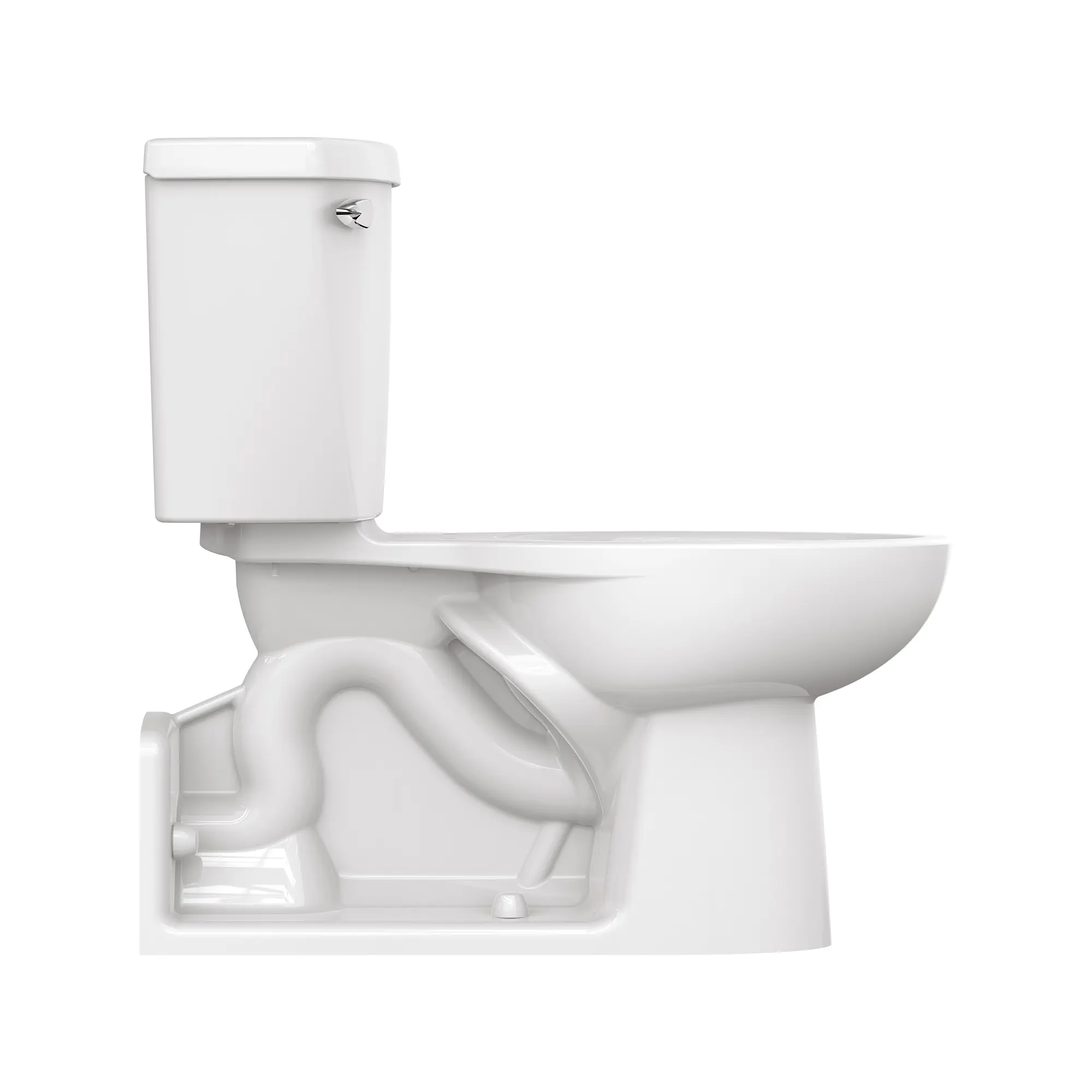

Yorkville® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Back Outlet Elongated EverClean® Toilet
1 lb (0.4 kg)
White (020)
787
Bone (021)
0
Linen (222)
0
Yorkville® Pressure Assist Back Outlet Elongated EverClean® Bowl
56 lb (25.2 kg)
White
393
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
394
spacer
7381886-201.0020A-PRESSURE POD LH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
spacer
7381886-202.0020A-PRESSURE POD RH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
591
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
401
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
598
spacer
Tank cover for locking device
7 lb (3.3 kg)
White
92
Yorkville® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Back Outlet Elongated EverClean® Toilet
1 lb (0.4 kg)
White (020)
787
Bone (021)
0
Linen (222)
0
Yorkville® Pressure Assist Back Outlet Elongated EverClean® Bowl
56 lb (25.2 kg)
White
393
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
394
spacer
7381886-201.0020A-PRESSURE POD LH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
spacer
7381886-202.0020A-PRESSURE POD RH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
591
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
401
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
598
spacer
Tank cover for locking device
7 lb (3.3 kg)
White
92
Models marked with * are discontinued, but product may still be available while supplies last.
