Features
- Powerful flush technology: Features a pressure-assisted siphon jet flush for exceptional power, minimizing clogs and maintenance calls
- Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
- Water efficient: Low-consumption 1.6 gpf /6.0 Lpf rating balances powerful performance with water usage compliance
- Comfortable height for all users: 16.5 inch chair-height bowl makes sitting and standing easier, and is ADA compliant, ideal for adults, seniors, and those with mobility issues
- Built for commercial durability: From the close-coupled pressure-assisted tank to the Speed Connect tank/bowl coupling system, every component is designed for long-lasting performance and simplified installation in demanding commercial settings
- Designed for optimal performance: Made of quality vitreous china with a sanitary bar to prevent accumulation between tank and bowl for easy cleaning, and a large 2 1/8 inch (54 mm) fully glazed trapway to ensure reliable flushing
- Recommended working pressure range of 25 psi-80 psi
- Includes: Chrome-plated metal trip lever, 2 color-matched bolt caps
- 12 in. rough-in (305 mm)
- Please note: Seat is sold separately
Technical Features
- Combination bowl and tank, less seat
- Pressure-assisted siphon jet flush action
- Low consumption (1.6 gpf/6.0 Lpf)
- EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
- 16-1/2" (419 mm) Chair Height for accessible applications
- 12" (305 mm) rough-in
- 2-1/8" (54 mm) fully glazed trapway
- Chrome-plated metal trip lever
- Includes two color-matched bolt caps
Nominal Dimensions: 30-1/14 in x 20-1/2 in x 30-3/4 in (764 mm x 521 mm x 781 mm)

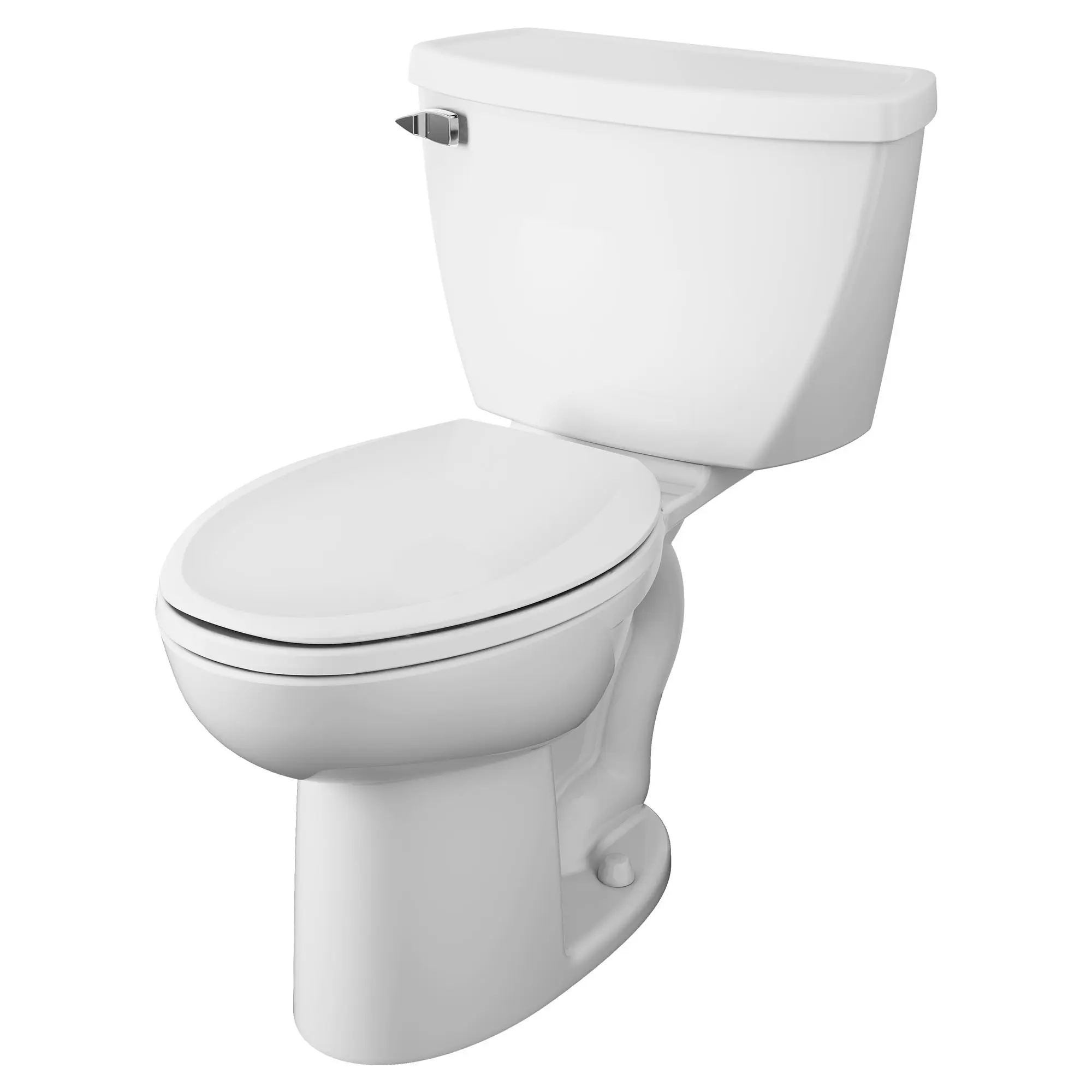

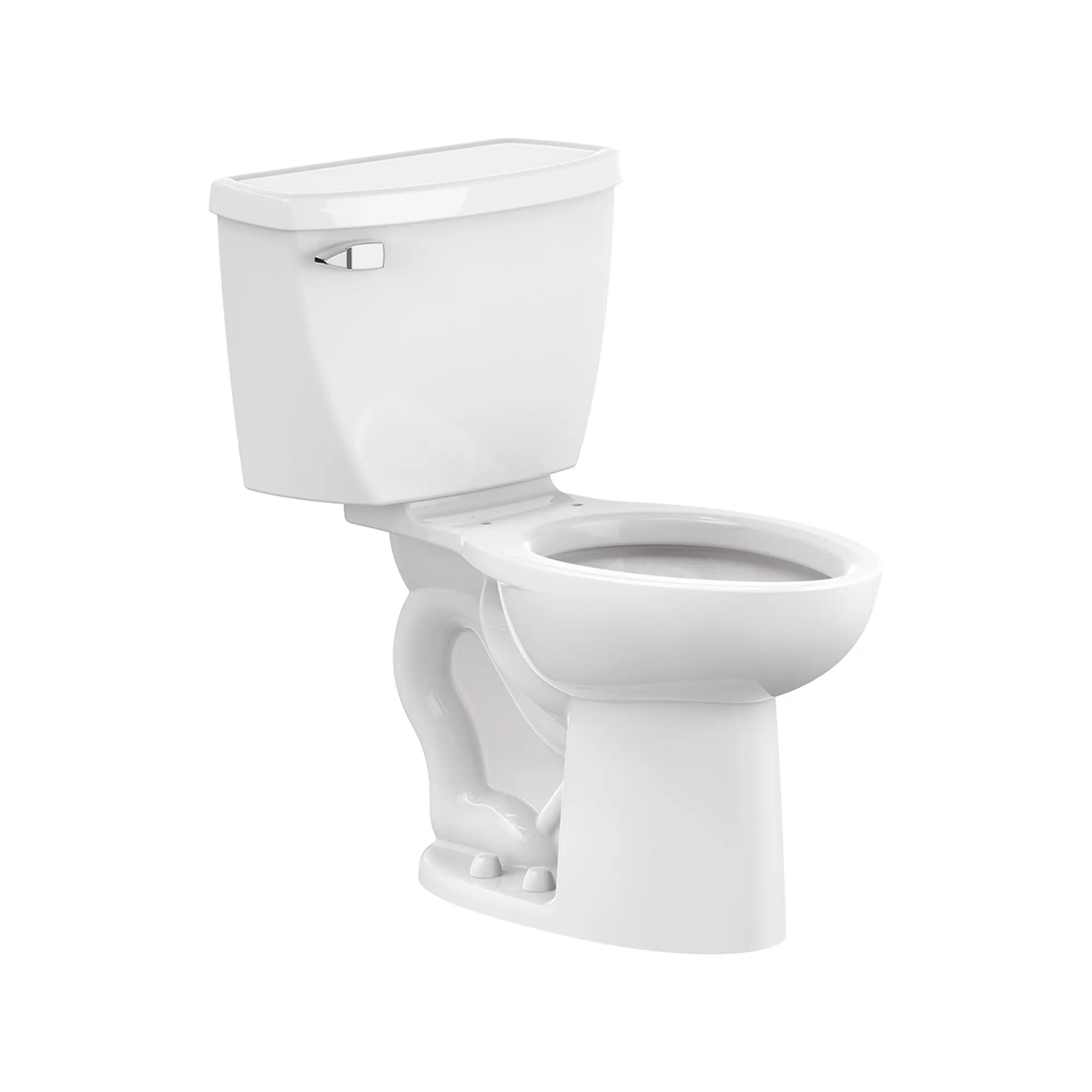

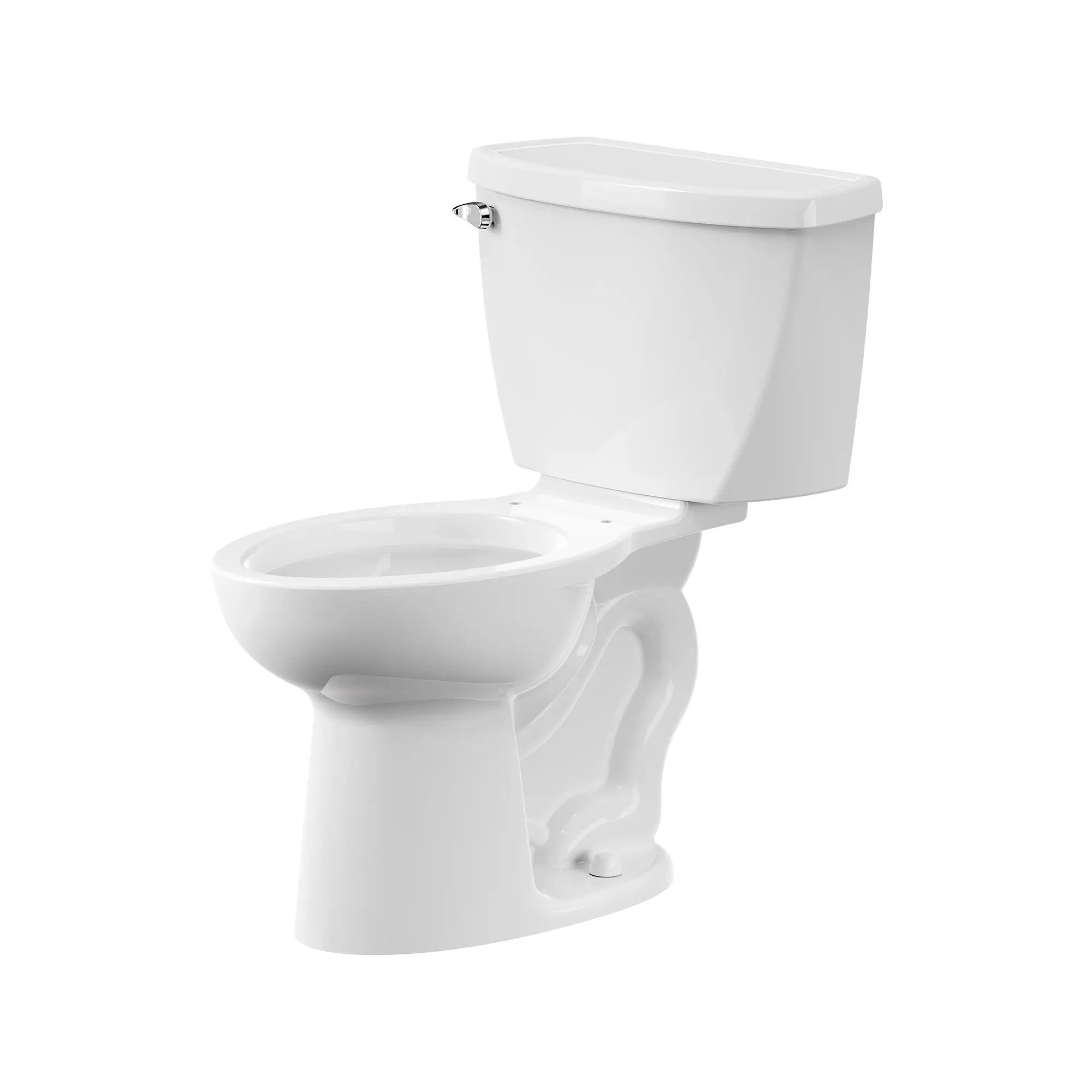

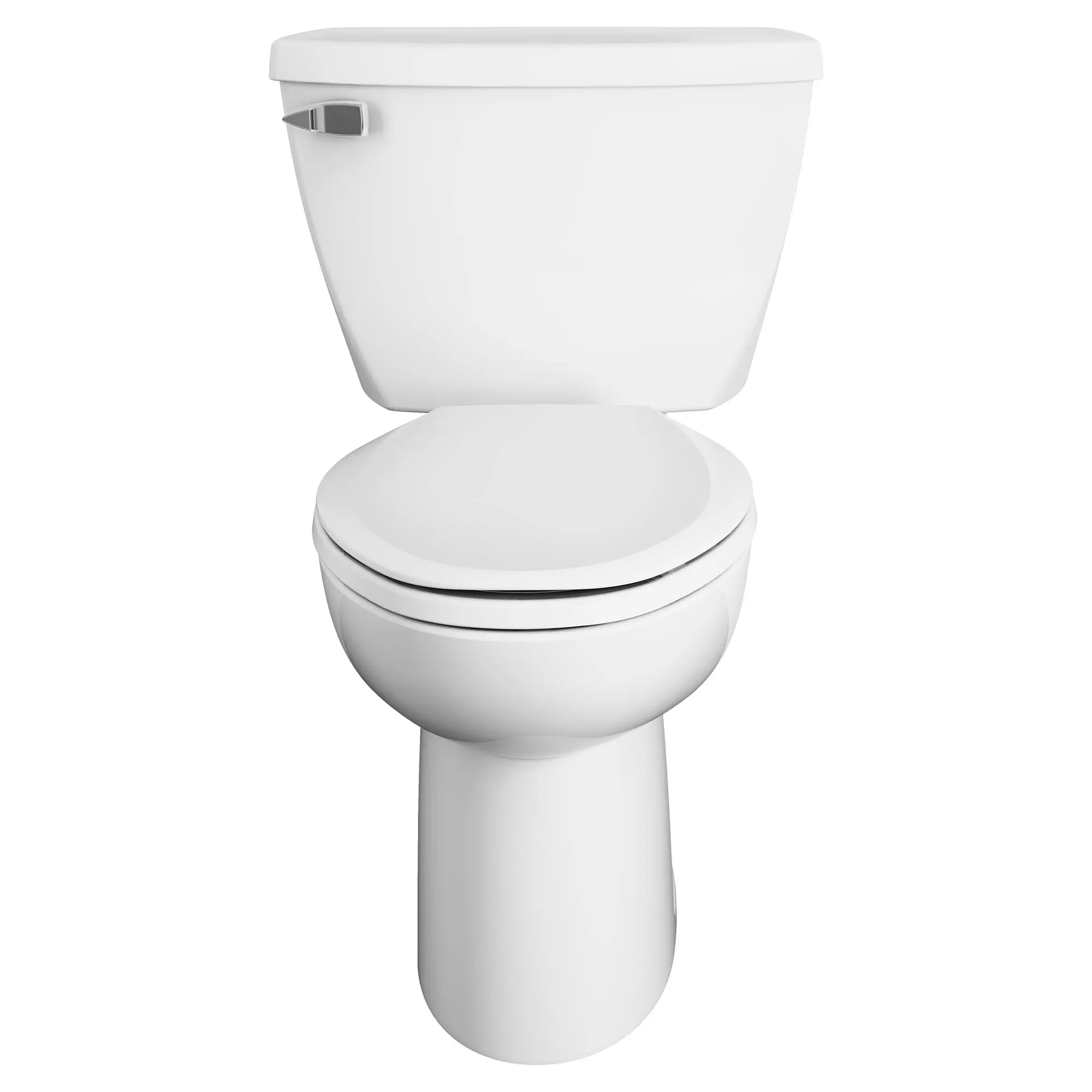

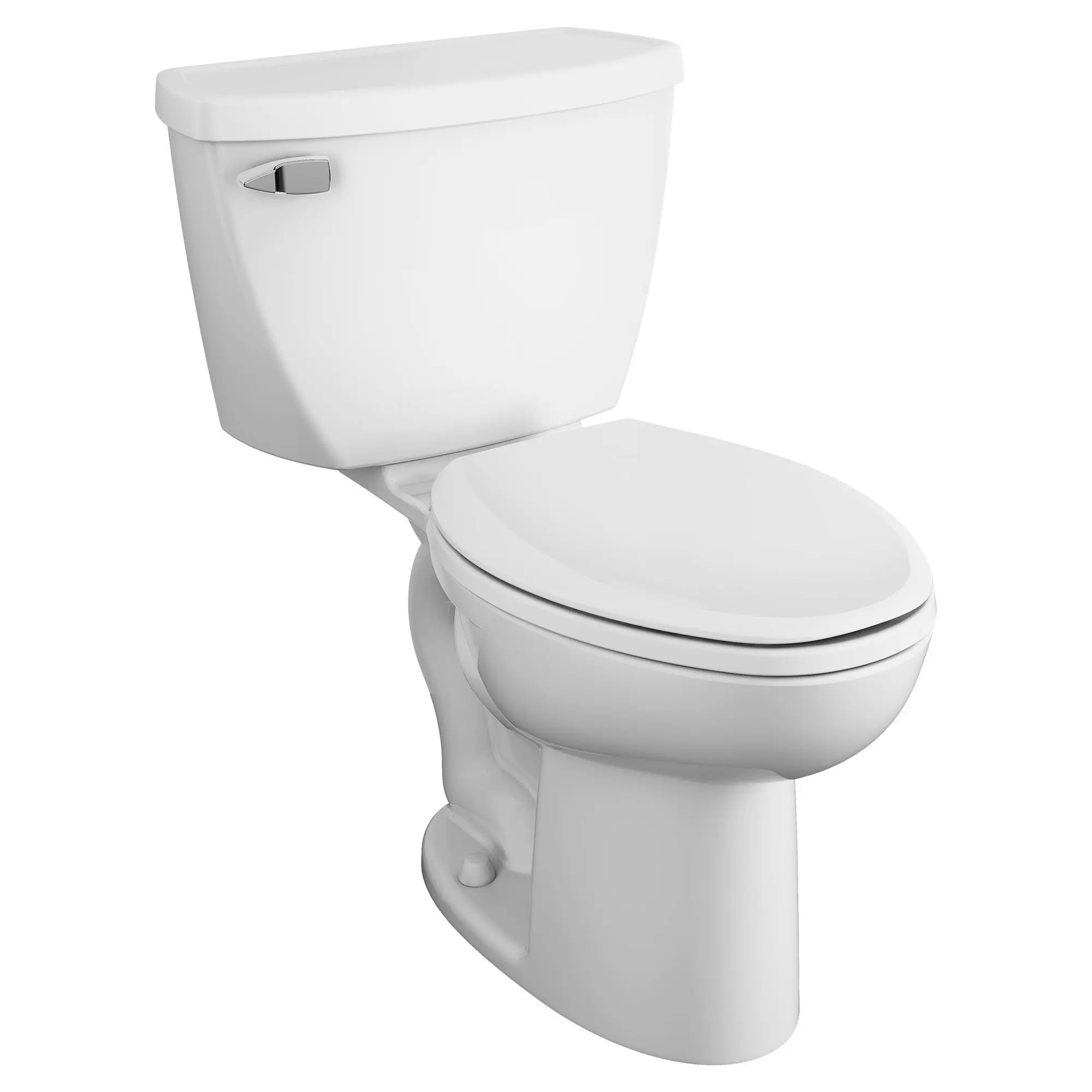

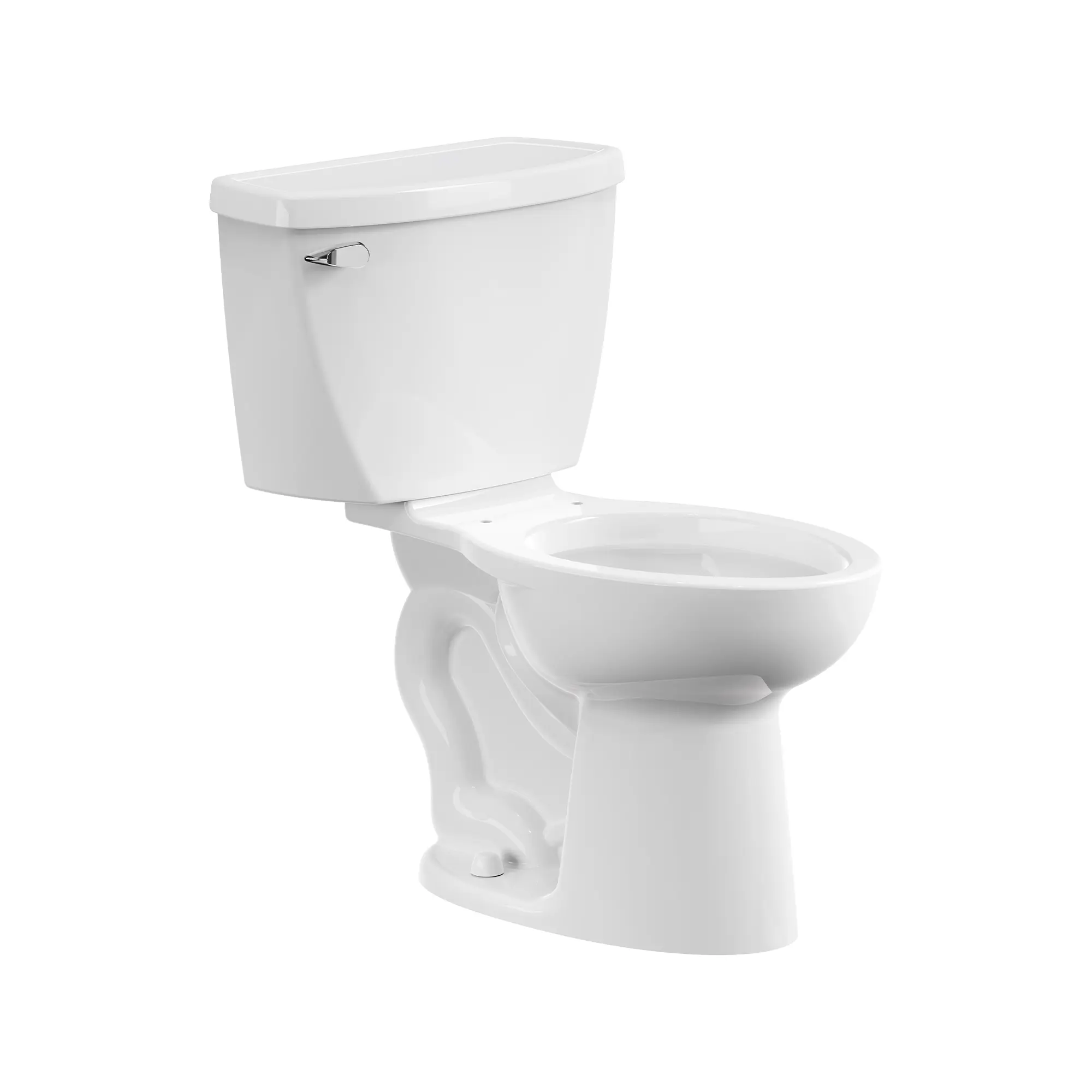

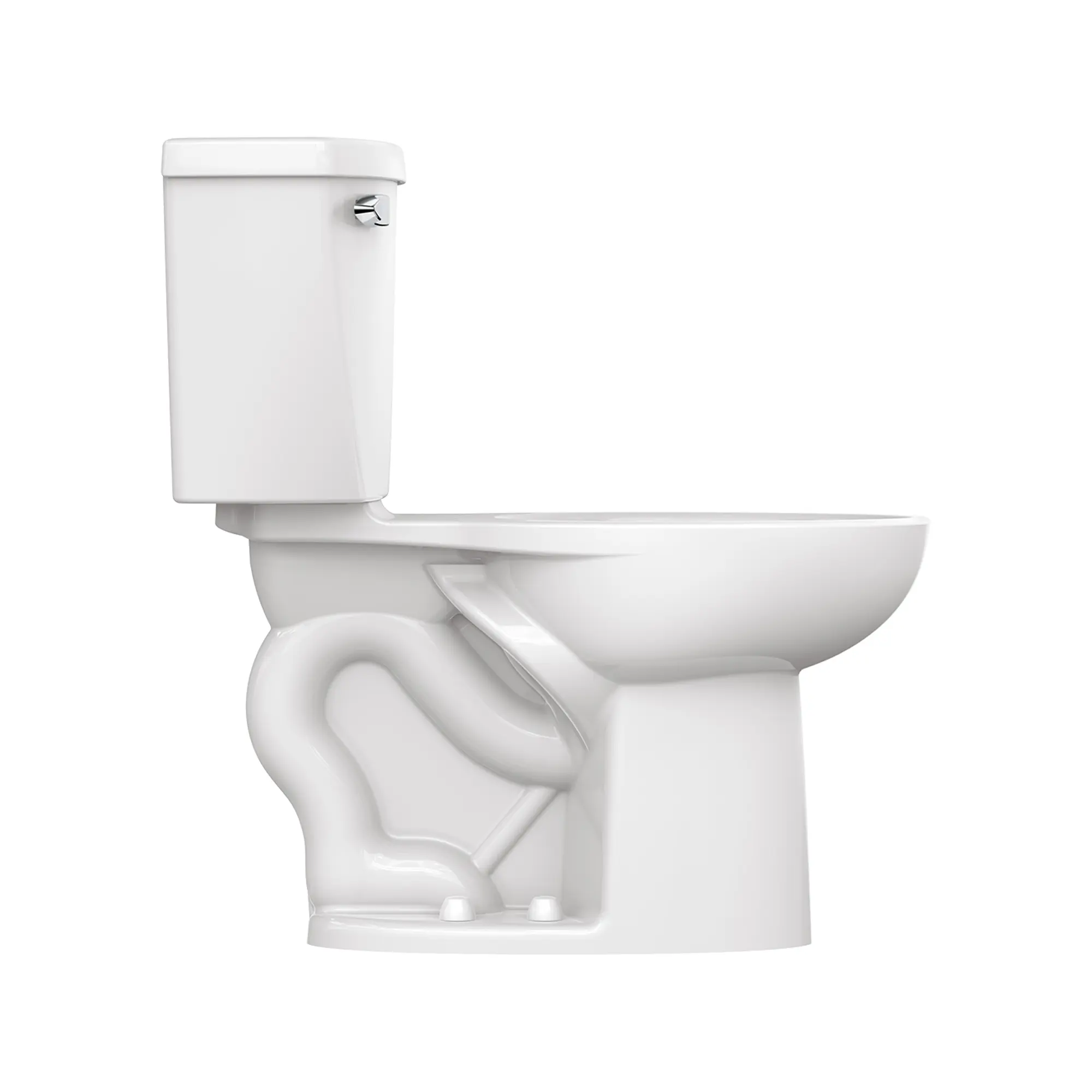

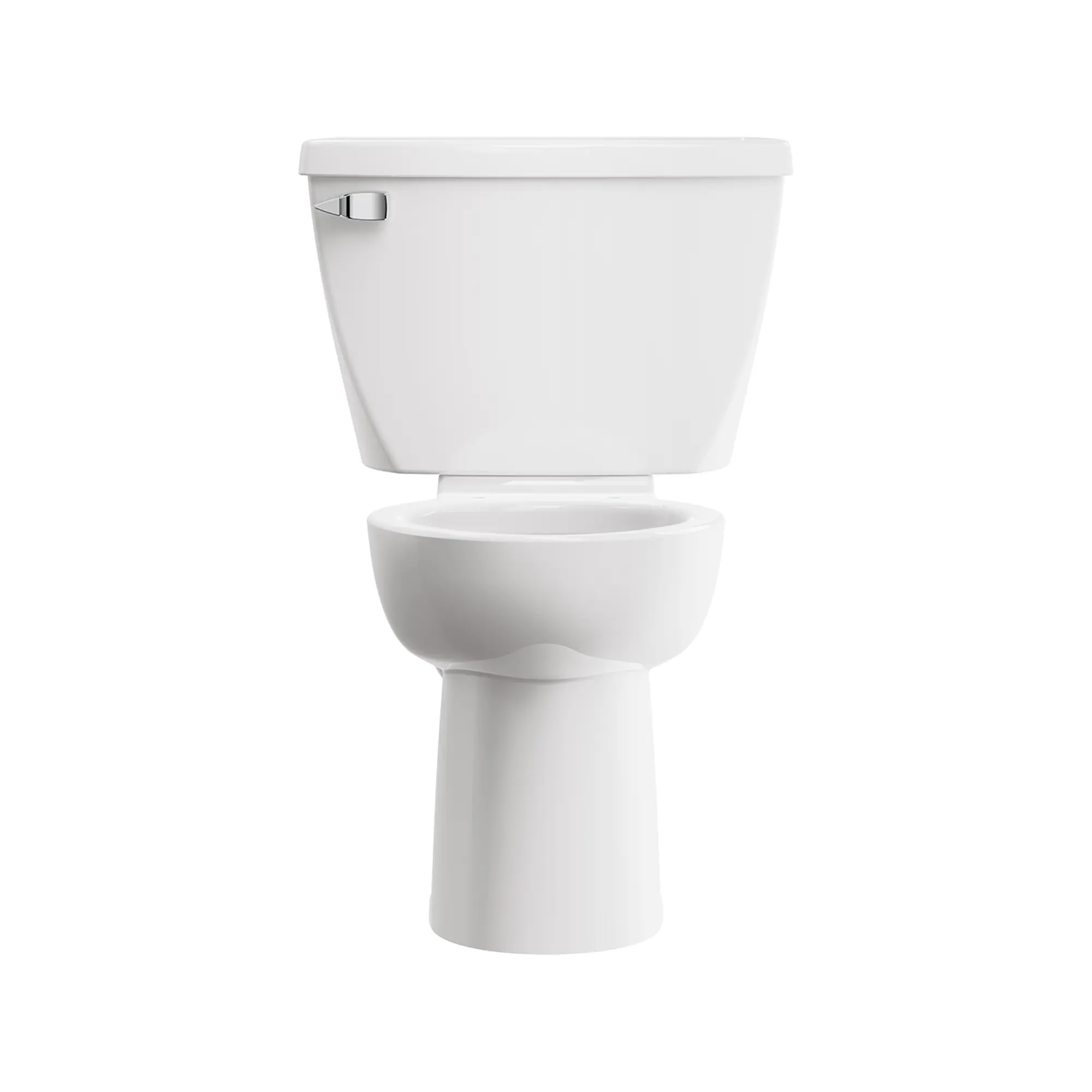

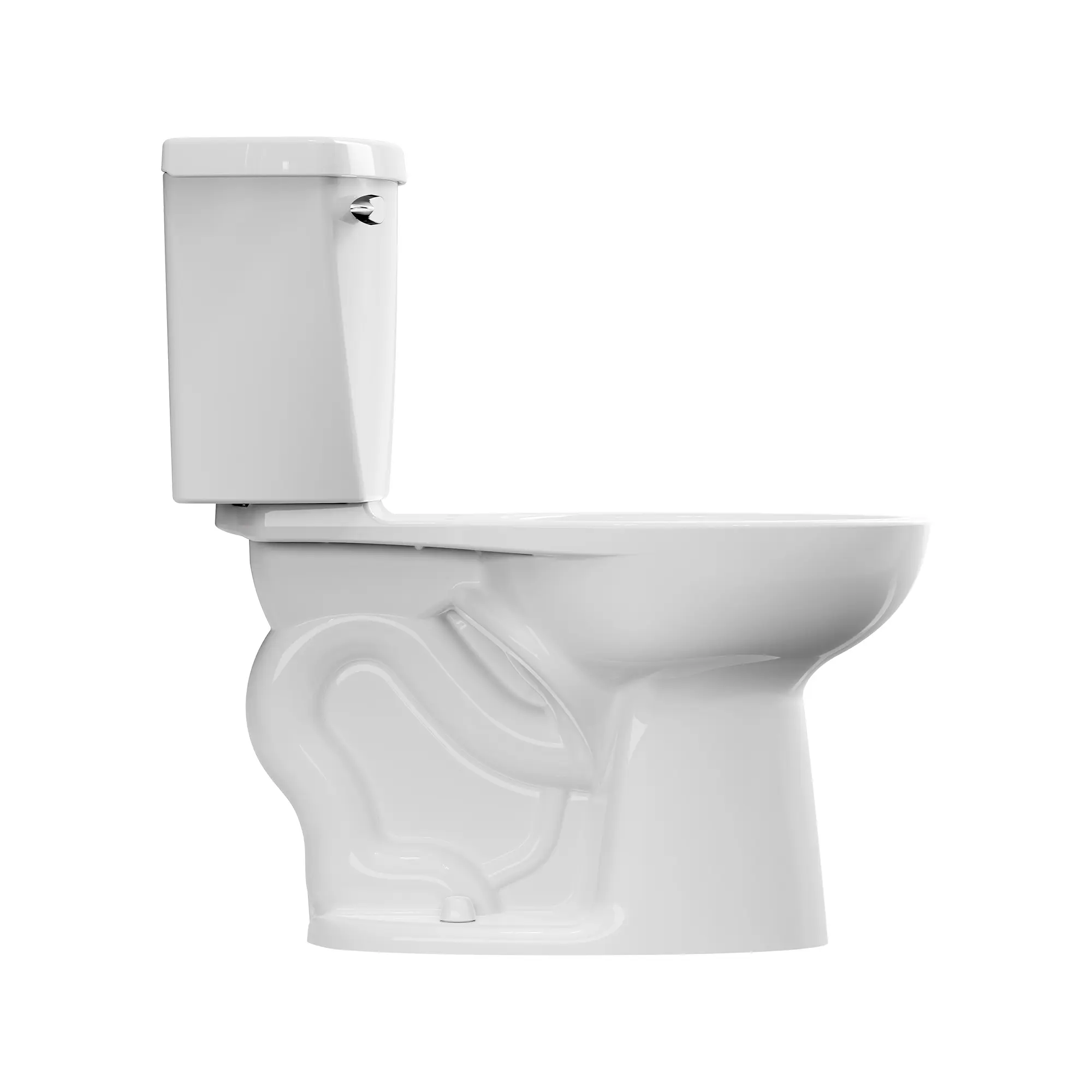

Cadet® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Chair Height Elongated EverClean® Toilet
1 lb (0.4 kg)
White (020)
571
Bone (021)
0
Linen (222)
0
Cadet® Pressure Assist Chair Height Elongated EverClean® Bowl
51 lb (23.0 kg)
White
177
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
394
spacer
7381886-201.0020A-PRESSURE POD LH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
spacer
7381886-202.0020A-PRESSURE POD RH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
591
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
401
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
598
spacer
Tank cover
7 lb (3.3 kg)
White
92
spacer
Tank cover for locking device
7 lb (3.3 kg)
White
92
Cadet® Two-Piece Pressure Assist 1.6 gpf/6.0 Lpf Chair Height Elongated EverClean® Toilet
1 lb (0.4 kg)
White (020)
571
Bone (021)
0
Linen (222)
0
Cadet® Pressure Assist Chair Height Elongated EverClean® Bowl
51 lb (23.0 kg)
White
177
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
394
spacer
7381886-201.0020A-PRESSURE POD LH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
spacer
7381886-202.0020A-PRESSURE POD RH TRIP LEVER
0 lb (0.0 kg)
Chrome
108
Pressure Assist 1.6 gpf/6.0 Lpf Left-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
591
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank
42 lb (19.2 kg)
White
401
spacer
Pressure Assist 1.6 gpf/6.0 Lpf Right-Hand Trip Lever EverClean® Tank With Tank Cover Locking Device
42 lb (19.2 kg)
White
598
spacer
Tank cover
7 lb (3.3 kg)
White
92
spacer
Tank cover for locking device
7 lb (3.3 kg)
White
92
Models marked with * are discontinued, but product may still be available while supplies last.
