Townsend

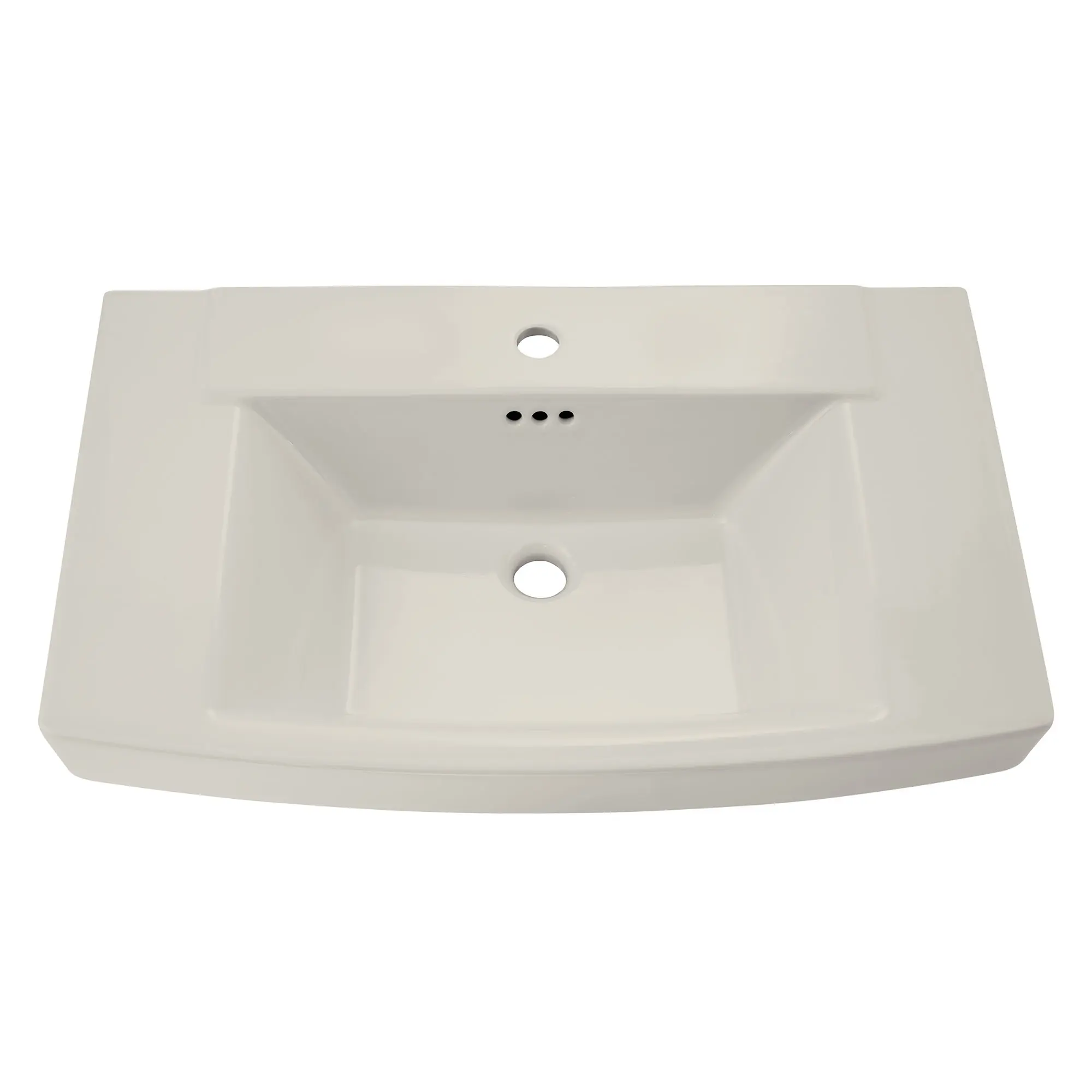

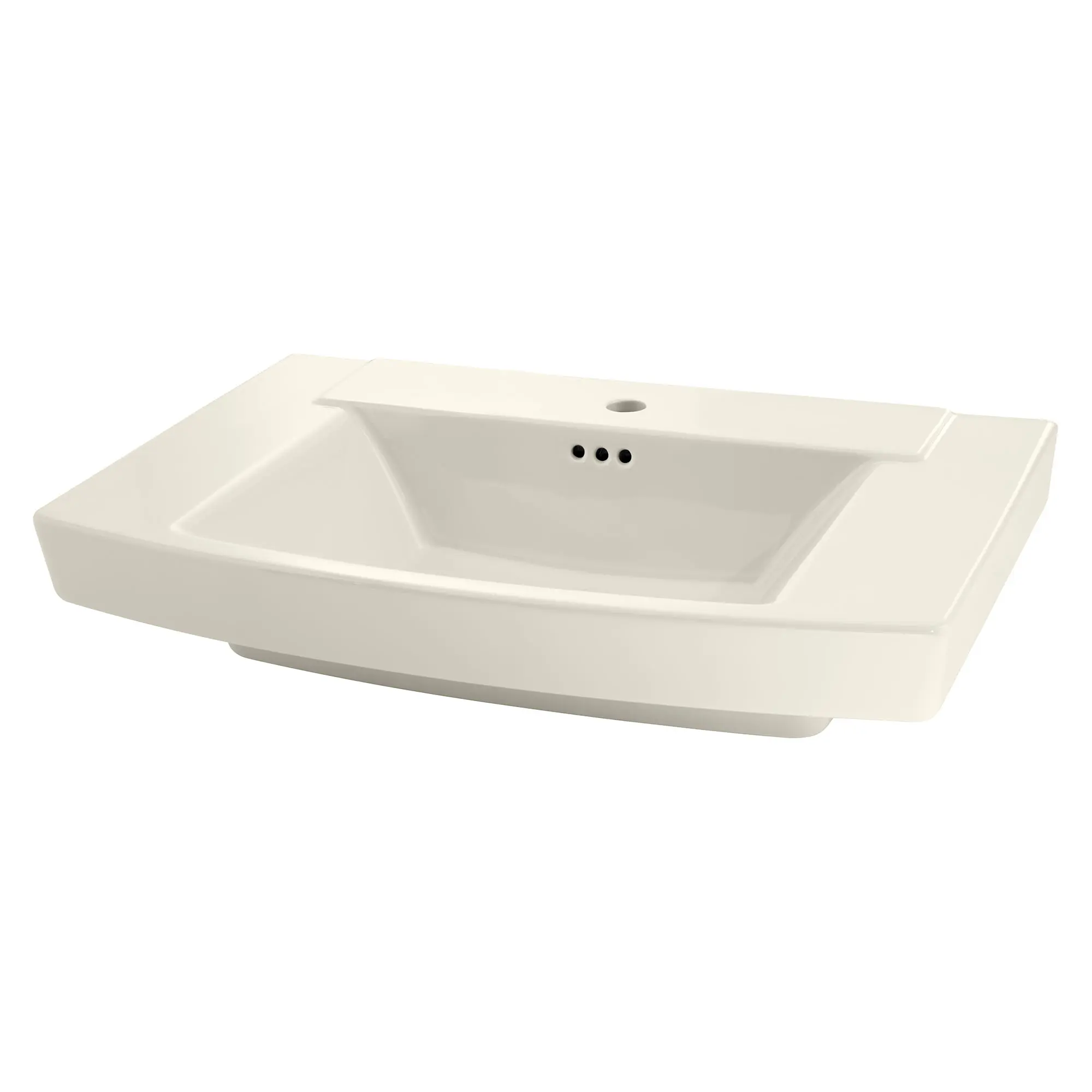

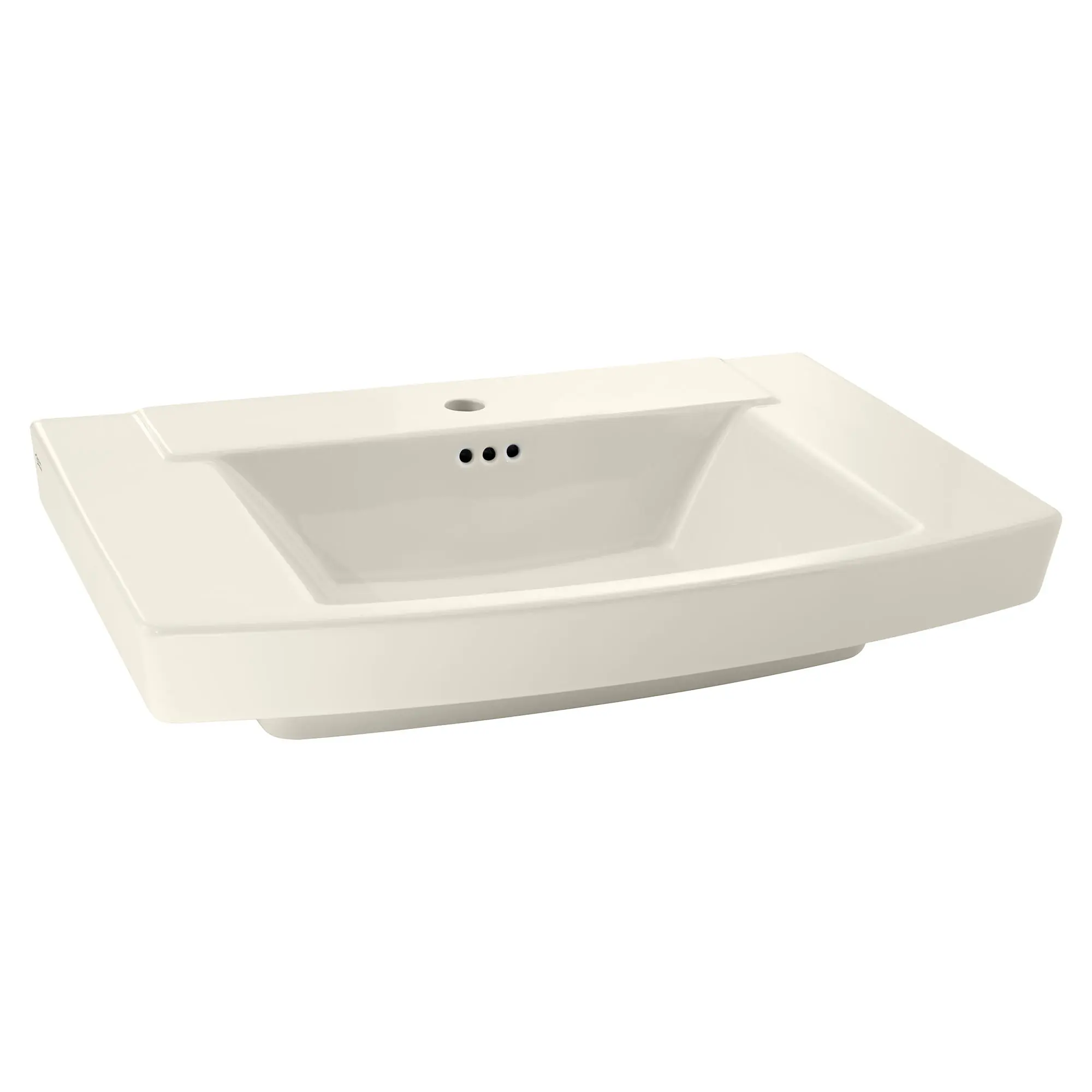

Townsend® Center Hole Only Pedestal Sink Top

0328001.222 DISCONTINUED
List Price: $0.00
Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Lavatory only
  • Center hole only
  • Classic styled rectangular pedestal lavatory (coordinates with Townsend Fixtures & Fittings)
  • Rear overflow
  • Supplied with mounting kit
  • Right Height for greater comfort during use
  • Faucet/soap/accessory ledge with generous shelf area (Faucet not included)
  • Fine fireclay construction
  • Bowl size:
  • 19" (485 mm) wide, 12 3/4" (324 mm) front to back, 5" (128 mm) deep
Nominal Dimensions: 29-15/16 in x 19-1/2 in x 7-1/8 in (760 mm x 495 mm x 181 mm)
There are no additional components to display for this product
Download Specification Sheet
Front To Back Length: 12-3/4
Side to Side Width: 19-1/8
Brand: American Standard
Color / Finish: Linen (222)
Collections: Townsend
Fixture Material: Fireclay
Fixture Number of Holes: 1
Fixture or Fitting Material: Fireclay
Height: 7-1/8
Length: 29-15/16
Width: 19-1/2
Residential or Commercial: Residential
Sink Depth (to overflow): 0-7/8
Sink Width (front to back): 19-1/2
Sink Length (left to right): 29-15/16
Predrilled Holes: Yes
Sink Shape: Rectangle
Sink Depth: 6
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
