Washbrook

Washbrook® Urinal System With Touchless Selectronic® Piston Flush Valve, 0.125 gpf/0.5 Lpf

0.125 GPF HIGH-EFFICIENCY URINAL SYSTEM 87.5% water savings when compared to a standard 1.0 gpf urinal Pressure compensating flow regulator guarantees proper water savings and performance, regardless of water pressure No need for time consuming supply stop adjustments. All American Standard Selectronic Flush Valves are backed by unparalleled after-sales care, support and service. Learn more about the “Fast Attack” Service Team.Sustainability CEC Listed  CALGreen Compliant

White 6590525.020 DISCONTINUED
List Price: $950.00
ADA Compliant Cal Green Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Vitreous china construction
  • Powerful washdown flushing action
  • Extended side for privacy
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Technical Features
  • Vitreous china construction
  • Powerful washdown flushing action
  • Extended side for privacy
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Nominal Dimensions: 14-1/8 in x 18-7/8 in x 42-5/8 in (359 mm x 479 mm x 1083 mm)
Description
Net Weight
SKU
Color
List Price USD
Washbrook® Urinal System With Touchless Selectronic® Piston Flush Valve, 0.125 gpf/0.5 Lpf
1 lb (0.4 kg)
6590525.020
White (020)
950
Separate Components
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.125 gpf/0.5 Lpf
8 lb (3.7 kg)
6063013.002
Chrome
582
spacer
Washbrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal
64 lb (29.0 kg)
6590001.020
White
368
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
Color / Finish: White
Flush Value: Exposed
Collections: Washbrook
WaterSense: Yes
Fitting Connection Size Input: 19.05
Fitting Material: Brass
Touchless: Touchless
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 0.125 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Batteries Included: 1
Number of Output Valves: 1
Height: 42-5/8
Length: 14-1/8
Width: 18-7/8
Residential or Commercial: Commercial
Rough In Size: 11.5
Subcategory: Top Spud Urinals
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

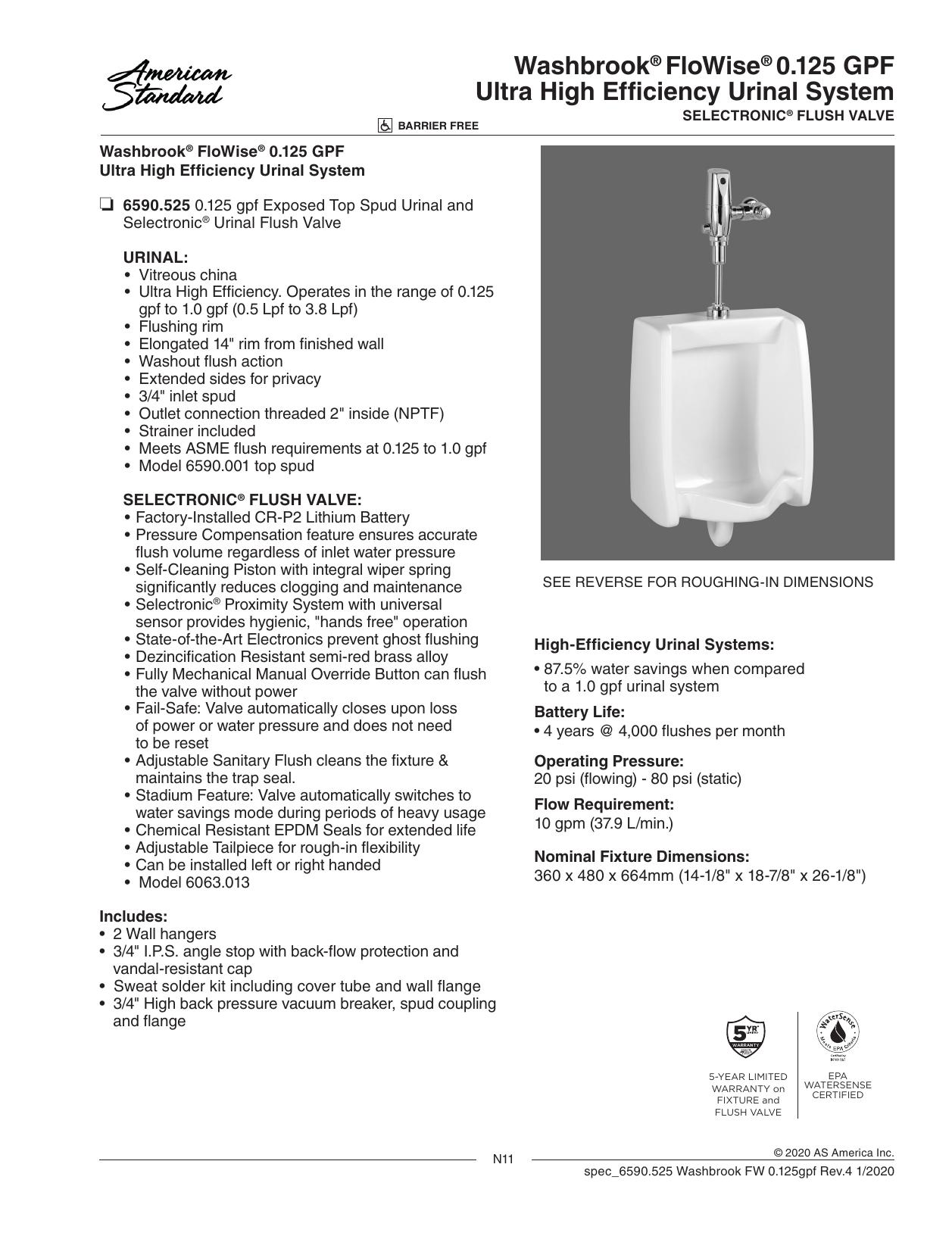

Specification Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
