Pintbrook System

Pintbrook® Urinal System With Manual Piston Flush Valve, 0.125 gpf/0.5 Lpf

The Pintbrook urinal system from American Standard features a water-saving flow rate of 0.125 gallons per flush. A contoured chinaware design provides superior splash protection. This high-efficiency urinal system also helps save on cost, with a manual flush valve that requires no routine maintenance, no diaphragm to change, and no filter screen to clean.FeaturesVitreous China ConstructionPowerful washdown flushManual flush valve with integral wiper spring prevents clogging and run-onADA CompliantSustainability

White 6002503.020 DISCONTINUED
List Price: $594.00
ADA Compliant Cal Green CEC Certified Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Powerful washdown flushing action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Powerful washdown flushing action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Description
Net Weight
SKU
Color
List Price USD
Pintbrook® Urinal System With Manual Piston Flush Valve, 0.125 gpf/0.5 Lpf
1 lb (0.4 kg)
6002503.020
White (020)
594
Separate Components
Pintbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal
37 lb (16.6 kg)
6002001.020
White
243
spacer
Ultima Manual Urinal Flush Valve, Piston-Type, 0.125 gpf/0.5 Lpf
6 lb (2.6 kg)
6045013.002
Chrome
351
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Flush Value: Exposed
Collections: Pintbrook System
WaterSense: Yes
Fitting Connection Size Input: 3/4
Fitting Material: Brass
Gallons Per Flush (min-max): .125 - .5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Output Valves: 1
Height: 918
Length: 366
Width: 364
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

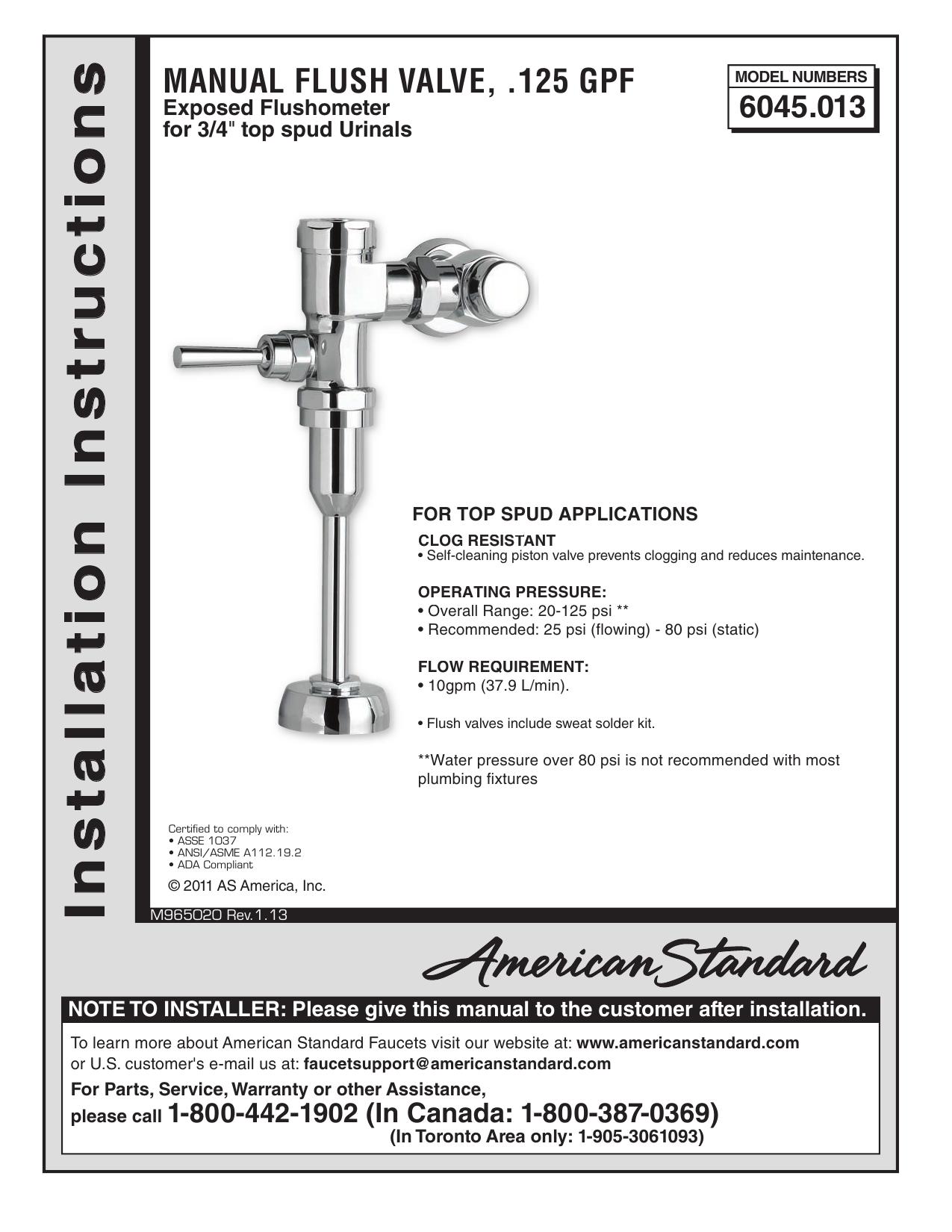

Installation Instructions
