Decorum System

Decorum® EverClean® Urinal System With Touchless Selectronic® Piston Flush Valve, 0.125 gpf/0.5 Lpf

6042633.020 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green CEC Certified Everclean Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Sleek, modern, compact design
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Powerful washdown flushing action with deep sump to reduce splashing
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 8-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Technical Features
  • Sleek, modern, compact design
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Powerful washdown flushing action with deep sump to reduce splashing
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Nominal Dimensions: 14 in x 13-5/16 in x 38 in (356 mm x 338 mm x 965 mm)
Description
Net Weight
SKU
Color
List Price USD
Decorum® EverClean® Urinal System With Touchless Selectronic® Piston Flush Valve, 0.125 gpf/0.5 Lpf
1 lb (0.4 kg)
6042633.020
0
Separate Components
Decorum® 0.125 gpf/0.47 Lpf Top Spud Urinal With EverClean®
41 lb (18.4 kg)
6042001EC.020
0
spacer
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.125 gpf/0.5 Lpf
8 lb (3.7 kg)
6063013.002
0
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White (020)
Flush Value: Exposed
Collections: Decorum System
WaterSense: Yes
Everclean: Yes
Fitting Connection Size Input: 19.05
Fitting Material: Brass
Touchless: Touchless
Gallons Per Flush (min-max): 0.125 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Batteries Included: 1
Number of Output Valves: 1
Output Connection Type: NPT (National Pipe Tapered Threads)
Height: 38
Height: 38
Length: 14
Width: 13-5/16
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

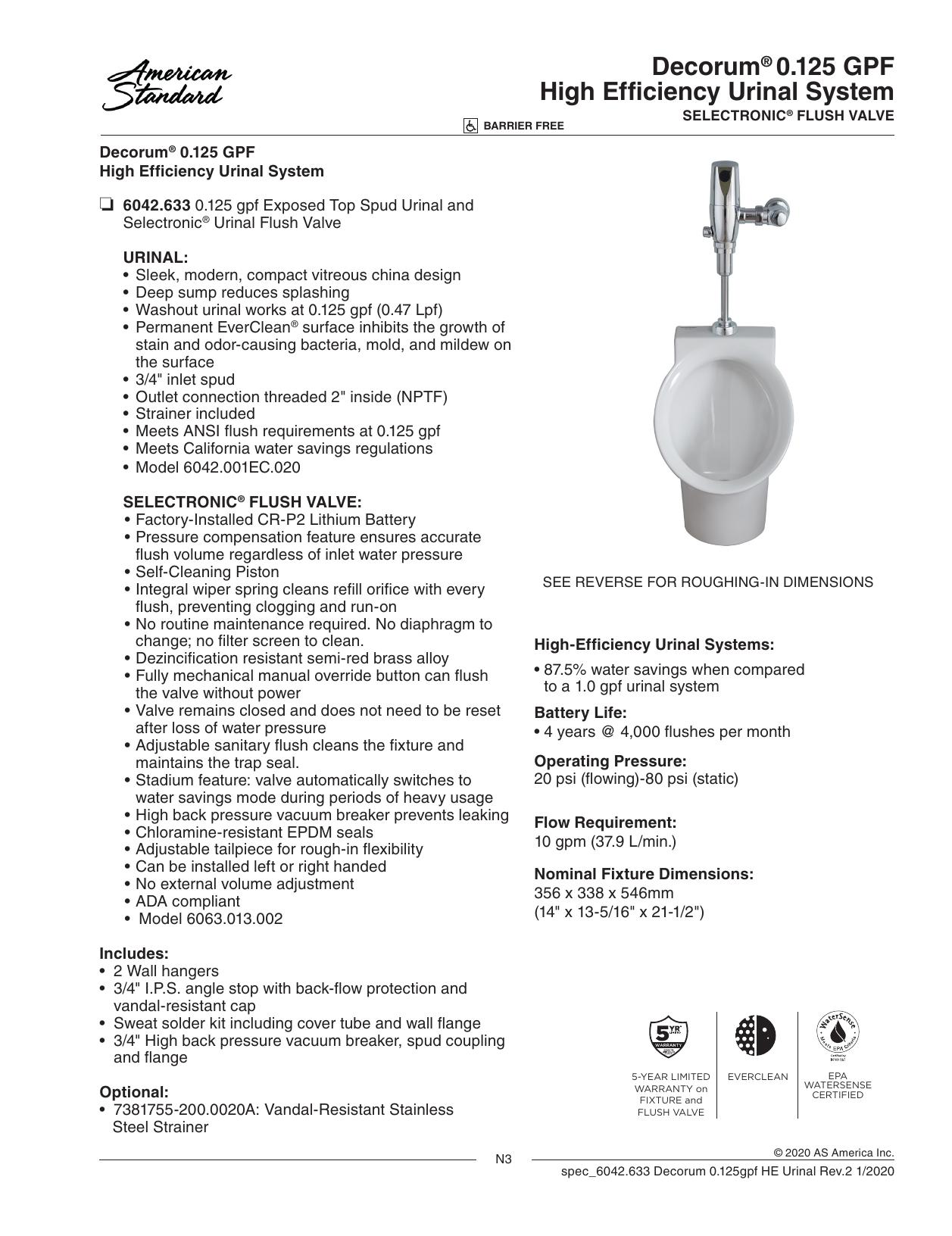

Specification Sheet

Installation Instructions

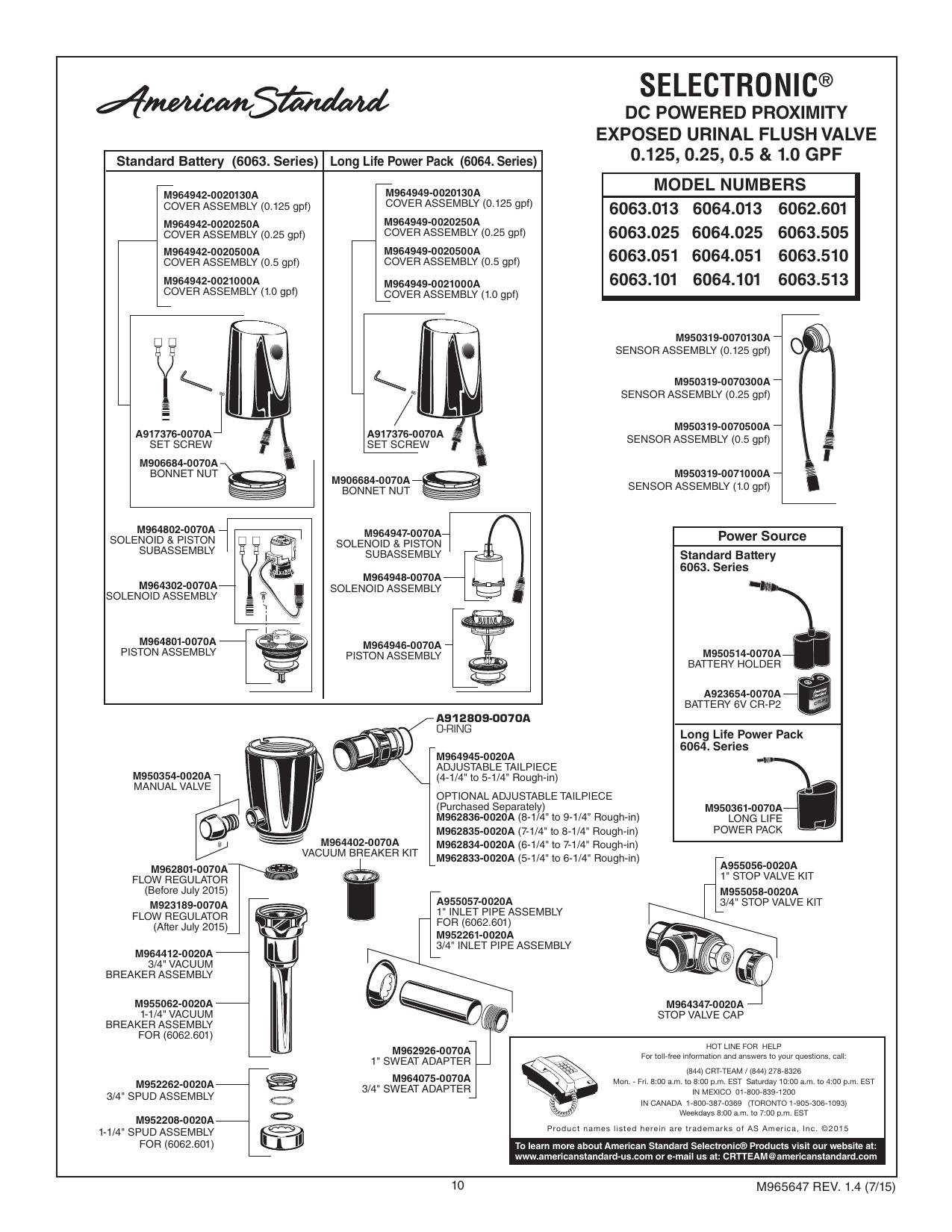

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
