Quince

Quince 33 x 22-Inch Cast Iron 3-Hole Drop-In or Undercounter Double-Bowl Kitchen Sink

77DB33223.308 DISCONTINUED
List Price: $0.00
Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Cast iron double bowl sink
  • 3 hole
  • 9" deep bowls
  • Top mount installation
  • 36" (914 mm) cabinet required
  • Limited Lifetime Warranty
  • Nominal Dimensions: 33" x 22-1/4" x 9" (835 x 565 x 227 mm)
  • Each Bowl Size: 13-1/2" (343 mm) wide 16-1/8" (410 mm) front to back 9" (277 mm) deep
Technical Features
  • Cast Iron Double Bowl Sink
  • Convenient drop-in or undercounter installation
  • Lustrous Brilliant White finish
  • 3-hole drop-in or undercounter
  • Offset drain
  • 36" (914 mm) minimum cabinet base required
  • 9" deep bowls
  • Limited Lifetime Warranty
Nominal Dimensions: 22-1/4 in x 32-15/16 in x 9 in (565 mm x 837 mm x 229 mm)
Description
Net Weight
SKU
Color
List Price USD
Quince 33 x 22-Inch Cast Iron 3-Hole Drop-In or Undercounter Double-Bowl Kitchen Sink
108 lb (49.2 kg)
77DB33223.308
0
Optional Components (Not Included)
Quince 33 x 22-Inch Double Bowl Kitchen Sink Grid – Set of 2
3 lb (1.2 kg)
8416000.075
0
spacer
Waste Fitting
1 lb (0.3 kg)
9028000.075
0

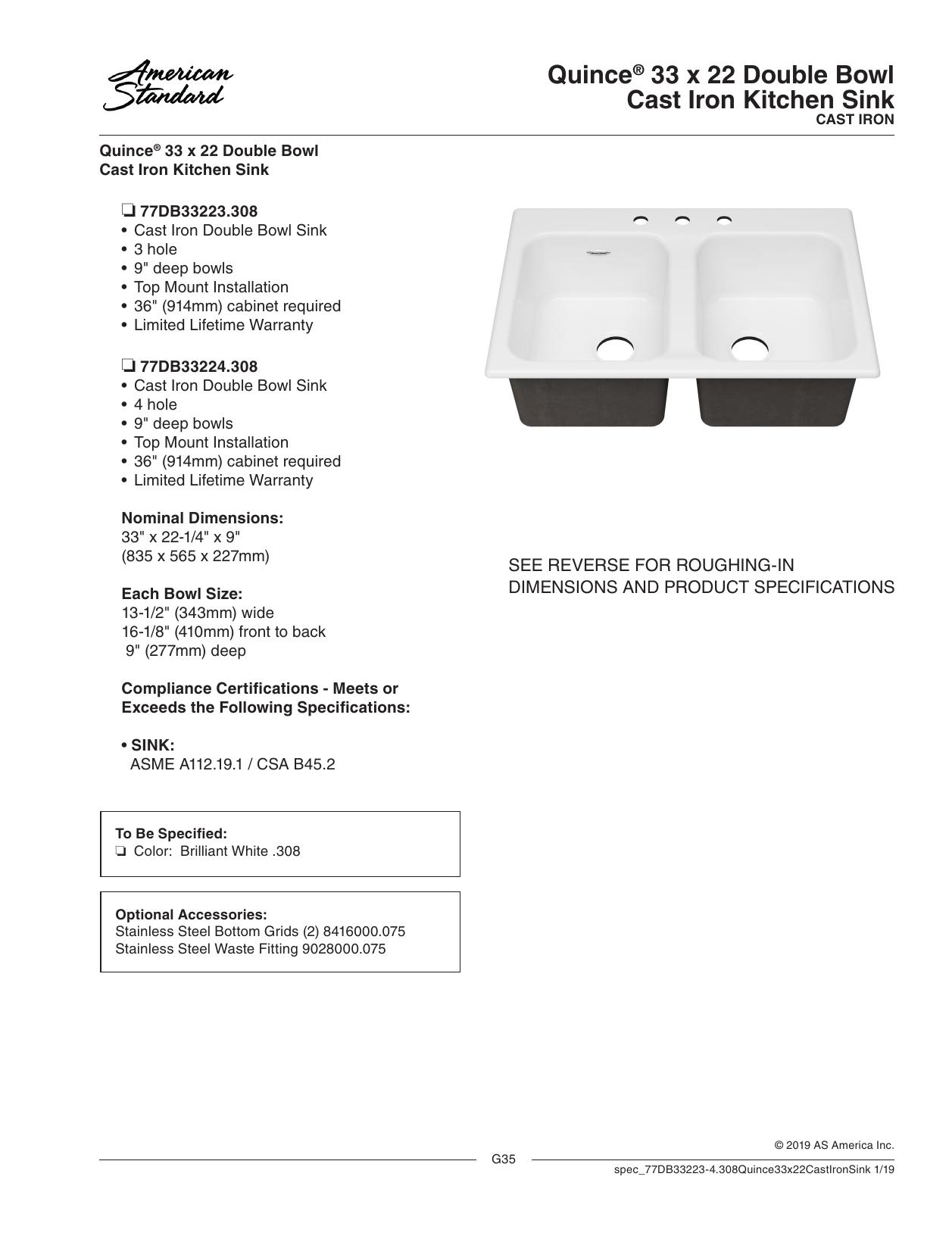

Download Specification Sheet
Below Counter Depth: 8-3/8
Front To Back Length: 16-1/8
Side to Side Width: 13-1/2
Top to Bottom Depth: 9
Brand: American Standard
Category: Kitchen Sinks
Color / Finish: Brilliant White (308)
Collections: Quince
Mount Locatiion: Drop-In
Height: 9
Height: 9
Length: 22-1/4
Width: 32-15/16
Residential or Commercial: Residential
Below Counter Depth: 8-5/16
Sink Width (front to back): 22-1/4
Sink Length (left to right): 32-15/16
Sink Material: Iron
Number of Basins: 2
Sink Depth: 9
Subcategory: Double Bowl Kitchen Sinks
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
