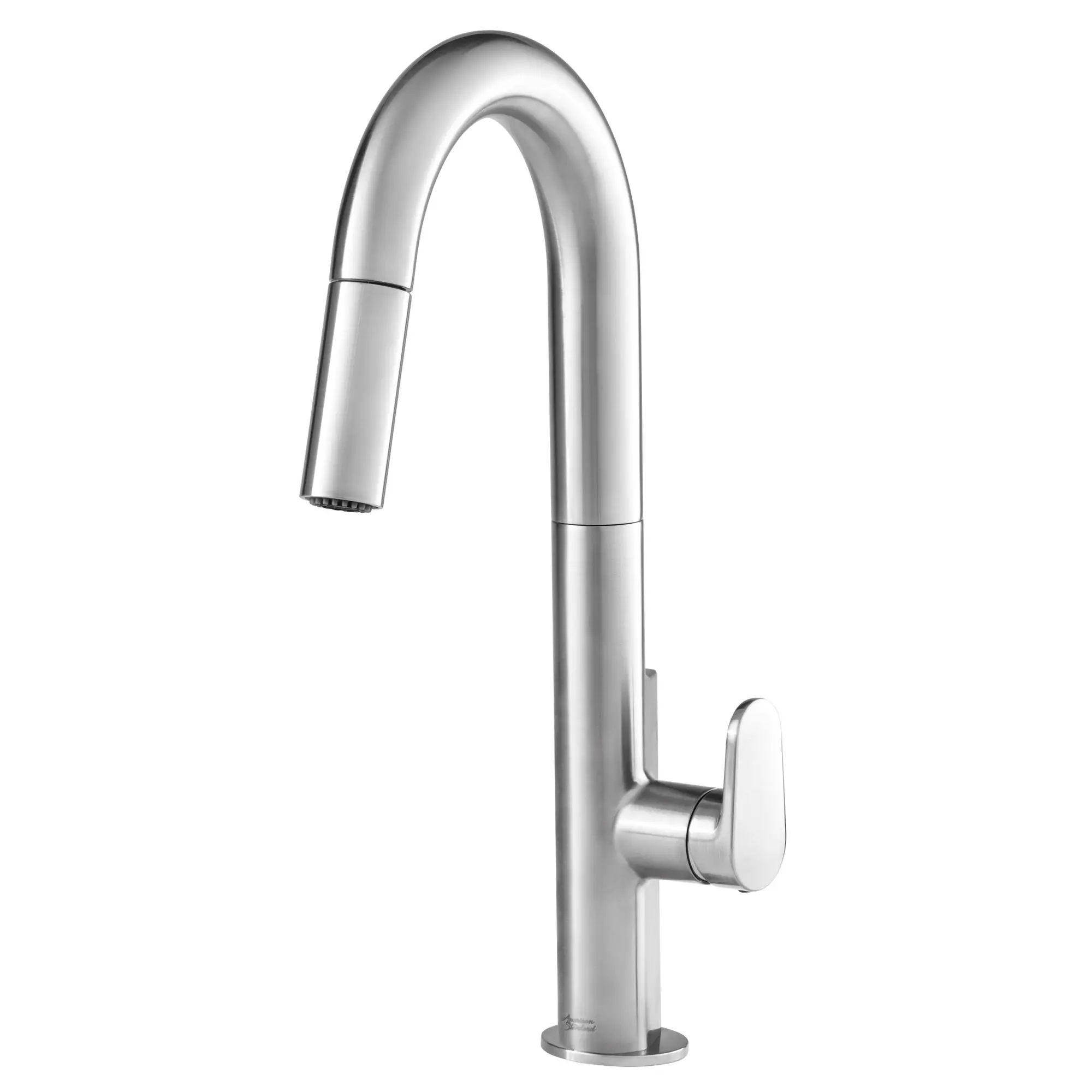

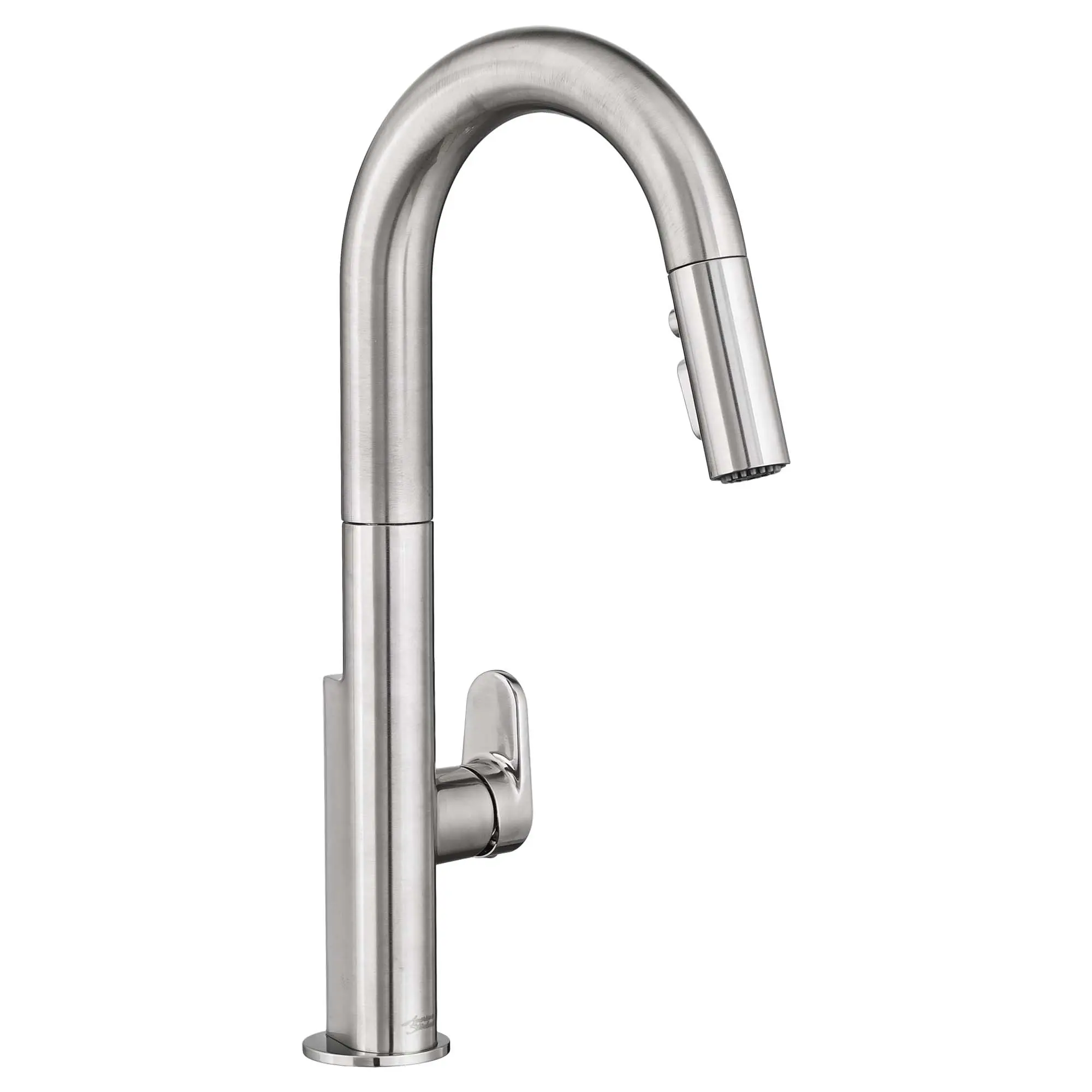

Beale® Single-Handle Pull-Down Dual Spray Kitchen Faucet 1.5 gpm/5.7 L/min

The Beale pull-down kitchen faucet from American Standard features a spectacular contemporary design and exceptional performance. With two spray options to choose from, as well as a convenient pause feature, the Beale kitchen faucet makes kitchen chores easy. Re-Trax® provides smooth spray-head operation and keeps the spray head in place when not in use. Ceramic disc valve cartridges ensure a lifetime of drip-free performance. Integral check valves prevent back flow.

Features
  • Re-Trax spray head retraction system provides smooth pull-out, operation, and retraction of the spray head
  • Ceramic disc valve cartridges ensure a lifetime of drip-free performance
  • Integral check valves prevent back flow
  • Lead-free construction
  • ADA compliant lever handle for accessibility
  • Metal body, handle and mounting hardware
  • Durable brass swivel spout
  • 1.5 gpm/5.7 Lpm maximum flow
Technical Features
  • Features Re-Trax® spray head retraction system
  • Standard manual operation
  • 2-function spray
  • Spout height: 17-9/16" (446 mm)
  • Spout clearances: 10-1/2" (267 mm)
  • Washerless (35 mm) ceramic disc valve cartridge
  • 1.5 gpm/5.7 L/min maximum flow
  • Metal body, handle and mounting hardware
  • Brass swivel spout
Description
Net Weight
SKU
Color
List Price USD
Beale® Single-Handle Pull-Down Dual Spray Kitchen Faucet 1.5 gpm/5.7 L/min
8 lb (3.5 kg)
Stainless Steel (075)
657
Chrome (002)
609
Spare Parts
Seal Washer
0 lb (0.0 kg)
No Finish
6
spacer
Cartridge Cover
0 lb (0.0 kg)
Polished Nickel
9
Legacy Bronze
10
spacer
35mm Cartridge & Screw Kit
0 lb (0.0 kg)
No Finish
16
spacer
MOUNTING KIT
0 lb (0.1 kg)
No Finish
17
spacer
Spray & Hose (Pull Down)
1 lb (0.4 kg)
Stainless Steel
199
spacer
Spray & Hose
1 lb (0.3 kg)
Stainless Steel
117
spacer
Mounting Ring
0 lb (0.1 kg)
Stainless Steel
24


Models marked with * are discontinued, but product may still be available while supplies last.
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Kitchen Faucets
CEC Certified: Yes
Color / Finish: Stainless Steel
Collections: Beale
Faucet Type: Mono block Pull Down
Fitting Connection Size Input: 9.52
Handle Height: 6-7/16
Handle Type: Lever
Fitting Material: Brass
Mount Type: Sink Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 10-1/2
Spout Type: High Arc
Valve Material: Ceramic
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.5 GPM
Input Connection Type: Compression
Height: 17-9/16
Length: 10-6/16
Pull Down Faucet: Yes
Residential or Commercial: Residential
Subcategory: Mono Block Pull Down Kitchen Faucets
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
