Features
- GROHE SilkMove for a lifetime of smooth operation
- GROHE StarLight finish for scratch and tarnish-resistant surfaces for a lifetime of beauty
- GROHE RealSteel Stainless Steel Construction – produced from solid, Grade 304 stainless steel
- Single Inlet – Cold water only
- Solid brass body (000, DC0)
- 10-1/2 in. Faucet height
- 7-1/8 in. Aerator height
- 5-9/16 in. Faucet reach
- 360 degree Swivel radius
Technical Features
- GROHE SilkMove
- GROHE StarLight
- GROHE RealSteel stainless steel construction – produced from solid, Grade 304 stainless steel (SD0 only)
- 10 1/2" Faucet height
- 7 1/8" Aerator height
- 5 9/16" Faucet reach
- 360° Swivel radius
- Single inlet – cold water only
- Solid brass body (000, DC0)
- 1.75gpm,CALGreen compliant
Nominal Dimensions: 6-1/2 in x 3-9/16 in x 10-1/2 in (165 mm x 90 mm x 267 mm)
Single-Handle Pillar Tap Water Faucet 1.75 GPM
5 lb (2.2 kg)
Chrome (G00)
375
Supersteel (GDC)
483
Brushed Stainless Steel (GSD)
751
GROHE Zedra Single-Handle Beverage Faucet (Cold Water Only) with Filtration 1.75 GPM (6.6 L/min)
4 lb (1.7 kg)
Chrome
423

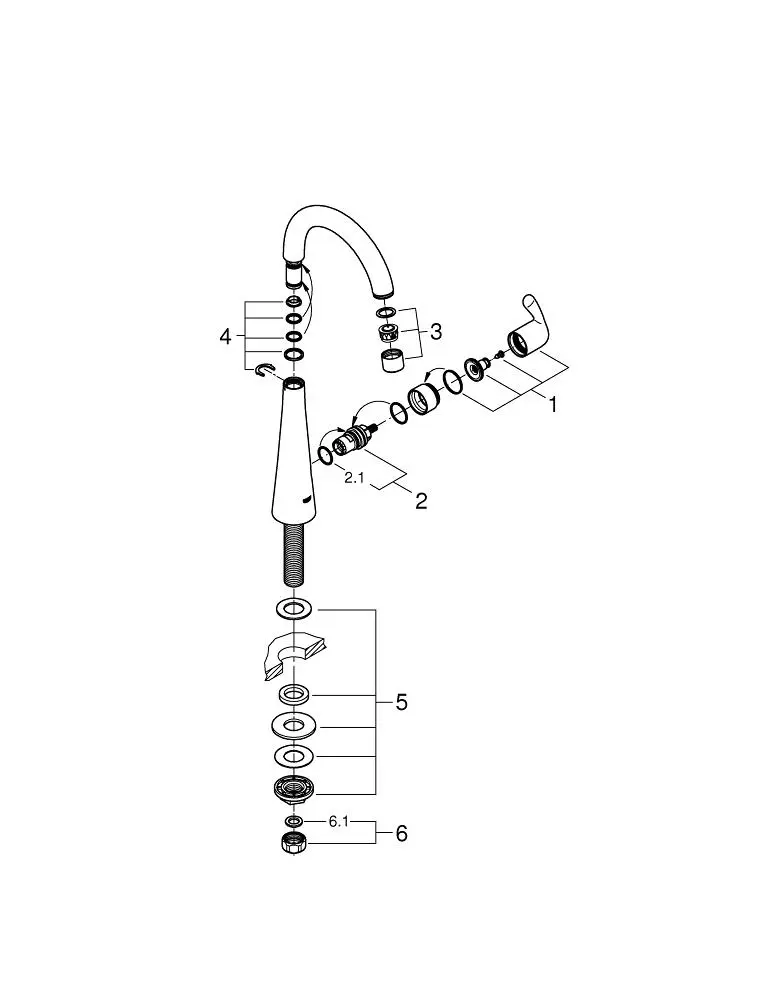

Seal
0 lb (0.0 kg)
Chrome
17
spacer
O-Ring (18,2 X 1,7mm)
0 lb (0.0 kg)
Chrome
35
spacer
Coupling Nut (1/2")
0 lb (0.1 kg)
Chrome
37
spacer
Shank Mounting Kit
0 lb (0.0 kg)
Chrome
27
spacer
Spout Connection Set
0 lb (0.0 kg)
Chrome
39
spacer
Ceramic Cartridge, Right
0 lb (0.1 kg)
Chrome
66
spacer
Lever
0 lb (0.1 kg)
Chrome
27
spacer
Flow Control
0 lb (0.0 kg)
Chrome
8
Single-Handle Pillar Tap Water Faucet 1.75 GPM
5 lb (2.2 kg)
Chrome (G00)
375
Supersteel (GDC)
483
Brushed Stainless Steel (GSD)
751
GROHE Zedra Single-Handle Beverage Faucet (Cold Water Only) with Filtration 1.75 GPM (6.6 L/min)
4 lb (1.7 kg)
Chrome
423
Seal
0 lb (0.0 kg)
Chrome
17
spacer
O-Ring (18,2 X 1,7mm)
0 lb (0.0 kg)
Chrome
35
spacer
Coupling Nut (1/2")
0 lb (0.1 kg)
Chrome
37
spacer
Shank Mounting Kit
0 lb (0.0 kg)
Chrome
27
spacer
Spout Connection Set
0 lb (0.0 kg)
Chrome
39
spacer
Ceramic Cartridge, Right
0 lb (0.1 kg)
Chrome
66
spacer
Lever
0 lb (0.1 kg)
Chrome
27
spacer
Flow Control
0 lb (0.0 kg)
Chrome
8
Models marked with * are discontinued, but product may still be available while supplies last.
