Estate

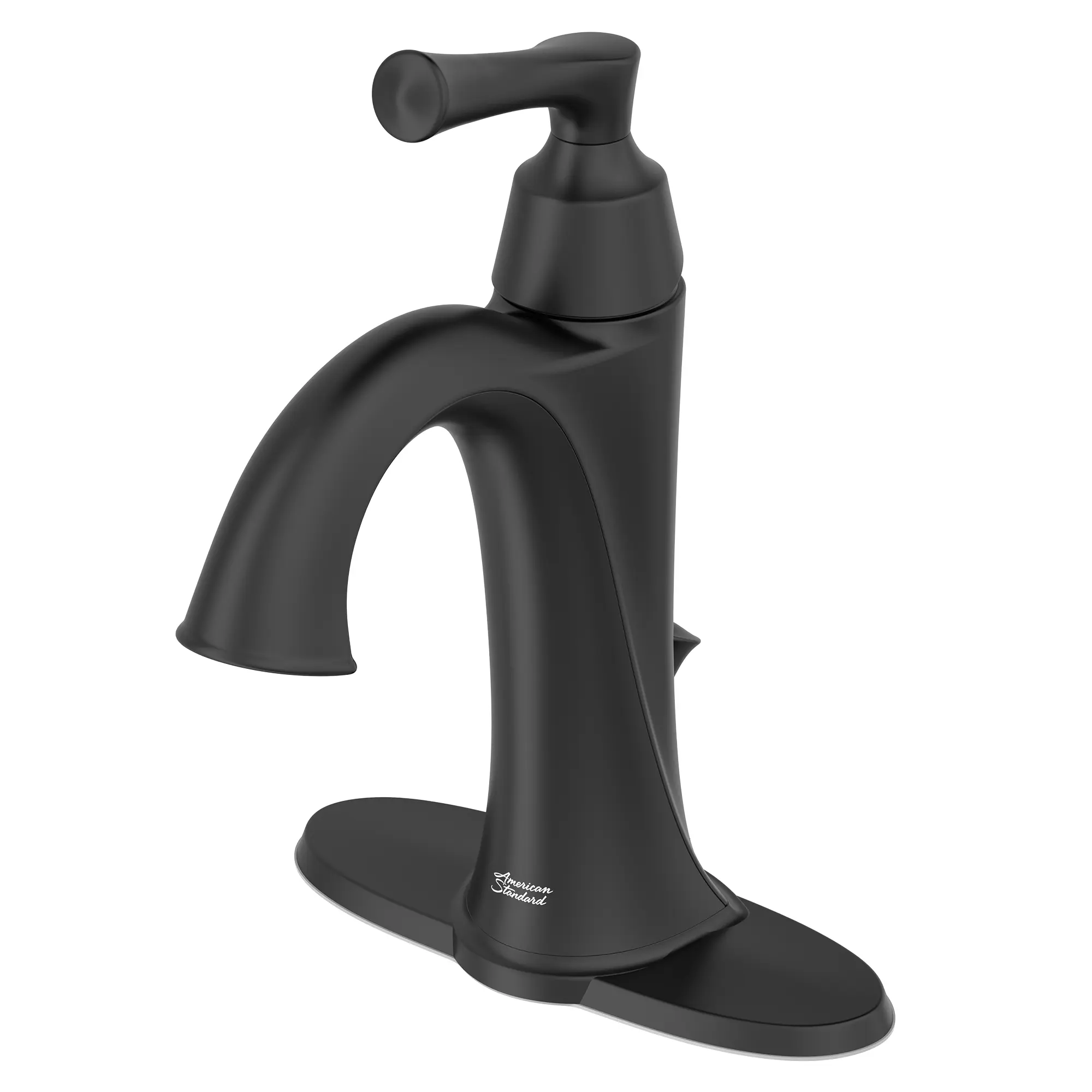

Estate Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

The Estate single-handle faucet from American Standard has clean lines and a sophisticated design that was expertly crafted to coordinate with the rest of the Estate collection. A simple single metal lever handle adorns the top of this faucet, with an easy-to-use design that works with excellence, every time. An exclusive metal Speed Connect drain makes installation easier than ever, using 1/3 of the parts, for a faster installation - leaving more time for you to do the things you love.

Matte Black 7722101.243 FUTURE DISCONTINUATION
List Price: $435.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ceramic Disc Valve Cartridge: Assures a lifetime of smooth handle operation and drip-free performance
  • Exclusive Speed Connect Metal Drain: Fewer parts. Installs in less time
  • No adjustments required – seals the first time, every time
  • A built in hot limit safety stop protects from scalding and can be easily adjusted by the user
  • Flexible stainless steel cable - installs effortlessly in tight spaces
  • Lead Free: Faucet contains = 0.25% total lead content by weighted average
  • Coordinates with Estate Suite of fixtures
  • 1.2 gallons per minute (1.2 gpm/4.5 L/min) maximum flow rate helps to save water without sacrificing performance
  • Available Exclusively at Ferguson Showrooms
Technical Features
  • Metal spout and lever handle
  • 1.2 gpm/4.5 L/min. maximum flow rate
  • 35mm ceramic disc valve cartridge
  • Braided flexible supply hose with 3/8" (10 mm) compression connectors
  • Metal Speed Connect® pop-up drain
  • Lead Free: Faucet contains = 0.25% total lead content by weighted average
  • Can be mounted with or without included deckplate
  • Metal Speed Connect pop-up drain
Nominal Dimensions: 6-3/4 in x 2-3/8 in x 9 in (171 mm x 60 mm x 229 mm)
Description
Net Weight
SKU
Color
List Price USD
Estate Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle
5 lb (2.1 kg)
7722101.243
Matte Black (243)
435
7722101.002
Chrome (002)
322
7722101.013
Polished Nickel (013)
435
7722101.278 *
Legacy Bronze (278)
393
7722101.295
Brushed Nickel (295)
435
Spare Parts
Cartridge Cover
0 lb (0.0 kg)
M907315-0130A *
Polished Nickel
9
M907315-2780A *
Legacy Bronze
10
spacer
EZ Metal Drain Tailpiece Insert
0 lb (0.0 kg)
M913207-0070A
No Finish
6
spacer
Cam Seat Insert F/Ez Metal Drain
0 lb (0.0 kg)
M922872-0070A
No Finish
6
spacer
35mm Cartridge & Screw Kit
0 lb (0.0 kg)
M951483-0070A
No Finish
16
spacer
Metal Ez Drain 2-Piece Assembly
1 lb (0.4 kg)
M952425-2430A
Matte Black
107
spacer
Control Cable Assembly
0 lb (0.0 kg)
M952430-0070A
No Finish
14
spacer
Cam Assembly
0 lb (0.0 kg)
M962430-0070A
No Finish
25
spacer
Aerator Kit
0 lb (0.0 kg)
M970004-0070A
No Finish
12
spacer
Lift Rod & Knob
0 lb (0.0 kg)
M970056-2430A
Matte Black
29
spacer
Mounting Kit
0 lb (0.0 kg)
M970061-0070A *
No Finish
10


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Matte Black
Deck Plate Included: Yes
Department of Energy Certified: Yes
Collections: Estate
Drain Material: Brass
WaterSense: Yes
Faucet Type: Monoblock
Fitting Connection Size Input: 9.52
Handle Height: 9
Handle Material: Metal
Handle Type: Lever
Fitting Material: Metal
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 1
Speed Connect: Yes
Spout Height: 4-3/8
Spout Type: Standard
Valve Material: Ceramic
Gallons Per Minute (min-max): 1.2 GPM
Handle Length: 2-11/16
Input Connection Type: Compression
Hardware Included: Yes
Height: 9
Height: 9
Length: 6-3/4
Width: 2-3/8
Residential or Commercial: Residential
Subcategory: Monoblock Bathroom Faucets
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
