Features
- Includes One-Piece Cartridge: Simplifies installation and maintenance.
- Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge.
- Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation.
- Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions.
- Integrated Check Valves: Engineered to eliminate cross flow.
- Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
- Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone.
- Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
- Water Saving: Saves 28% water usage.
- Water-saving 7-1/4" (184 mm) Spectra+ Fixed Traditional showerhead , 1.8 gpm/6.8 L/min,Shower arm and flange,Metal wall escutcheon,Metal lever handle,For Use with Flash Shower Rough-In Valves
Technical Features
- Includes Double Ceramic pressure balance cartridge
- Water-saving 7-1/4" (184 mm) Spectra Fixed Traditional showerhead, 1.8 gpm/6.8 L/min
- Shower arm and flange
- Metal wall escutcheon
- Metal lever handle
- For use with Flash® shower rough-in valves
Nominal Dimensions: 9-5/8 in x 6-7/16 in x 9-3/16 in (244 mm x 164 mm x 233 mm)

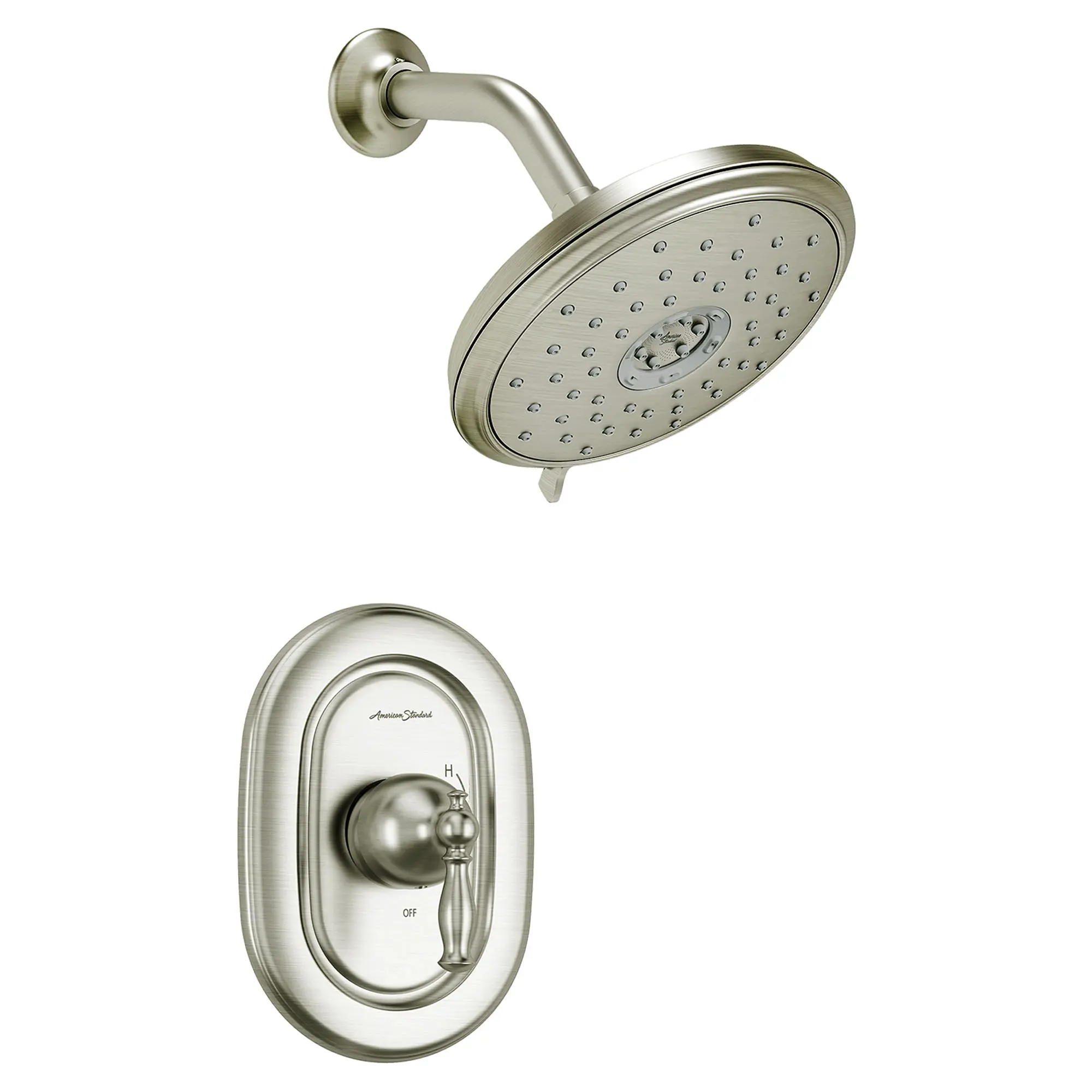

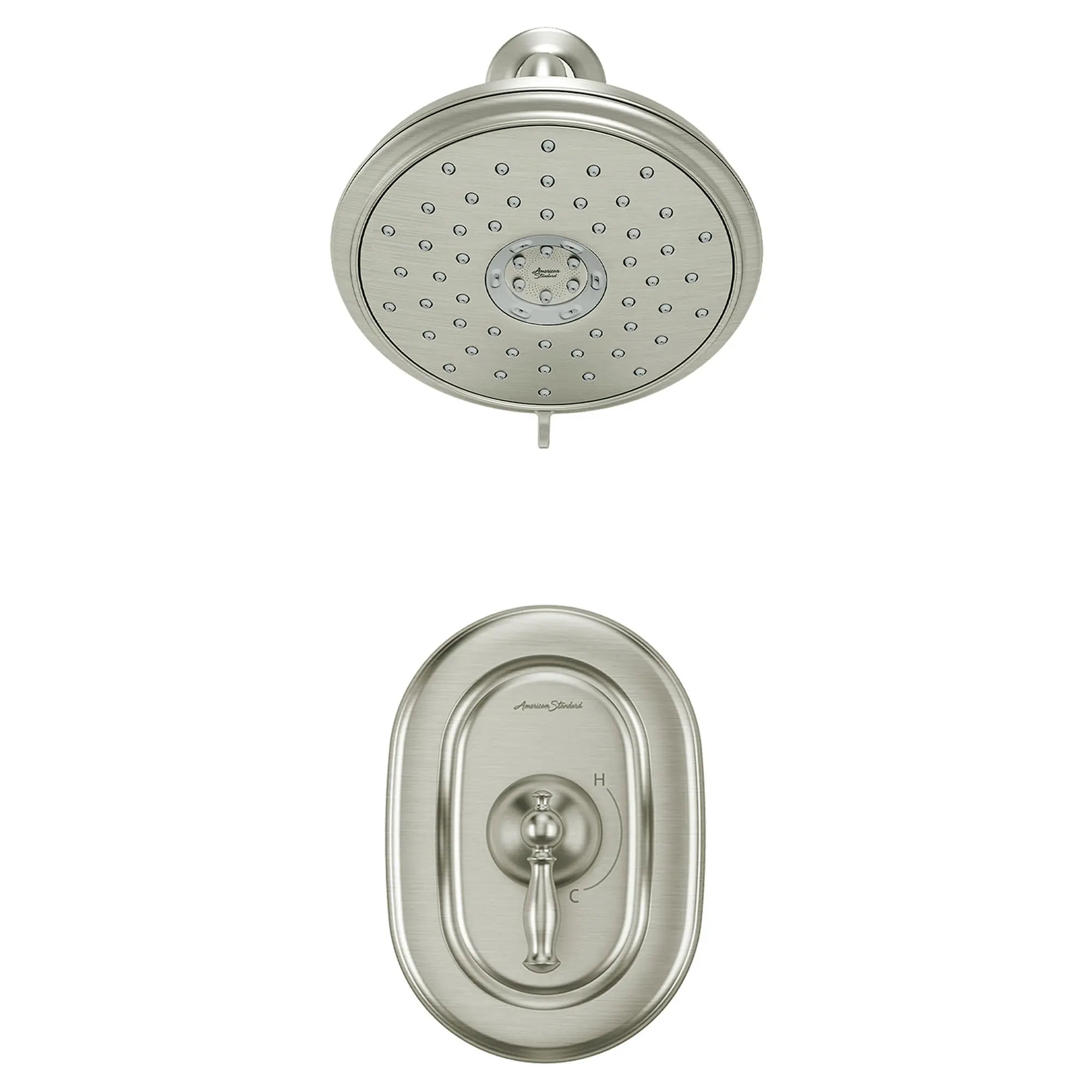

Quentin® 1.8 gpm /6.8 L/min Shower Trim Kit With Water-Saving Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
3 lb (1.3 kg)
Brushed Nickel (295)
460
Chrome (002)
337
Oil Rubbed Bronze (224)
0
Quentin® 2.5 gpm/9.5 L/min Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
3 lb (1.6 kg)
Brushed Nickel
460
Removal Ring
0 lb (0.0 kg)
No Finish
9
Quentin Dial Plate
0 lb (0.0 kg)
Brushed Nickel
42
Quentin® 1.8 gpm /6.8 L/min Shower Trim Kit With Water-Saving Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
3 lb (1.3 kg)
Brushed Nickel (295)
460
Chrome (002)
337
Oil Rubbed Bronze (224)
0
Quentin® 2.5 gpm/9.5 L/min Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
3 lb (1.6 kg)
Brushed Nickel
460
Removal Ring
0 lb (0.0 kg)
No Finish
9
Quentin Dial Plate
0 lb (0.0 kg)
Brushed Nickel
42
Models marked with * are discontinued, but product may still be available while supplies last.
