Princeton™

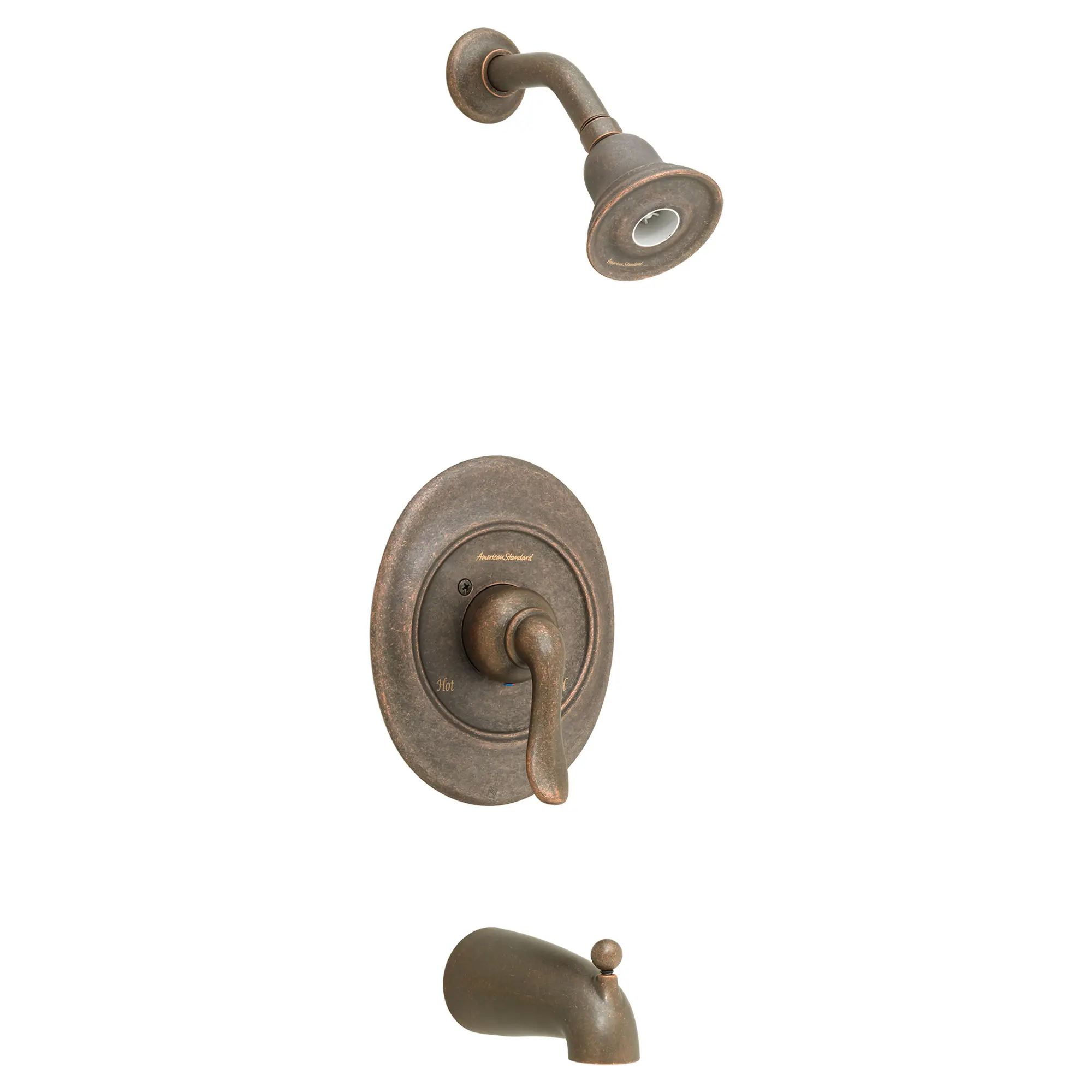

Princeton Bath/Shower Trim Kits -- 1.5 gpm

Oil Rubbed Bronze T508508.224 DISCONTINUED   Substitution Available (T106508.278)
List Price: $217.00
Cal Green CEC Certified WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • FloWise water saving single function showerhead offers 40% savings at maximum 1.5gpm/5.7L/min. flow rate. Metal slip-on diverter spout.
  • Available with metal lever handle.
  • Available in Bath/Shower and Shower Only combinations.
  • Rough Valve Body
  • Cast brass body, washerless 47mm ceramic disc valve cartridge with volume and temperature control, and hot limit safety stop. Pressure balancing cartridge maintains constant output temperature in response to changes in relative hot and cold supply pressure. One-half inch inlets and outlets (choice of direct sweat, threaded, or PEX). Available with screwdriver stops. Rough-in plaster guard designed for use as thin-wall mounting adaptor. Valve body will accept a variety of decorative Bath/Shower trim kits.
  • Pressure Balancing Valve Cartridge: Maintains constant output temperature in response to changes in relative hot and cold supply pressure. Diaphragm system engineered to eliminate cross flow. Avoids failure due to mineral deposits - ideal for use in hard water.
  • Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
  • Exclusive Plaster Guard: Plaster guard is designed to protect valve during installation and serve as a mounting plate for thin-wall installations. Two piece design allows valve to be tested prior to trim installation.
Technical Features
  • FloWise water saving single function showerhead offers 40% savings at maximum 1.5gpm/5.7L/min. flow rate. Metal slip-on diverter spout.
  • Available with metal lever handle.
  • Available in Bath/Shower and Shower Only combinations.
  • Rough Valve Body
  • Cast brass body, washerless 47mm ceramic disc valve cartridge with volume and temperature control, and hot limit safety stop. Pressure balancing cartridge maintains constant output temperature in response to changes in relative hot and cold supply pressure. One-half inch inlets and outlets (choice of direct sweat, threaded, or PEX). Available with screwdriver stops. Rough-in plaster guard designed for use as thin-wall mounting adaptor. Valve body will accept a variety of decorative Bath/Shower trim kits.
  • Pressure Balancing Valve Cartridge: Maintains constant output temperature in response to changes in relative hot and cold supply pressure. Diaphragm system engineered to eliminate cross flow. Avoids failure due to mineral deposits - ideal for use in hard water.
  • Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
  • Exclusive Plaster Guard: Plaster guard is designed to protect valve during installation and serve as a mounting plate for thin-wall installations. Two piece design allows valve to be tested prior to trim installation.
Description
Net Weight
SKU
Color
List Price USD
Princeton Bath/Shower Trim Kits -- 1.5 gpm
2 lb (1.0 kg)
T508508.224 *
Oil Rubbed Bronze (224)
217
T508508.002 *
Chrome (002)
145
T508508.295 *
Brushed Nickel (295)
203
Substitutions
Patience 1.8 GPM Tub and Shower Trim Kit with Lever Handle
5 lb (2.2 kg)
T106508.278 *
Legacy Bronze
464


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Oil Rubbed Bronze
Collections: Princeton™
WaterSense: Yes
Faucet Type: Bath Trim
Fitting Connection Size Input: 1/2
Handle Type: Lever
Spout Type: Tub
Residential or Commercial: Residential
Shower Diverter Type: Lever
Number of Showerheads: 1
Number of Spray Settings: 1
Shower Trim Type: Shower
Subcategory: Bath Trim Bathroom Faucets
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
