Features
- Includes One-Piece Cartridge: Simplifies installation and maintenance.
- Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge.
- Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation.
- Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions.
- Integrated Check Valves: Engineered to eliminate cross flow.
- Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
- Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone.
- Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
- Water Saving: Saves 30% water usage.
- Water-saving 5" (127 mm) 3-function showerhead, 1.8 gpm/6.6 L/min maximum flow,Shower arm and flange,Brass wall escutcheon,Metal lever handle,Slip-on diverter tub spout,For Use with Flash Shower Rough-In Valves
Technical Features
- Includes Double Ceramic pressure balance cartridge
- Water-saving 5" (127 mm) 3-function showerhead, 1.8 gpm/6.6 L/min maximum flow
- Shower arm and flange
- Metal wall escutcheon
- Metal lever handle
- Slip-on diverter tub spout
- For use with Flash® shower rough-in valves
Nominal Dimensions: 8-1/8 in x 7-13/16 in x 7-13/16 in (206 mm x 198 mm x 198 mm)

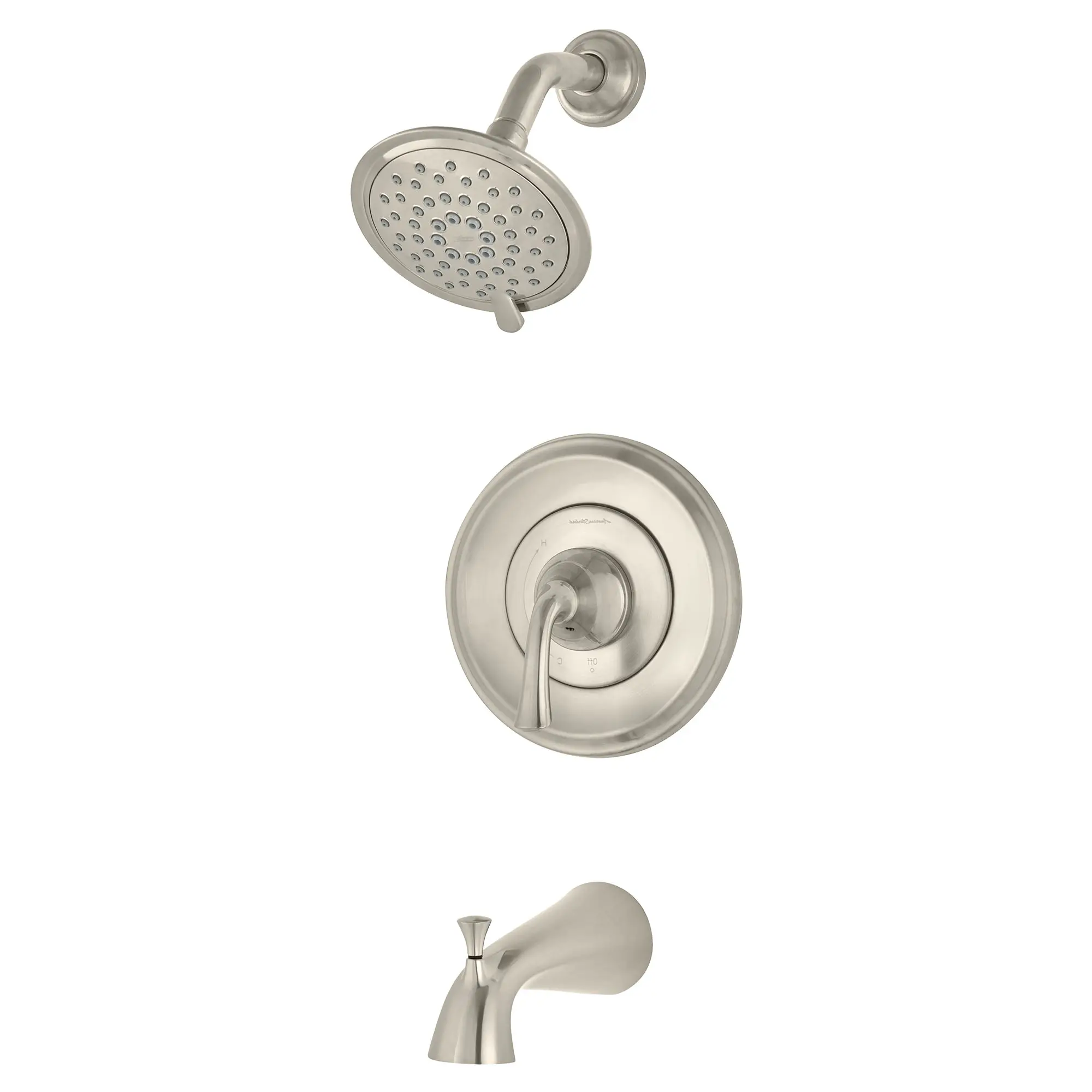

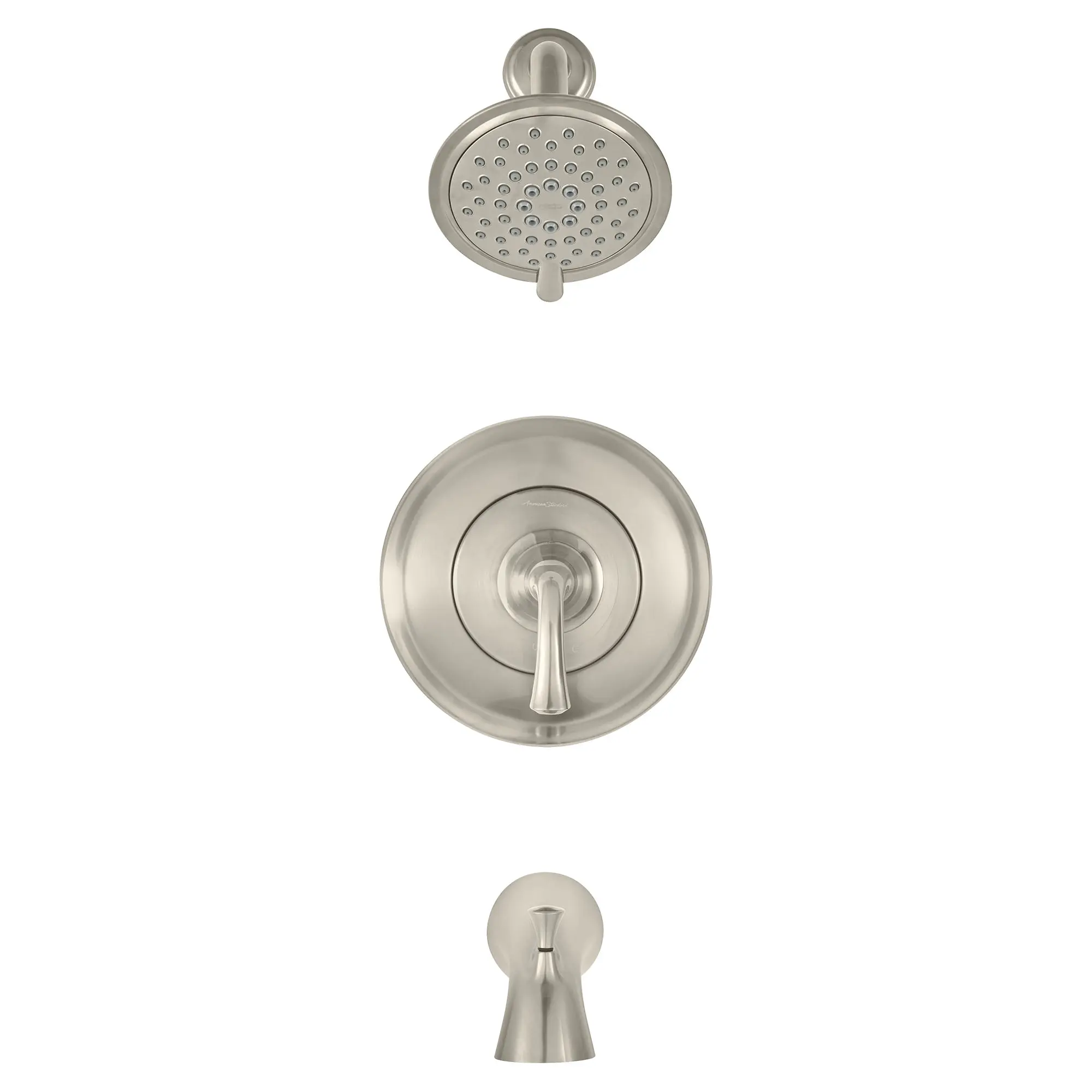

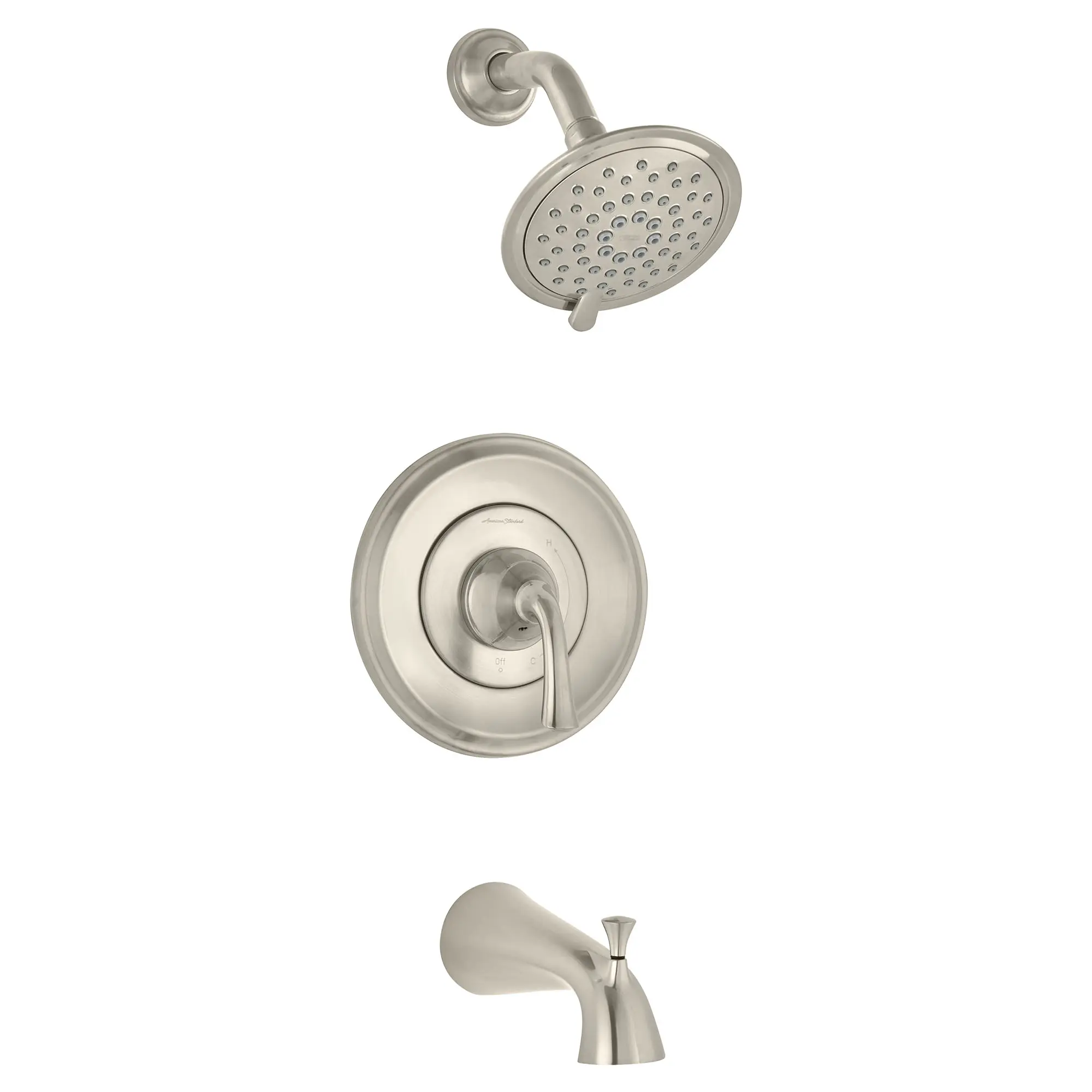

Patience® 1.8 gpm/6.6 L/min Tub and Shower Trim Kit With Water-Saving 3-Function Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
4 lb (1.8 kg)
Brushed Nickel (295)
501
Chrome (002)
365
Polished Nickel (013)
501
Legacy Bronze (278)
534
Flex Hose & Tee Kit
1 lb (0.3 kg)
No Finish
74
Patience® 1.8 gpm/6.6 L/min Tub and Shower Trim Kit With Water-Saving 3-Function Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
4 lb (1.8 kg)
Brushed Nickel (295)
501
Chrome (002)
365
Polished Nickel (013)
501
Legacy Bronze (278)
534
Flex Hose & Tee Kit
1 lb (0.3 kg)
No Finish
74
Models marked with * are discontinued, but product may still be available while supplies last.
Brand:
American Standard
Cal Green:
Yes
Category:
Bathroom Faucets
CEC Certified:
Yes
Color / Finish:
Brushed Nickel
Collections:
Patience
WaterSense:
Yes
Faucet Type:
Bath Trim
Fitting Connection Size Input:
12.70
Handle Material:
Metal
Fitting Material:
Zinc
Fixture or Fitting Material:
Zinc
Gallons Per Minute (min-max):
1.75 GPM
Input Connection Type:
NPT (National Pipe Tapered Threads)
Hardware Included:
Yes
Height:
7-13/16
Length:
8-1/8
Width:
7-13/16
Residential or Commercial:
Residential
Subcategory:
Bath Trim Bathroom Faucets
Valve Type:
Pressure Balance Valves
Warranty:
Limited Lifetime Warranty
Water Efficient:
Yes
