  • Berwick® 2.5 gpm/9.5 L/min Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge and Lever Handle

Berwick

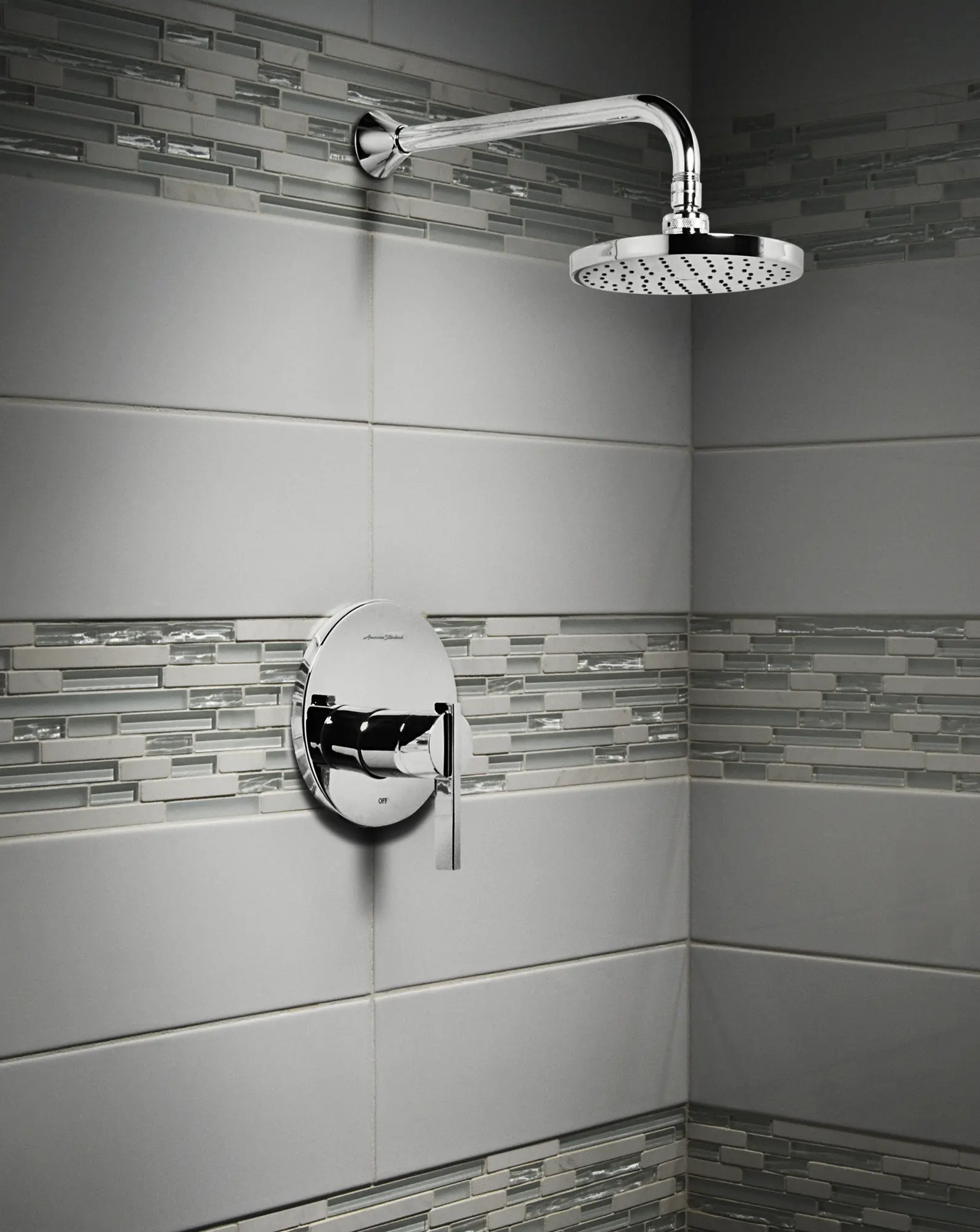

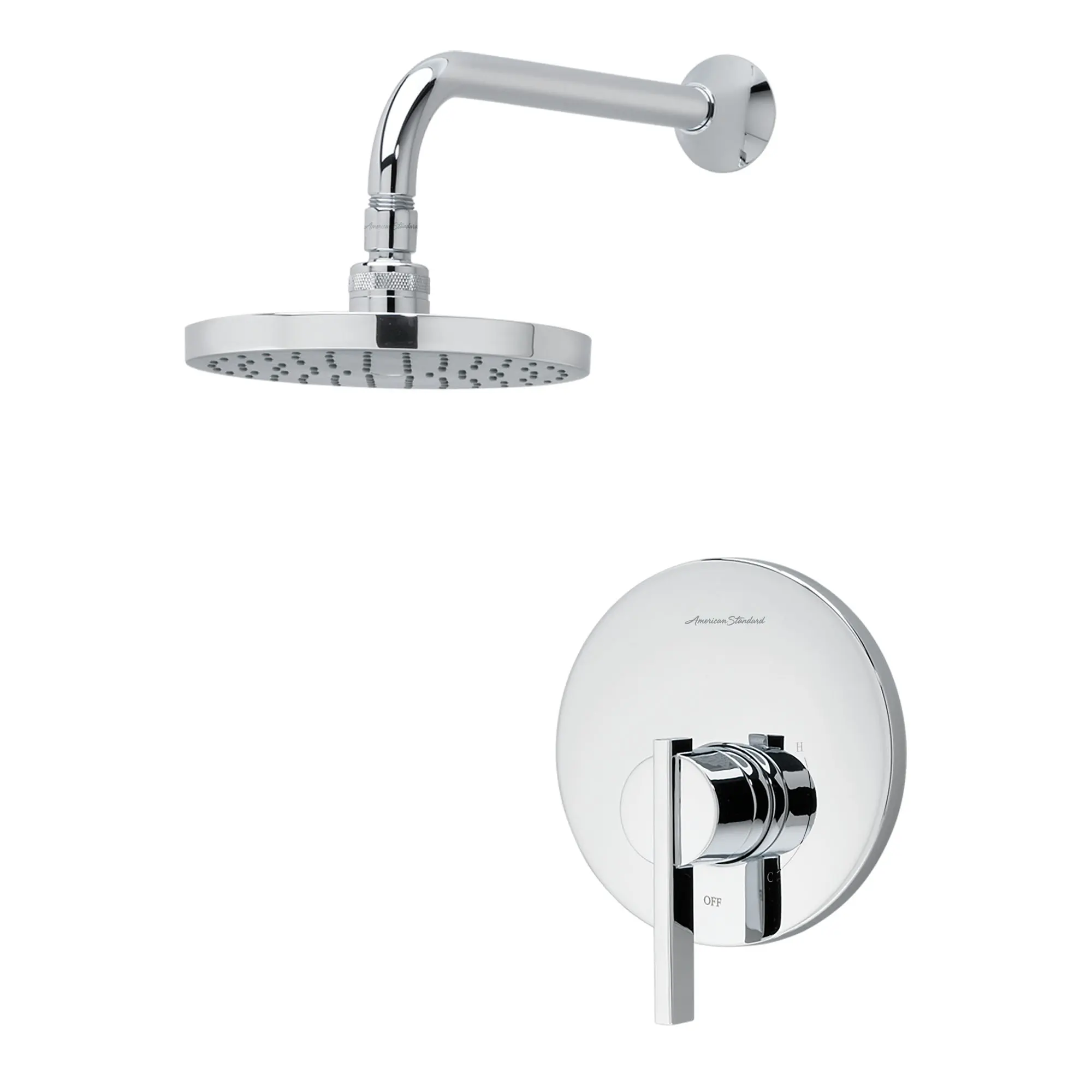

Berwick® 2.5 gpm/9.5 L/min Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge and Lever Handle

Make a beautiful statement in your bathroom with the sleek and elegant Berwick Collection. It’s equipped with dependable, double ceramic pressure balance technology for consistent water temperature, anti-scald protection, and smooth, flawless operation. A modern lever handle style, designed for durability, it’s available in tarnish- and scratch-resistant finishes to coordinate with the entire collection. Requires Flash Shower Rough-in Valve, sold separately.

Chrome TU430501.002 DISCONTINUED
List Price: $372.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes One-Piece Cartridge: Simplifies installation and maintenance.
  • Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge.
  • Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation.
  • Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions.
  • Integrated Check Valves: Engineered to eliminate cross flow.
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
  • Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone.
  • Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
  • 6-3/4" (173 mm) rain showerhead, 2.5 gpm/9.5 L/min maximum flow
  • 12" (300 mm) brass shower arm,Metal wall escutcheon,Metal lever handle,For Use with Flash Shower Rough-In Valves
Technical Features
  • Includes Double Ceramic pressure balance cartridge
  • 6-3/4" (171 mm) rain showerhead, 2.5 gpm/9.5 L/min maximum flow
  • 12" (300 mm) brass shower arm
  • Metal wall escutcheon
  • Metal lever handle
  • For use with Flash® shower rough-in valves
  • Back-to-back capability: hot and cold can be reversed quickly and easily
Nominal Dimensions: 15-3/16 in x 7-5/16 in x 7-5/16 in (386 mm x 186 mm x 186 mm)
Description
Net Weight
SKU
Color
List Price USD
Berwick® 2.5 gpm/9.5 L/min Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge and Lever Handle
4 lb (1.7 kg)
TU430501.002 *
Chrome (002)
372
TU430501.295 *
Brushed Nickel (295)
508
Spare Parts
Flex Hose & Tee Kit
1 lb (0.3 kg)
M970033-0070A
No Finish
74


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Bathroom Faucets
Color / Finish: Chrome
Collections: Berwick
Faucet Type: Bath Trim
Fitting Connection Size Input: 12.70
Handle Material: Metal
Fitting Material: Zinc
Fixture or Fitting Material: Zinc
Gallons Per Minute (min-max): 2.5 GPM
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Height: 7-5/16
Length: 15-3/16
Width: 7-5/16
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
3D Objects are not currently available for this product
