Cadet®

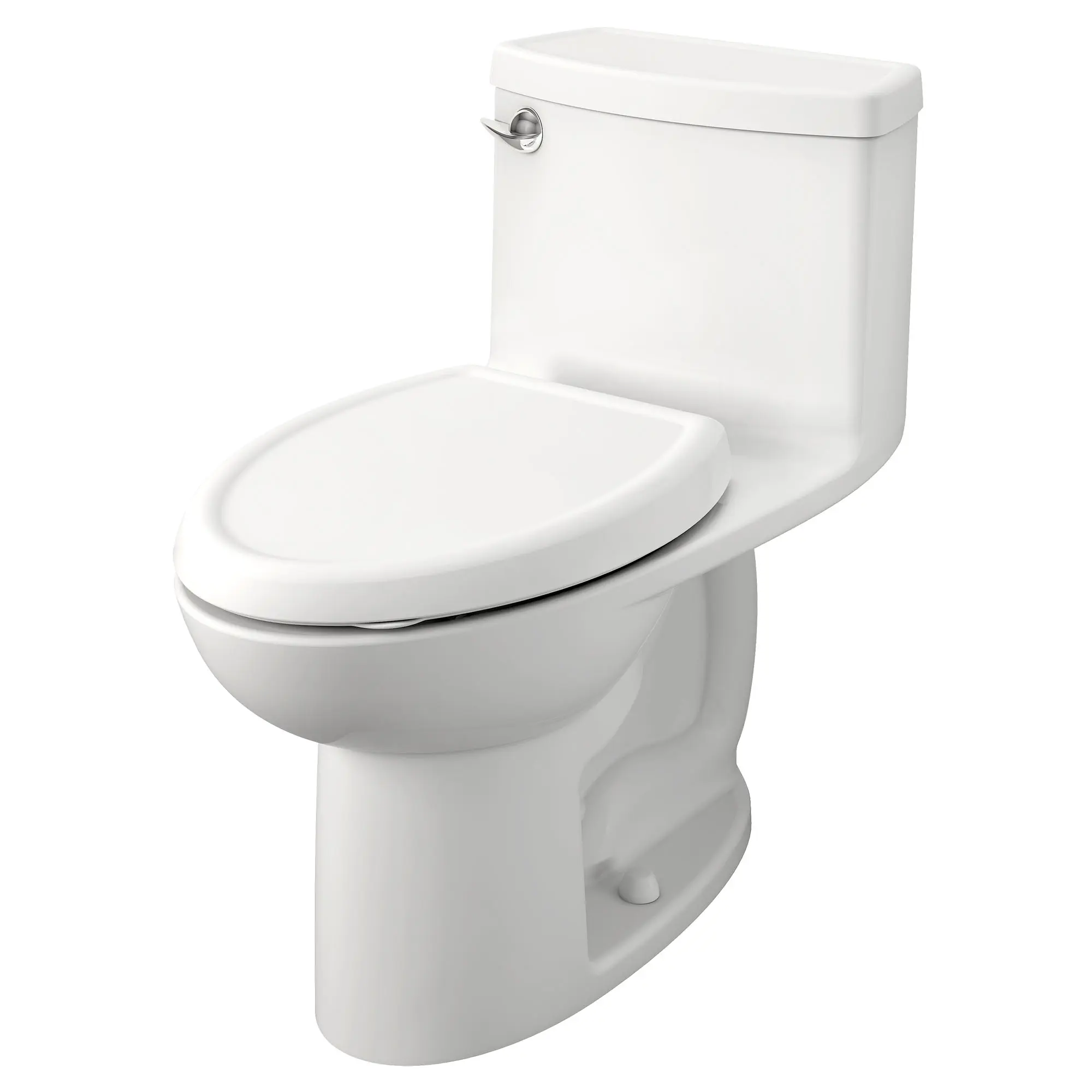

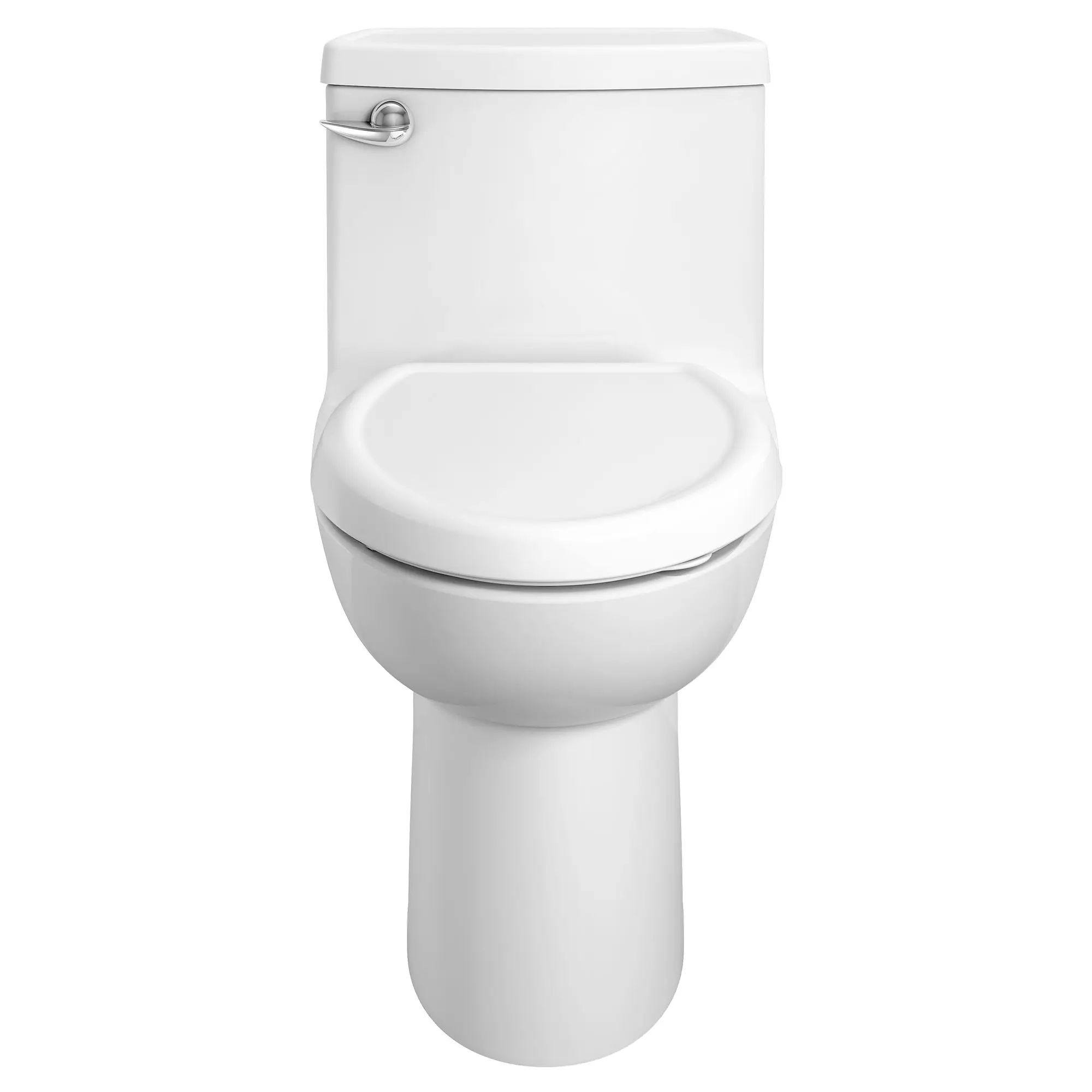

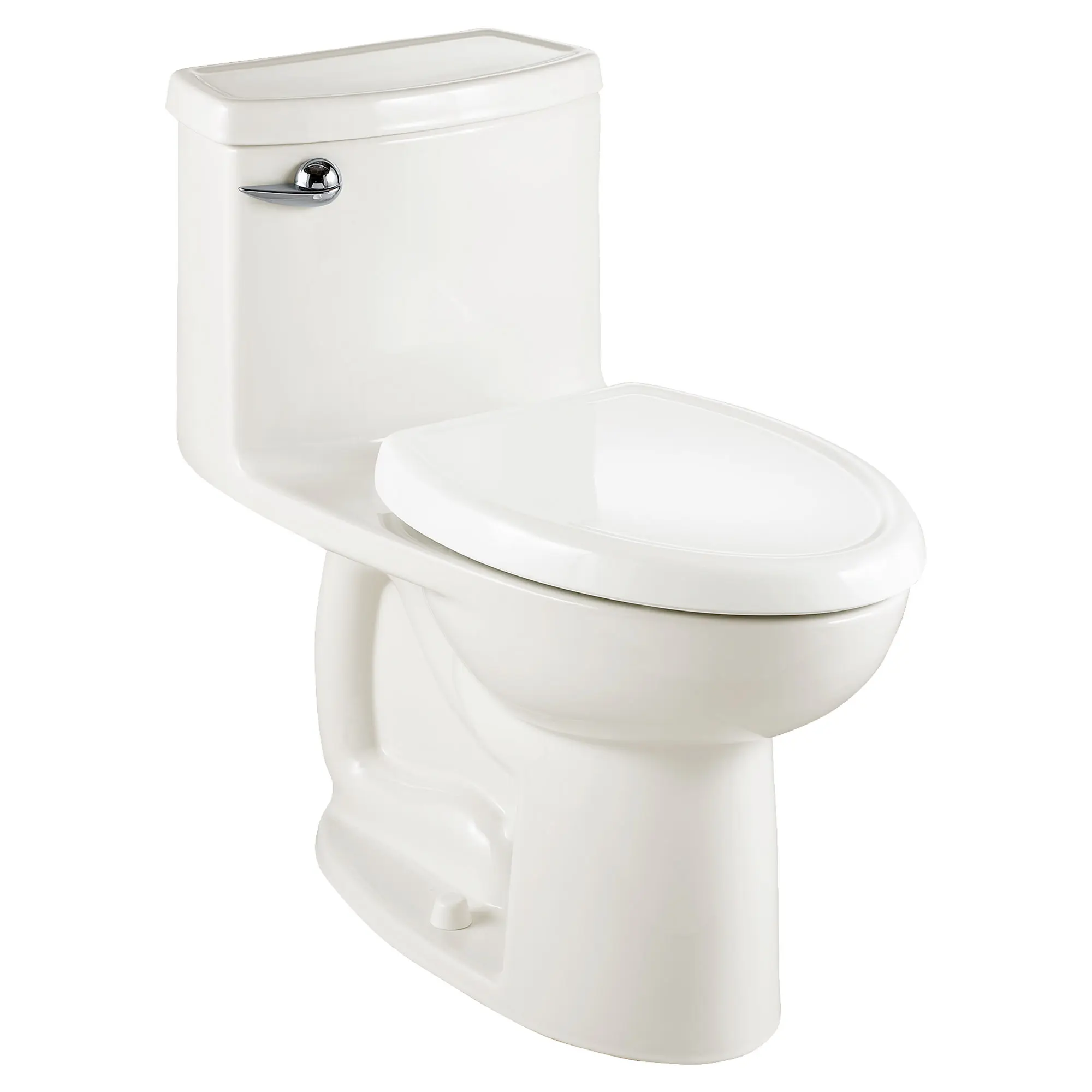

Compact Cadet® 3 One-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet With Seat

The Compact Cadet 3 FloWise Right Height Elongated Toilet from American Standard combines power, comfort and smart design in a seamless, one-piece style. This high-efficiency, ultra-low consumption toilet uses 20% less water than conventional toilets without sacrificing performance. The compact, elongated Cadet 3 is the perfect alternative to a round-front toilet, offering a comfortable height and sleek, elongated style, designed to fit where space is limited.

White 2403128.020 DISCONTINUED
List Price: $708.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Everclean WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Compact, elongated design
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on toilet and seat
  • Includes slow-close seat and lid for silent, no-slam convenience
  • One-piece construction eliminates the gap where dirt and grime collects for easy cleaning
  • Right Height bowl for sitting and standing comfort is ADA compliant
  • FloWise technology ensures highest level of water conservation available
  • Uses 1.28 gallons per flush (4.8 Lpf) and is WaterSense® certified
  • Cadet 3 flushing system with 2-1/8 in. glazed trap-way and oversized 3 in. flush valve for a thorough, powerful flush
  • Seat features sanitary lift tab to avoid direct contact with seat
Technical Features
  • Chair Height elongated bowl
  • Space saving compact elongated bowl fits in the space of a round front
  • 12" (305 mm) rough-in
  • High efficiency, ultra-low consumption (1.28 gpf/4.8 Lpf), utilizes 20% less water
  • Meets EPA WaterSense® criteria
  • 16-1/2" (419 mm) bowl rim height for accessible application
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria on toilet and seat
  • Includes slow-close seat and cover with EverClean® antimicrobial surface
  • Seat features unique sanitary seat lift tab
  • 3" (76 mm) flush valve,9" x 8" (229 x 203 mm) water surface area,2-1/8" (54 mm) trapway,Two color-matched bolt caps,Five-year warranty
Nominal Dimensions: 28-1/2 in x 15-5/16 in x 28-1/2 in (724 mm x 389 mm x 724 mm)
Description
Net Weight
SKU
Color
List Price USD
Compact Cadet® 3 One-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet With Seat
92 lb (41.9 kg)
2403128.020
White (020)
708
2403128.021
Bone (021)
1000
2403128.222
Linen (222)
1000
Separate Components
Cadet 3 Slow-Close Elongated Toilet Seat
4 lb (2.0 kg)
5350110.020
White
95
5350110.021
Bone
131
5350110.222
Linen
131
spacer
Compact Cadet® 3 One-Piece Toilet Tank Cover
15 lb (6.8 kg)
735125-400.020
White
164
735125-400.021
Bone
204
735125-400.222
Linen
204
spacer
Left-Hand Trip Lever
0 lb (0.0 kg)
738903-0020A
Chrome
36
738903-0200A
White
57
738903-2220A *
Linen
65
738903-2430A
Matte Black
144
738903-2950A
Brushed Nickel
50
Spare Parts
Cadet 3 Slow-Close Elongated Toilet Seat
4 lb (2.0 kg)
5350110.020
White
95
spacer
Compact Cadet® 3 One-Piece Toilet Tank Cover
15 lb (6.8 kg)
735125-400.020
White
164
spacer
Left-Hand Trip Lever
0 lb (0.0 kg)
738903-0020A
Chrome
36
738903-0200A
White
57
738903-2430A
Matte Black
144
738903-2950A
Brushed Nickel
50


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Department of Energy Certified: Yes
Collections: Cadet®
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 3
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.28 GPF
Handle Finish: CHROME
MAP Performance Rating: 1000
Number of Batteries Included: Not Applicable (N/A)
Number of Flush Valves: 1
Height: 28-1/2
Length: 28-1/2
Width: 15-5/16
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Front
Bowl Height With Seat: 18-1/2
Toilet Water Efficiency: Ultra Height Efficiency Toilet
Toilet Mount Type: Floor Mount
Seat Included: Yes
Trapway Diameter: 2-1/8
Toilet Type: One Piece
Warranty: 5 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
