Champion

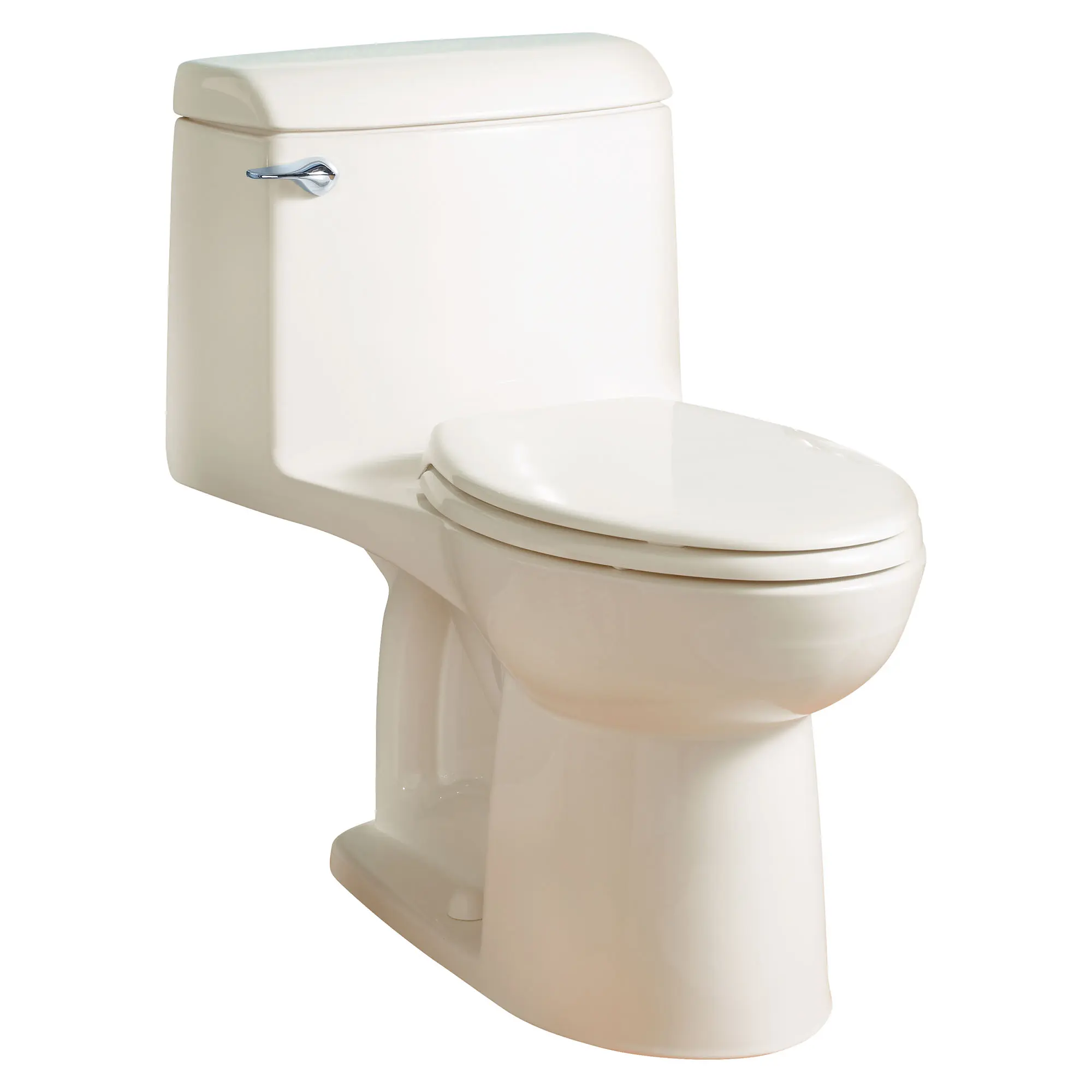

Champion® 4 One-Piece 1.6 gpf/6.0 Lpf Standard Height Elongated Toilet With Seat

The Champion 4 One-Piece Elongated Toilet from American Standard is engineered for clog-free performance. This one-piece toilet features a 4-in. flush valve, the largest in the industry, to produce a fast, powerful flush that effectively clears the bowl. The elongated shape offers a more spacious bowl for added comfort. The slow-close toilet seat eliminates the noise and annoyance of slamming.

Linen 2004314.222 DISCONTINUED   Substitution Available (2034314.222)
List Price: $842.00
Everclean
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • INDUSTRY-LEADING POWER: Equipped with a large 4-in. flush valve (102 mm) and 2-3/8-in. (60 mm) fully-glazed trapway this one-piece toilet is virtually clog-free
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria on the toilet
  • SLOW-CLOSE TOILET SEAT: Durable toilet seat with slow-close hinge eliminates slamming
  • INCLUDES: Chrome trip lever and bolt caps
  • 4" (102mm) non-adjustable, piston action Accelerator flush valve
  • 12" (305mm) rough-in
  • 2-3/8" (60mm) fully-glazed trapway
  • Rim height at 15" (381mm)
  • 100% factory flush tested
Technical Features
  • Includes tank, bowl, seat and installation kit
  • Bowl Shape: Elongated
  • Rim Height: Normal Height measuring 15.5" (with seat) rim height
  • Rough-In: 12" (305 mm)
  • Configuration: Two-piece exposed trapway design
  • Flush Rate: 1.60 gpf (6Lpf) single flush low-consumption toilet
  • Made with durable metal components including metal trip lever, arm and brass shank
  • Metal trip-lever, chrome
  • Trapway: 2-3/8" (60 mm) fully glazed
  • PowerWash® Rim Design,EverClean® antimicrobial surface: Protects against bacteria,EZ-installation kit included, no tools needed,Limited Lifetime Warranty, see warranty page on website for detail
Nominal Dimensions: 28-13/16 in x 16-3/4 in x 28-1/8 in (732 mm x 425 mm x 714 mm)
Description
Net Weight
SKU
Color
List Price USD
Champion® 4 One-Piece 1.6 gpf/6.0 Lpf Standard Height Elongated Toilet With Seat
109 lb (49.5 kg)
2004314.222 *
Linen (222)
842
2004314.020
White (020)
839
2004314.021 *
Bone (021)
842
Substitutions
Champion® 4 One-Piece 1.6 gpf/6.0 Lpf Chair Height Elongated Toilet With Seat
115 lb (52.2 kg)
2034314.222 *
Linen
1064


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front to Back Length: 15
Bowl Included: Yes
Bowl Shape: Elongated
Brand: American Standard
Category: Toilets
Chair Height: Standard
Color / Finish: Linen
Collections: Champion
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Gravity Fed
Flush Valve Size: 4
Flusing Type: Single Flush
Gallons Per Flush (min-max): 1.6 GPF
Handle Finish: CHROME
MAP Performance Rating: 1000
Number of Batteries Included: Not Applicable (N/A)
Number of Flush Valves: 1
Number of Flush Valves: 1
Height: 28-1/8
Length: 28-13/16
Width: 16-3/4
Residential or Commercial: Residential
Rough In Size: 12
Rough In Valve Included: Yes
Subcategory: Floor Standing Toilets
Tank Included: Yes
Trip Lever Location: Left Front
Bowl Height With Seat: 17-3/16
Toilet Water Efficiency: Ultra Height Efficiency Toilet
Toilet Mount Type: Floor Mount
Seat Included: Yes
Trapway Diameter: 2-3/8
Toilet Type: One Piece
Warranty: 10 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
3D Objects are not currently available for this product
