Features
- TRADE EXCLUSIVE TANK
- 10-INCH ROUGH-IN
- CHAIR-HEIGHT COMFORT — Measures 17” tall, including seat, for ease of use compared to standard height. Slight variation in height may occur based on the height of the seat used.
- WATERSENSE® CERTIFIED — Uses 20 percent less water and performs as well as or better than regular toilets
- ADA COMPLIANT — Meets Americans with Disabilities Act requirements for use and accessibility
- POWERWASH® RIM — Scrubs the bowl clean with every flush
- FINISHING TOUCHES — Includes color-matched bowl caps and trip lever
- METAL PARTS — Robust metal trip lever and metal shank fill valve
- DURABLE CONSTRUCTION — Made from quality vitreous china for strength and reliability
- LESS SEAT - Toilet seat is sold separately
Technical Features
- Includes tank, bowl, and installation kit (seat not included)
- Bowl Shape: Elongated
- Rim Height: Chair Height measures 17" (with seat) rim height, ADA compliant
- Rough-In: 10" (254 mm)
- Configuration: Two-piece exposed trapway design
- Flush Rate: 1.28 gpf (4.8Lpf) single flush high-efficiency toilet; meets EPA WaterSense® criteria
- Made with durable metal components including metal trip lever, arm and brass shank
- Metal trip-lever, chrome
- Trapway: 2-1/8" (54 mm) fully glazed
- PowerWash® Rim Design,EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria,Limited Lifetime Warranty, see warranty page on website for detail
Nominal Dimensions: 28-1/2 in x 18 in x 30-1/4 in (724 mm x 457 mm x 768 mm)

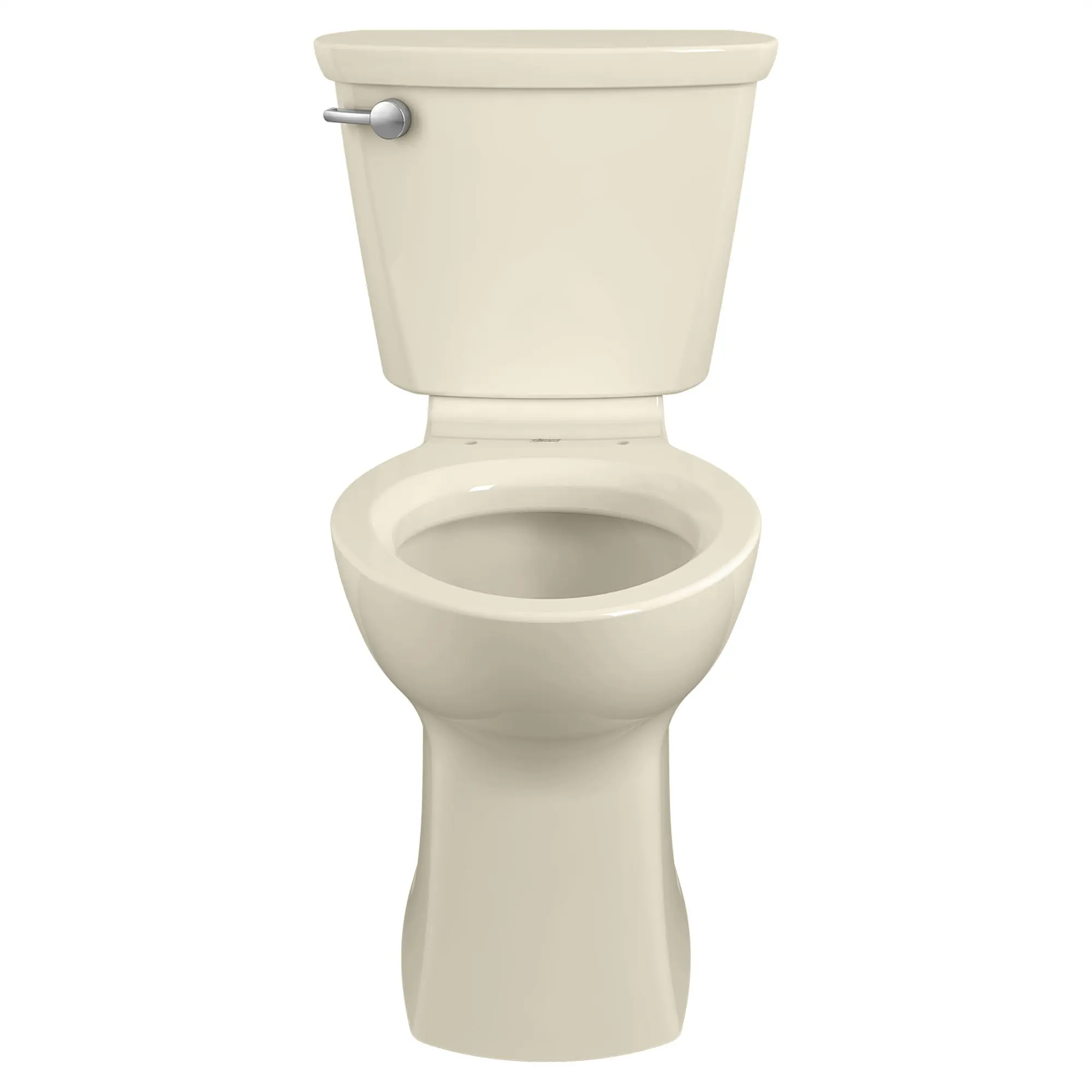

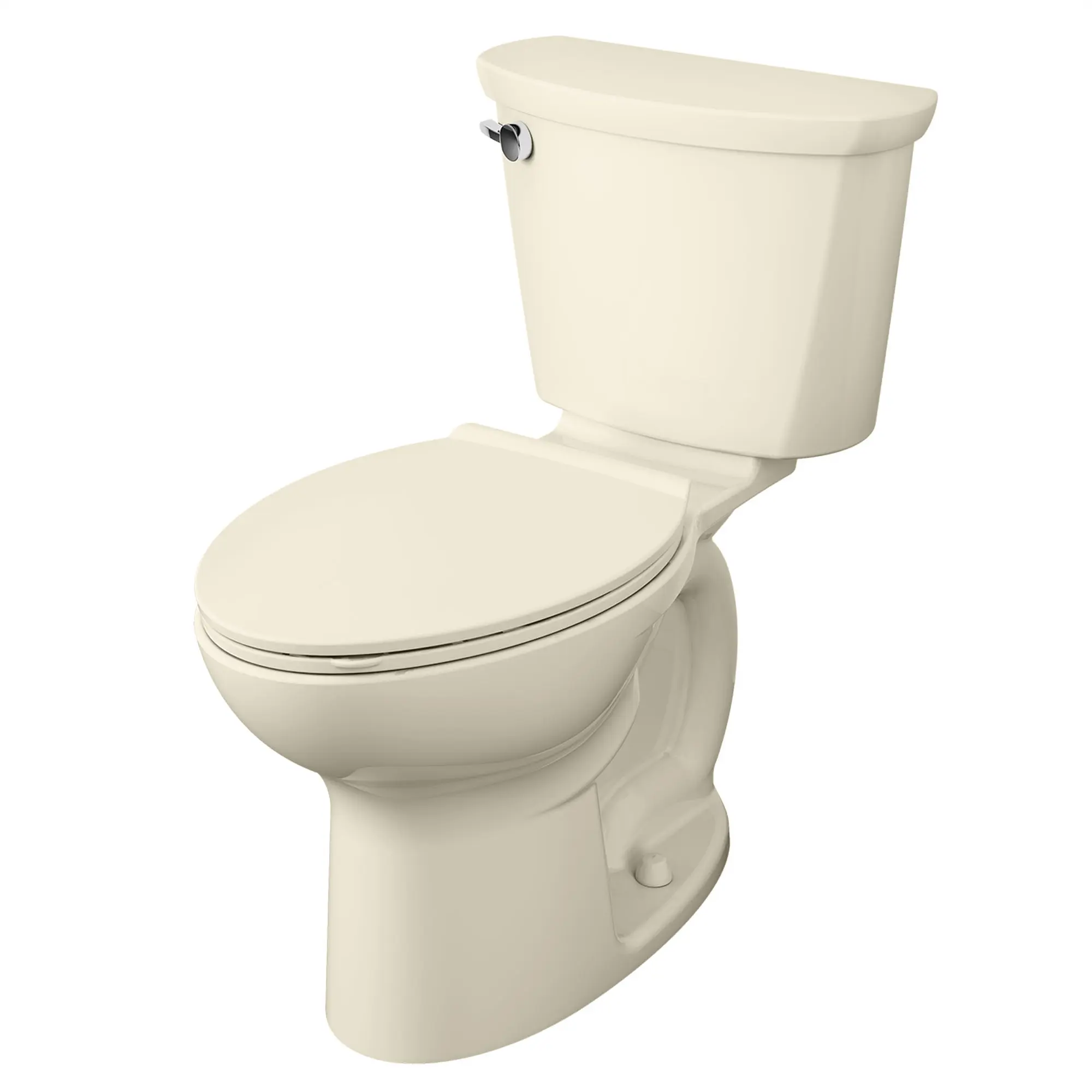

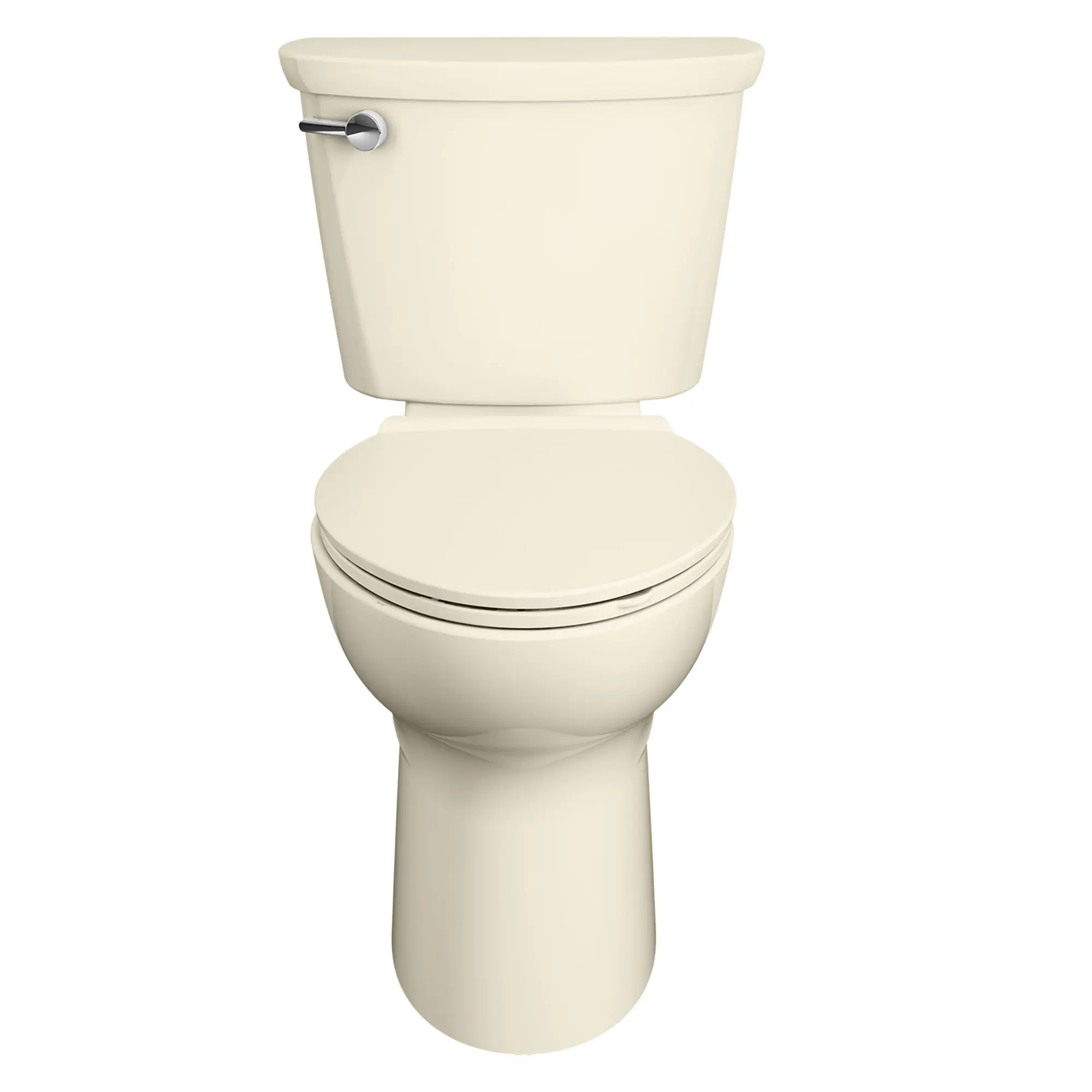

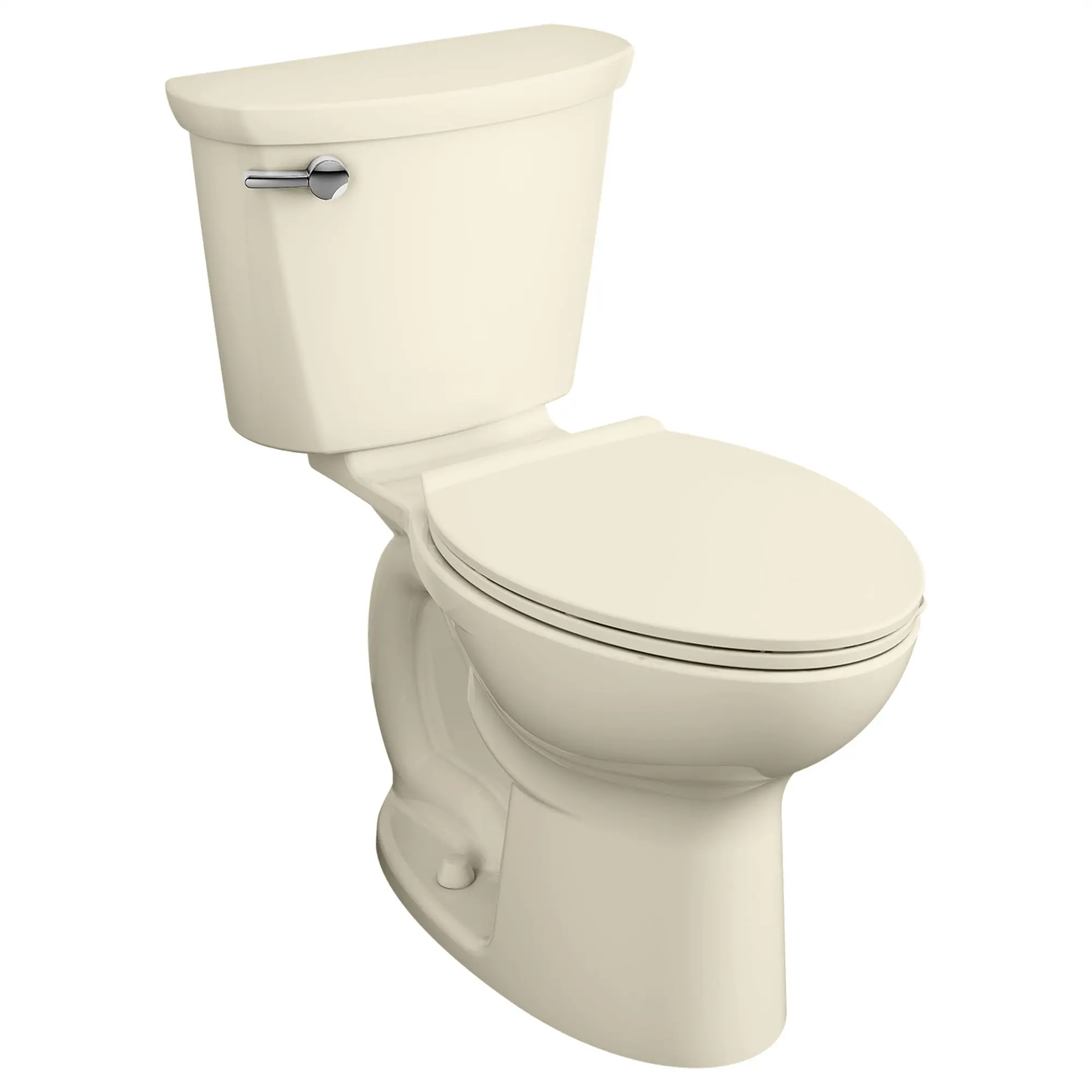

Cadet® PRO Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
Bone (021)
748
White (020)
525
Linen (222)
748
Cadet® PRO Chair Height Elongated Toilet Bowl Only
55 lb (25.0 kg)
White
305
Bone
443
spacer
Cadet® PRO 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
27 lb (12.3 kg)
White
220
Bone
305
spacer
Cadet® PRO 10-Inch Rough Toilet Tank Cover
6 lb (2.9 kg)
White
117
Bone
126
spacer
Left-Hand Trip Lever
0 lb (0.2 kg)
Brushed Cool Sunrise
86
Cardiff Slow-Close Elongated Toilet Seat
3 lb (1.5 kg)
White
85
Bone
92
Left-Hand Trip Lever
0 lb (0.1 kg)
Matte Black
81
Cadet® PRO Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated 10-Inch Rough Toilet Less Seat
1 lb (0.4 kg)
Bone (021)
748
White (020)
525
Linen (222)
748
Cadet® PRO Chair Height Elongated Toilet Bowl Only
55 lb (25.0 kg)
White
305
Bone
443
spacer
Cadet® PRO 1.28 gpf/4.8 Lpf 10-Inch Rough Tank
27 lb (12.3 kg)
White
220
Bone
305
spacer
Cadet® PRO 10-Inch Rough Toilet Tank Cover
6 lb (2.9 kg)
White
117
Bone
126
spacer
Left-Hand Trip Lever
0 lb (0.2 kg)
Brushed Cool Sunrise
86
Cardiff Slow-Close Elongated Toilet Seat
3 lb (1.5 kg)
White
85
Bone
92
Left-Hand Trip Lever
0 lb (0.1 kg)
Matte Black
81
Models marked with * are discontinued, but product may still be available while supplies last.
