Cadet®

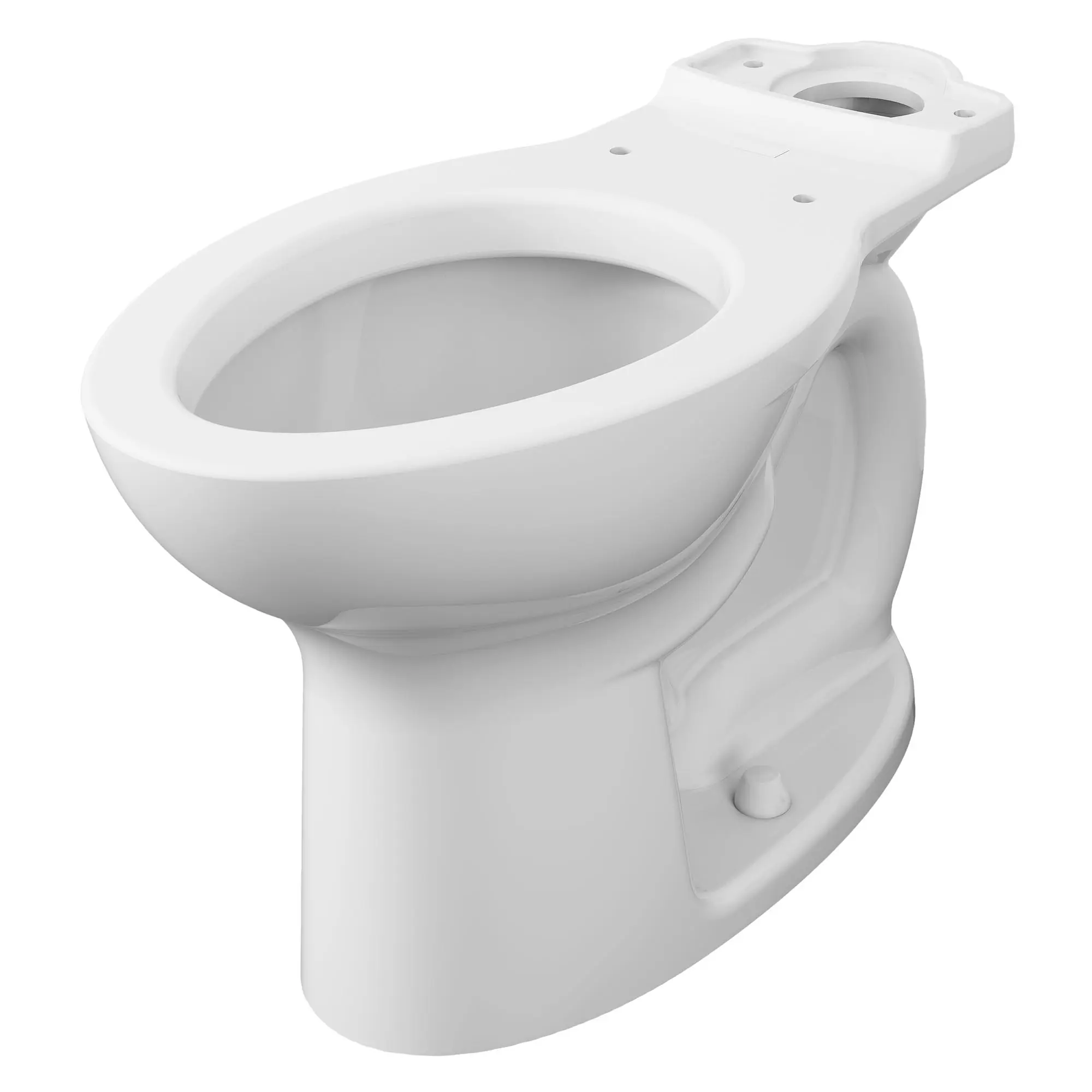

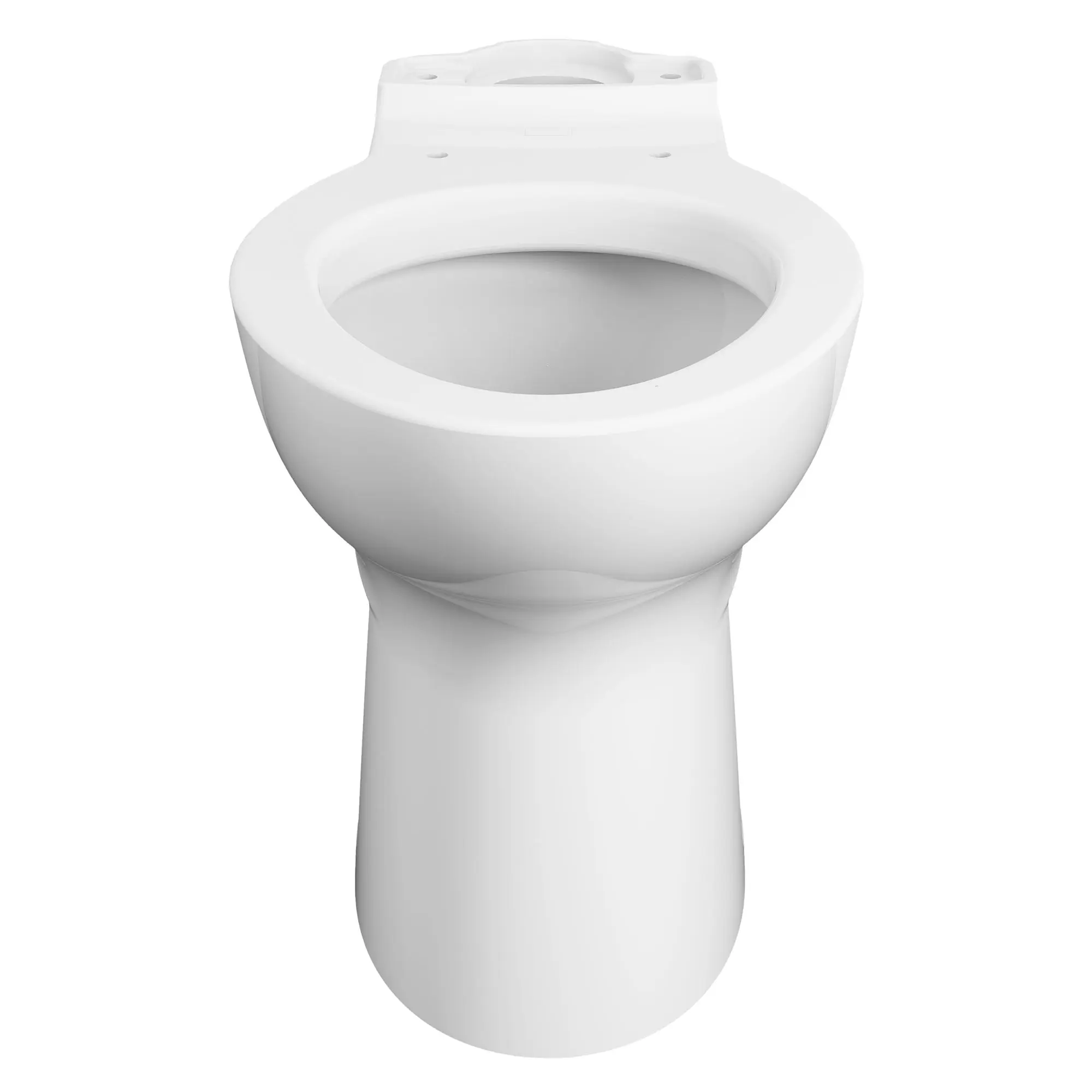

Cadet® PRO Compact Chair Height Elongated Bowl

The Cadet Pro Compact Chair Height Elongated Toilet Bowl Only from American Standard is engineered to enhance the features of coordinating tank (sold separately). Tall height provides sitting comfort and standing ease. The EverClean® finish inhibits the growth of stain and odor causing mildew. We recommend pairing this bowl with a Cadet Pro tank.

White 3517F101.020 DISCONTINUED
List Price: $302.00
ADA Compliant CEC Certified Environmental Product Declaration Everclean USMCA Compliant WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Bowl only
  • Smooth surface stays cleaner longer
  • Fully glazed 2-1/8 in. trapway to minimize clogging
  • Sanitary bar blocks grime from collecting under the tank
  • Made of durable, easy-clean vitreous china
  • Two color-matched bolt caps included
Technical Features
  • Bowl only
  • Smooth surface stays cleaner longer
  • Fully glazed 2-1/8 in. trapway to minimize clogging
  • Sanitary bar blocks grime from collecting under the tank
  • Made of durable, easy-clean vitreous china
  • Two color-matched bolt caps included
Nominal Dimensions: 27-1/16 in x 14 in x 17-5/16 in (687 mm x 356 mm x 440 mm)
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Category: Toilets
CEC Certified: Yes
Chair Height: Chair
Color / Finish: White
Collections: Cadet®
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Siphonic Jet
MAP Performance Rating: 1000
Height: 17-5/16
Length: 27-1/16
Width: 14
Residential or Commercial: Residential
Rough In Size: 12
Subcategory: Floor Standing Toilets
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/8
Toilet Type: Bowl Only
USMCA Compliant: Yes
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
