Find Your Salesperson

Greenbrook

Greenbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal With EverClean®

White 6516002EC.020 DISCONTINUED   Substitution Available (6590001EC.020)
List Price: $949.00
ADA Compliant Cal Green CEC Certified Everclean Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Highly aesthetic vitreous china urinal with large footprint
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included.
Technical Features
  • Highly aesthetic vitreous china urinal with large footprint
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included.
Nominal Dimensions: 15 in x 16-1/8 in x 27-1/2 in (381 mm x 410 mm x 699 mm)
Description
Net Weight
SKU
Color
List Price USD
Greenbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal With EverClean®
71 lb (32.0 kg)
6516002EC.020 *
White (020)
949
Optional Components (Not Included)
Vandal-Resistant Stainless Steel Strainer
0 lb (0.2 kg)
7381755-200.0020A
Chrome
39
Substitutions
Washbrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal With EverClean®
64 lb (29.0 kg)
6590001EC.020
White
477


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Department of Energy Certified: Yes
Collections: Greenbrook
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): .125 - 0.5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 27-1/2
Length: 15
Length: 15
Width: 16-1/8
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

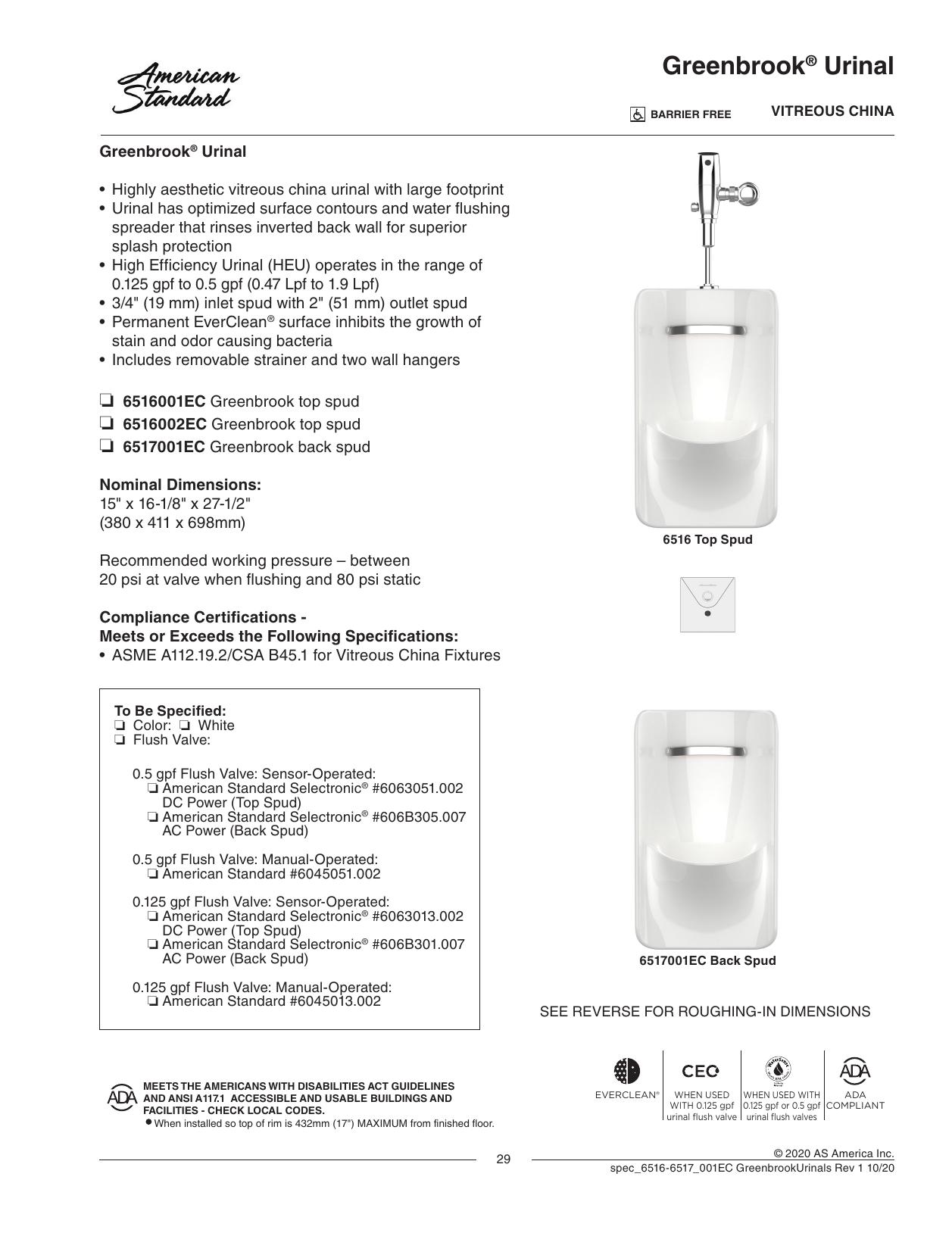

Specification Sheet

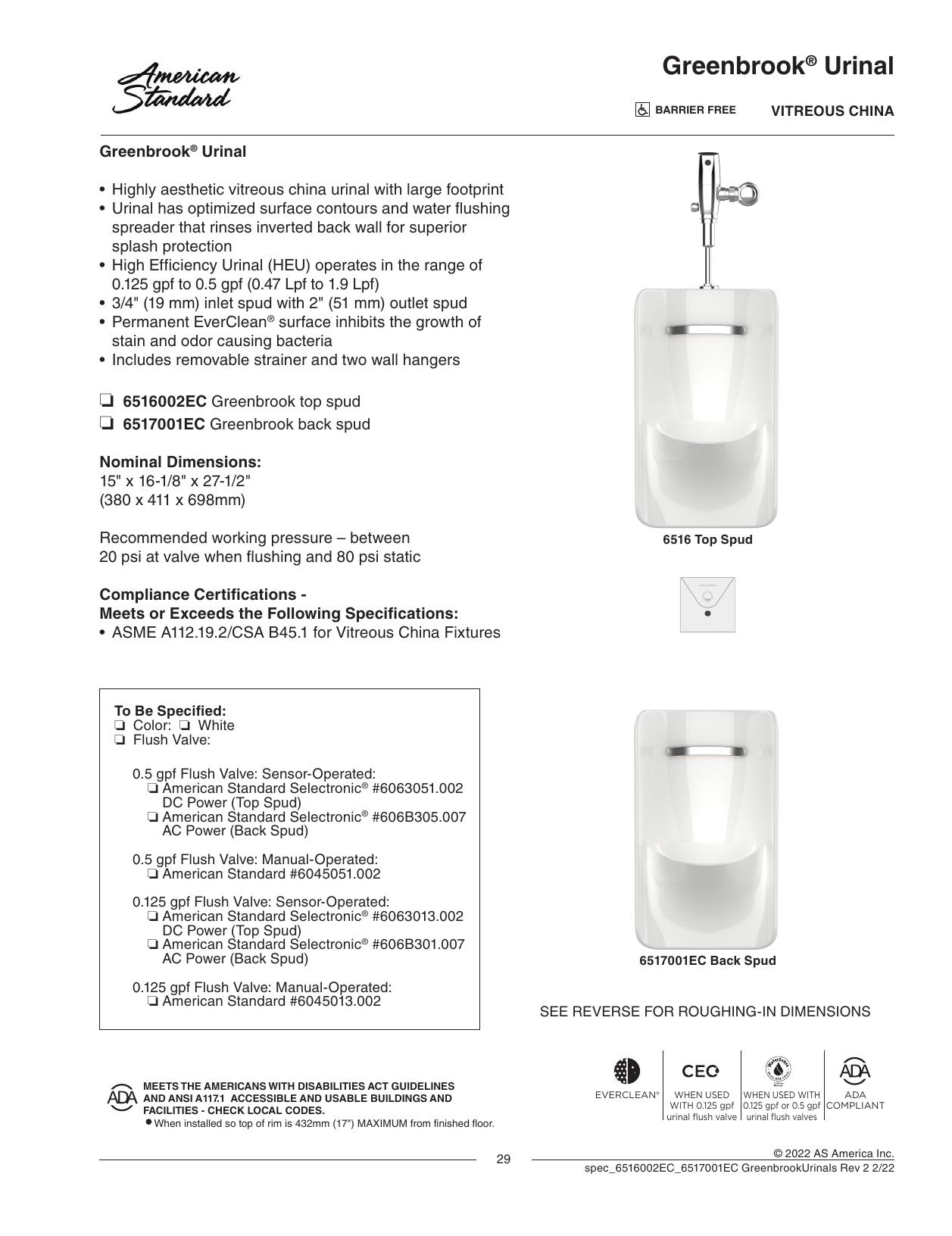

Specification Sheet

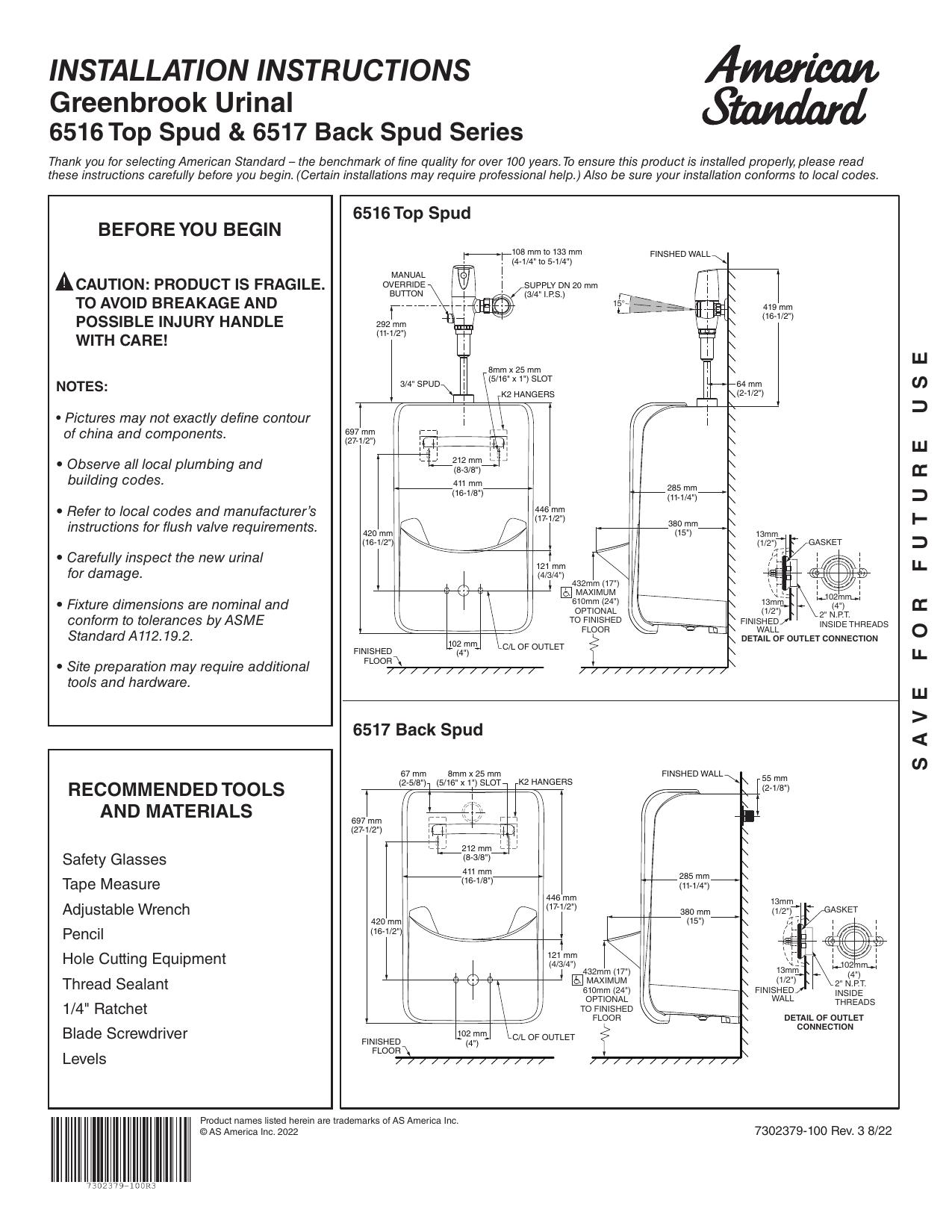

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
