Colony Pro

Colony® PRO Single-Handle Pull-Down Dual Spray Kitchen Faucet 1.5 gpm/5.7 L/min

The Colony Pro pull-down kitchen faucet from American Standard was designed with a fresh, versatile look. This easy-to-match kitchen faucet includes a pull-down spray head with two separate spray types, stream and spray, that help complete a wide range of kitchen tasks. A convenient pause feature stops the stream of water from flowing out of the faucet when needed. A maximum flow rate of 1.5 gallons per minute helps to save water, without sacrificing on performance.

Chrome 7074300.002 DISCONTINUED   Substitution Available (7077300.002)
List Price: $341.00
ADA Compliant Cal Green CEC Certified Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Drip-free ceramic disc valves
  • Durable materials
  • Multiple installation options for maximum flexibility
  • Pre-assembled color coded stainless steel supply hoses
  • One-hole installation with deckplate included (use is optional)
  • Limited lifetime warranty
Technical Features
  • Ceramic disc valve cartridge (35 mm)
  • 1.5 gpm/5.7 L/min maximum flow
  • Brass swivel spout
  • Metal deck plate and metal lever handle
  • Pull-down spray with adjustable spray pattern
  • Spout height: 14-5/8" (372 mm)
  • Spout reach: 8-7/8" (227 mm)
  • Spout clearance: 7-7/8" (201 mm)
  • Integrated braided stainless steel supply lines
Nominal Dimensions: 15-3/4 in x 8-14/16 in x 14-10/16 in (400 mm x 225 mm x 371 mm)
Description
Net Weight
SKU
Color
List Price USD
Colony® PRO Single-Handle Pull-Down Dual Spray Kitchen Faucet 1.5 gpm/5.7 L/min
6 lb (2.7 kg)
7074300.002 *
Chrome (002)
341
7074300.075 *
Stainless Steel (075)
410
Substitutions
Colony® PRO Single-Handle Pull-Down Dual Spray Kitchen Faucet 1.5 gpm/5.7 L/min
4 lb (1.9 kg)
7077300.002
Chrome
380
Spare Parts
Seal Washer
0 lb (0.2 kg)
A911836-0070A
No Finish
8
spacer
Cartridge Cover
0 lb (0.0 kg)
M907315-0130A *
Polished Nickel
9
M907315-2780A *
Legacy Bronze
10
spacer
Handspray for Kitchen Faucet
0 lb (0.1 kg)
M950242-0020A
Chrome
39
spacer
35mm Cartridge & Screw Kit
0 lb (0.0 kg)
M951483-0070A
No Finish
16
spacer
MOUNTING KIT
0 lb (0.1 kg)
M962146-0070A
No Finish
17
spacer
Escutcheon And Putty Plate-Rp-
1 lb (0.3 kg)
M962806-0020A *
Chrome
26
spacer
Spray Hose
0 lb (0.2 kg)
M964766-0020A
Chrome
49
spacer
Snap-On Counterweight
1 lb (0.3 kg)
M970705-0070A
No Finish
13


Models marked with * are discontinued, but product may still be available while supplies last.

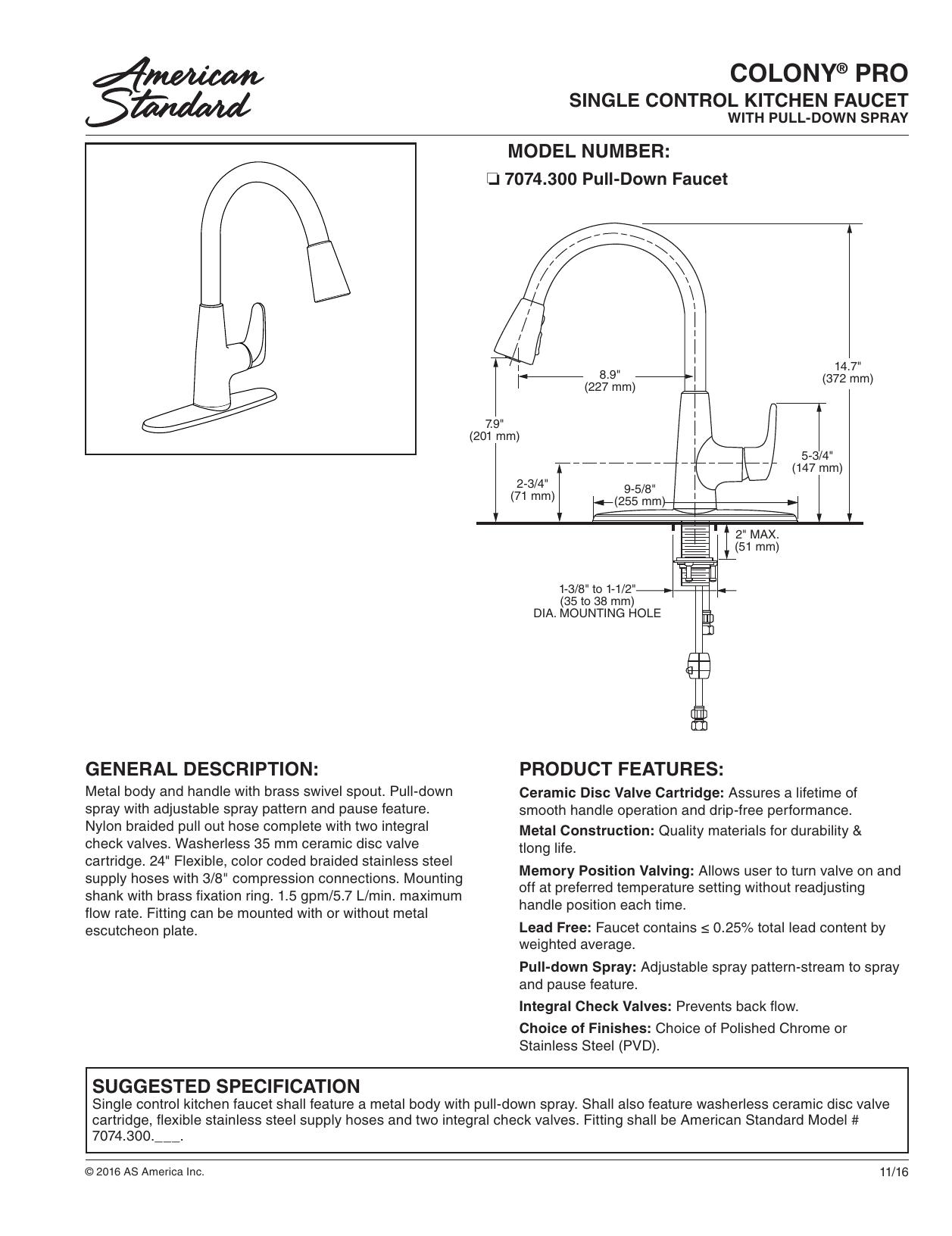

Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Kitchen Faucets
CEC Certified: Yes
Color / Finish: Chrome
Collections: Colony Pro
Escutcheon Internal Diameter: 1-5/16
Faucet Type: Mono block Pull Down
Fitting Connection Size Input: 9.52
Handle Height: 5-13/16
Handle Material: Metal
Handle Type: Lever
Fitting Material: Brass
Mount Type: Sink Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 7-15/17
Spout Type: High Arc
Valve Material: Ceramic
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.5 GPM
Handle Length: 4-3/4
Input Connection Type: Compression
Height: 14-10/16
Length: 15-3/4
Width: 8-14/16
Pull Down Faucet: Yes
Residential or Commercial: Residential
Subcategory: Mono Block Pull Down Kitchen Faucets
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
