Features
- Ceramic disc valve cartridges provide a lifetime of drip-free performance
- Memory positioning valve will open and close in any temperature position making repetitive tasks easier
- Integrated and adjustable stop allows user to set maximum hot temperature to prevent accidental scalding
- Multiple configurations available for maximum installation flexibility
- Constructed from durable materials
- Limited lifetime warranty

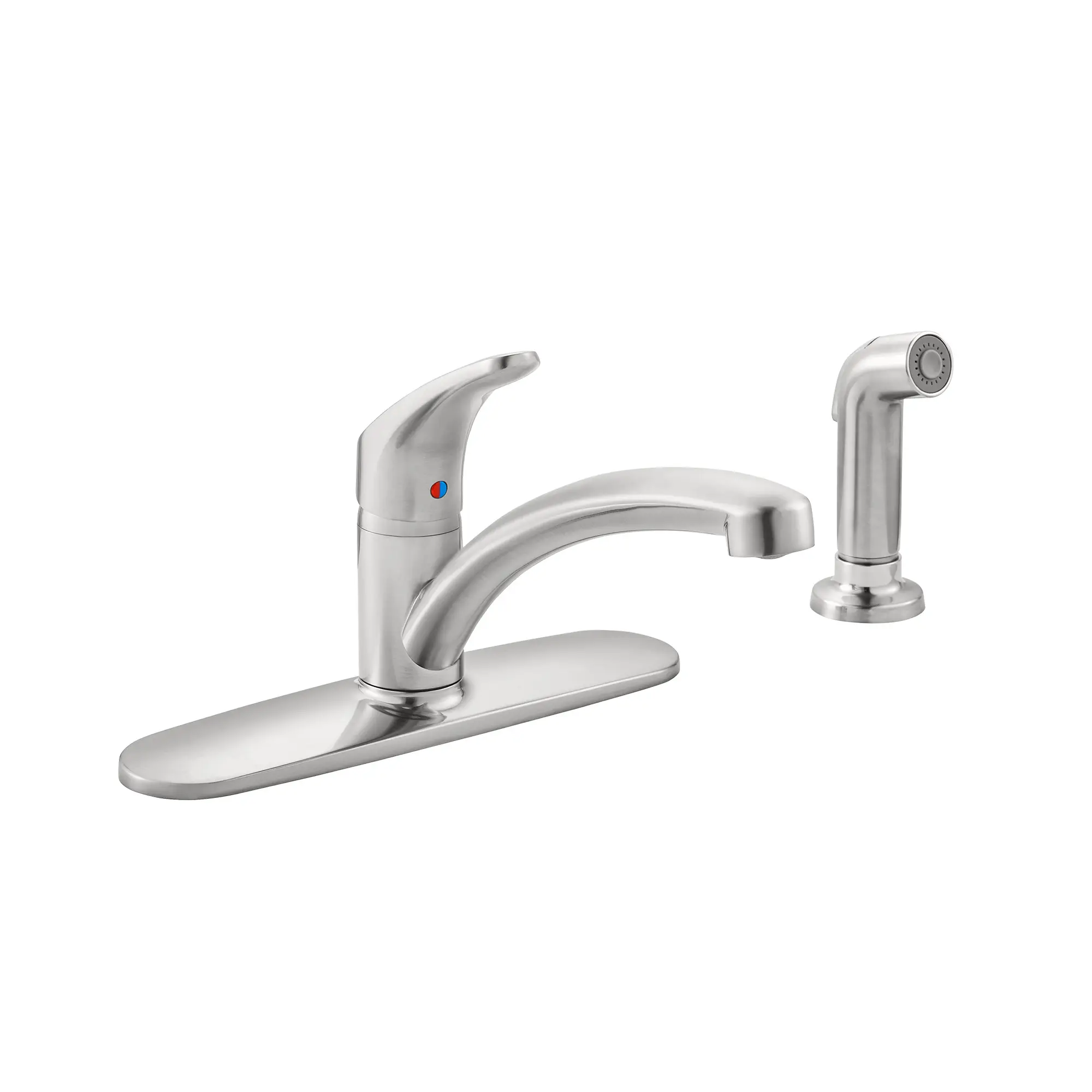

Technical Features
- Ceramic disc valve cartridge (35 mm)
- 1.5 gpm/5.7 L/min maximum flow
- Brass swivel spout
- Metal deck plate and metal lever handle
- With side spray
- Spout height: 5-7/8" (150 mm)
- Spout reach: 8-1/2" (216 mm)
- Spout clearance: 4-7/8" (125 mm)
- Integrated braided stainless steel supply lines
Nominal Dimensions: 13-3/4 in x 10-6/16 in x 6-7/16 in (349 mm x 264 mm x 164 mm)
