Features
- LESS Drain
- WITH Red/Blue temperature indicators
- Integrated flexible hose connections on valve body for 6" to 12" (152 mm to 30 5mm) installations
- 1/4 turn washerless ceramic disc valve cartridges.
- Cast brass spout
- 24" stainless steel braided flexible supply hoses with 3/8" compression connectors
- 1.2 gpm/4.5 L/min. maximum flow rate
Technical Features
- Brass construction
- Washerless ceramic disc valve cartridges
- Valve bodies with integrated flexible hose connections for 6"–12" (152–305mm) installation
- Water-conserving 1.2 gpm/4.5L/min pressure-compensating aerator
- Cast brass spout
- Metal lever handles
- With Red/Blue temperature indicator markings
- Less drain

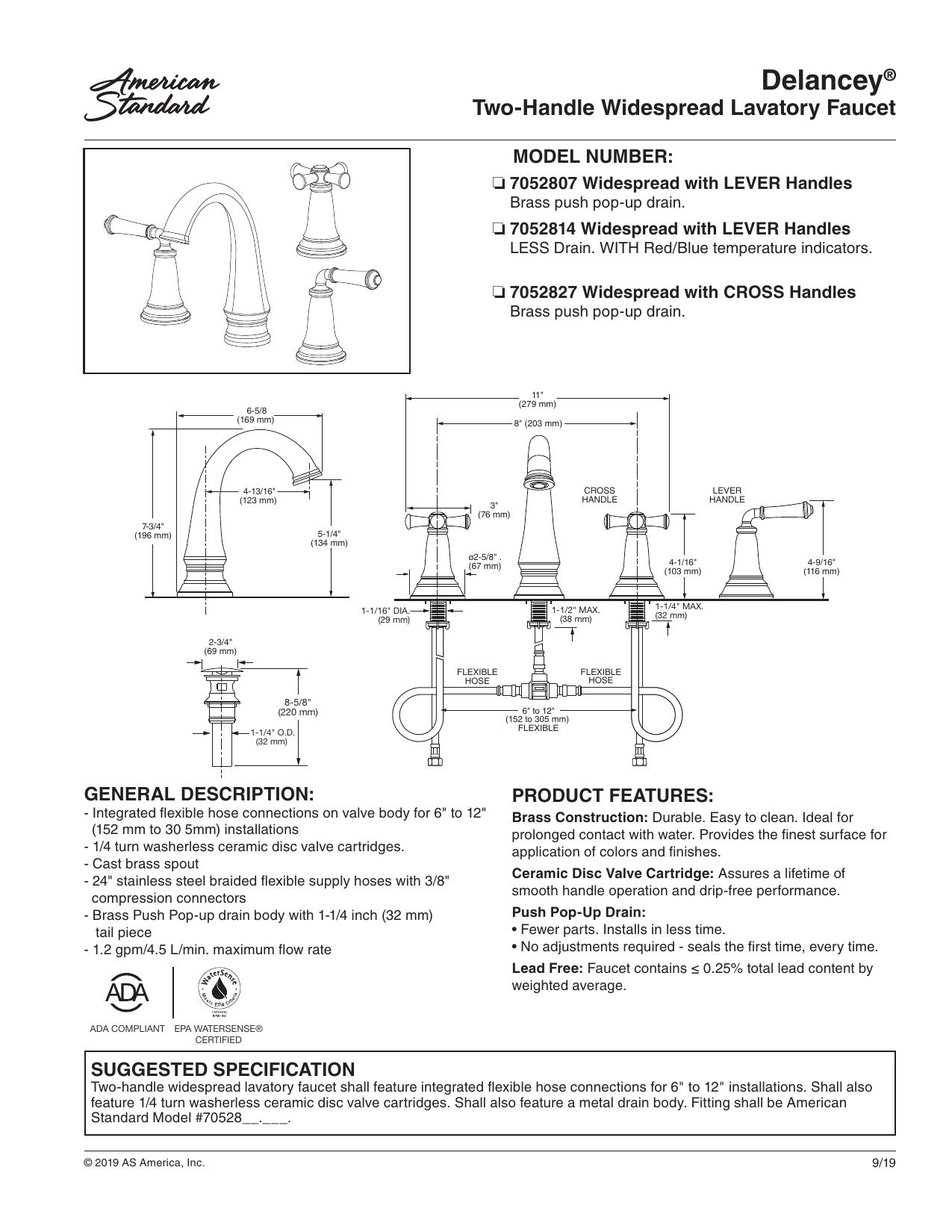

Nominal Dimensions: 6-5/8 in x 15.24 in x 7-11/16 in (168 mm x 387 mm x 195 mm)
